PCM Removal and Installation: Installation

NOTE:

• If you are removing the PCM, skip the procedures of using the HDS.
• If you are substituting the PCM, skip the procedures of WRITE DATA (Engine Oil Life).

1. PCM - Install

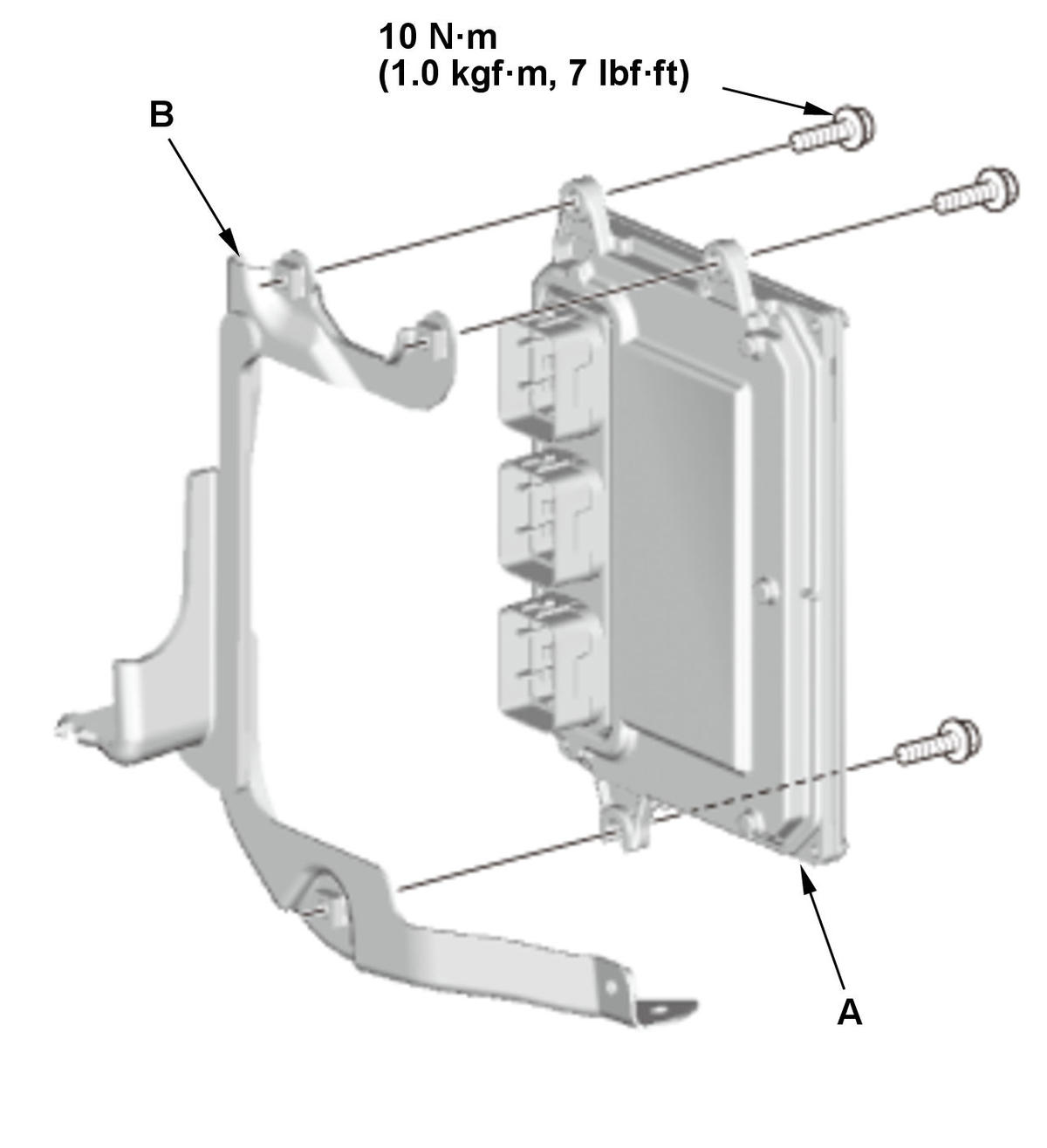

   Fig 1: PCM To Bracket With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   1. Install the PCM (A) to the PCM bracket (B).

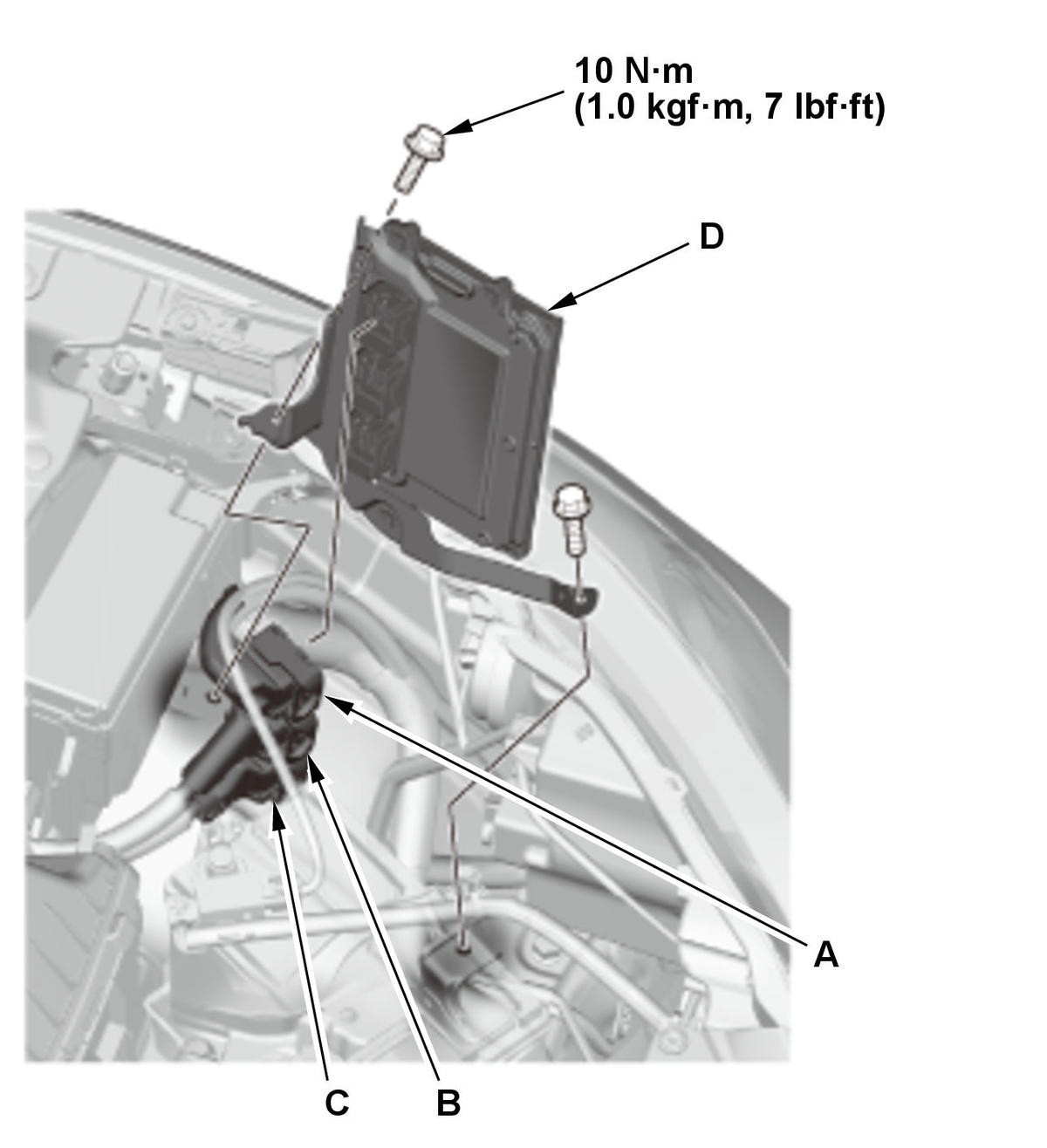

   Fig 2: PCM With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   2. Install the PCM (D). 3. Connect PCM connectors A, B, and C. NOTE:  PCM connectors A, B, and C have symbols (A=□, B=Δ, C=o) embossed on them for identification.

   Courtesy of HONDA, U.S.A., INC.

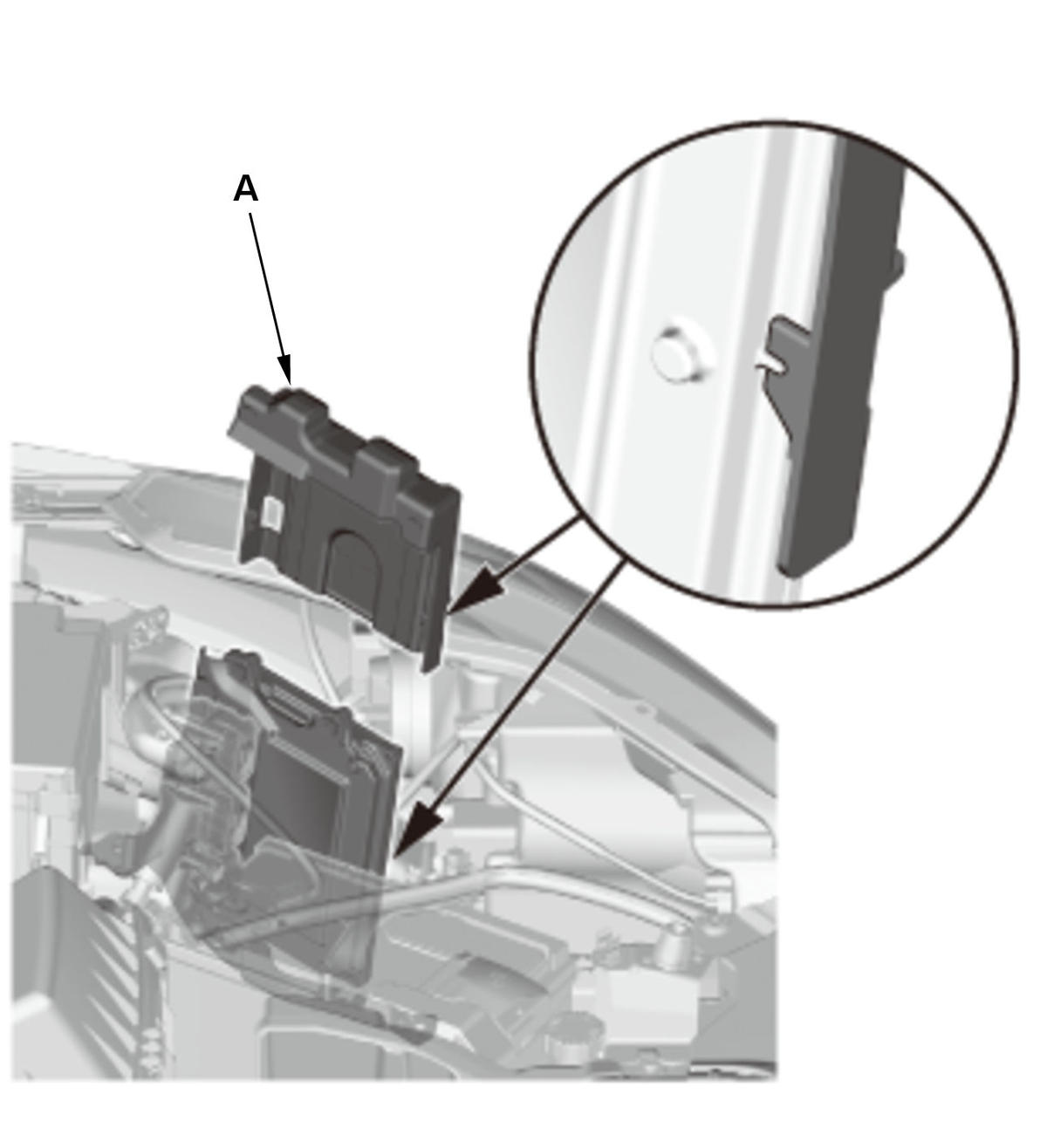

   4. Install the PCM cover (A).

2. SCS - Open

   1. Exit the SCS mode with the HDS.

   Procedure After Replacing PCM

3. VIN - Input

   1. Turn the vehicle to the ON mode. NOTE:  DTC P0630 VIN Not Programmed or Mismatch may be stored because the VIN has not been programmed into the PCM; ignore it, and continue this procedure. 2. Manually input the VIN to the PCM with the HDS.

4. WRITE DATA (Engine Oil Life) - Select (USA and Canada Models)

   NOTE:  If the READ DATA (engine oil life) failed in "READ DATA (Engine Oil Life) - Select", skip this procedure. 1. Select the REPLACE PCM MENU, then select WRITE DATA, and follow the screen prompts.

5. Other Procedures for PCM Replacement - Do (USA and Canada Models)

   1. If the READ DATA (engine oil life) failed in "READ DATA (Engine Oil Life) - Select", replace the engine oil and the engine oil filter .

6. IMMOBI SYSTEM - Registration
   • Without keyless access system .
   • With keyless access system .
7. DTC - Clear

   Clear the Pending or Confirmed DTCs with the HDS.

8. PCM - Update
9. PCM - Idle Learn
10. CKP Pattern - Clear/Learn
