Body Control Module Connector for Inputs and Outputs
| Connector Index |
|---|
| Body Control Module Connector A (66P) |
| Body Control Module Connector B (66P) |
| Body Control Module Connector C (66P) |

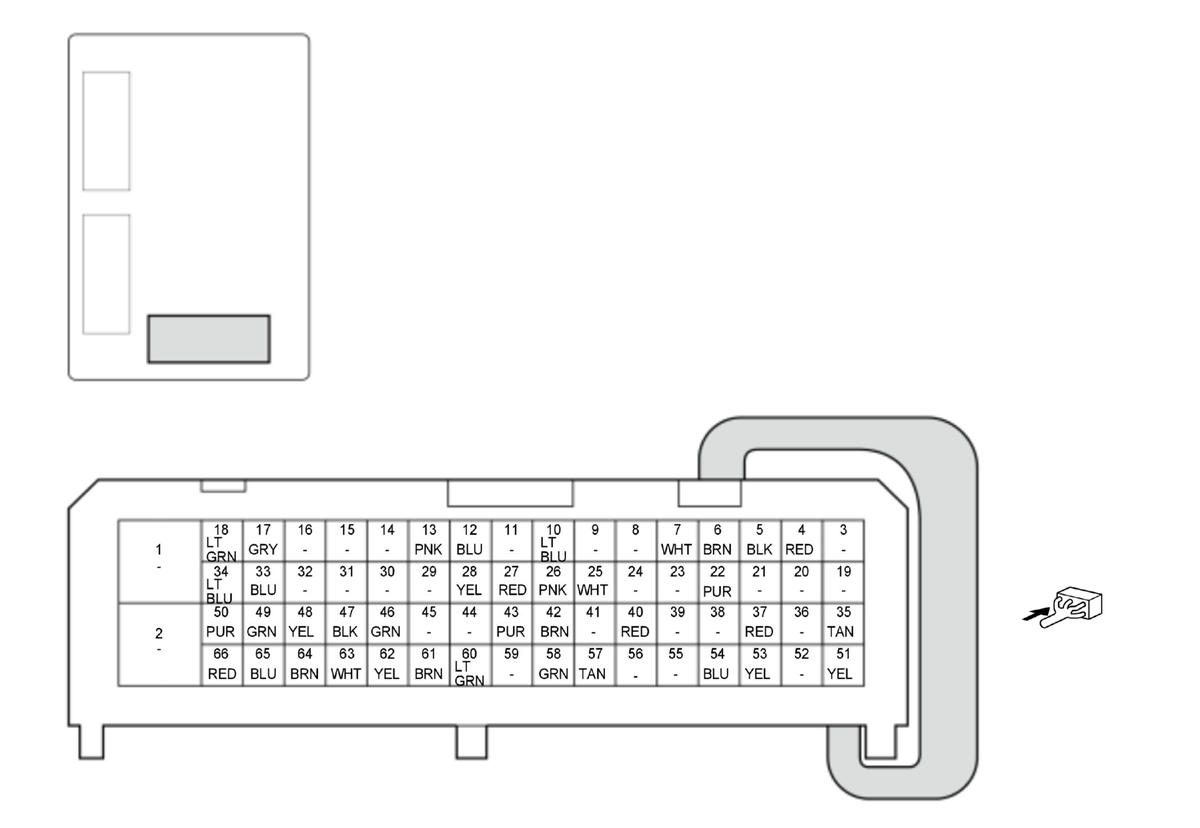

Body Control Module Connector A (66P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B BACK UP | +B power source for body control module | About battery voltage at all times |
| 2 | IG1 FUEL PUMP | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 3 | Not used | --- | --- |
| 4 | ACC | ACC power source | With vehicle in ACCESSORY or ON mode: about battery voltage |
| 5 | Not used | --- | --- |
| 6 | PASSING SW | Detects PASSING SW signal | With combination light switch PASSING: less than 0.2 V With combination light switch OFF and body control module is wake-up mode: about battery voltage With combination light switch OFF and body control module is sleep mode: pulse |
| 7 | H/L ON SW | Detects H/L ON SW signal | With combination light switch ON: less than 0.2 V With combination light switch OFF and body control module is wake-up mode: about battery voltage With combination light switch OFF and body control module is sleep mode: pulse |
*: With smart entry function
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 8 | FR WIPER INT SW | Detects FR WIPER INT SW signal | With windshield wiper switch INT or LO: less than 0.2 V With out of windshield wiper switch INT or LO and body control module is wake-up mode: about battery voltage With out of windshield wiper switch INT or LO and body control module is sleep mode: less than 0.2 V |
| 9* | TRUNK OPEN SW | Detects TRUNK OPEN SW signal | With trunk lid outer handle switch ON: less than 0.2 V With trunk lid outer handle switch OFF and body control module is wake-up mode: about battery voltage With trunk lid outer handle switch OFF and body control module is sleep mode: pulse |
| 10 | FR WASHER SW | Detects FR WASHER SW signal | With windshield washer switch ON: less than 0.2 V With windshield washer switch OFF and body control module is wake-up mode: about battery voltage With windshield washer switch OFF and body control module is sleep mode: less than 0.2 V |
| 11 | Not used | --- | --- |
| 12 | SMALL LT SW | Detects SMALL LT SW signal | With combination light switch PARKING: less than 0.2 V With combination light switch OFF and body control module is wake-up mode: about battery voltage With combination light switch OFF and body control module is sleep mode: pulse |
| 13 | FR FOG SW | Detects FR FOG SW signal | With fog light switch ON: less than 0.2 V With fog light switch OFF and body control module is wake-up mode: about battery voltage With fog light switch OFF and body control module is sleep mode: pulse |
| 14 | Not used | --- | --- |
| 15 | D/L LOCK RLY CL- | Drives power door lock relay circuit (LOCK) | With door lock actuators in locking operation: less than 0.2 V |
| 16 | Not used | --- | --- |
| 17 | Not used | --- | --- |
| 18 | TRUNK ACT RLY CL- | Drives trunk lid release actuator relay circuit | With trunk lid release actuator operation: less than 0.2 V |
| 19 | Not used | --- | --- |
| 20 | Not used | --- | --- |
| 21 | ATP-P | Detects ATP-P signal | With P position/mode: less than 0.2 V With out of P position/mode and body control module is wake-up mode: about battery voltage With out of P position/mode and body control module is sleep mode: pulse |
| 22 | Not used | --- | --- |
| 23 | IG2 DRL | IG2 power source | With vehicle in ON mode: about battery voltage |
| 24 | FR WIPER MIST SW | Detects FR WIPER MIST SW signal | With windshield washer switch MIST: less than 0.2 V With out of windshield wiper switch MIST and body control module is wake-up mode: about battery voltage With out of windshield wiper switch MIST and body control module is sleep mode: less than 0.2 V |
*: With smart entry function
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 25 | H/L HI SW | Detects H/L HI SW signal | With combination light switch HI: less than 0.2 V With combination light switch OFF and body control module is wake-up mode: about battery voltage With combination light switch OFF and body control module is sleep mode: pulse |
| 26 | BRK DIAG | Detects BRK DIAG signal | With brake pedal pressed: about battery voltage With brake pedal released: less than 0.2 V |
| 27 | Not used | --- | --- |
| 28 | Not used | --- | --- |
| 29 | Not used | --- | --- |
| 30 | Not used | --- | --- |
| 31 | Not used | --- | --- |
| 32 | D/L UNLOCK RLY CL- | Drives power door lock relay circuit (UNLOCK) | With door lock actuators in unlocking operation: less than 0.2 V |
| 33 | DR DOOR UNLOCK RELAY CL- | Drives power door lock relay circuit (DR UNLOCK) | With driver's door lock actuator in unlocking operation: less than 0.2 V |
| 34 | Not used | --- | --- |
| 35 | Not used | --- | --- |
| 36 | Not used | --- | --- |
| 37 | BACK LT | Detects BACK LT signal | With vehicle in ON mode and R position/mode: about battery voltage If none of above conditions are met: less than 0.2 V |
| 38 | Not used | --- | --- |
| 39 | COMBI SW GND (WIP) | Ground for wiper/washer switch | Less than 0.2 V at all times |
| 40 | COMBI SW GND (LT) | Ground for combination light switch | Less than 0.2 V at all times |
| 41 | H/L OFF SW | Detects H/L OFF SW signal | With combination light switch OFF: less than 0.2 V With combination light switch ON and body control module is wake-up mode: about battery voltage With combination light switch ON and body control module is sleep mode: pulse |
| 42 | R TURN SW | Detects R TURN SW signal | With right turn signal switch ON: less than 0.2 V With right turn signal switch OFF and body control module is wake-up mode: about battery voltage With right turn signal switch OFF and body control module is sleep mode: less than 0.2 V |
| 43 | SMART BUZZER | Outputs SMART BUZZER signal | --- |
| 44 | P/W TIMER | Drives power window relay | Without vehicle off operation: about battery voltage With vehicle off operation: less than 0.2 V |
| 45 | Not used | --- | --- |
| 46 | Not used | --- | --- |
| 47 | Not used | --- | --- |
| 48 | Not used | --- | --- |
| 49 | FR WIPER INT VOL | Detects FR WIPER INT VOL signal | With vehicle in ON mode: about 0-5 V (depending on intermittent dwell time controller) |
| 50 | INTR LIGHT- | Outputs INTR LIGHT- signal | --- |
| 51 | Not used | --- | --- |
| 52 | Not used | --- | --- |
| 53 | Not used | --- | --- |
| 54 | B-CAN_H | Communication line | --- |
*: With smart entry function
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 55 | B-CAN_L | Communication line | --- |
| 56 | GND | Ground for body control module | Less than 0.2 V at all times |
| 57 | CDS | Detects CDS signal | With SRS unit collision detection: less than 0.2 V With SRS unit non-collision detection and body control module is wakeup mode: about battery voltage With body control module is sleep mode: less than 0.2 V |
| 58 | L TURN SW | Detects L TURN SW signal | With left turn signal switch ON: less than 0.2 V With left turn signal switch OFF and body control module is wake-up mode: about battery voltage With left turn signal switch OFF and body control module is sleep mode: less than 0.2 V |
| 59 | Not used | --- | --- |
| 60 | LIN (FR WIPER) | Communication line | --- |
| 61 | Not used | --- | --- |
| 62 | Not used | --- | --- |
| 63 | F-CAN B_L | Communication line | --- |
| 64 | F-CAN B_H | Communication line | --- |
| 65 | Not used | --- | --- |
| 66 | Not used | --- | --- |
*: With smart entry function

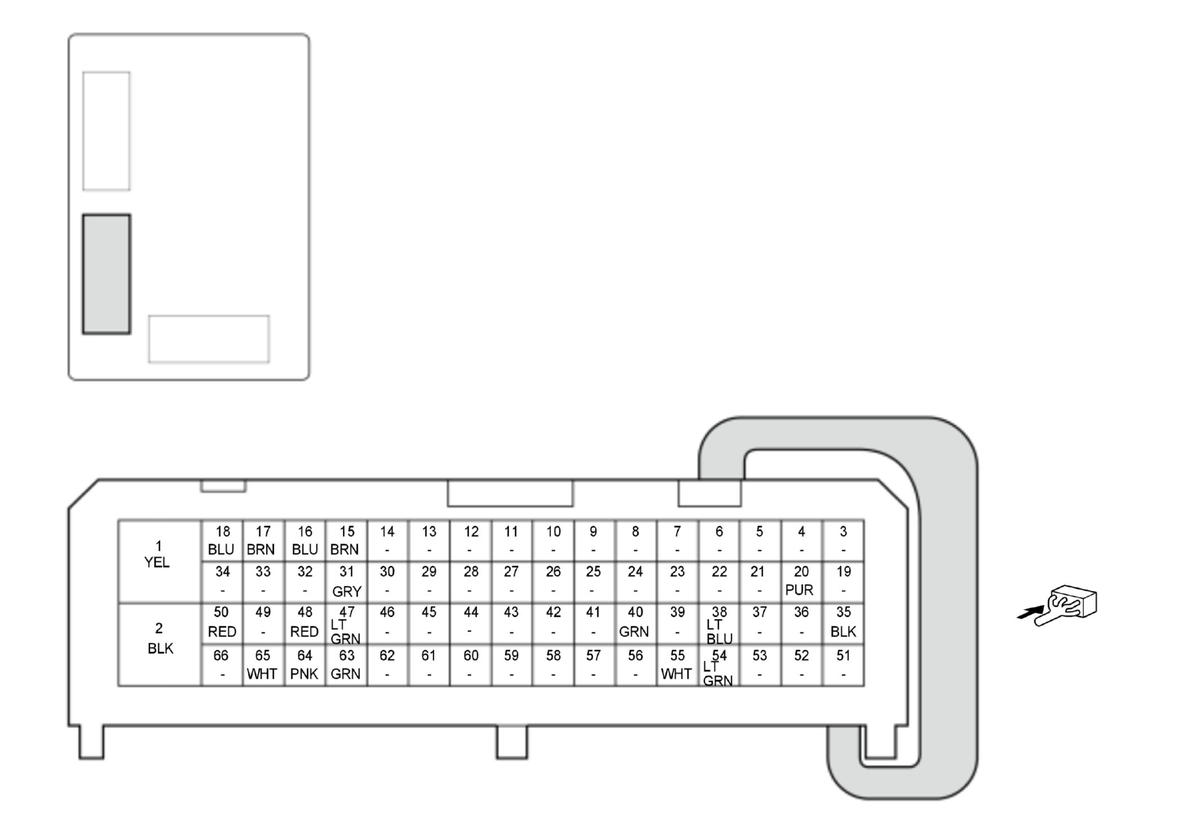

Body Control Module Connector B (66P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B HAZARD | +B power source for body control module | About battery voltage at all times |
| 2 | GND | Ground for body control module | Less than 0.2 V at all times |
| 3 | Not used | --- | --- |
| 4 | Not used | --- | --- |
| 5 | Not used | --- | --- |
| 6 | Not used | --- | --- |
| 7 | Not used | --- | --- |
| 8 | Not used | --- | --- |
| 9 | Not used | --- | --- |
| 10 | Not used | --- | --- |
| 11 | Not used | --- | --- |
| 12 | Not used | --- | --- |
| 13 | Not used | --- | --- |
| 14 | Not used | --- | --- |
| 15 | R TURN | Outputs R TURN signal | With right turn signal light ON: about battery voltage |
| 16 | L TURN | Outputs L TURN signal | With left turn signal light ON: about battery voltage |
| 17 | FR R TURN | Outputs FR R TURN signal | With right turn signal light ON: about battery voltage |
| 18 | FR L TURN | Outputs FR L TURN signal | With left turn signal light ON: about battery voltage |
| 19 | Not used | --- | --- |
| 20 | BACK UP (WIPER) | Outputs BACK UP (WIPER) signal | With wiper HI or LO operation: about battery voltage If none of above conditions are met: less than 0.2 V |
| 21 | Not used | --- | --- |
| 22 | Not used | --- | --- |
| 23 | Not used | --- | --- |
| 24 | Not used | --- | --- |
| 25 | Not used | --- | --- |
| 26 | Not used | --- | --- |
| 27 | Not used | --- | --- |
| 28 | Not used | --- | --- |
| 29 | Not used | --- | --- |
| 30 | Not used | --- | --- |
| 31 | RR R SILCON UNLOCK | Detects RR R SILCON UNLOCK signal | With right rear door lock knob switch UNLOCK: less than 0.2 V With right rear door lock knob switch LOCK and body control module is wake-up mode: about battery voltage With right rear door lock knob switch LOCK and body control module is sleep mode: pulse |
| 32 | Not used | --- | --- |
| 33 | Not used | --- | --- |
| 34 | Not used | --- | --- |
| 35 | GND | Ground for body control module | Less than 0.2 V at all times |
| 36 | Not used | --- | --- |
| 37 | Not used | --- | --- |
| 38 | K-LINE | Communication line | --- |
| 39 | Not used | --- | --- |
| 40 | HAZARD SW | Detects HAZARD SW signal | With hazard warning switch OFF: about battery voltage With hazard warning switch ON: less than 0.2 V |
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 41 | Not used | --- | --- |
| 42 | Not used | --- | --- |
| 43 | Not used | --- | --- |
| 44 | Not used | --- | --- |
| 45 | Not used | --- | --- |
| 46 | Not used | --- | --- |
| 47 | FR DOOR SW | Detects FR DOOR SW signal | With front passenger's door switch ON: less than 0.2 V With front passenger's door switch OFF and body control module is wake-up mode: about battery voltage With front passenger's door switch OFF and body control module is sleep mode: pulse |
| 48 | RR DOOR SW | Detects RR DOOR SW signal | With right rear door switch ON: less than 0.2 V With right rear door switch OFF and body control module is wake-up mode: about battery voltage With right rear door switch OFF and body control module is sleep mode: pulse |
| 49 | Not used | --- | --- |
| 50 | RR L SILCON UNLOCK | Detects RR L SILCON UNLOCK signal | With left rear door lock knob switch UNLOCK: less than 0.2 V With left rear door lock knob switch LOCK and body control module is wake-up mode: about battery voltage With left rear door lock knob switch LOCK and body control module is sleep mode: pulse |
| 51 | Not used | --- | --- |
| 52 | Not used | --- | --- |
| 53 | Not used | --- | --- |
| 54 | S-NET | Communication line | --- |
| 55 | FR WIPER HI SW | Detects FR WIPER HI SW signal | With windshield wiper switch HI or LO: less than 0.2 V With out of windshield wiper switch HI or LO and body control module is wake-up mode: about battery voltage With out of windshield wiper switch HI or LO and body control module is sleep mode: less than 0.2 V |
| 56 | Not used | --- | --- |
| 57 | Not used | --- | --- |
| 58 | Not used | --- | --- |
| 59 | Not used | --- | --- |
| 60 | Not used | --- | --- |
| 61 | Not used | --- | --- |
| 62 | Not used | --- | --- |
| 63 | FL DOOR SW | Detects FL DOOR SW signal | With driver's door switch ON: less than 0.2 V With driver's door switch OFF and body control module is wake-up mode: about battery voltage With driver's door switch OFF and body control module is sleep mode: pulse |
| 64 | RL DOOR SW | Detects RL DOOR SW signal | With left rear door switch ON: less than 0.2 V With left rear door switch OFF and body control module is wake-up mode: about battery voltage With left rear door switch OFF and body control module is sleep mode: pulse |
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 65 | TRUNK SW | Detects TRUNK SW signal | With trunk lid latch switch ON: less than 0.2 V With trunk lid latch switch OFF and body control module is wake-up mode: about battery voltage With trunk lid latch switch OFF and body control module is sleep mode: pulse |
| 66 | Not used | --- | --- |

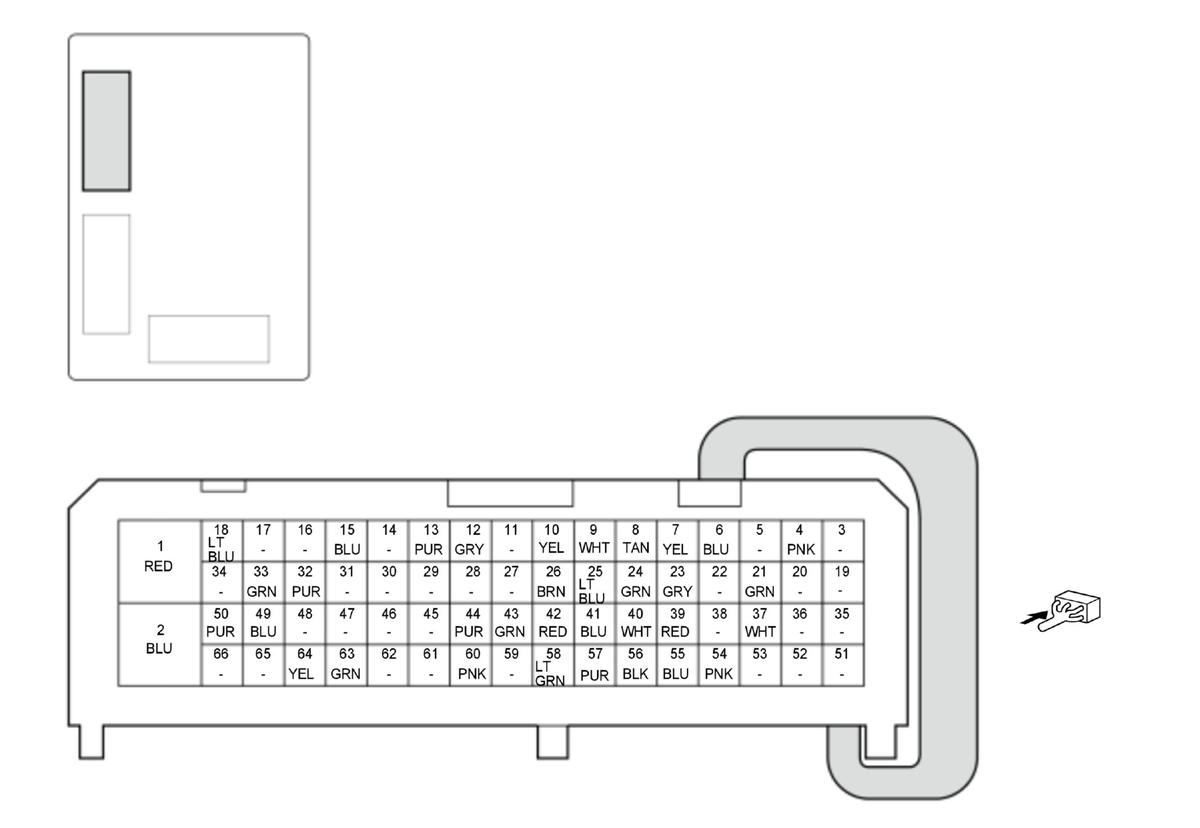

Body Control Module Connector C (66P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | Not used | --- | --- |
| 2 | Not used | --- | --- |
| 3 | Not used | --- | --- |
| 4* | VOUT FR AS | Drives front passenger's door outer handle touch sensor and lock sensor | --- |
| 5 | SS2 (-) | Detects SS2 (-) signal | --- |
| 6* | VOUT FR DR | Drives driver's door outer handle touch sensor and lock sensor | --- |
| 7* | TS FR DR | Detects TS FR DR signal | --- |
| 8 | Not used | --- | --- |
| 9 | Not used | --- | --- |
| 10* | DL FR DR | Detects DL FR DR signal | --- |
| 11 | Not used | --- | --- |
*: With smart entry function
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 12 | START SW IND2 | Drives power switch light (WHITE) | With power switch light (WHITE) OFF: about battery voltage With power switch light (WHITE) ON: less than 0.2 V |
| 13 | +B SMART | +B power source | About battery voltage at all times |
| 14 | Not used | --- | --- |
| 15 | Not used | --- | --- |
| 16 | Not used | --- | --- |
| 17* | EXT TR- | Outputs EXT TR- signal | --- |
| 18 | EXT M- (TI-) | Outputs EXT M- (TI-) signal | --- |
| 19 | Not used | --- | --- |
| 20 | Not used | --- | --- |
| 21 | Not used | --- | --- |
| 22* | TS FR AS | Detects TS FR AS signal | --- |
| 23 | Not used | --- | --- |
| 24 | Not used | --- | --- |
| 25* | DL FR AS | Detects DL FR AS signal | --- |
| 26 | IG2 SIG | IG2 power source | With vehicle in ON mode: about battery voltage |
| 27 | IG1-A SIG | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 28 | IG1-B SIG | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 29 | Not used | --- | --- |
| 30 | Not used | --- | --- |
| 31 | Not used | --- | --- |
| 32 | Not used | --- | --- |
| 33* | EXT TR+ | Outputs EXT TR+ signal | --- |
| 34 | EXT M+ (TI+) | Outputs EXT M+ (TI+) signal | --- |
| 35 | IGN TRX | Communication line | --- |
| 36 | Not used | --- | --- |
| 37 | H-BRAKE SW (EPB) | Detects H-BRAKE SW (EPB) signal | --- |
| 38 | Not used | --- | --- |
| 39 | Not used | --- | --- |
| 40 | START SW IND1 | Drives power switch light (RED) | With power switch (RED) OFF: about battery voltage With power switch (RED) ON: less than 0.2 V |
| 41 | Not used | --- | --- |
| 42 | ESL PWR | Outputs ESL PWR signal | --- |
| 43 | IG2 COIL+ | Drives IG2 relay circuit | With vehicle in ON mode: about battery voltage With vehicle in OFF (LOCK) mode: less than 0.2 V |
| 44 | Not used | --- | --- |
| 45 | Not used | --- | --- |
| 46* | EXT FR DR+ | Outputs EXT FR DR+ signal | --- |
| 47 | CONT RLY GND | Ground for IG1A/IG1B/IG2/ACC relay circuits | Less than 0.2 V at all times |
| 48 | EXT F+ | Outputs EXT F+ signal | --- |
| 49* | EXT FR AS+ | Outputs EXT FR AS+ signal | --- |
| 50 | EXT R+ | Outputs EXT R+ signal | --- |
| 51 | STS | Outputs STS signal | With engine starting request: about battery voltage |
| 52 | Not used | --- | --- |
*: With smart entry function
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 53 | L-LINE | Communication line | --- |
| 54 | IG1 COIL+ | Drives IG1A and IG1B relay circuit | With vehicle in ON or START mode: about battery voltage With vehicle in OFF (LOCK) mode: less than 0.2 V |
| 55 | Not used | --- | --- |
| 56 | Not used | --- | --- |
| 57 | SRKS | Detects SRKS signal | --- |
| 58 | ACC CONT | Drives ACC relay circuit | With vehicle in ACCESSORY or ON mode: about battery voltage With vehicle in OFF (LOCK) mode: less than 0.2 V |
| 59 | Not used | --- | --- |
| 60 | SSSW LF ANT- | Outputs SSSW LF ANT- signal | --- |
| 61 | SSSW LF ANT+ | Outputs SSSW LF ANT+ signal | --- |
| 62* | EXT FR DR- | Outputs EXT FR DR- signal | --- |
| 63 | SS1 (+) | Detects SS1 (+) signal | Power switch pressed: about battery voltage Power switch released: less than 0.2 V |
| 64 | EXT F- | Outputs EXT F- signal | --- |
| 65* | EXT FR AS- | Outputs EXT FR AS- signal | --- |
| 66 | EXT R- | Outputs EXT R- signal | --- |
*: With smart entry function
