DTC B1658

DTC B1658  : Rear Bumper LF Antenna Circuit Open

NOTE:  If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A .

DTC (Keyless Access Control Unit)

1. Problem verification

   -1. Clear the DTCs with the HDS.

   -2. Select the KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter the SELF CHECK.

   -3. Do the SELF CHECK.

   SELF CHECK

   Check for DTCs with the HDS.

   DTC Description	DTC
   B1658 Rear Bumper LF Antenna Circuit Open

   Is DTC B1658 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

2. Open wire check (EXT TR+, EXT TR- lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connectors.

   Body control module connector C (66P)

   Rear bumper LF antenna 2P connector

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Body control module connector C (66P): disconnected Rear bumper LF antenna 2P connector: disconnected
   Test point 1	Body control module connector C (66P) No. 33

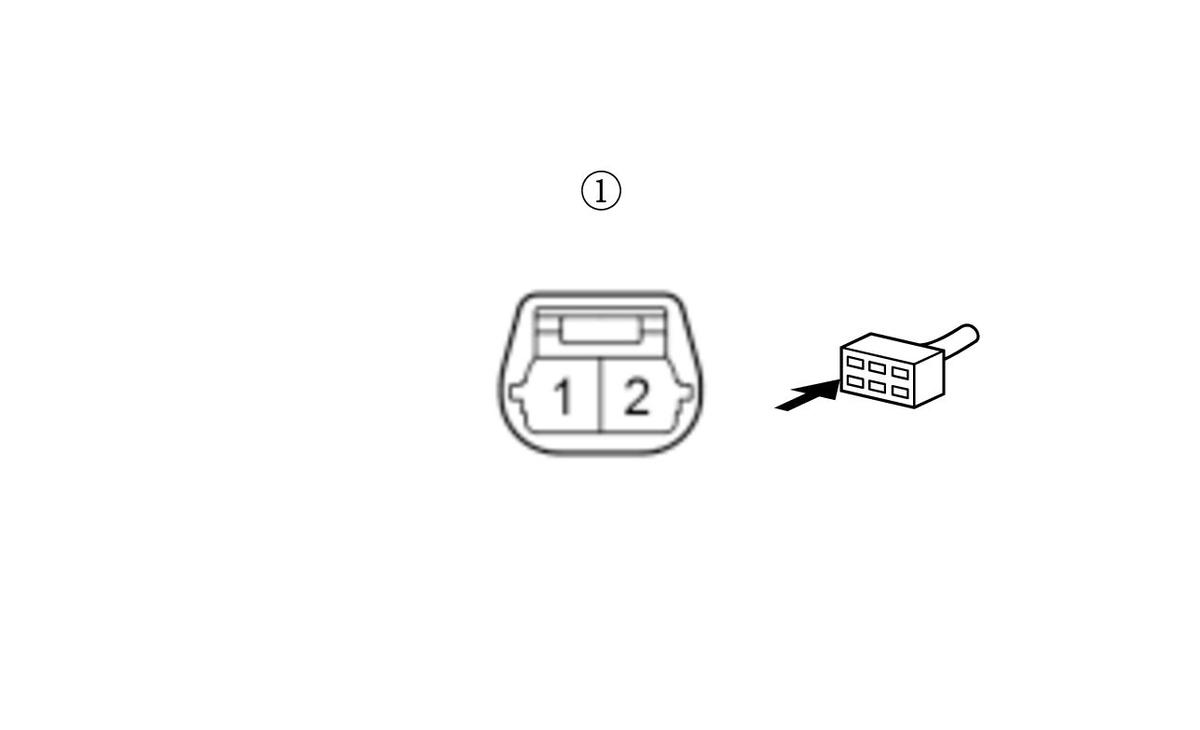

   Test point 2	Rear bumper LF antenna 2P connector (female terminals) No. 1:

   Test point 1	Body control module connector C (66P) No. 17
   Test point 2	Rear bumper LF antenna 2P connector (female terminals) No. 2:

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The EXT TR+, EXT TR- wires are OK. Go to step 3.

   NO

   Repair an open or high resistance in the wire.

3. DTC check

   -1. Reconnect the following connector.

   Body control module connector C (66P)

   -2. Connect terminals A and B with a jumper wire.

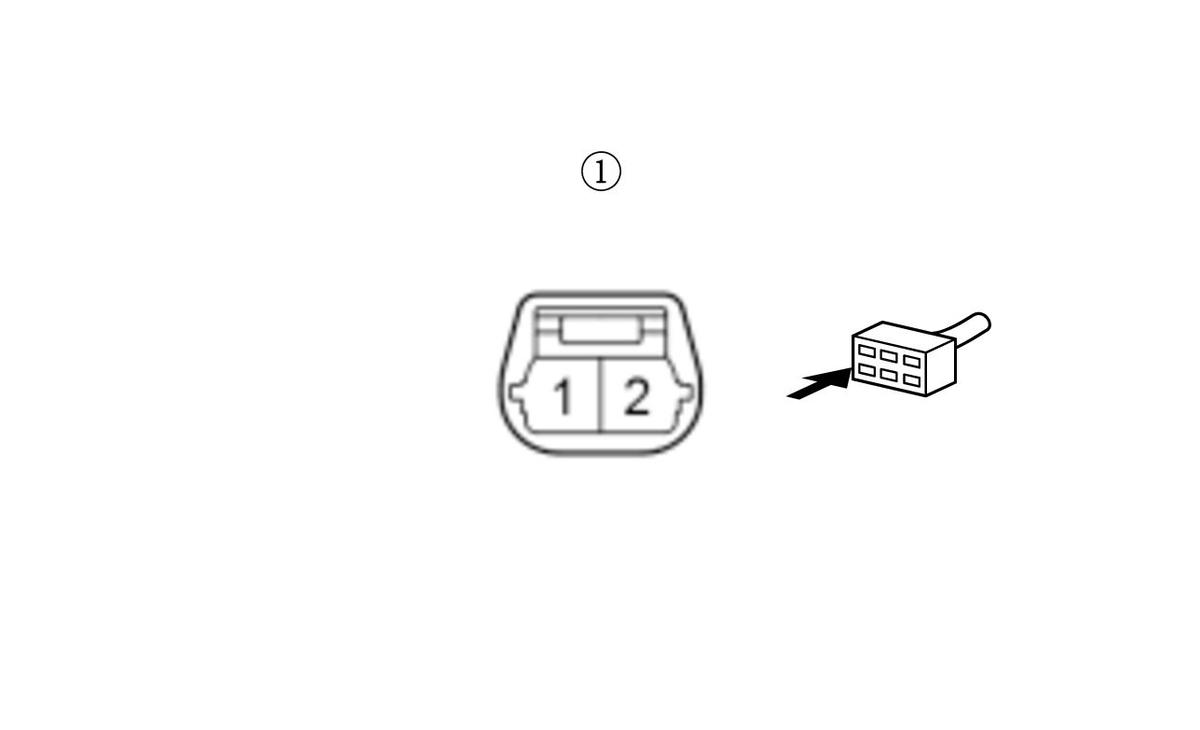

   Terminal A	Rear bumper LF antenna 2P connector (female terminals) No. 1:
   Terminal B	Rear bumper LF antenna 2P connector (female terminals) No. 2:

   Courtesy of HONDA, U.S.A., INC.

   -3. Remove all the keyless remotes from inside the vehicle. Hold them outside the open driver's window, at least 20 cm (7.9 in) away from the vehicle.

   -4. Press the power switch button at least 5 times.

   -5. Check for DTCs with the HDS.

   DTC Description	DTC
   B1657 Rear Bumper LF Antenna Circuit Short

   Is DTC B1657 indicated?

   YES

   Faulty LF antenna; Replace the rear bumper LF antenna .

   NO

   Replace the body control module .
