DTC B1667

DTC B1667  : Rear Shelf LF Antenna Circuit Short

NOTE:  If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A .

DTC (Keyless Access Control Unit)

1. Problem verification

   -1. Clear the DTCs with the HDS.

   -2. Select the KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter the SELF CHECK.

   -3. Do the SELF CHECK.

   SELF CHECK

   Check for DTCs with the HDS.

   DTC Description	DTC
   B1667 Rear Shelf LF Antenna Circuit Short

   Is DTC B1667 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

2. Shorted wire check (EXT M+ (TI+), EXT M- (TI-) lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connectors.

   Body control module connector C (66P)Rear shelf LF antenna 2P connector

   -3. Check for continuity between test points 1 and 2 individually.

   Test condition	Vehicle OFF (LOCK) mode Body control module connector C (66P): disconnected Rear shelf LF antenna 2P connector: disconnected
   Test point 1	Body control module connector C (66P) No. 34
   Test point 2	Body ground

   Test point 1	Body control module connector C (66P) No. 18
   Test point 2	Body ground

   Is there continuity?

   YES

   Repair a short to ground in the wire.

   NO

   The EXT M+ (TI+) and EXT M- (TI-) wires are not shorted. Go to step 3.

3. Shorted wire check (EXT M+ (TI+) to EXT M- (TI-) line)

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Body control module connector C (66P): disconnected Rear shelf LF antenna 2P connector: disconnected
   Test point 1	Body control module connector C (66P) No. 34
   Test point 2	Body control module connector C (66P) No. 18

   Is there continuity?

   YES

   Repair a short between the wires.

   NO

   The EXT M+ (TI+) and EXT M- (TI-) wires are OK. Go to step 4.

4. Rear shelf LF antenna internal resistance check

   -1. On the LF antenna side, measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Body control module connector C (66P): disconnected Rear shelf LF antenna 2P connector: disconnected

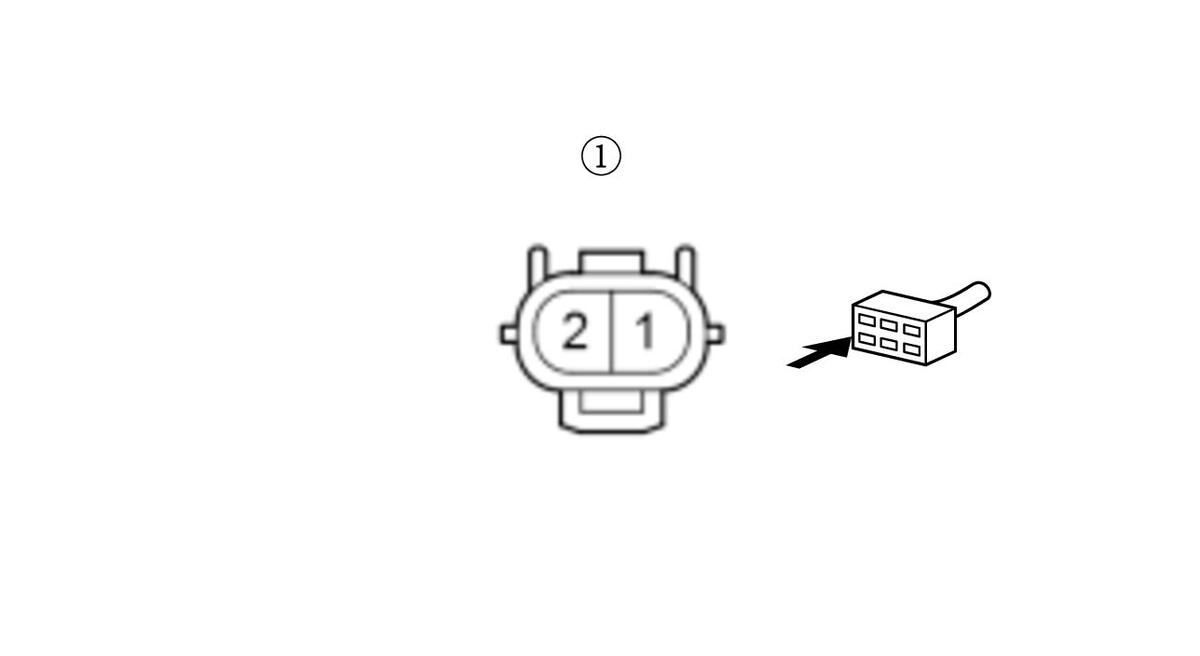

   Test point 1	Rear shelf LF antenna 2P connector (male terminals) No. 1:
   Test point 2	Rear shelf LF antenna 2P connector (male terminals) No. 2:

   Courtesy of HONDA, U.S.A., INC.

   Is there overrange?

   YES

   Replace the body control module .

   NO

   Faulty LF antenna; Replace the rear shelf LF antenna .
