DTC P0115: General Description

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

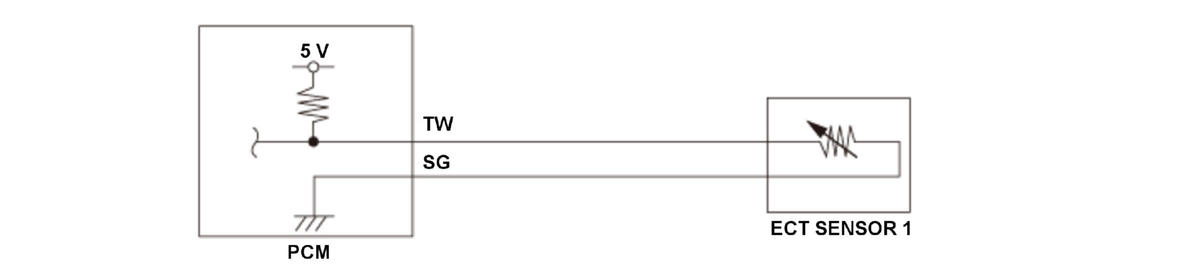

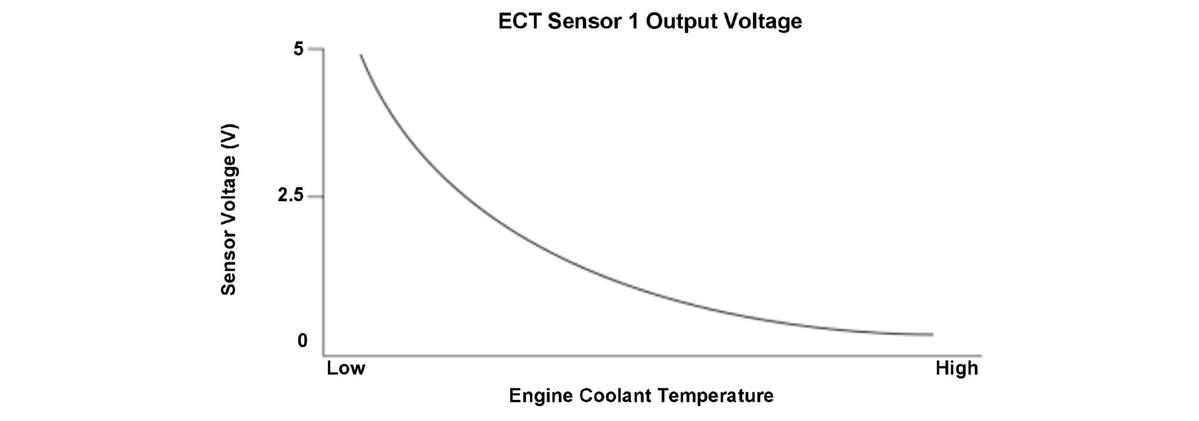

Engine coolant temperature (ECT) sensor 1 is used for air/fuel ratio feedback control, ignition timing control, idle speed control, and other functions. The ECT sensor 1 resistance varies depending on the engine coolant temperature. As the engine coolant cools, the ECT sensor 1 resistance increases, and the powertrain control module (PCM) detects a high signal voltage. As the engine coolant warms, the ECT sensor 1 resistance decreases, and the PCM detects a low signal voltage. If the ECT sensor 1 output voltage is a set value, the PCM detects a malfunction and stores a DTC.
