DTC P04CD: General Description

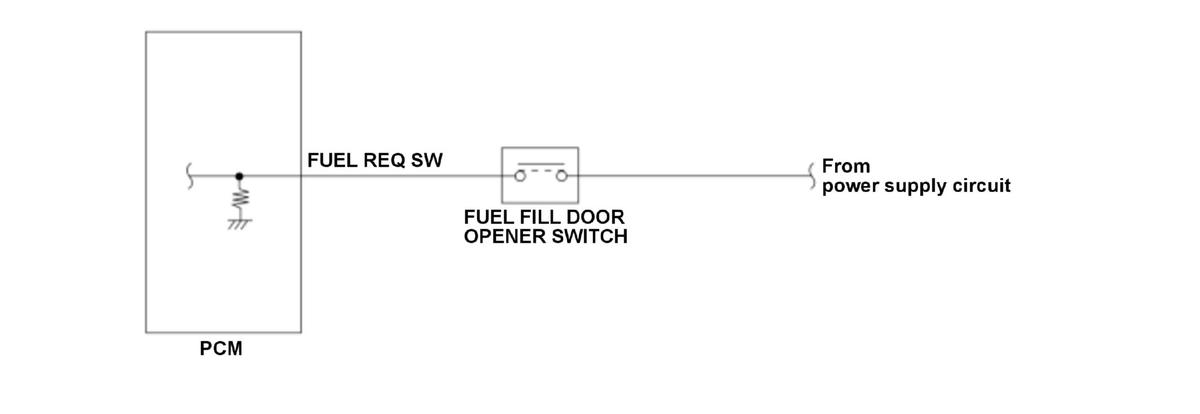

The fuel fill door opener switch is a momentary switch used to manually open the fuel lid. Turning the fuel fill door opener switch on causes high (+B) to be input to the powertrain control module (PCM) and turning off the switch causes 0 V (open) to be input. The PCM detects a malfunction and stores a DTC when on signal is received continuously for the prescribed time or more as the input signal to the fuel fill door opener switch.
