DTC P2184, P2185: General Description

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

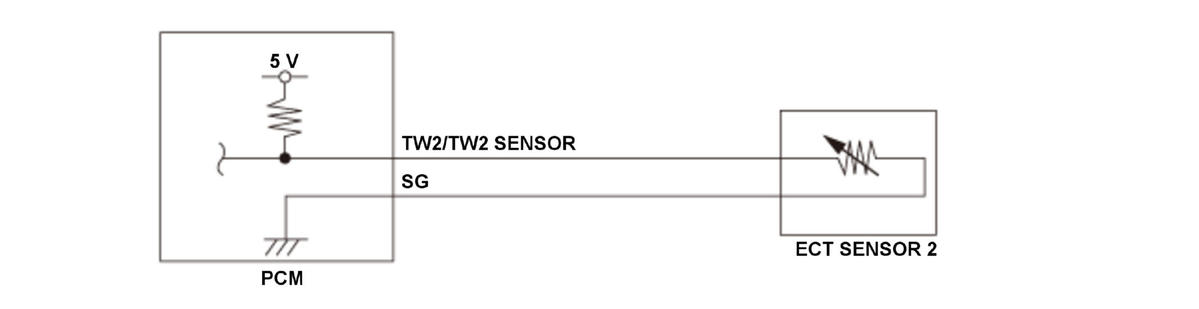

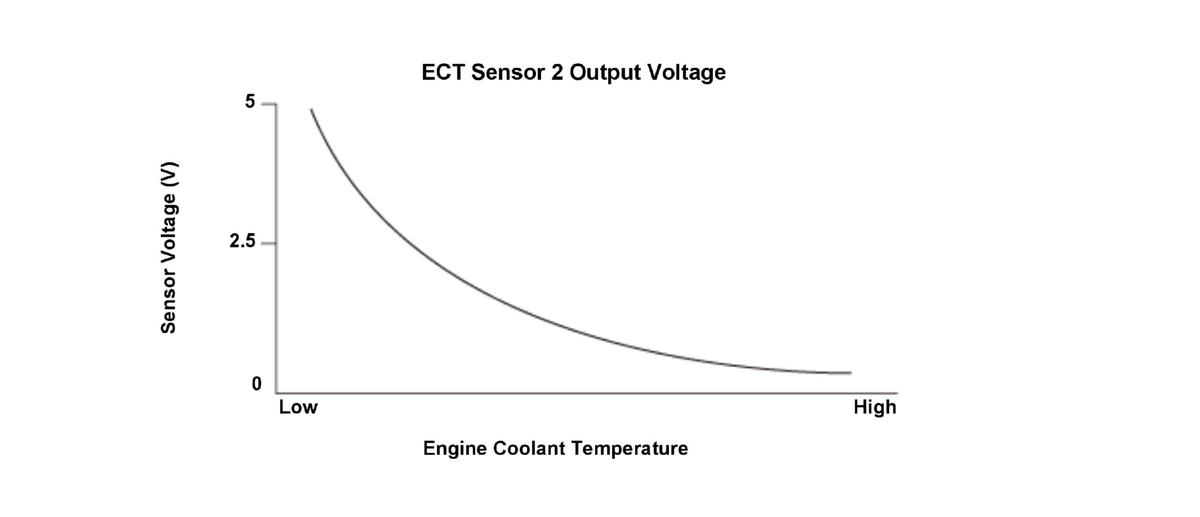

Engine coolant temperature (ECT) sensor 2 is a thermistor attached to the radiator. The powertrain control module (PCM) applies voltage (about 5 V) to the TW2 signal circuit through a pull-up resistor. As the engine coolant temperature cools, ECT sensor 2 resistance increases, and the PCM detects a high signal voltage. As the engine coolant warms, the sensor resistance decreases, and the PCM detects a low signal voltage. If the ECT sensor 2 output voltage is a set value when the engine coolant temperature is high or low, the PCM detects a malfunction and stores a DTC.
