DTC P2226: General Description

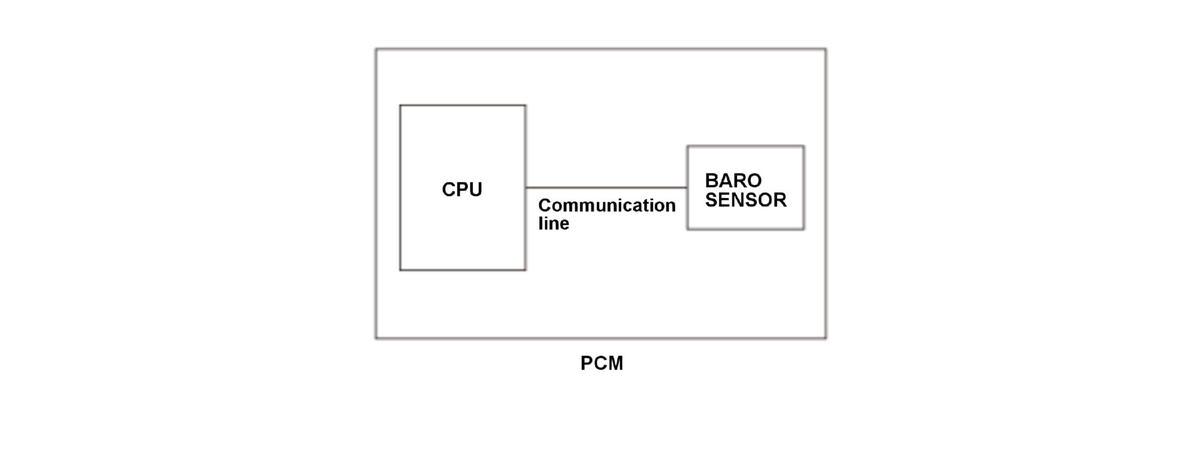

The barometric pressure (BARO) sensor is built into the powertrain control module (PCM), and it monitors atmospheric pressure. The BARO sensor output voltage is converted to A/D in the sensor inside, and transmitted to a CPU by serial communication. When the signal is not sent from the BARO sensor or when the signal sent from the BARO sensor is abnormal and this condition continues for a specified time, the PCM detects a malfunction and stores a DTC.
