DTC U129E: General Description

Courtesy of HONDA, U.S.A., INC.

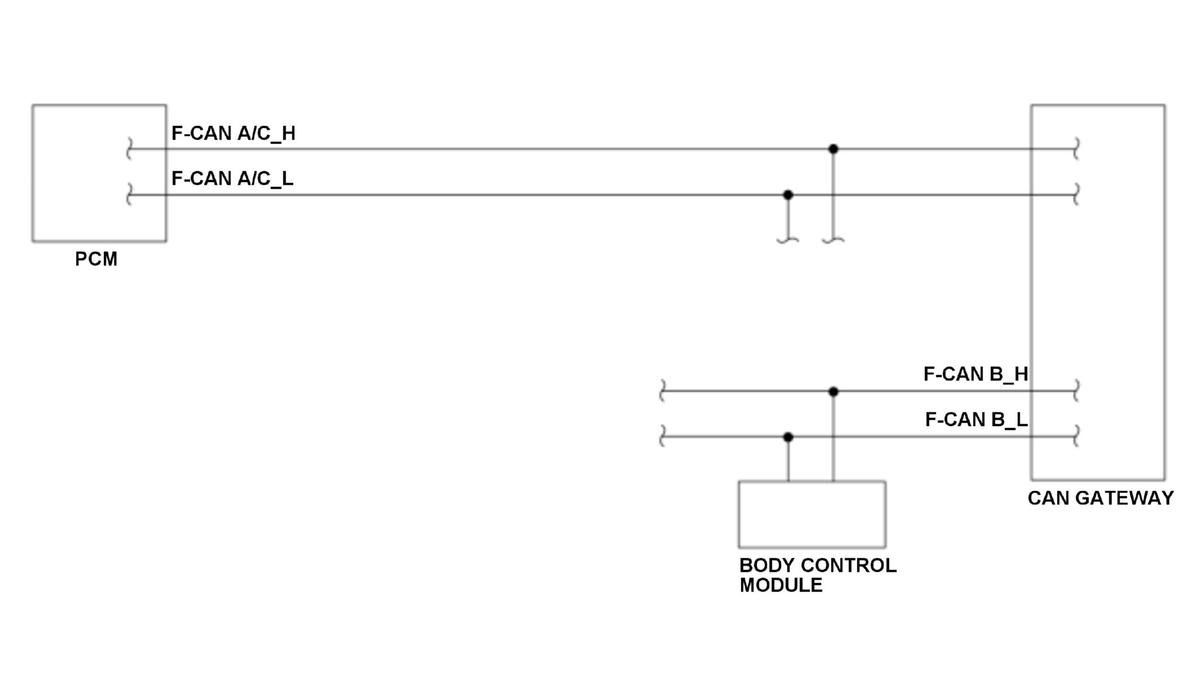

The controller area network (CAN) transmits/receives pulsing signals to/from the control modules simultaneously by using two signal lines (H line and L line). When the information is not sent from the body control module via the F-CAN lines and this condition continues for a specified time or when the information sent from the body control module is abnormal and this condition continues for a specified cycle, the powertrain control module (PCM) detects a malfunction and stores a DTC.
