DTC P0122

DTC P0122  : TP Sensor A Circuit Low Voltage

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Turn the vehicle to the ON mode.

   -5. Check the parameter(s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   TP Sensor A	Less than 0.3	V

   Data List

   Do the current condition(s) match the threshold?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the throttle body and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

2. Determine possible failure area (THL1 line, others)

   -1. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P0122 TP Sensor A Circuit Low Voltage
   P0222 TP Sensor B Circuit Low Voltage

   DTC (PGM-FI)

   Are DTC P0122 and P0222 indicated at the same time?

   YES

   Go to step 4.

   NO

   Go to step 3.

3. Shorted wire check (THL1 line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS, and wait more than 1 minute.

   -3. Disconnect the following connectors.

   PCM connector E (80P)

   Throttle body 6P connector

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	PCM connector E (80P): disconnected
   	Throttle body 6P connector: disconnected

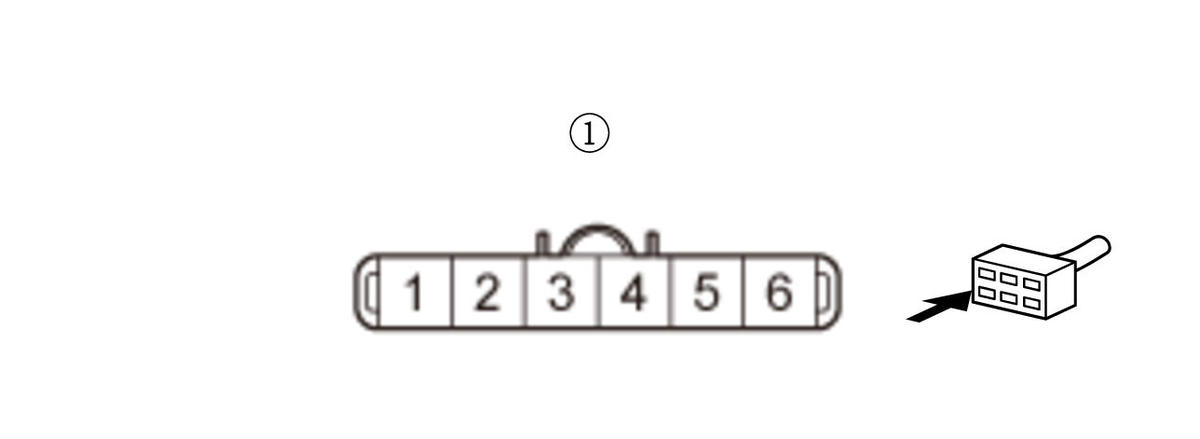

   Test point 1	Throttle body 6P connector (female terminals) No. 6:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short in the THL1 wire between the PCM (E50) and the throttle body.

   NO

   The THL1 wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If DTC P0122 goes away and the PCM was substituted, replace the original PCM .

4. Determine possible failure area (throttle body, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Throttle body 6P connector

   -3. Turn the vehicle to the ON mode.

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Throttle body 6P connector: disconnected

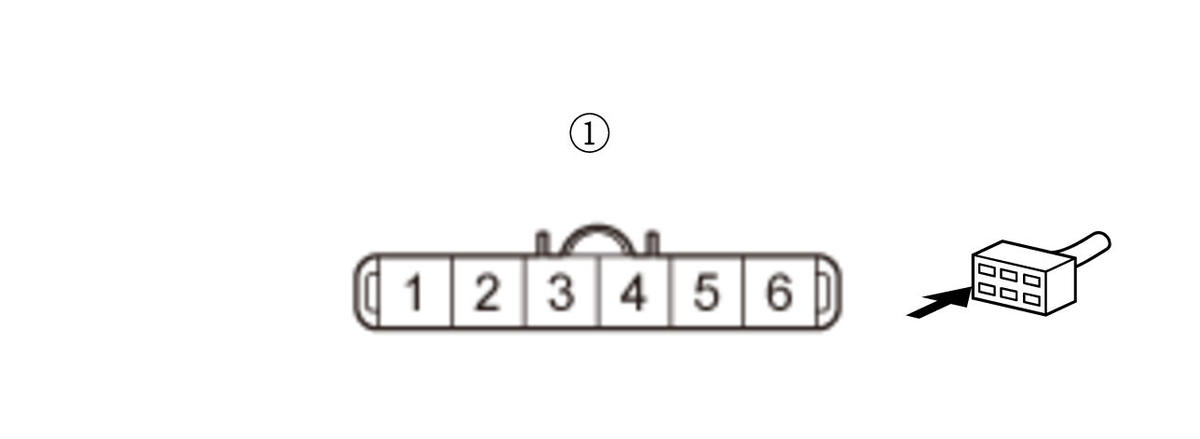

   Test point 1	Throttle body 6P connector (female terminals) No. 5:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5.0 V?

   YES

   Replace the throttle body .

   NO

   Go to step 5.

5. Open wire check (VCC3 line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS, and wait more than 1 minute.

   -3. Disconnect the following connector.

   PCM connector E (80P)

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Throttle body 6P connector: disconnected
   	PCM connector E (80P): disconnected
   Test point 1	Throttle body 6P connector (female terminals) No. 5:
   Test point 2	PCM connector E (80P) No. 75

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The VCC3 wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If DTC P0122 goes away and the PCM was substituted, replace the original PCM .

   NO

   Repair an open in the VCC3 wire between the PCM (E75) and the throttle body.
