DTC P0327

DTC P0327  : Knock Sensor Circuit Low Voltage

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Turn the vehicle to the ON mode.

   -5. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P0327 Knock Sensor Circuit Low Voltage

   DTC (PGM-FI)

   Is DTC P0327 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the knock sensor and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

2. Determine possible failure area (knock sensor, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Knock sensor 2P connector

   -3. Turn the vehicle to the ON mode.

   -4. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P0328 Knock Sensor Circuit High Voltage

   DTC (PGM-FI)

   Is DTC P0328 indicated?

   YES

   Replace the knock sensor .

   NO

   Go to step 3.

3. Shorted wire check (KS line to KSGND line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS, and wait more than 1 minute.

   -3. Disconnect the following connector.

   PCM connector E (80P)

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	PCM connector E (80P) disconnected
   	Knock sensor 2P connector: disconnected

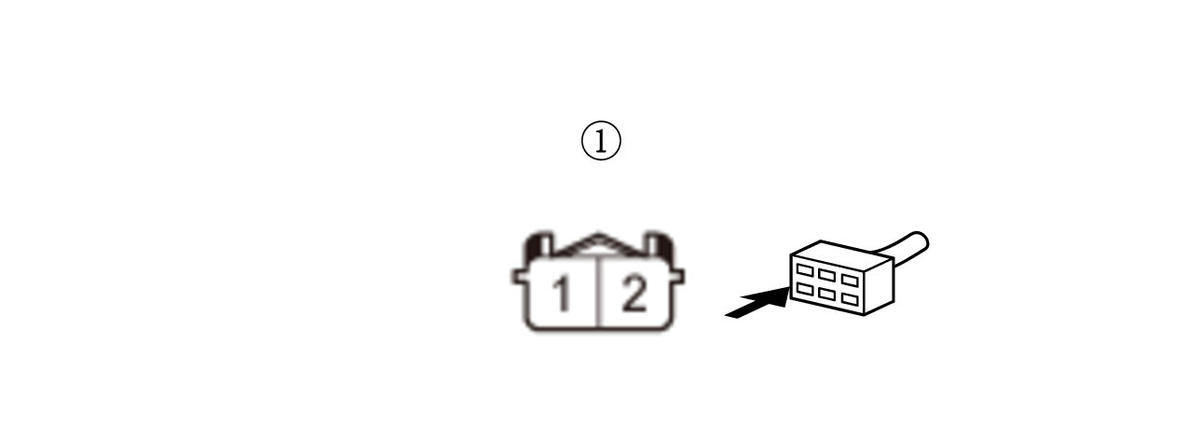

   Test point 1	Knock sensor 2P connector (female terminals) No. 1:
   Test point 2	Knock sensor 2P connector (female terminals) No. 2:

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short in the KS wire to the KSGND wire between the PCM (E34, E35) and the knock sensor.

   NO

   Go to step 4.

4. Shorted wire check (KS line)

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	PCM connector E (80P) disconnected
   	Knock sensor 2P connector: disconnected

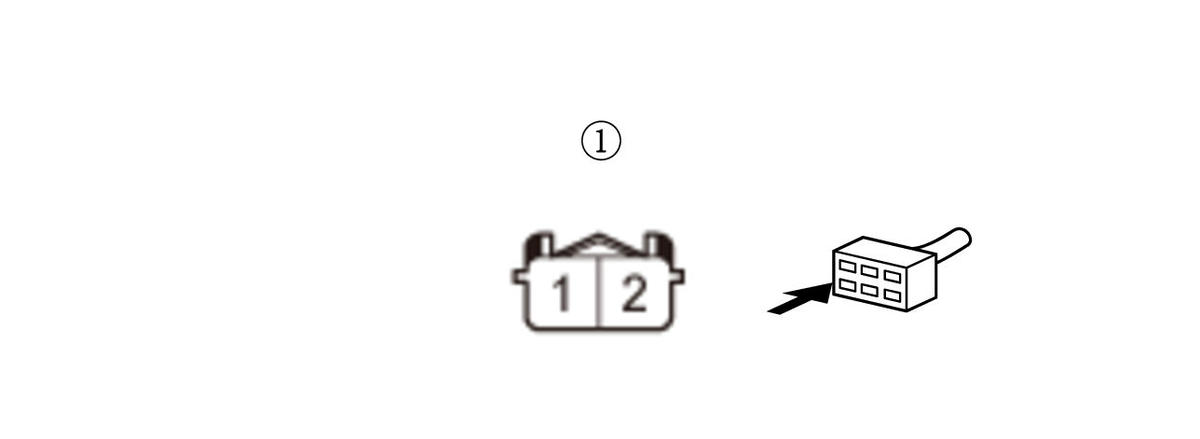

   Test point 1	Knock sensor 2P connector (female terminals) No. 2:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short in the KS wire between the PCM (E35) and the knock sensor.

   NO

   The KS wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If DTC P0327 goes away and the PCM was substituted, replace the original PCM .
