DTC P0069: General Description

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

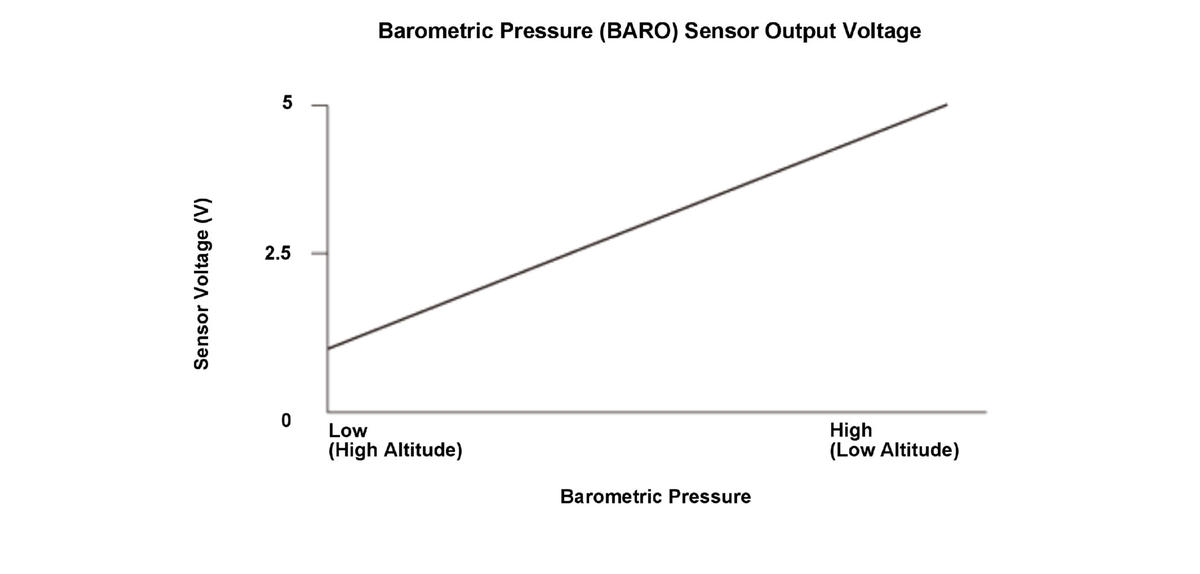

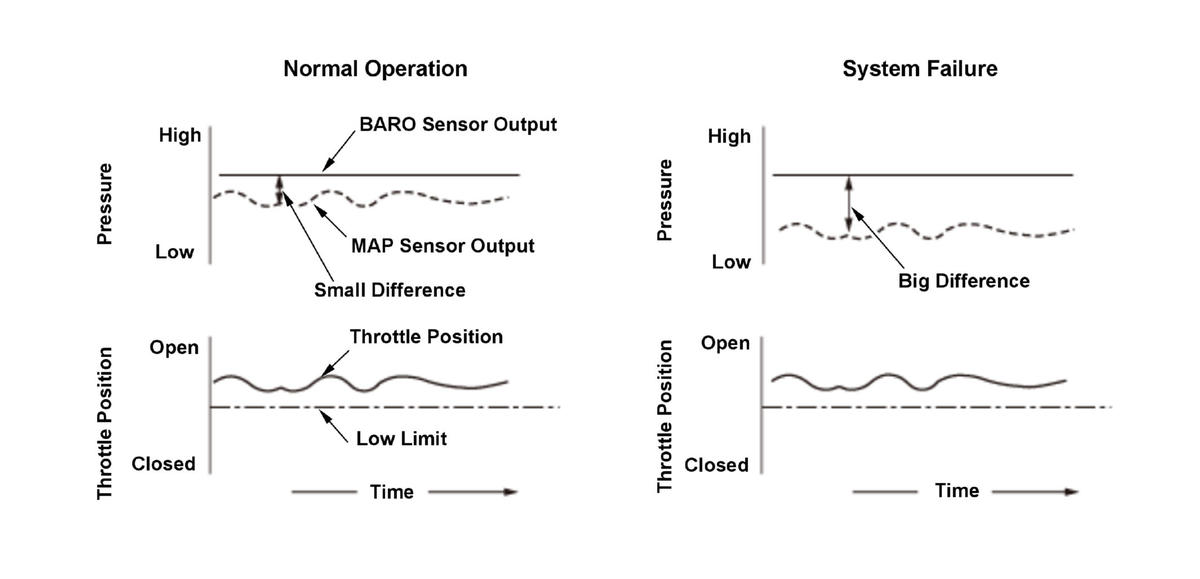

The barometric pressure (BARO) sensor is built into the powertrain control module (PCM) and monitors atmospheric pressure. When the throttle valve is wide open, the manifold absolute pressure (MAP) sensor output is nearly equal to the BARO sensor output. If the throttle position is beyond a value stored in the PCM that is used to detect "wide-open throttle", and if the difference between the MAP sensor output and the BARO sensor output is equal to or greater than a set value, the PCM detects a malfunction in the BARO sensor output and stores a DTC.
