DTC P0137: General Description

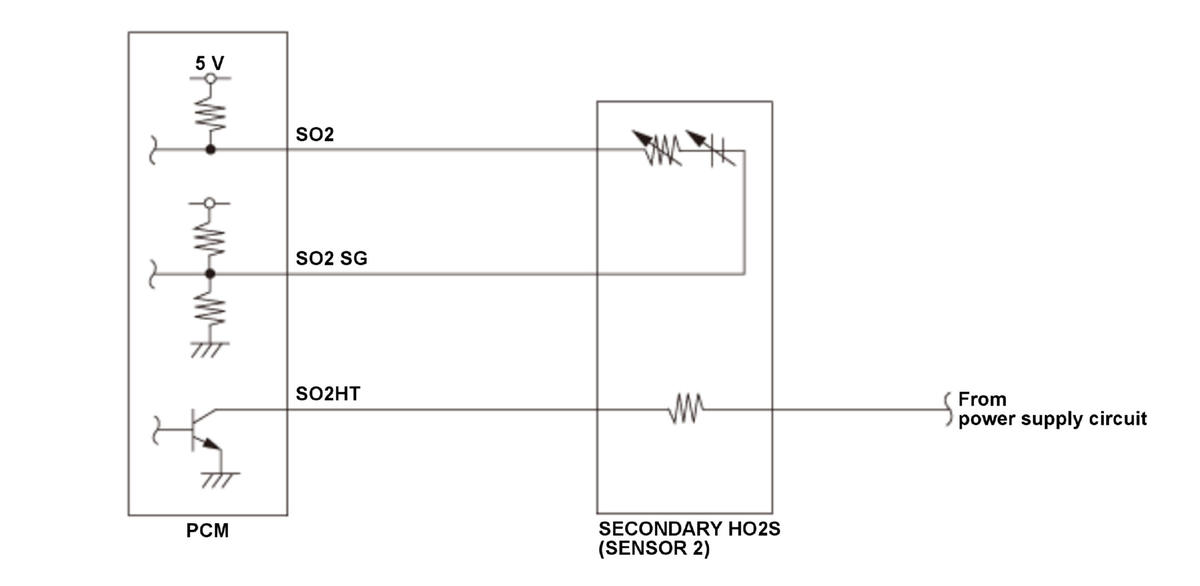

GHH384459Courtesy of HONDA, U.S.A., INC.

The secondary heated oxygen sensor (secondary HO2S (sensor 2)) detects the oxygen density in the exhaust gas and converts it into electrical signals. If the secondary HO2S (sensor 2) output voltage is a specified value for a set time, the powertrain control module (PCM) detects a malfunction and stores a DTC.
