DTC P2138: General Description

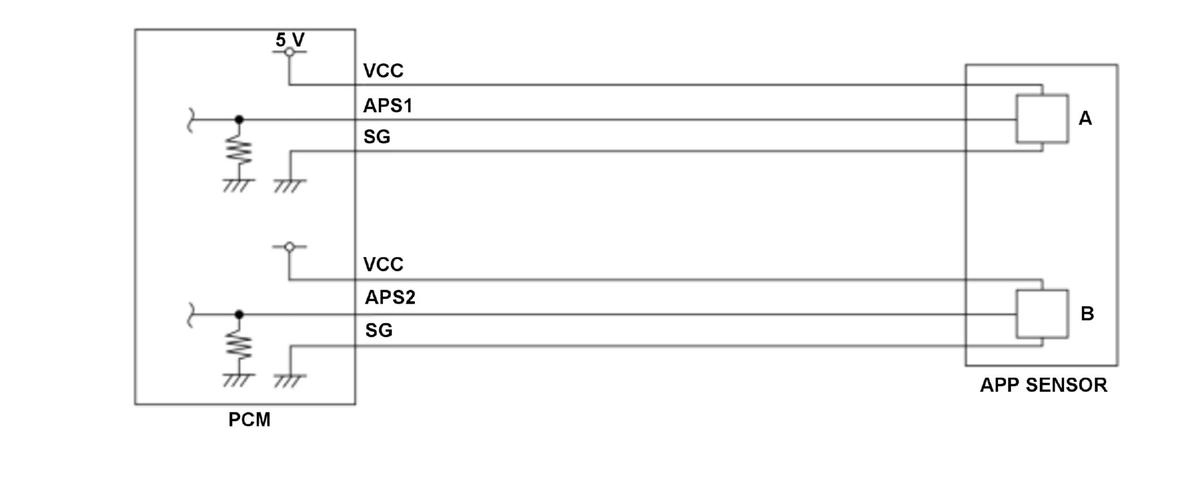

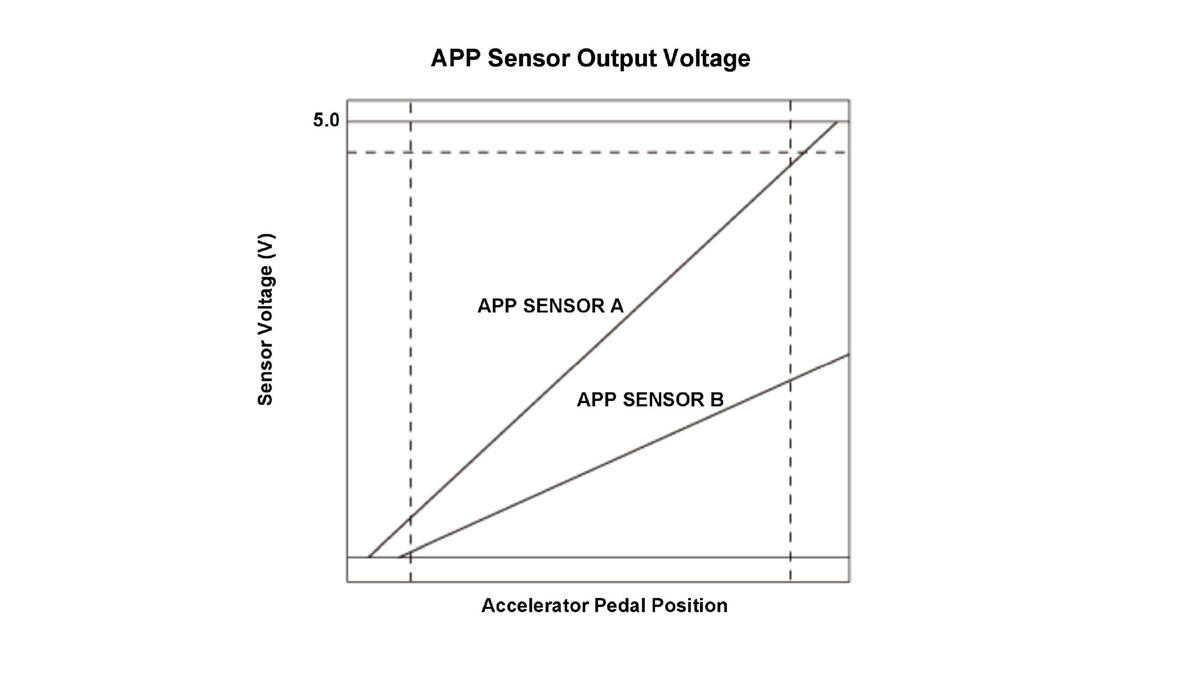

Accelerator pedal position (APP) sensor A and accelerator pedal position (APP) sensor B are potentiometers. They are installed on the accelerator pedal. When the accelerator pedal is pressed, APP sensors A and B detect the accelerator pedal opening value. The accelerator pedal opening value is converted to a signal in APP sensors A and B and transmitted to the powertrain control module (PCM) to compute the target position. APP sensor A is the primary control, and APP sensor B is a back-up of APP sensor A in case it malfunctions. Both sensors compare their output voltage to each other for malfunction detection. When the voltage difference of APP sensor B is out of a fixed range for a set time, the PCM detects a malfunction and stores a DTC.
