DTC P2646

DTC P2646  : Rocker Arm Oil Pressure Switch Circuit Low Voltage

Special Tools Required

Pressure Gauge Adapter 07NAJ-P07010A

A/T Low Pressure Gauge w/Panel 07406-0070301

A/T Pressure Test Hose 07AAJ-PY4A100

A/T Pressure Adapter 07MAJ-PY40120

Oil Pressure Hose 07ZAJ-S5AA200

DTC (PGM-FI)

1. Oil level check

   -1. Check the engine oil level .

   Is the level OK?

   YES

   Go to step 2.

   NO

   Adjust the engine oil to the proper level .

2. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Turn the vehicle to the ON mode.

   -5. Do the VTEC TEST in the Function Test Menu with the HDS.

   VTEC TEST

   Does the HDS indicate Normal?

   YES

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the rocker arm oil pressure switch and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

   NO

   The failure is duplicated. Go to step 3.

3. Determine possible failure area (VTM line, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Rocker arm oil pressure switch 2P connector

   -3. Turn the vehicle to the ON mode.

   -4. Check the parameter(s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   VTEC Press Sw	ON

   Data List

   Do the current condition(s) match the threshold?

   YES

   Go to step 5.

   NO

   Go to step 4.

4. VTEC system oil pressure check

   -1. Turn the vehicle to the OFF (LOCK) mode.

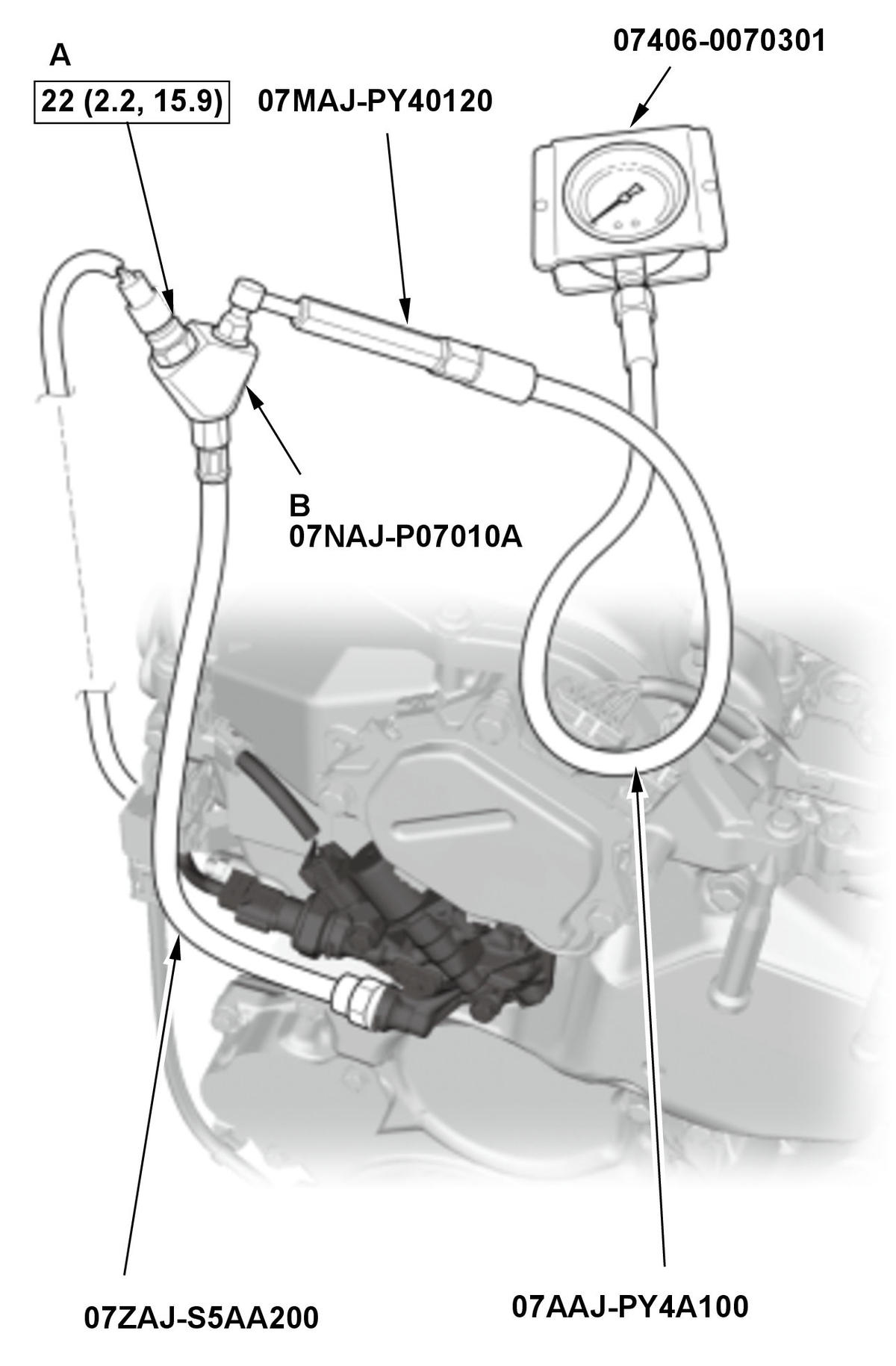

   -2. Remove the rocker arm oil pressure switch (A), and attach the special tools as shown, then attach the rocker arm oil pressure switch that was removed to the oil pressure gauge adapter (B).

   Courtesy of HONDA, U.S.A., INC.

   -3. Reconnect the rocker arm oil pressure switch 2P connector.

   -4. Enter the maintenance mode, then start the engine .

   -5. Select the VTEC TEST in the Function Test Menu with the HDS.

   VTEC TEST

   -6. Check the oil pressure.

   Does the oil pressure increase to 392 kPa (4.00 kgf/cm2, 56.9 psi)?

   YES

   The VTEC system oil pressure switch is OK. Replace the rocker arm oil pressure switch .

   NO

   Inspect the VTEC system. If it is OK, replace the rocker arm oil control valve .

5. Shorted wire check (VTM line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS, and wait more than 1 minute.

   -3. Disconnect the following connector.

   PCM connector E (80P)

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Rocker arm oil pressure switch 2P connector: disconnected
   	PCM connector E (80P): disconnected
   Test point 1	PCM connector E (80P) No. 59
   Test point 2	Body ground

   Is there continuity?

   YES

   Repair a short in the VTM wire between the PCM (E59) and the rocker arm oil pressure switch.

   NO

   The VTM wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If DTC P2646 goes away and the PCM was substituted, replace the original PCM .
