DTC P0523
DTC P0523 : Rocker Arm Oil Pressure Sensor Circuit High Voltage
| DTC Description | Confirmed DTC | Pending DTC |
|---|---|---|
| P0523 Rocker Arm Oil Pressure Sensor Circuit High Voltage |
DTC (PGM-FI)
- Problem verification
-1. Turn the vehicle to the ON mode.
-2. Check the parameter(s) below with the HDS.
Signal Threshold Current conditions Values Unit Values Unit Rocker Arm Oil Pressure Sensor Voltage More than 4.79 V Data List
Do the current condition(s) match the threshold?
YES
The failure is duplicated. Go to step 2.
NO
Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the rocker arm oil pressure sensor and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .
- Determine possible failure area (rocker arm oil pressure sensor, others)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the following connector.

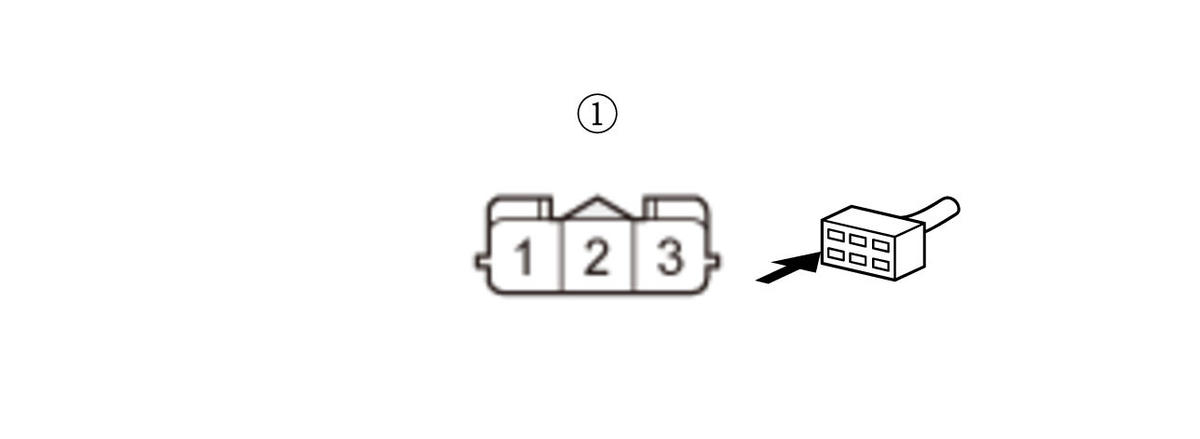

Rocker arm oil pressure sensor 3P connector -3. Connect terminals A and B with a jumper wire.
Terminal A Rocker arm oil pressure sensor 3P connector (female terminals) No. 1: Terminal B Rocker arm oil pressure sensor 3P connector (female terminals) No. 2: -4. Turn the vehicle to the ON mode.
-5. Check the parameter(s) below with the HDS.
Signal Threshold Current conditions Values Unit Values Unit Rocker Arm Oil Pressure Sensor Voltage More than 4.79 V Data List
Do the current condition(s) match the threshold?
YES
Go to step 3.
NO
- Determine possible failure area (SG2 line, others)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Remove the jumper wire from the rocker arm oil pressure sensor 3P connector.
-3. Turn the vehicle to the ON mode.
-4. Measure the voltage between test points 1 and 2.
Test condition Vehicle ON mode Rocker arm oil pressure sensor 3P connector: disconnected Test point 1 Rocker arm oil pressure sensor 3P connector (female terminals) No. 1: Test point 2 Rocker arm oil pressure sensor 3P connector (female terminals) No. 3: Is there about 5.0 V?
YES
Go to step 4.
NO
Go to step 5.
- Open wire check (OPSEN line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Jump the SCS line with the HDS, and wait more than 1 minute.
-3. Disconnect the following connector.
PCM connector E (80P) -4. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode Rocker arm oil pressure sensor 3P connector: disconnected PCM connector E (80P): disconnected Test point 1 Rocker arm oil pressure sensor 3P connector (female terminals) No. 2: Test point 2 PCM connector E (80P) No. 58 Is there continuity?
YES
The OPSEN wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If DTC P0523 goes away and the PCM was substituted, replace the original PCM .
NO
Repair an open in the OPSEN wire between the PCM (E58) and the rocker arm oil pressure sensor.
- Open wire check (SG2 line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Jump the SCS line with the HDS, and wait more than 1 minute.
-3. Disconnect the following connector.
PCM connector E (80P) -4. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode Rocker arm oil pressure sensor 3P connector: disconnected PCM connector E (80P): disconnected Test point 1 Rocker arm oil pressure sensor 3P connector (female terminals) No. 1: Test point 2 PCM connector E (80P) No. 78 Is there continuity?
YES
The SG2 wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If DTC P0523 goes away and the PCM was substituted, replace the original PCM .
NO
Repair an open in the SG2 wire between the PCM (E78) and the rocker arm oil pressure sensor.
