Engine Block Overhaul: Honing

Cylinder Bore Honing

Oil Jet - Remove

Cylinder Bore - Honing

Courtesy of HONDA, U.S.A., INC.

1. Measure the cylinder bores. If the engine block is to be reused, hone the cylinders and remeasure the bores. Only scored or scratched cylinder bores must be honed.

2. Hone the cylinder bores with honing oil and a fine (400 grit) stone.

NOTE:

Use only a rigid hone with 400 grit or finer stone, such as Sunnen, Ammco, or equivalent.
Do not use stones that are worn or broken.

3. When honing is complete, thoroughly clean the engine block of all metal particles. Wash the cylinder bores with hot soapy water, then dry and oil them immediately to prevent rusting.

NOTE: Never use solvent, it will only redistribute the grit on the cylinder walls.

4. If scoring or scratches are still present in the cylinder bores after honing to the service limit, rebore the engine block. Some light vertical scoring and scratching is acceptable if it is not deep enough to catch your fingernail and does not run the full length of the bore.

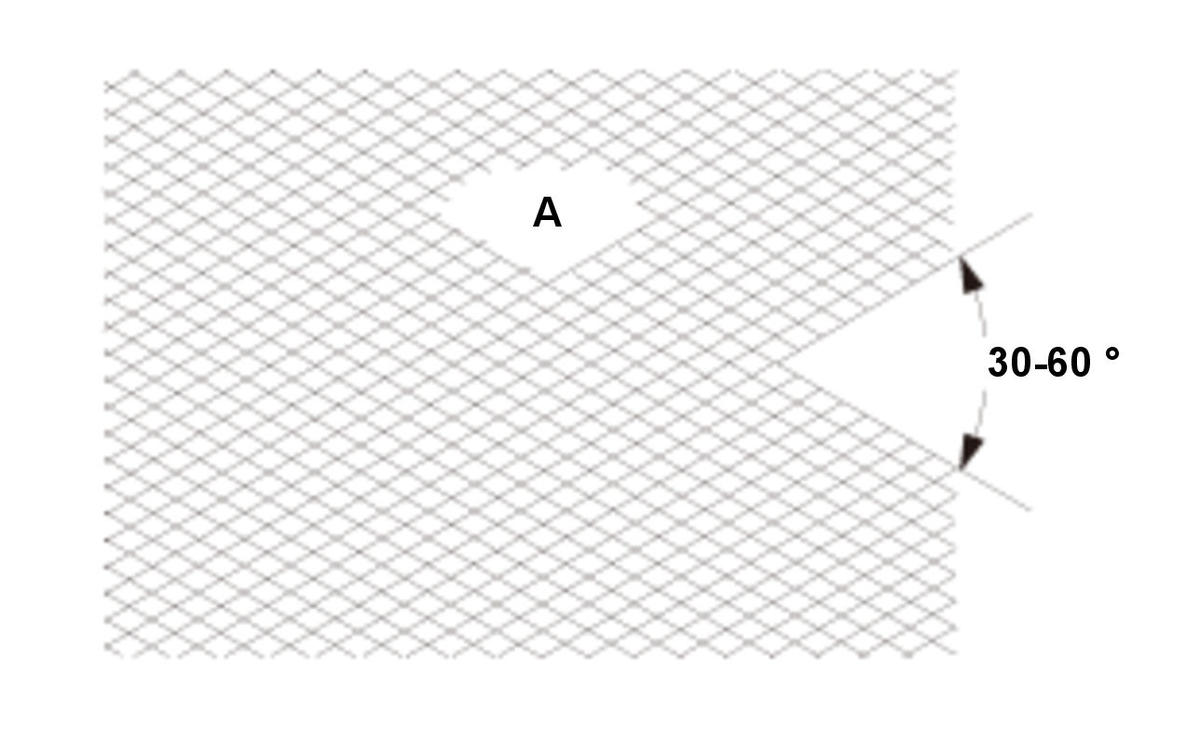

Honing Pattern:

Within 30-60 degree cross-hatch pattern (A)

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
