Engine Block Overhaul: Inspection

Connecting Rod and Crankshaft End Play Inspection

Connecting Rod and Crankshaft End Play - Inspect

Courtesy of HONDA, U.S.A., INC.

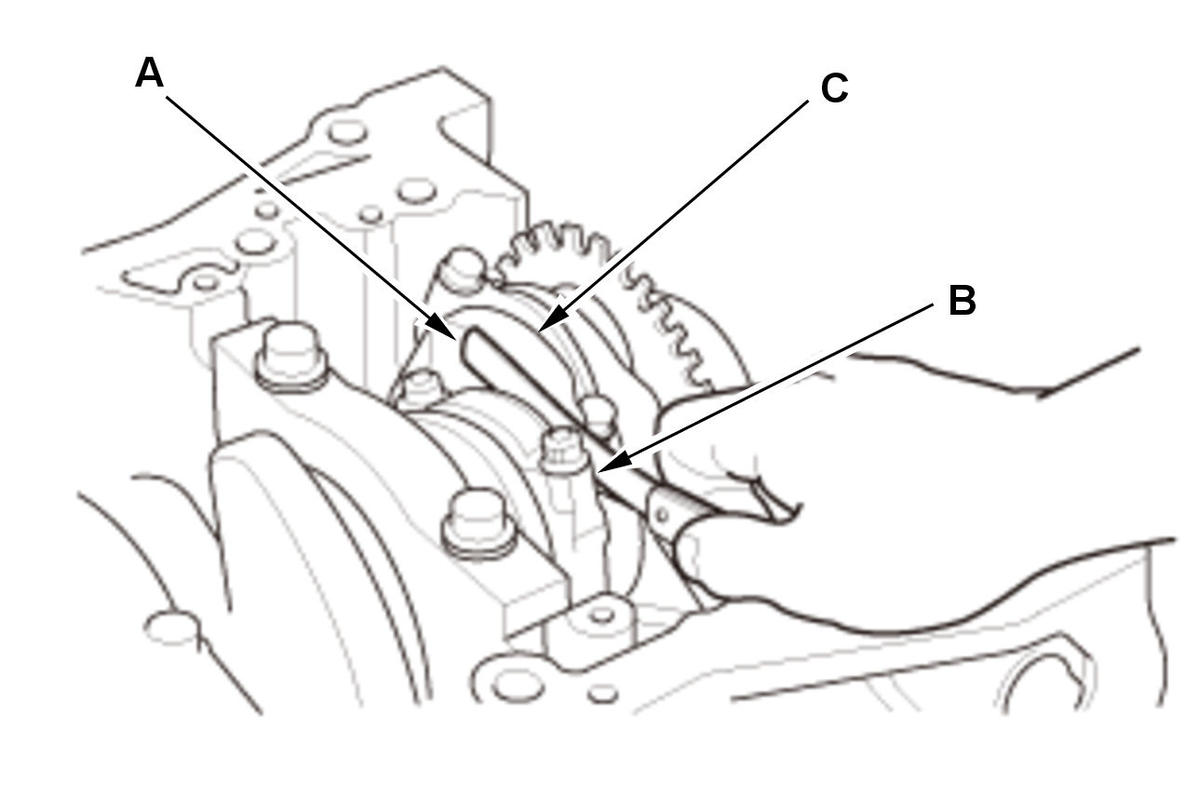

1. Measure the connecting rod end play with a feeler gauge (A) between the connecting rod (B) and the crankshaft (C).

Connecting Rod End Play

2. If the connecting rod end play is beyond the service limit, install a new connecting rod, and recheck. If it is still beyond the service limit, replace the crankshaft.

Standard (New):	0.15-0.35 mm (0.006-0.013 in)
Service Limit:	0.45 mm (0.017 in)

Courtesy of HONDA, U.S.A., INC.

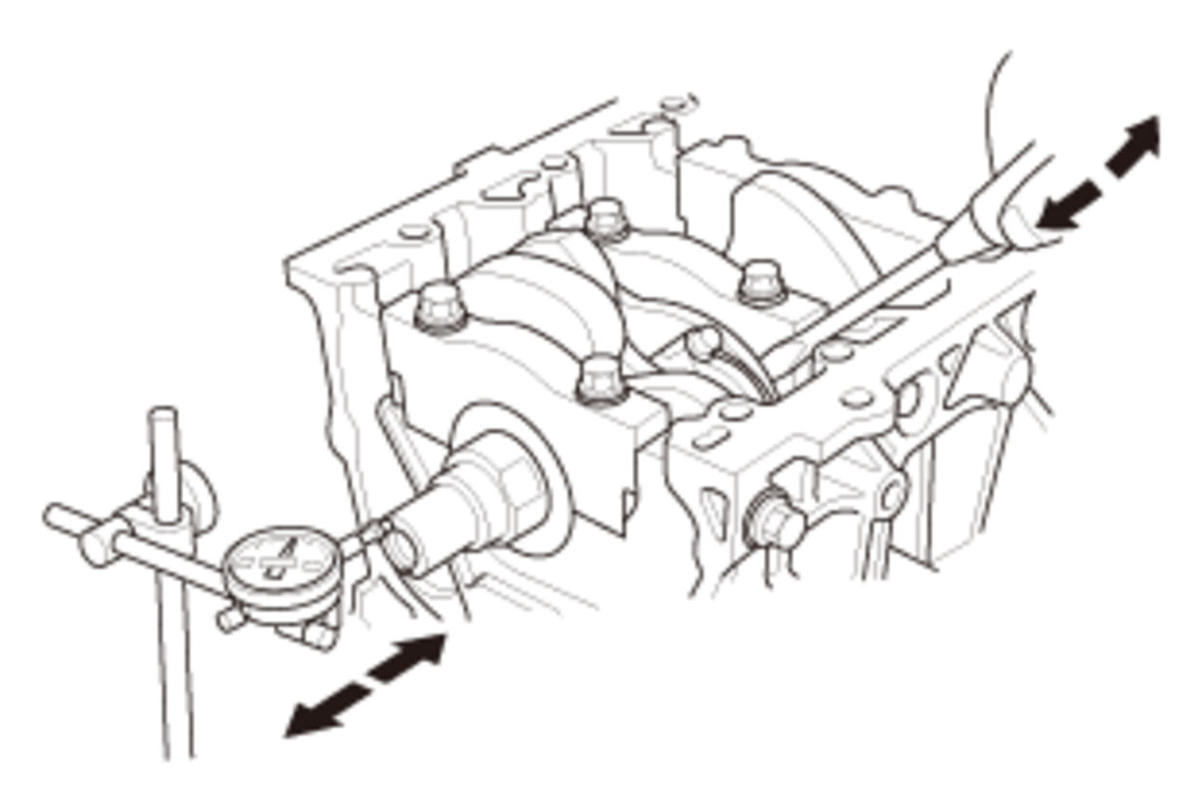

3. Push the crankshaft firmly away from the dial indicator by prying, and zero the dial against the end of the crankshaft. Then pull the crankshaft firmly back toward the indicator by prying; the dial reading should not exceed the service limit.

Crankshaft End Play

4. If the crankshaft end play is beyond the service limit, replace the thrust washers and recheck. If it is still beyond the service limit, replace the crankshaft.

Standard (New):	0.10-0.35 mm (0.0039-0.0138 in)
Service Limit:	0.45 mm (0.0177 in)

Main Bearing Clearance Inspection

Main Bearing Cap and Bearing Half - Remove

Main Bearing Clearance - Inspect

Courtesy of HONDA, U.S.A., INC.

1. Clean each main journal and the bearing half with a clean shop towel.

2. Place one strip of plastigage across each main journal.

NOTE: If the engine is still in the vehicle when you bolt the main cap down to check the clearance, the weight of the crankshaft and the drive plate will flatten the plastigage further than just the torque on the cap bolt and give you an incorrect reading. For an accurate reading, support the crank with a jack under the counterweights, and check only one bearing at a time.

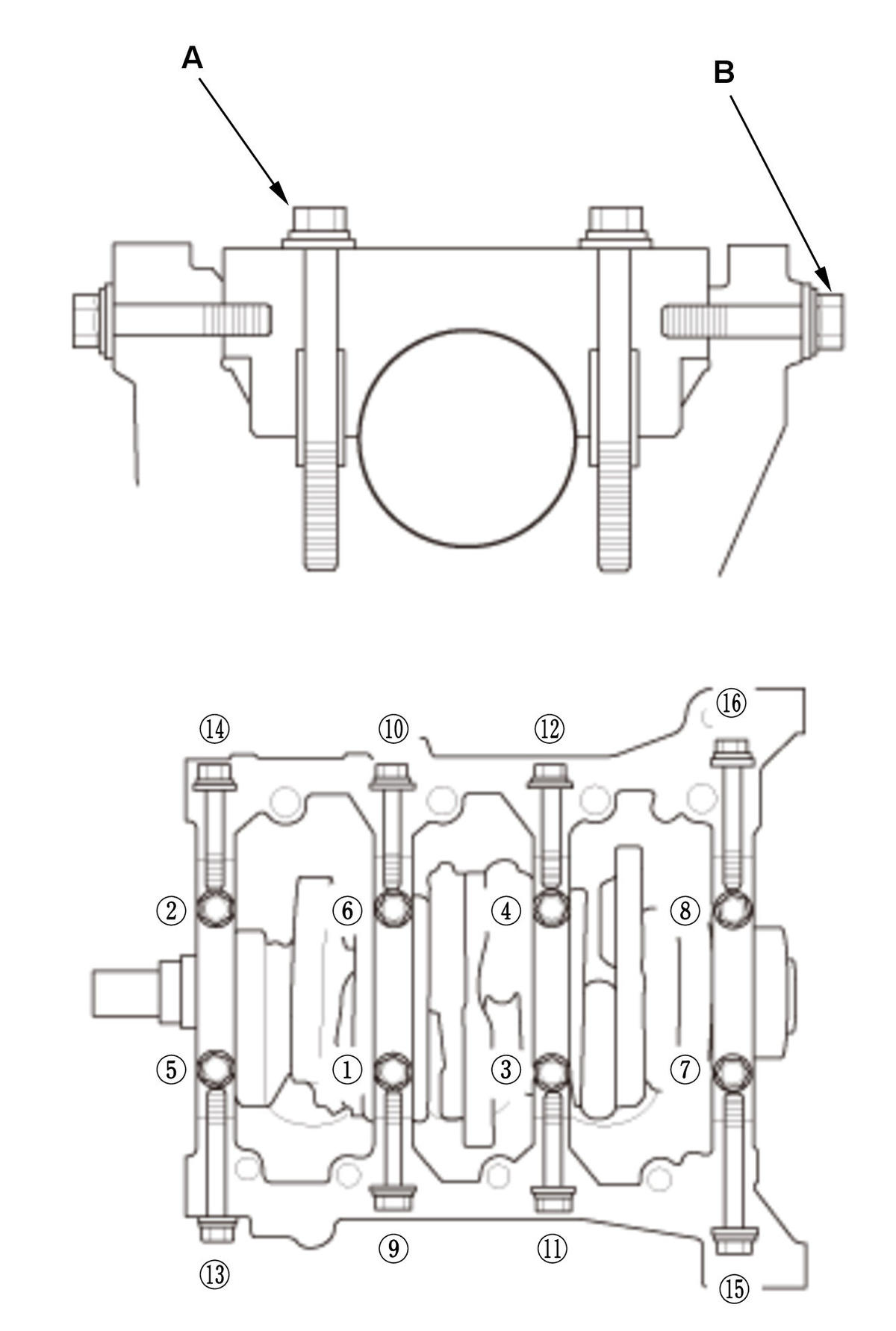

3. Reinstall the main bearings and the main bearing caps, then torque the bearing cap bolts (A) to 40 N.m (4.1 kgf.m, 30 lbf.ft) + 47°, and the bearing cap side bolts (B) to 49 N.m (5.0 kgf.m, 36 lbf.ft) in the proper sequence.

Apply new engine oil to the bolt threads and flanges.
Do not rotate the crankshaft during inspection.

Courtesy of HONDA, U.S.A., INC.

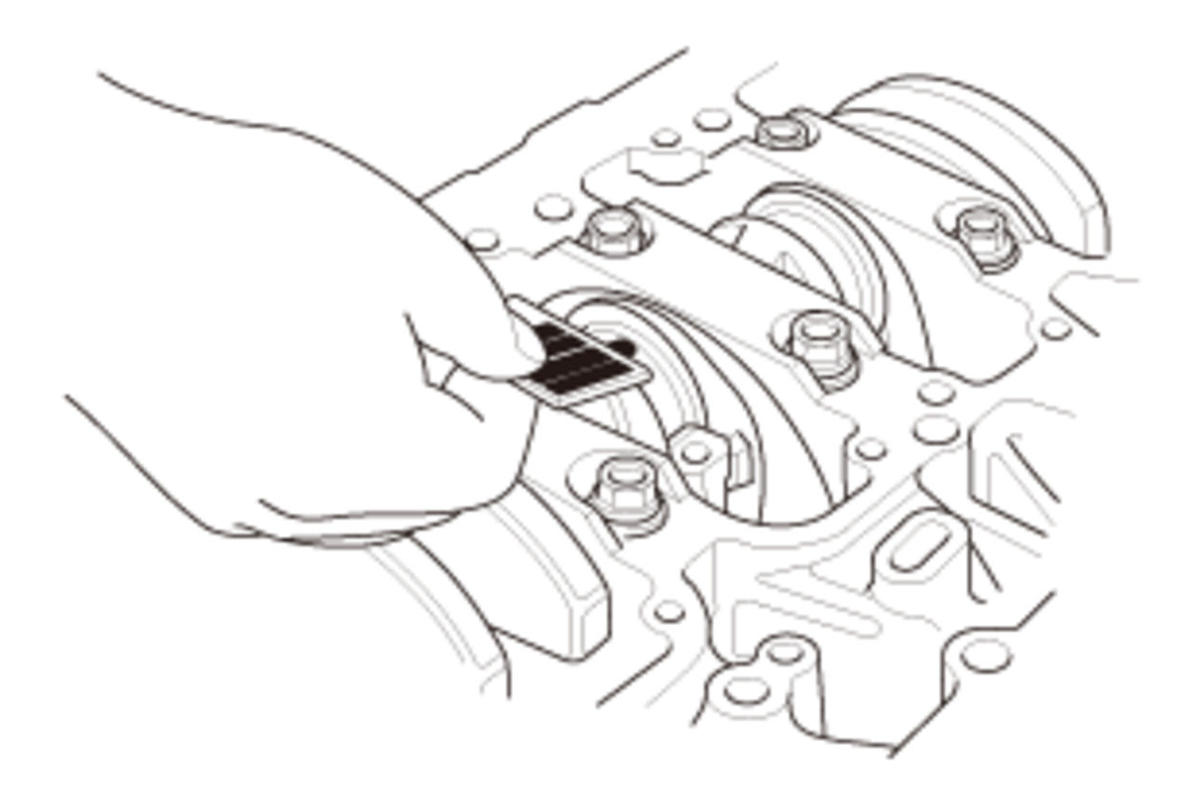

4. Remove the main bearing caps and the bearing halves, and measure the widest part of the plastigage.

Main Bearing-to-Journal Oil Clearance

5. If the plastigage measures too wide or too narrow, remove the crankshaft, and remove the upper half of the bearing. Install a new, complete bearing with the same color code, and recheck the clearance. Do not file, shim, or scrape the bearings or the caps to adjust clearance.

6. If the plastigage shows the clearance is still incorrect, try the next larger or smaller bearing (the color listed above or below that one), and check the clearance again. If the proper clearance cannot be obtained by using the appropriate larger or smaller bearings, replace the crankshaft and start over.

Standard (New):	0.019-0.045 mm (0.00075-0.00177 in)
Service Limit:	0.050 mm (0.00197 in)

Crankshaft Main Bearing - Select

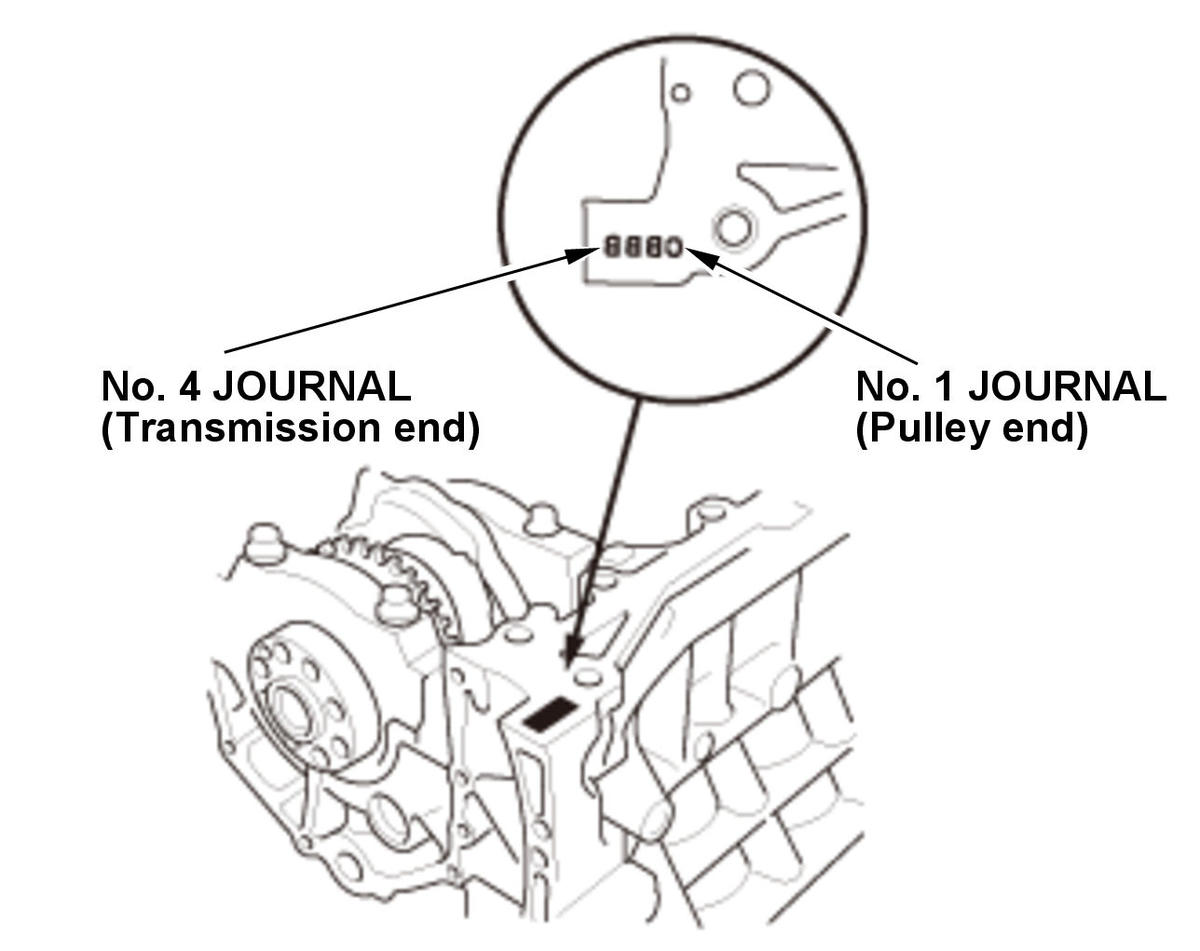

Block Bore Code Locations

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

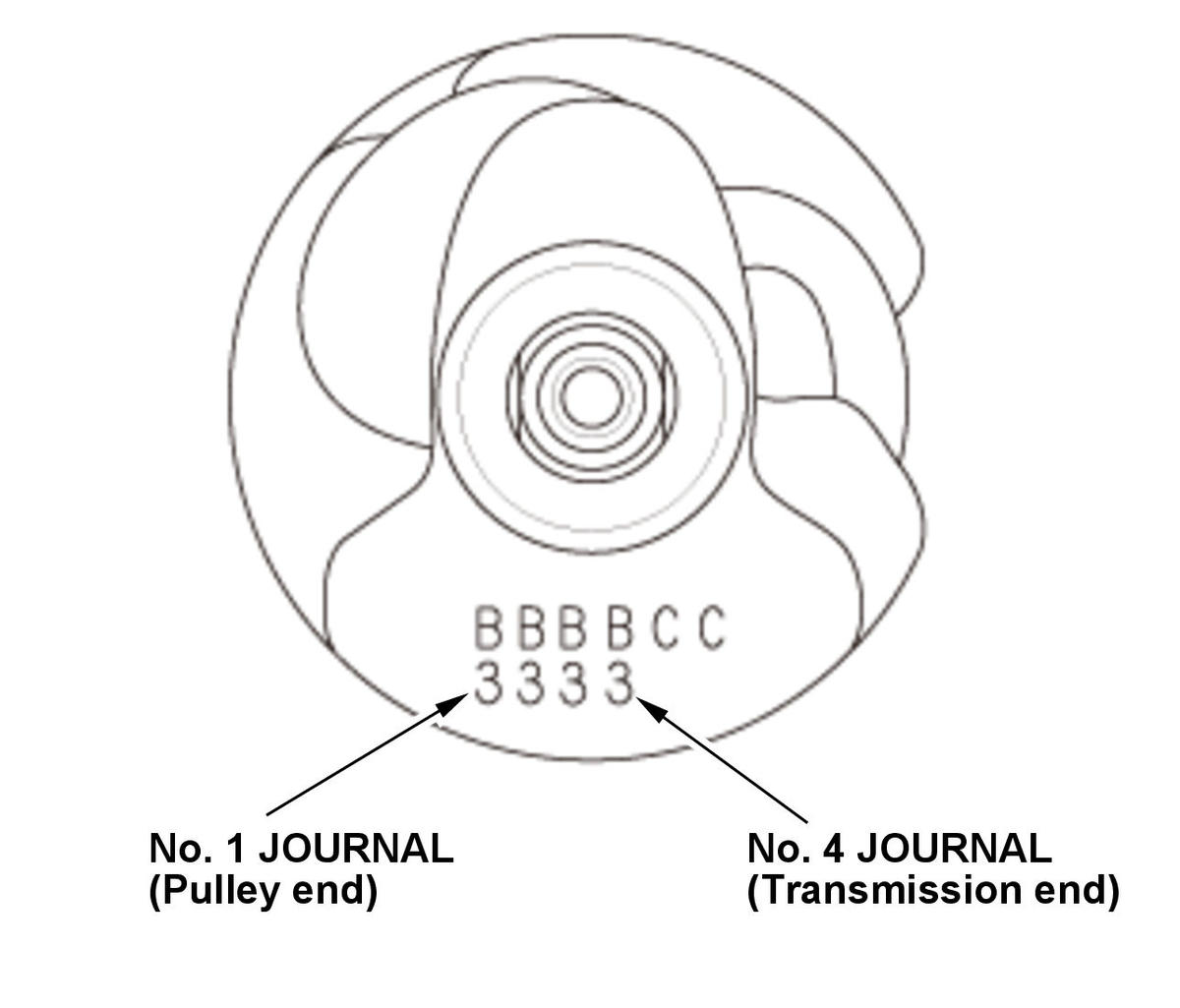

Main Journal Code Locations

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

1. Letters or bars have been stamped on the end of the engine block as a code for the size of each of the four main journal bores. Use them, and the numbers or bars stamped on the crankshaft (codes for main journal size), to choose the correct bearings.

NOTE: If the codes are indecipherable because of an accumulation of dirt and dust, do not scrub them with a wire brush or scraper. Clean them only with solvent or detergent.

2. Use the block bore codes and the main journal codes to select the appropriate replacement bearings from the following table.

Color code is on the edge of the bearing.
When using bearing halves of different colors, it does not matter which color is used in the top or bottom.

Connecting Rod Bearing Clearance Inspection

Connecting Rod Cap and Bearing Half - Remove

Connecting Rod Bearing Clearance - Inspect

Courtesy of HONDA, U.S.A., INC.

1. Clean the connecting rod journal and the bearing half with a clean shop towel.

2. Place plastigage across the rod journal.

3. Reinstall the bearing half and the connecting rod cap, then torque the connecting rod bolt to 20 N.m (2.0 kgf.m, 15 lbf.ft) + 90°.

NOTE:

Apply new engine oil to the bolt threads and flanges.
Do not rotate the crankshaft during inspection.

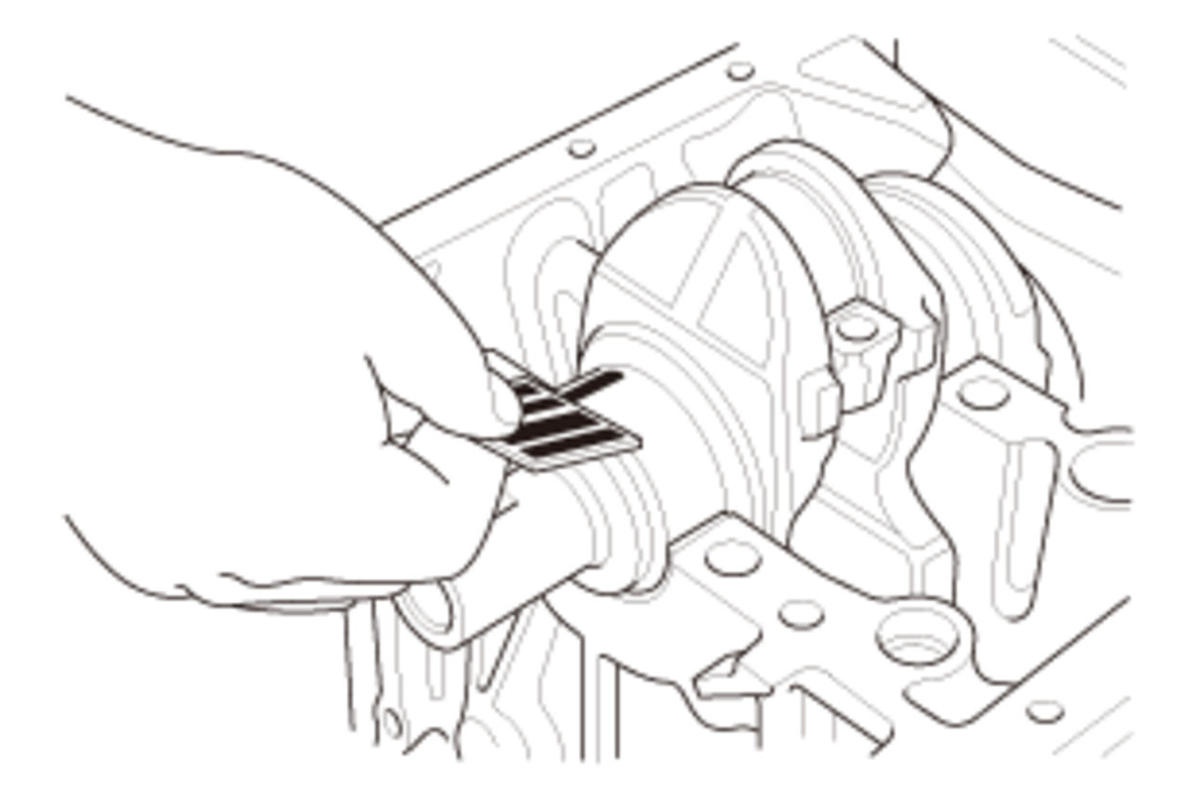

4. Remove the connecting rod cap and the bearing half, and measure the widest part of the plastigage.

Connecting Rod Bearing-to-Journal Oil Clearance

5. If the plastigage measures too wide or too narrow, remove the upper half of the bearing. Install a new, complete bearing with the same color code, and recheck the clearance. Do not file, shim, or scrape the bearings or the caps to adjust clearance.

Standard (New):	0.020-0.044 mm (0.00079-0.00173 in)
Service Limit:	0.050 mm (0.00197 in)

Connecting Rod Bearing - Select

Big End Bore Code Locations

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

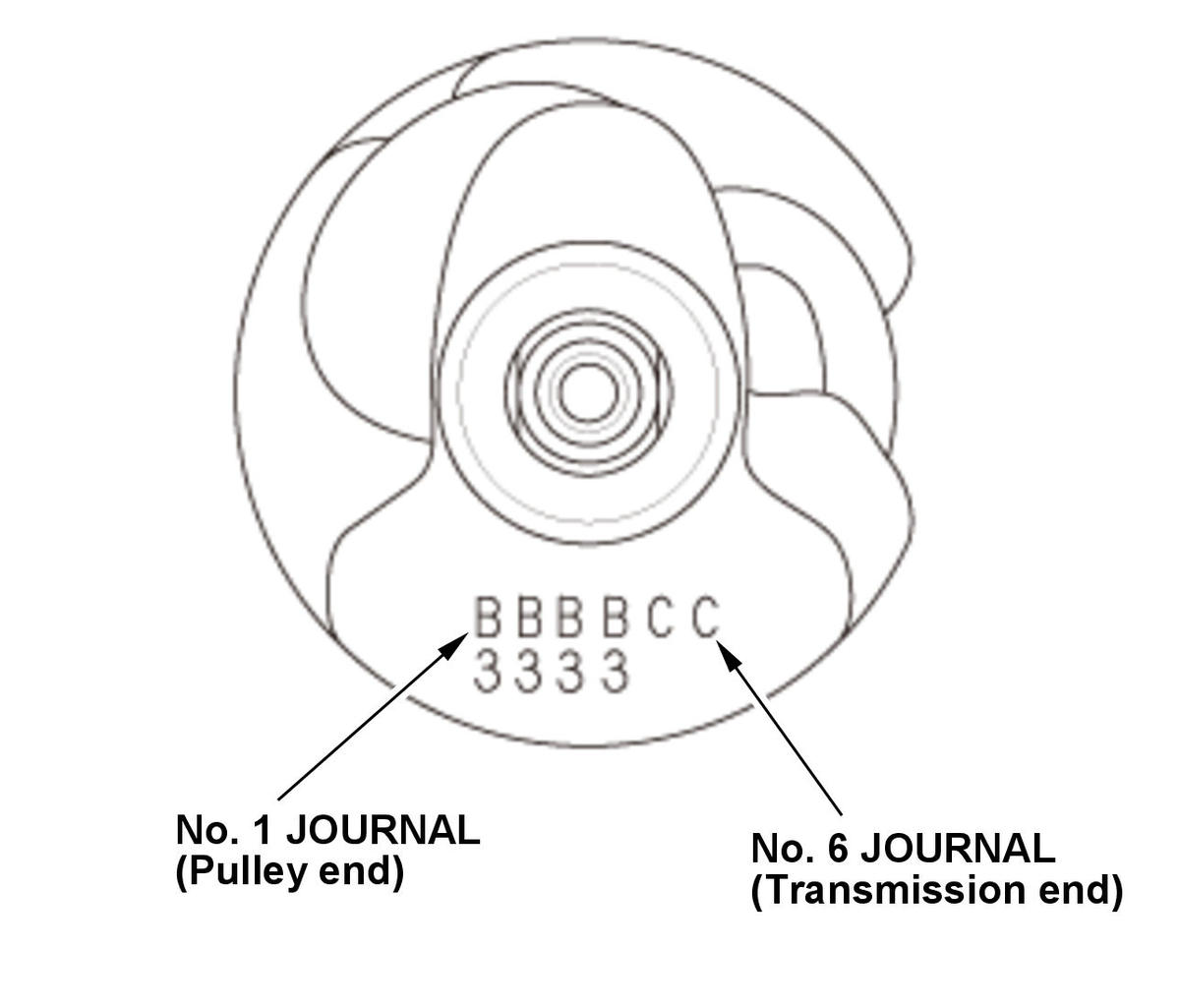

Connecting Rod Journal Code Locations

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

1. Inspect the connecting rod for cracks and heat damage.

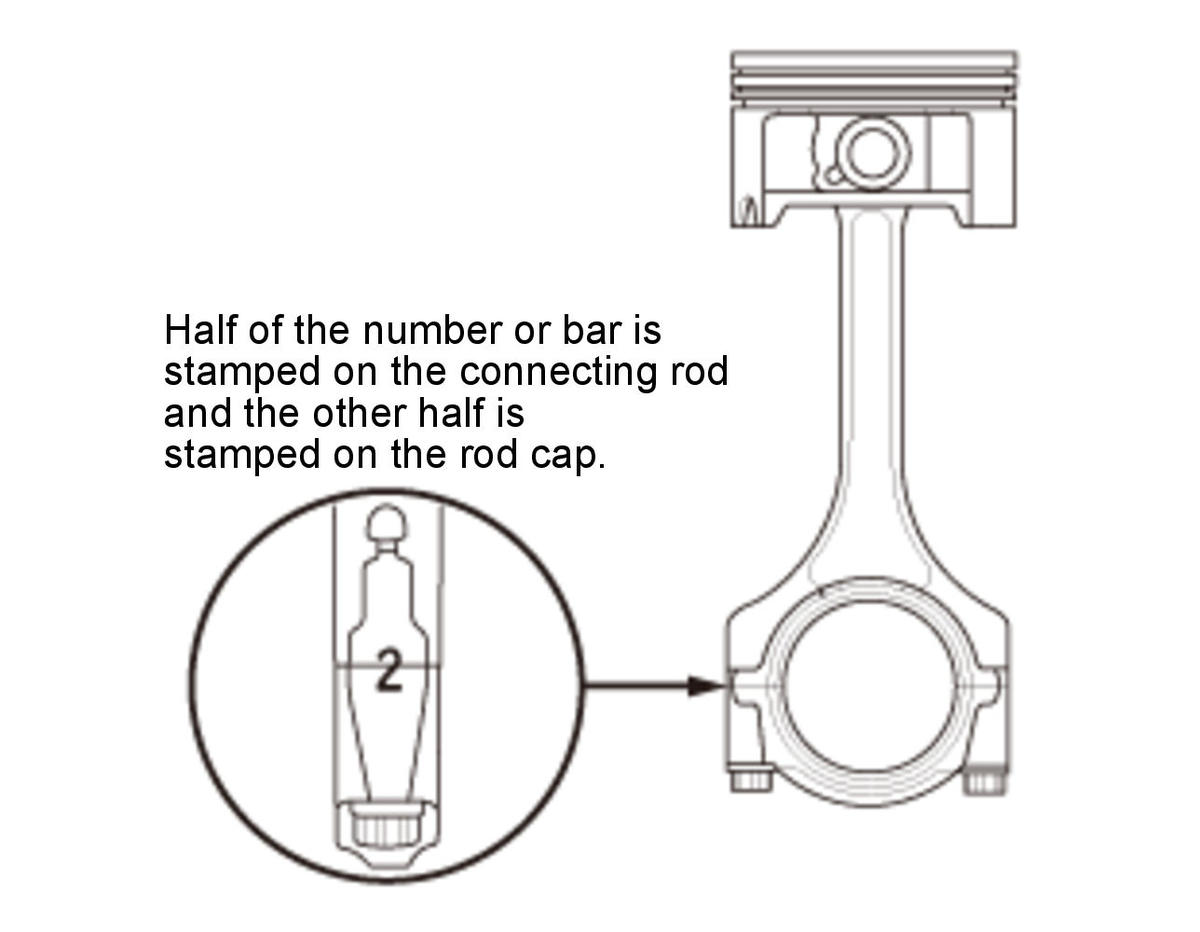

2. Numbers or bars have been stamped on the side of each connecting rod as a code for the size of the big end. Use them, and the letters or bars stamped on the crank (codes for rod journal size), to choose the correct bearings.

NOTE:

If the codes are indecipherable because of an accumulation of dirt and dust, do not scrub them with a wire brush or scraper. Clean them only with solvent or detergent.
Each connecting rod falls into one of four tolerance ranges (from 0 to 0.024 mm (0.00094 in), in 0.006 mm (0.00024 in) increments) depending on the size of its big end bore.It is then stamped with a number or bar (1, 2, 3, or 4/I, II, III, or IIII) indicating the range. You may find any combination of 1, 2, 3, or 4/I, II, III, or IIII in any engine.

Big End Bore Size

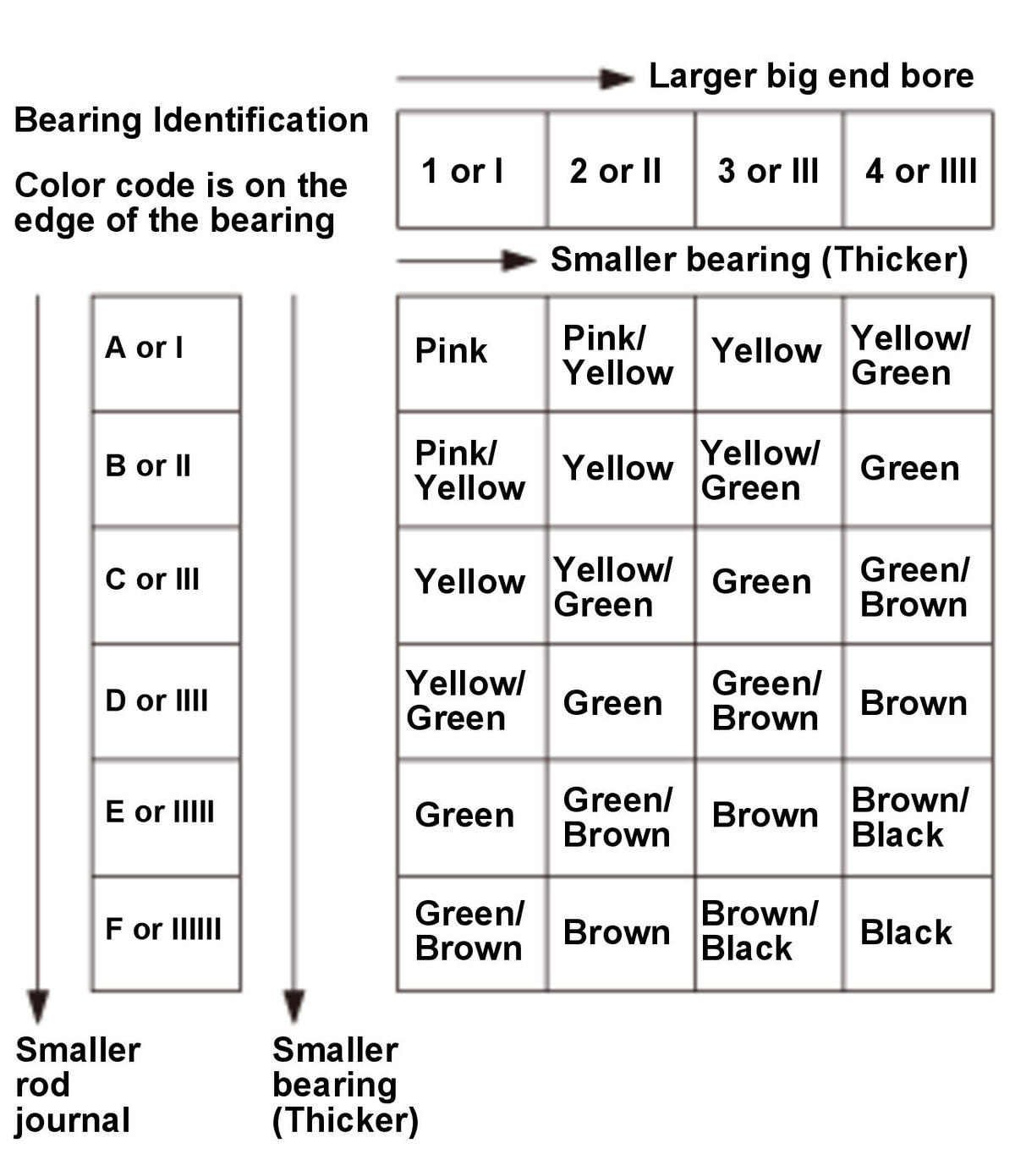

3. Use the big end bore codes and the rod journal codes to select appropriate replacement bearings from the following table.

NOTE:

Color code is on the edge of the bearing.
When using bearing halves of different colors, it does not matter which color is used in the top or bottom.

58.0 mm (2.283 in)

Crankshaft Inspection

Crankshaft - Remove

Crankshaft - Inspect

Courtesy of HONDA, U.S.A., INC.

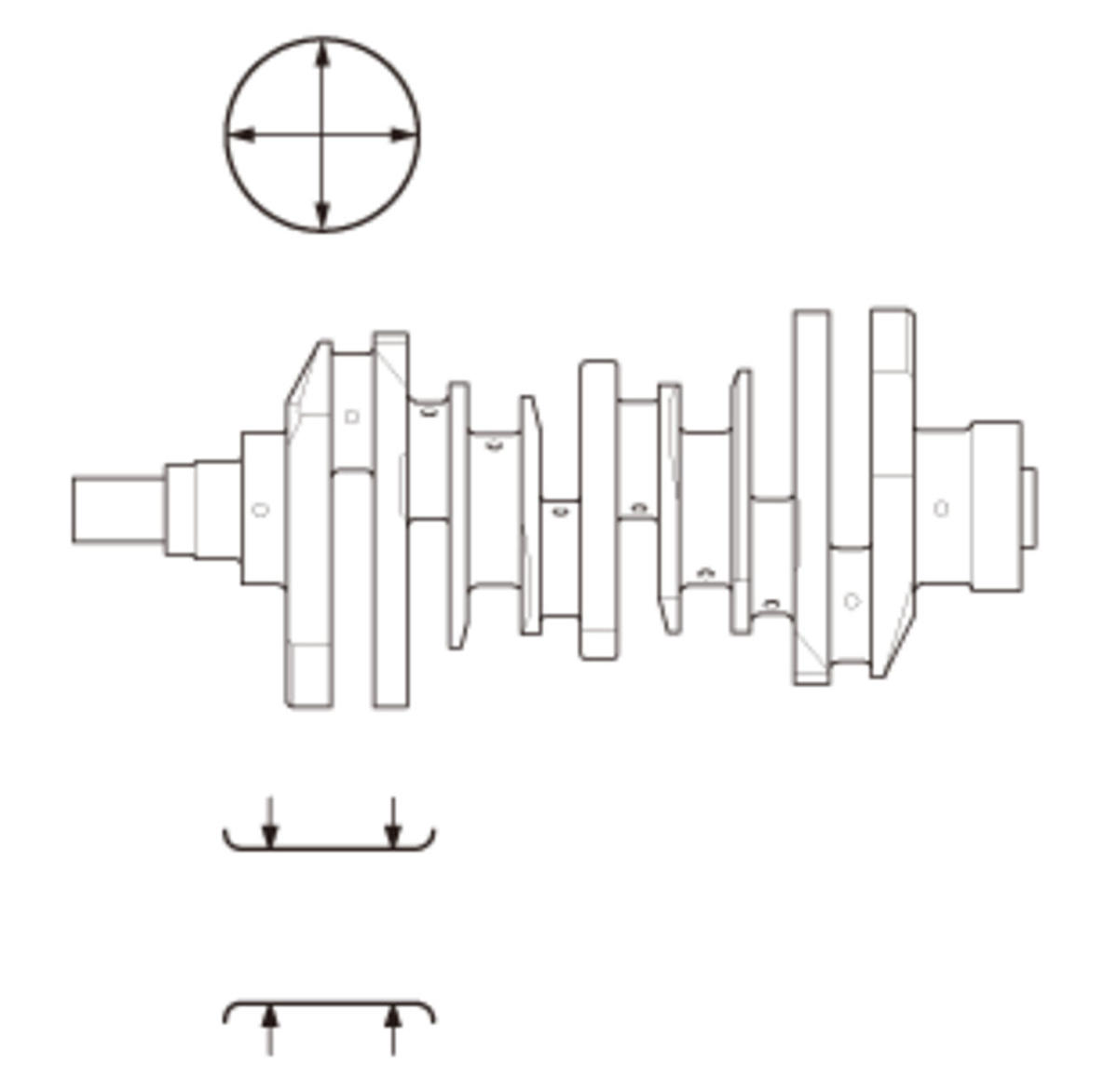

Journal Diameter, Out-of-Round, and Taper

1. Clean the crankshaft oil passages with pipe cleaners or a suitable brush.

2. Check the keyway slot and the threaded holes for damage.

3. Measure the out-of-round at the middle of each rod and the main journal in two places. The difference between measurements on each journal must not be more than the service limit.

Main Journal Diameter

Rod Journal Diameter

Journal Out-of-Round

4. Measure the taper at the edges of each rod and the main journal. The difference between measurements on each journal must not be more than the service limit.

Journal Taper

Standard (New):	0.005 mm (0.00020 in) max.
Service Limit:	0.005 mm (0.00020 in)

Service Limit:

0.010 mm (0.00039 in)

Standard (New):

0.005 mm (0.00020 in) max.

Standard (New):

54.976-55.000 mm (2.16441-2.16535 in)

Standard (New):

71.976-72.000 mm (2.83370-2.83464 in)

Courtesy of HONDA, U.S.A., INC.

Straightness

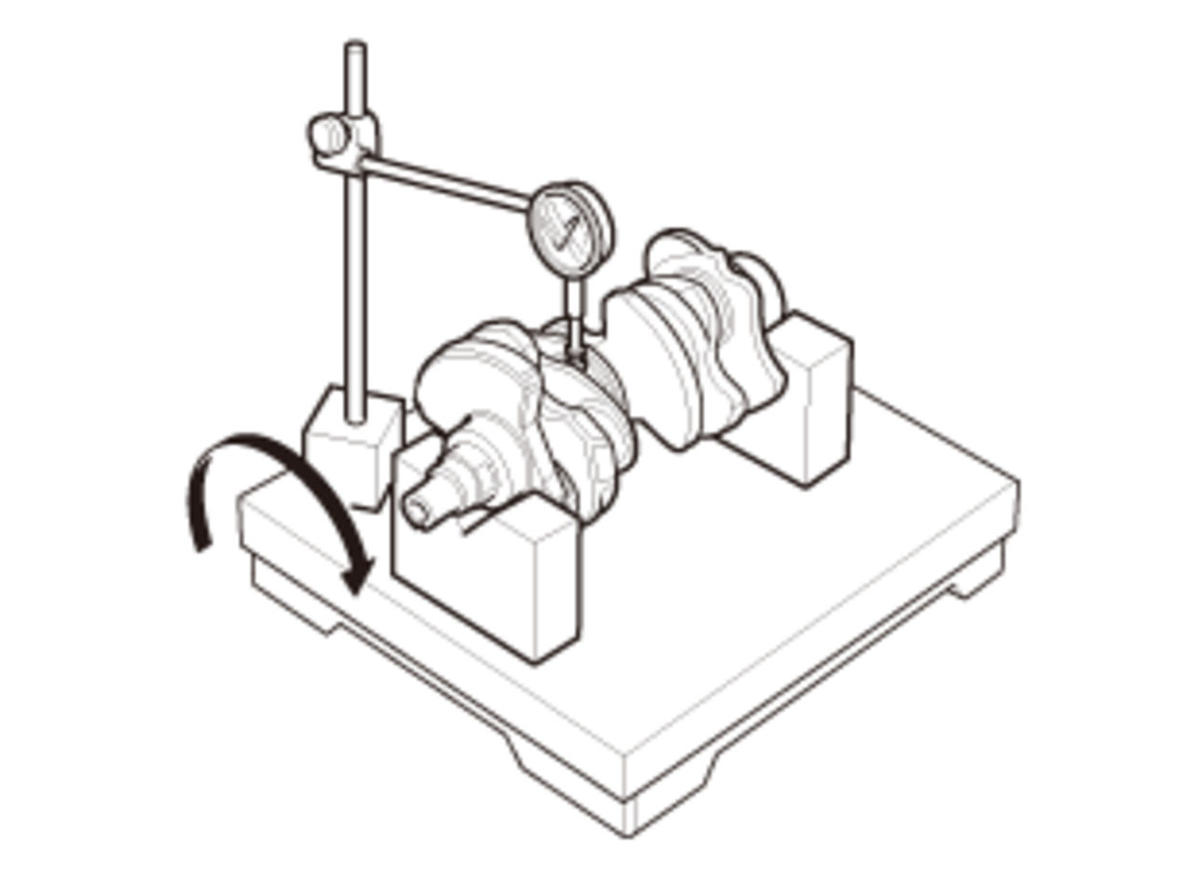

5. Place the V-blocks on a flat surface.

6. Check the total runout with the crankshaft supported on V-blocks.

7. Measure the runout on all of the main journals. Rotate the crankshaft two complete revolutions. The difference between measurements on each journal must not be more than the service limit.

Crankshaft Total Runout

Standard (New):	0.025 mm (0.00098 in) max.
Service Limit:	0.030 mm (0.00118 in)

Piston, Ring, Pin, and Connecting Rod Inspection

Piston Ring End Gap - Inspect

Courtesy of HONDA, U.S.A., INC.

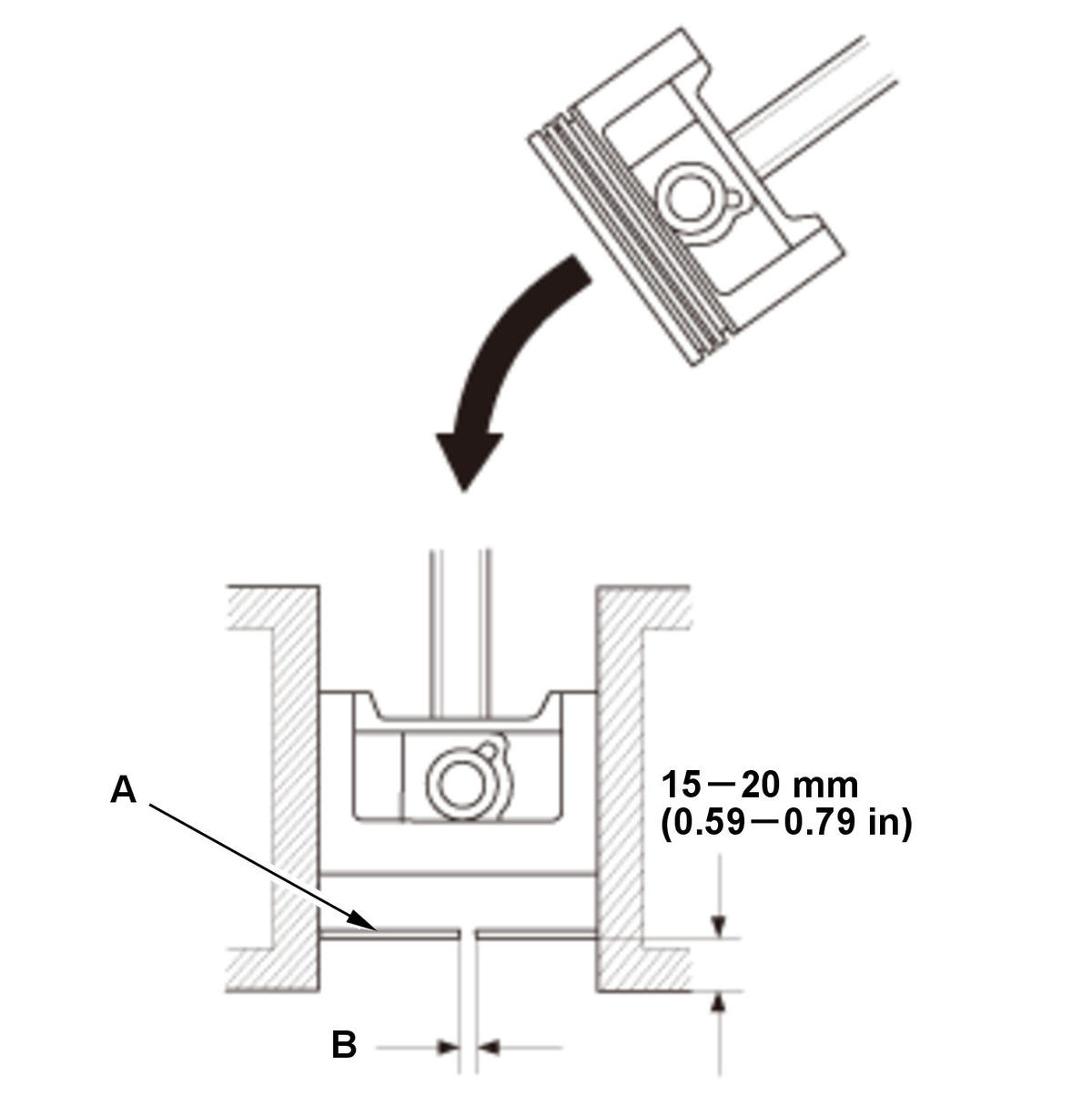

1. Using a piston, push a new ring (A) into the cylinder bore 15-20 mm (0.59-0.79 in) from the bottom.

2. Measure the piston ring end-gap (B) with a feeler gauge:

If the gap is too small, check to see if you have the proper rings for your engine.
If the gap is too large, recheck the cylinder bore diameter against the wear limits. If the bore is over the service limit, the engine block must be rebored.

Piston Ring End-Gap

Service Limit:

0.8 mm (0.031 in)

Top Ring:
Standard (New):	0.20-0.35 mm (0.008-0.013 in)
Service Limit:	0.6 mm (0.023 in)
Second Ring:
Standard (New):	0.40-0.55 mm (0.016-0.021 in)
Service Limit:	0.7 mm (0.027 in)
Oil Ring:
Standard (New):	0.20-0.70 mm (0.008-0.027 in)

Piston Pin - Inspect

Courtesy of HONDA, U.S.A., INC.

1. Measure the diameter of the piston pin.

Piston Pin Diameter

Standard (New):	21.961-21.965 mm (0.86460-0.86476 in)
Service Limit:	21.954 mm (0.86433 in)

Courtesy of HONDA, U.S.A., INC.

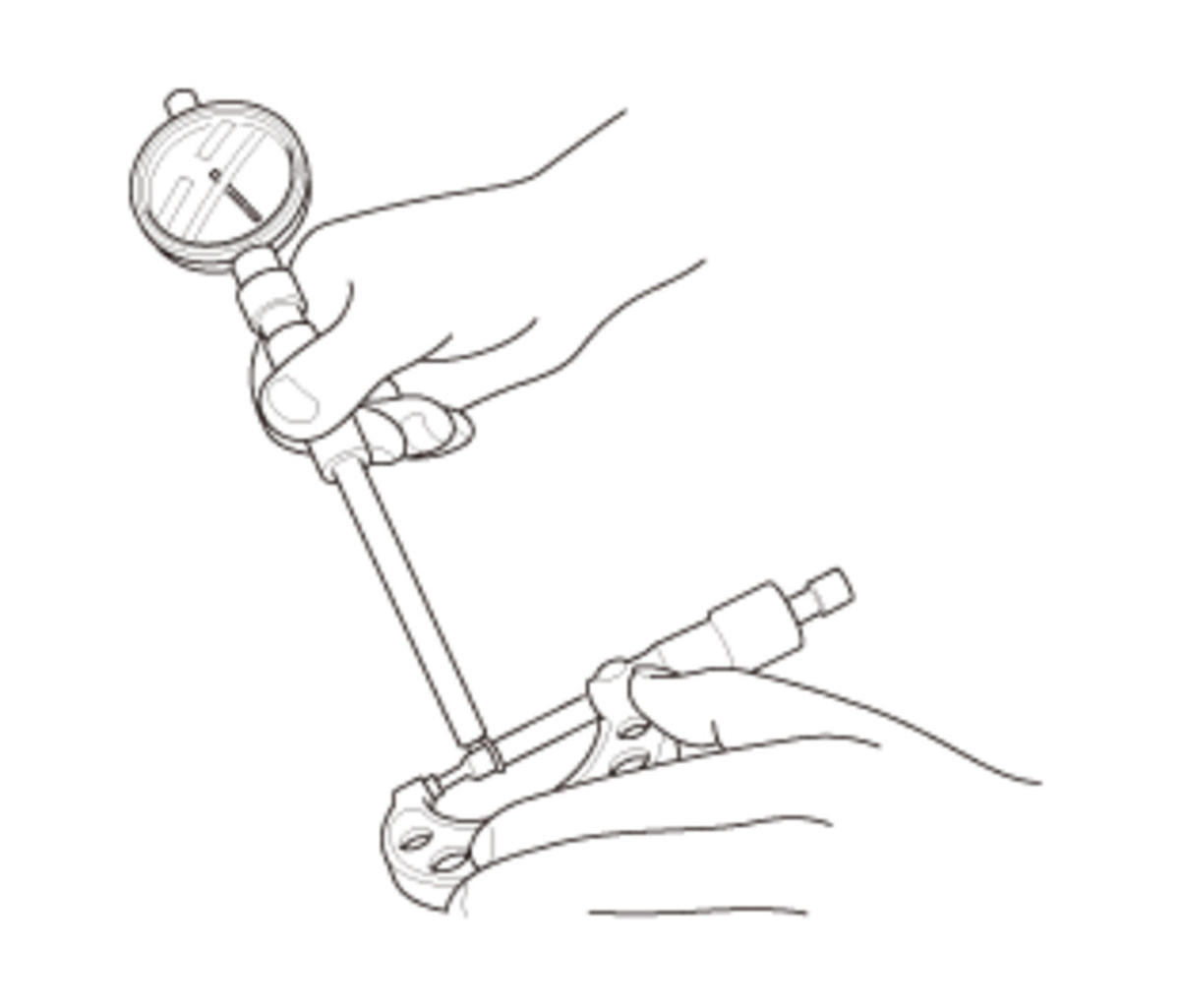

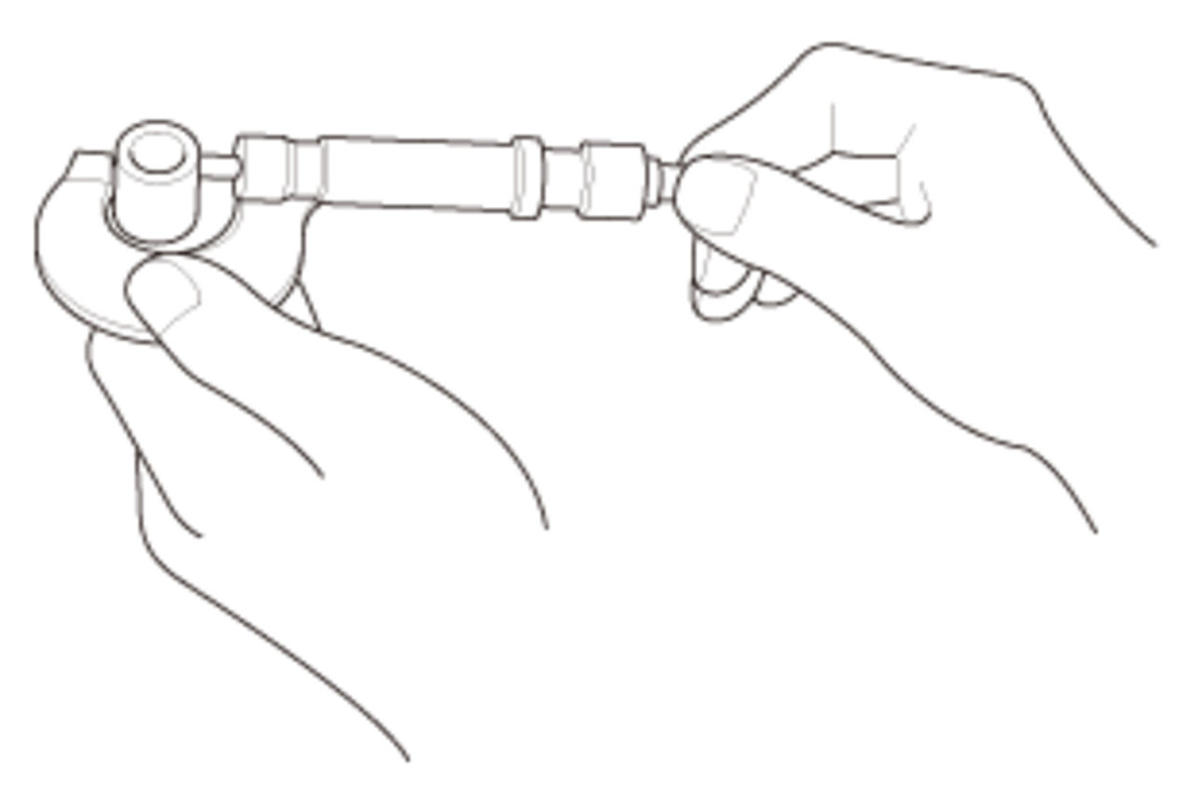

2. Zero the dial indicator to the piston pin diameter.

Courtesy of HONDA, U.S.A., INC.

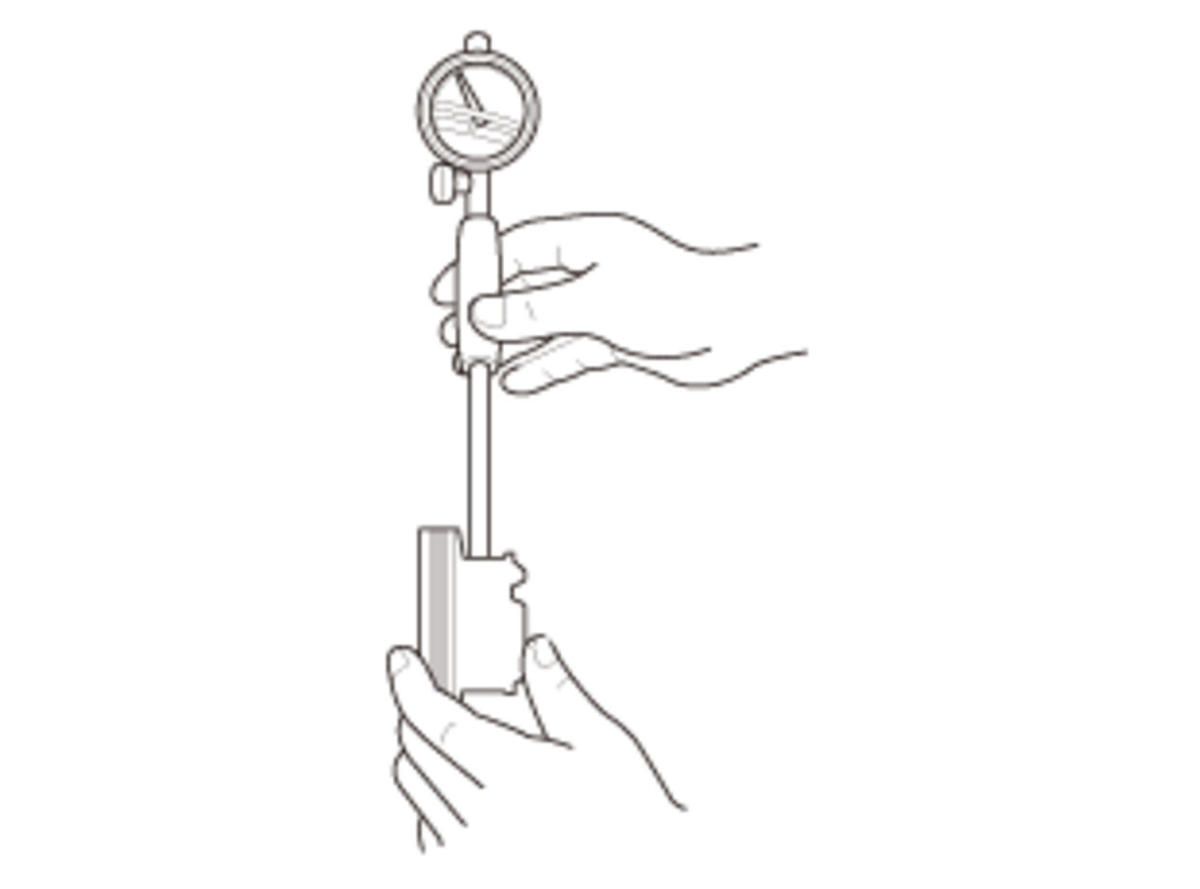

3. Check the difference between the piston pin diameter and the piston pin hole diameter on the piston.

Piston Pin-to-Piston Clearance

Standard (New):	-0.005-0.002 mm (-0.00020-0.00008 in)
Service Limit:	0.004 mm (0.00016 in)

Courtesy of HONDA, U.S.A., INC.

4. Measure the piston pin-to-connecting rod clearance.

Piston Pin-to-Connecting Rod Clearance

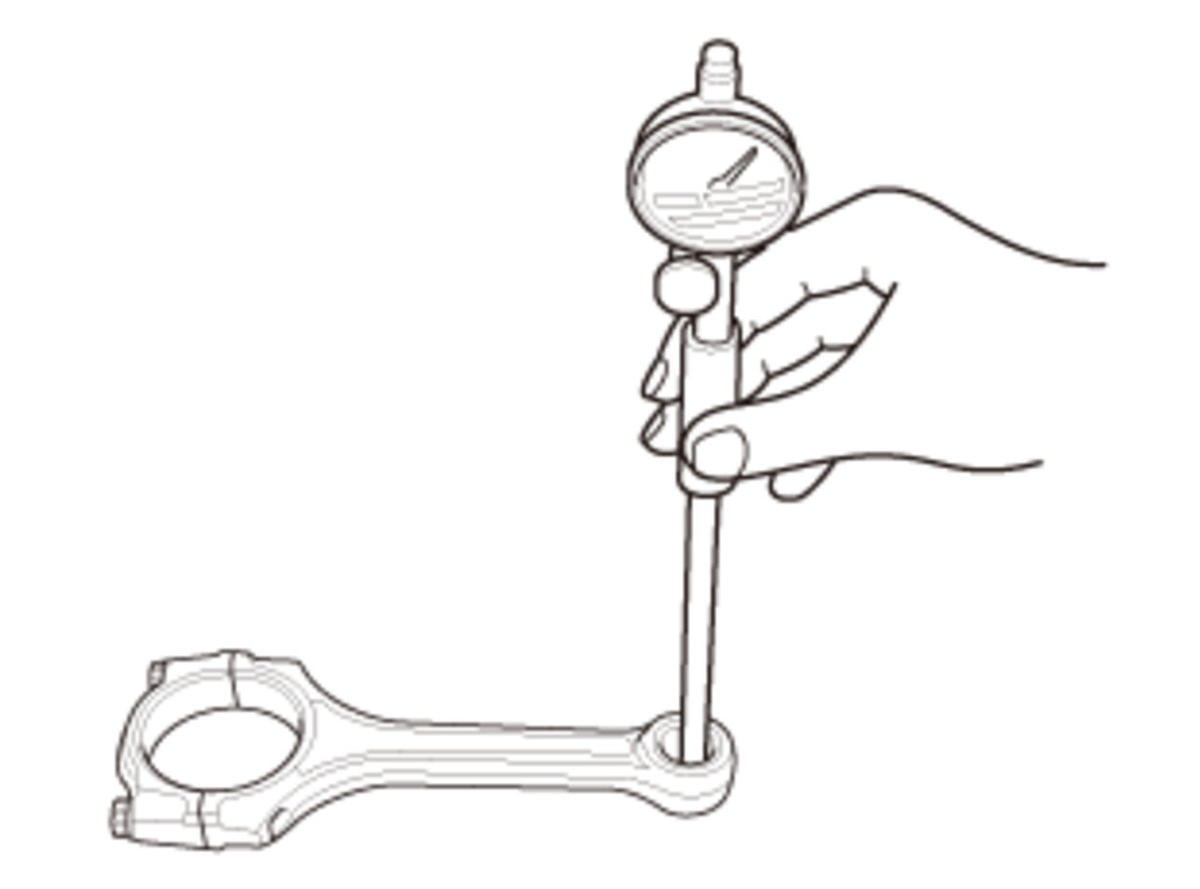

5. Measure the connecting rod small end bore diameter.

Connecting Rod Small End Bore Diameter

Standard (New):

21.970-21.976 mm (0.86496-0.86520 in)

Standard (New):	0.005-0.015 mm (0.00020-0.00059 in)
Service Limit:	0.019 mm (0.00075 in)

Piston Ring-to-Piston Ring Groove Clearance - Inspect

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

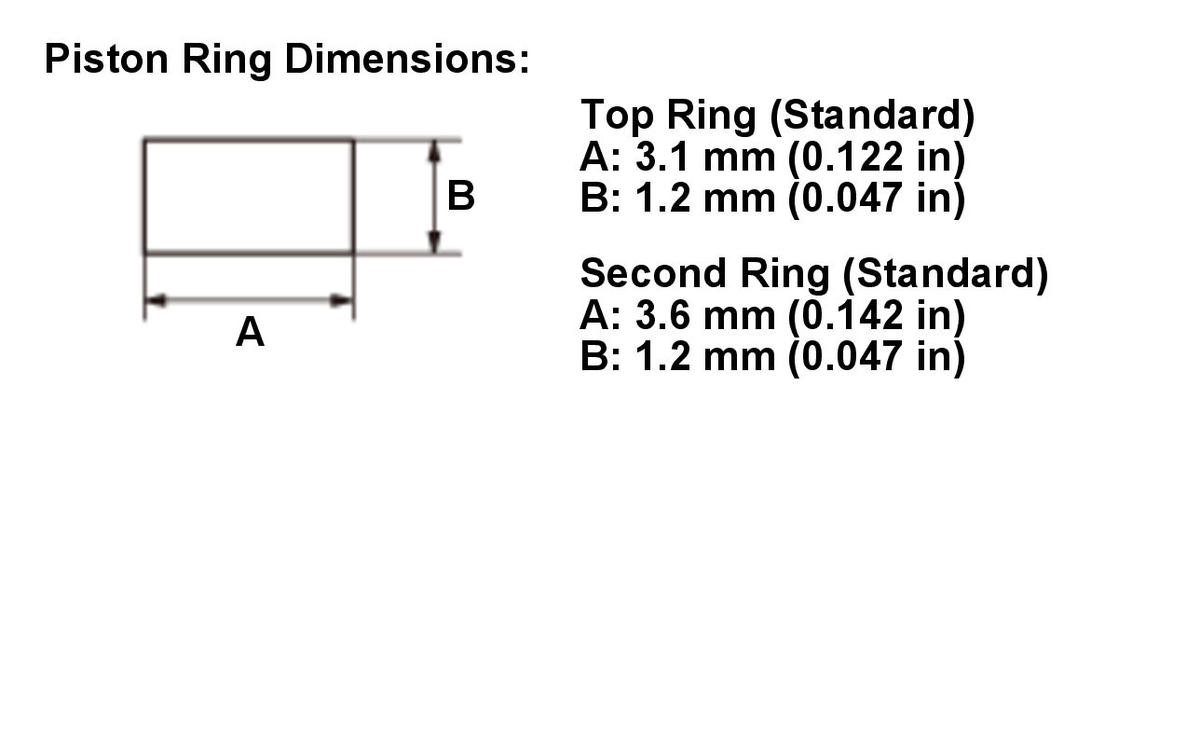

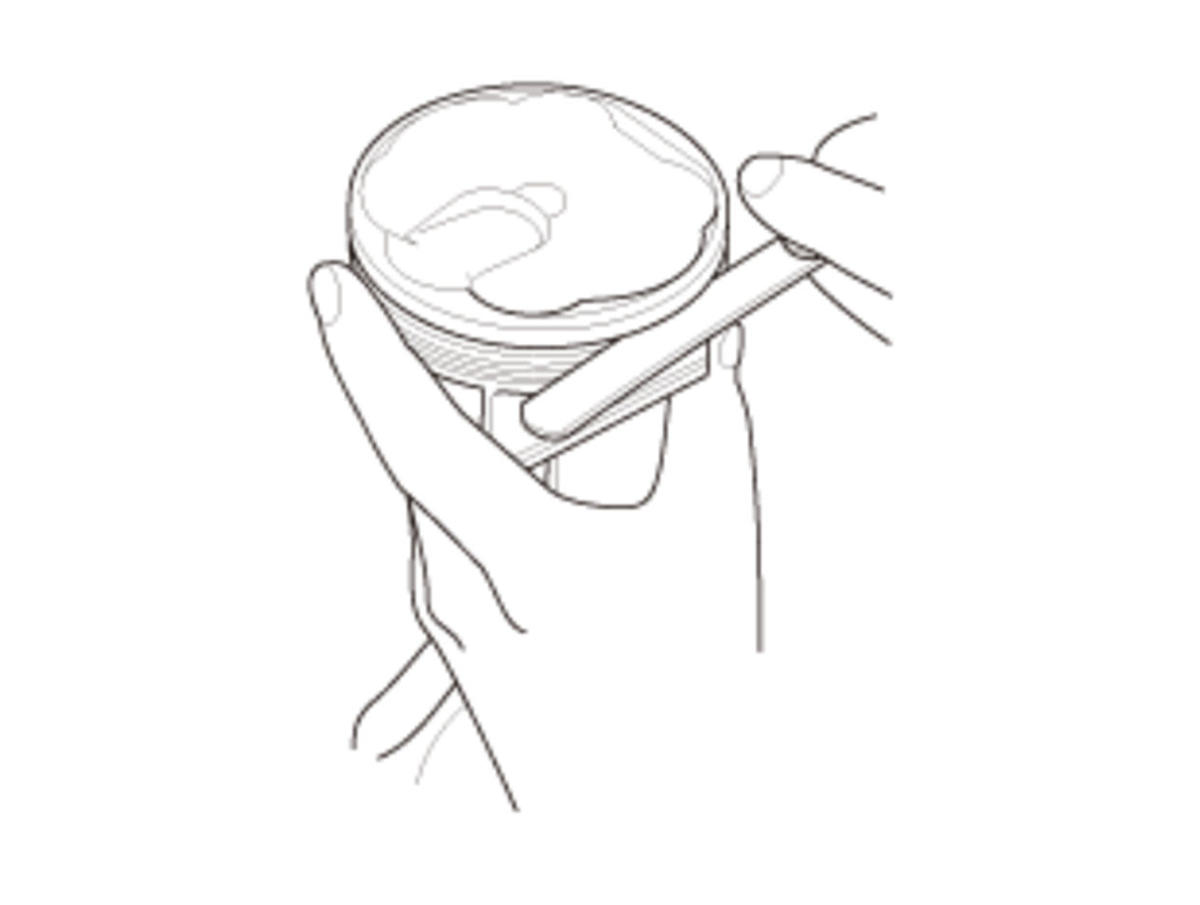

1. After installing a new set of rings, measure the ring-to-groove clearance.

Top Ring Clearance

Second Ring Clearance

Standard (New):	0.030-0.055 mm (0.002 in)
Service Limit:	0.13 mm (0.005 in)

Standard (New):	0.065-0.090 mm (0.003 in)
Service Limit:	0.15 mm (0.005 in)

Block and Piston Inspection

Block and Piston - Inspect

Courtesy of HONDA, U.S.A., INC.

1. Check the pistons for distortion or cracks.

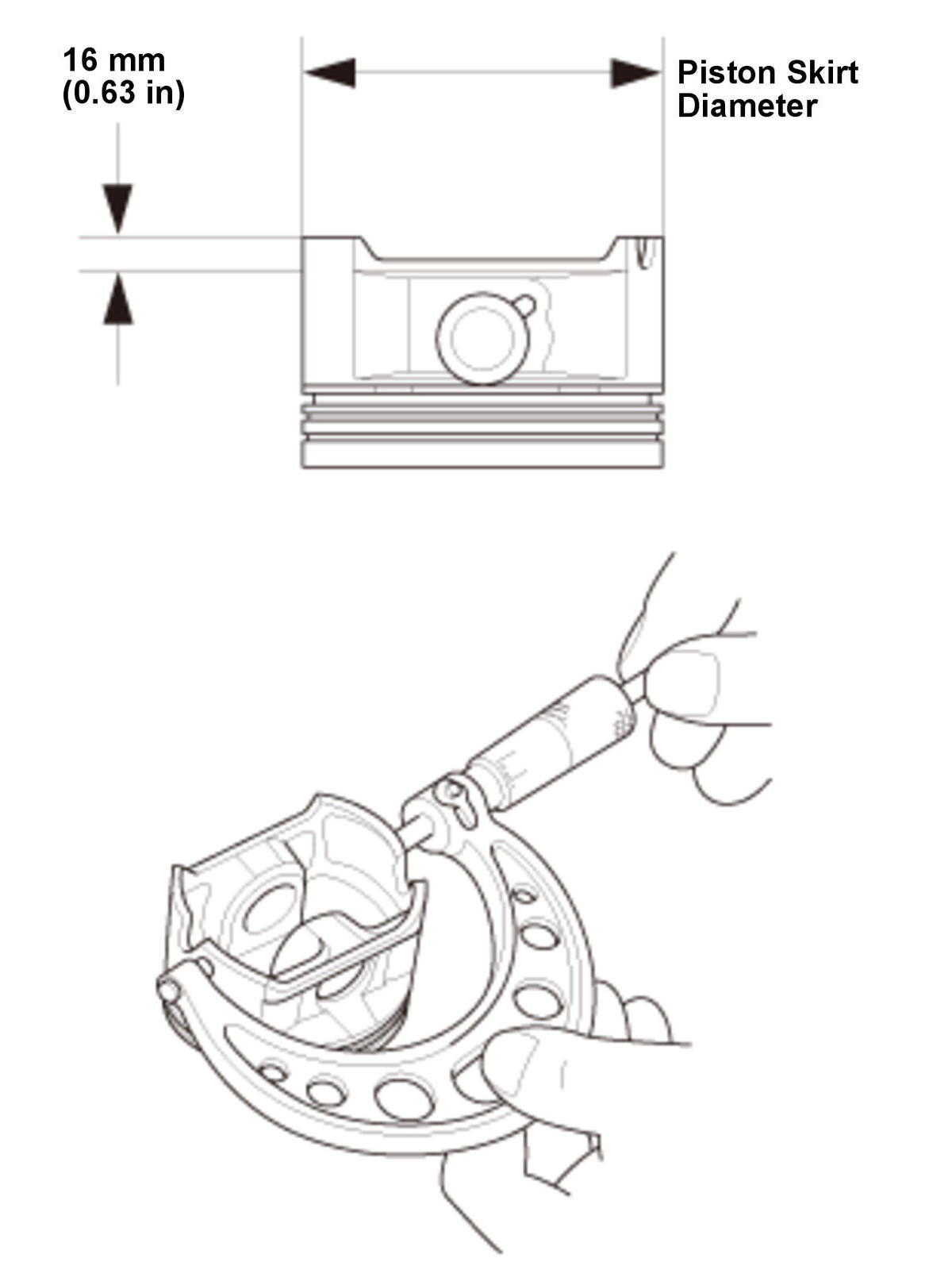

2. Measure the piston skirt diameter at a point 16 mm (0.63 in) from the bottom of the skirt.

Piston Skirt Diameter

Oversize Piston Skirt Diameter

0.25:

89.225-89.235 mm (3.51279-3.51318 in)

Standard (New):	88.975-88.985 mm (3.50295-3.50334 in)
Service Limit:	88.965 mm (3.50255 in)

Courtesy of HONDA, U.S.A., INC.

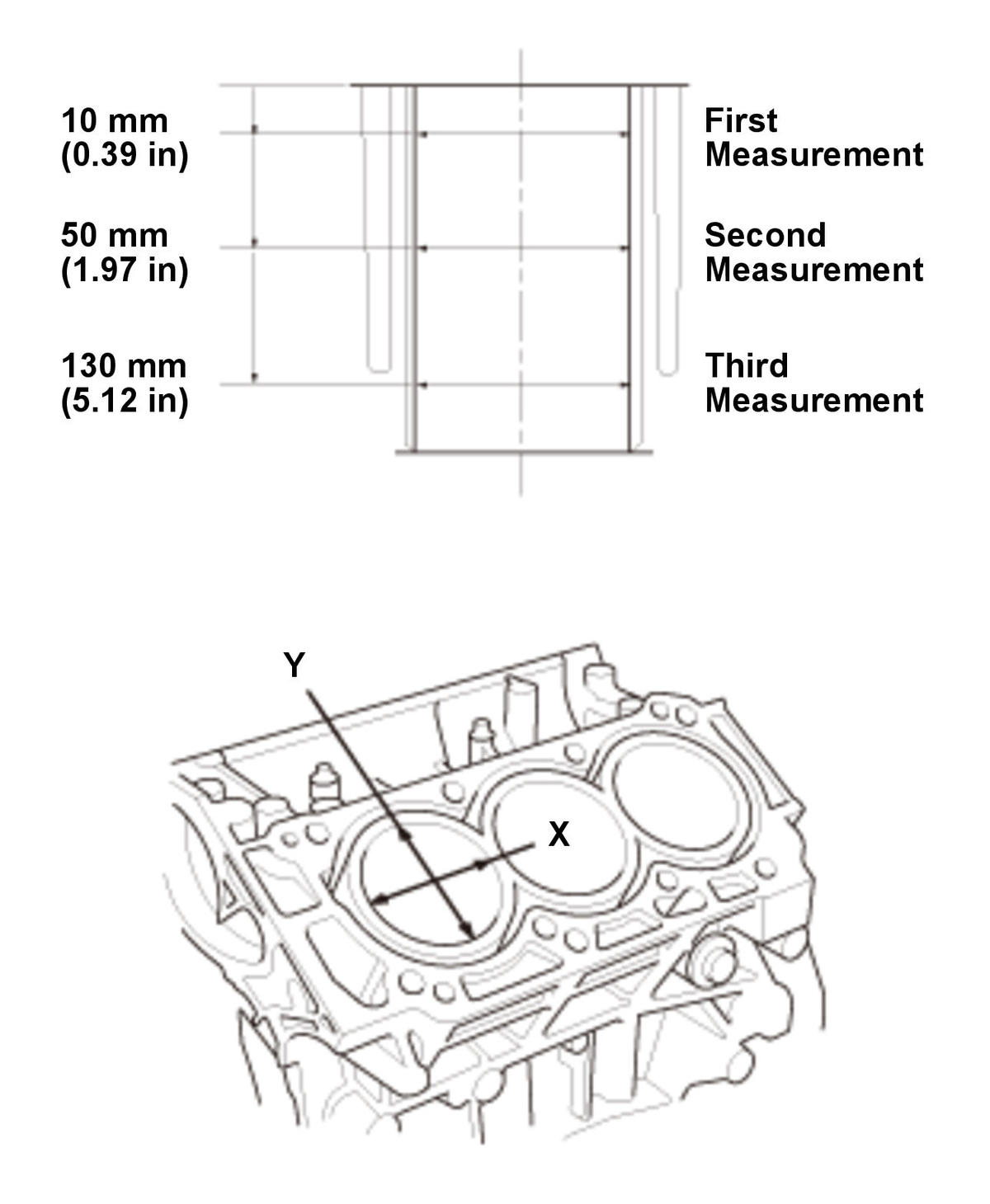

3. Measure the wear and taper in direction X and Y at three levels in each cylinder as shown. If measurements in any cylinder are beyond the oversize bore service limit or the cylinders are damaged, replace the engine block. If the engine block has to be rebored, refer to step 6 after reboring.

Cylinder Bore Size

Oversize

Bore Taper

4. Hone any scored or scratched cylinder bores.

Limit:

(Difference between first and third measurement) 0.025 mm (0.00098 in)

Reboring Limit:

0.25 mm (0.0098 in)

0.25:

89.250-89.265 mm (3.51377-3.51436 in)

Standard (New):	89.000-89.015 mm (3.50393-3.50452 in)
Service Limit:	89.065 mm (3.50649 in)

Courtesy of HONDA, U.S.A., INC.

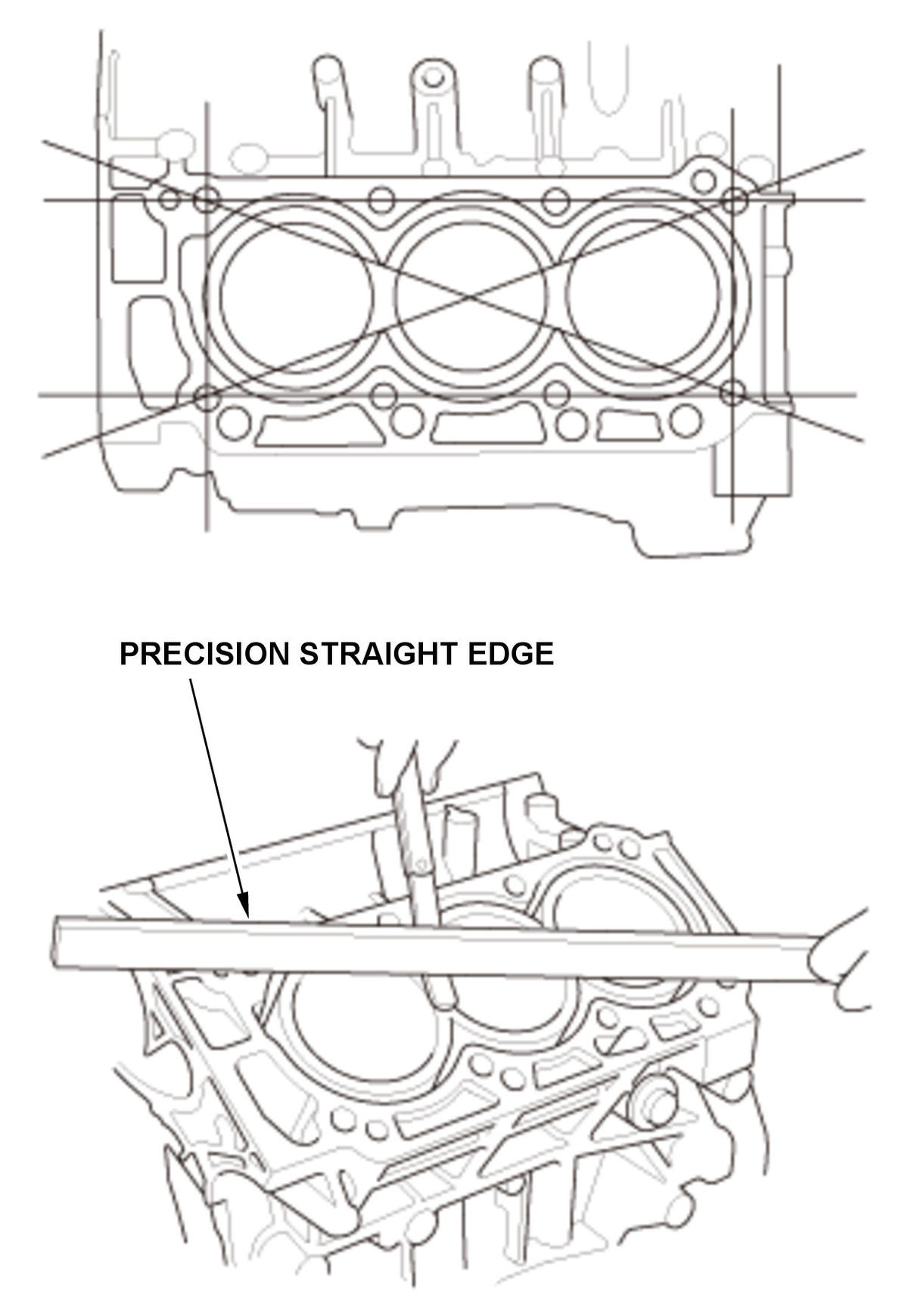

5. Check the top of the engine block for warpage. Measure along the edges and across the center as shown.

Engine Block Warpage

Standard (New):

0.07 mm (0.002 in) max.

Courtesy of HONDA, U.S.A., INC.

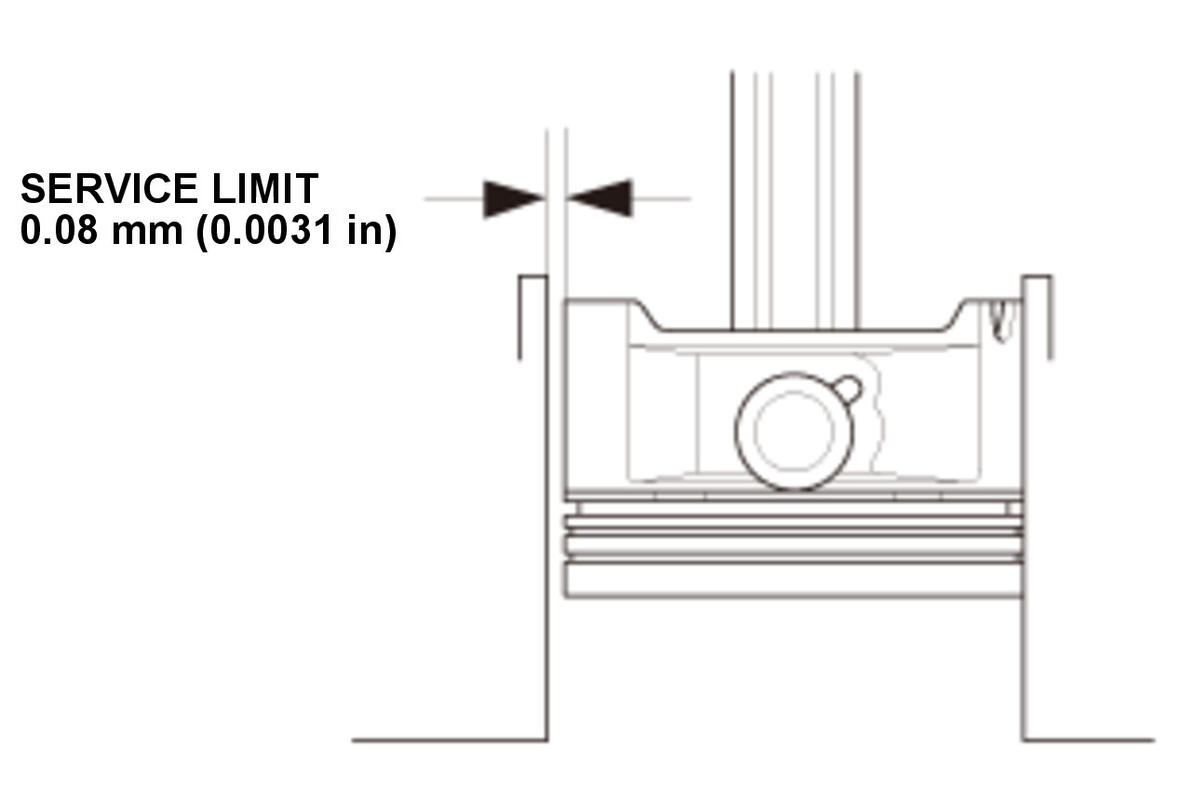

6. Calculate the difference between the cylinder bore diameter and the piston diameter. If the clearance is near or exceeds the service limit, inspect the piston and the cylinder bore for excessive wear.

Piston-to-Cylinder Bore Clearance

Standard (New):	0.015-0.040 mm (0.00059-0.00157 in)
Service Limit:	0.08 mm (0.0031 in)
