Engine Removal and Installation: Installation

NOTE:

• How to read the torque specifications .
• Reinstall the mounting bolts/support nuts in the sequence given in the following steps. Failure to follow this sequence may cause excessive noise and vibration, and reduce engine mount life.

1. Engine Mount Bracket - Install

   1. Install the engine mount brackets and the accessory brackets, then tighten the bolts to the specified torque.

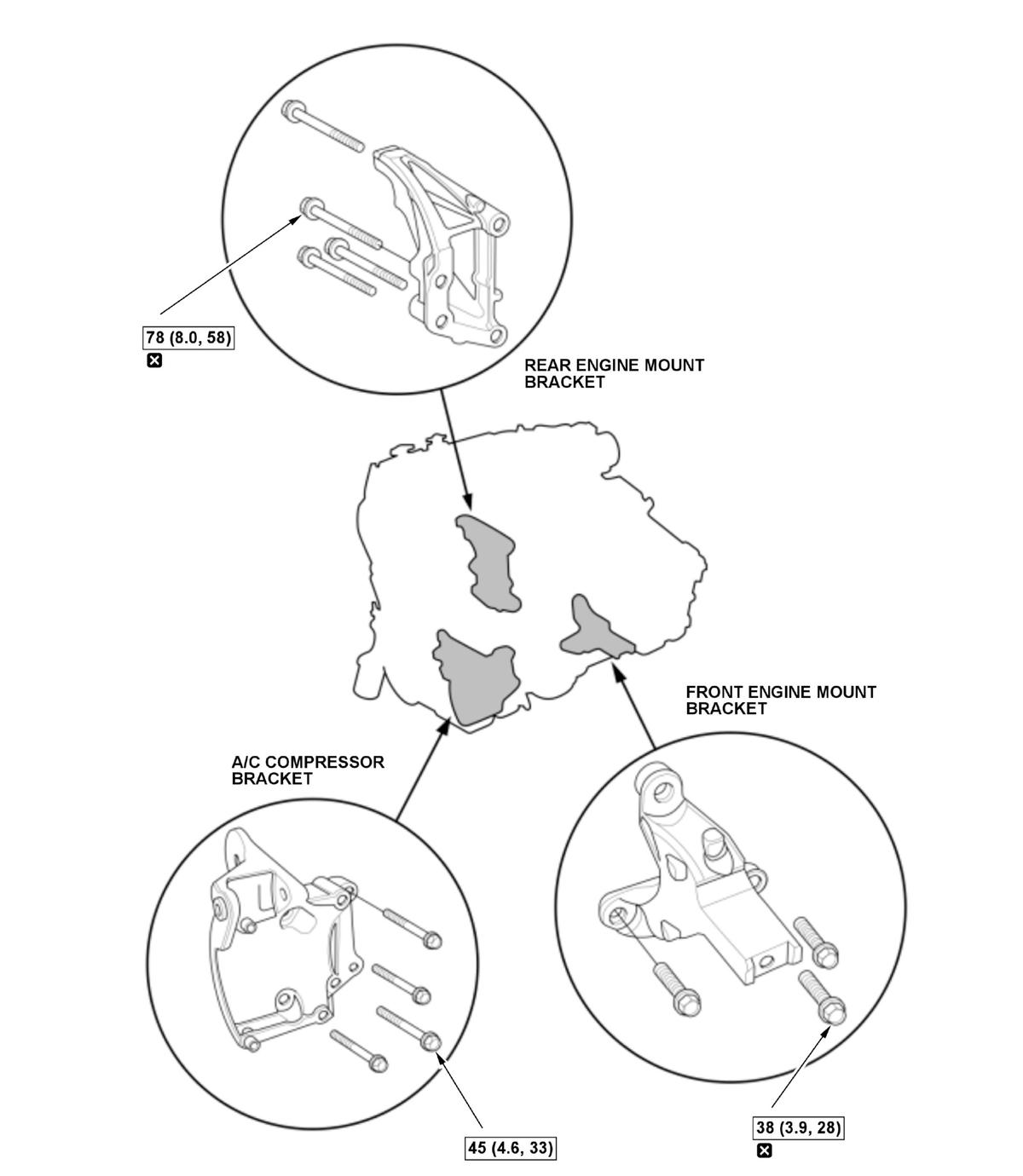

   Fig 1: Engine Mount Bracket Replacement Components With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.
2. Engine - Install

   Courtesy of HONDA, U.S.A., INC.

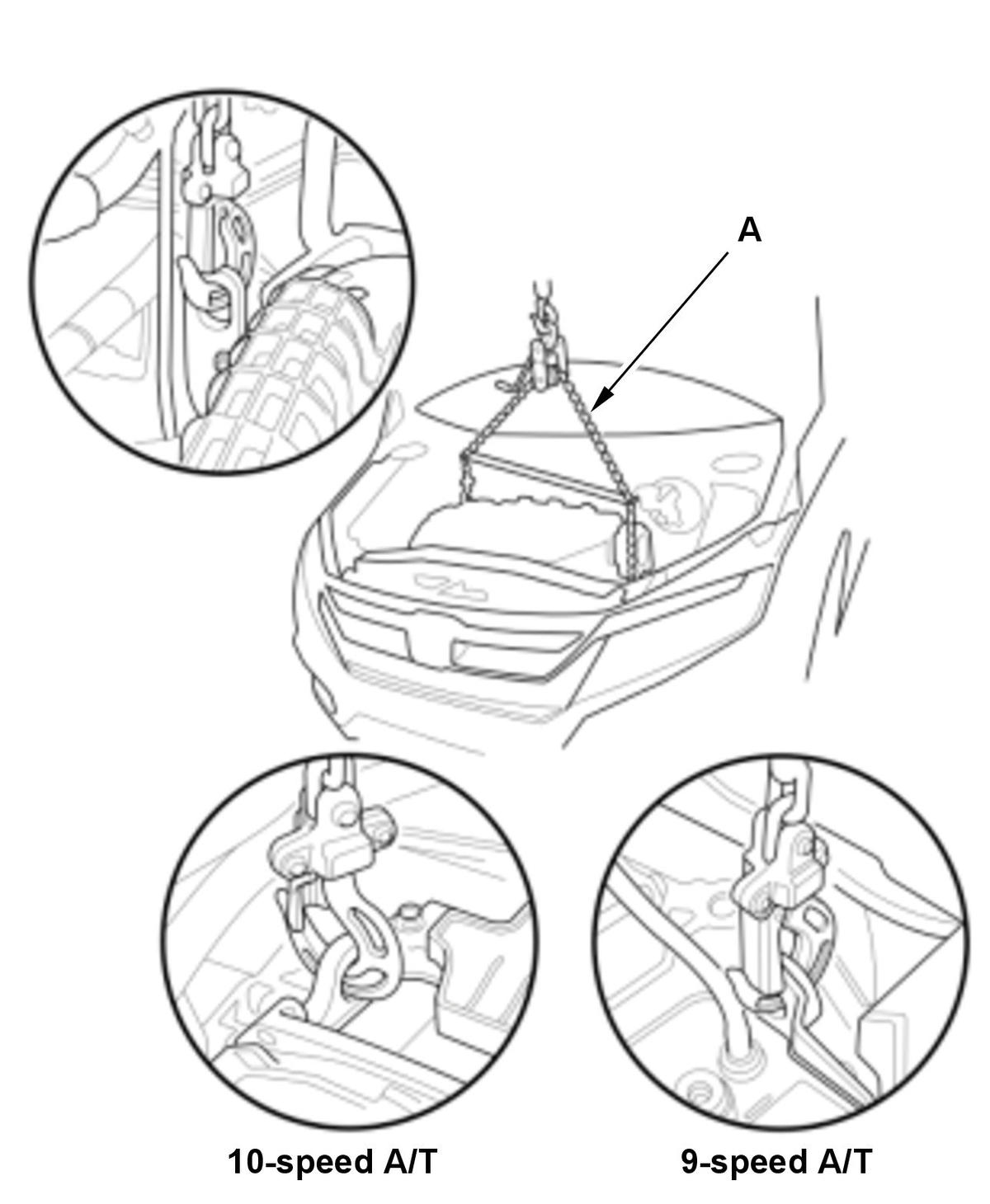

   1. Position the engine/transmission under the vehicle. Be sure that they are properly aligned. Carefully lower the vehicle until the engine/transmission are properly positioned in the engine compartment. Make sure the vehicle is not resting on any part of the engine/transmission. Support the engine/transmission with chain hoist (A) and carefully raise the engine/transmission into place.

3. Upper Half of Side Engine Mount Bracket Mounting Bolt (Engine Side) - Loosely Install
4. Engine Support Hanger - Install

   Courtesy of HONDA, U.S.A., INC.

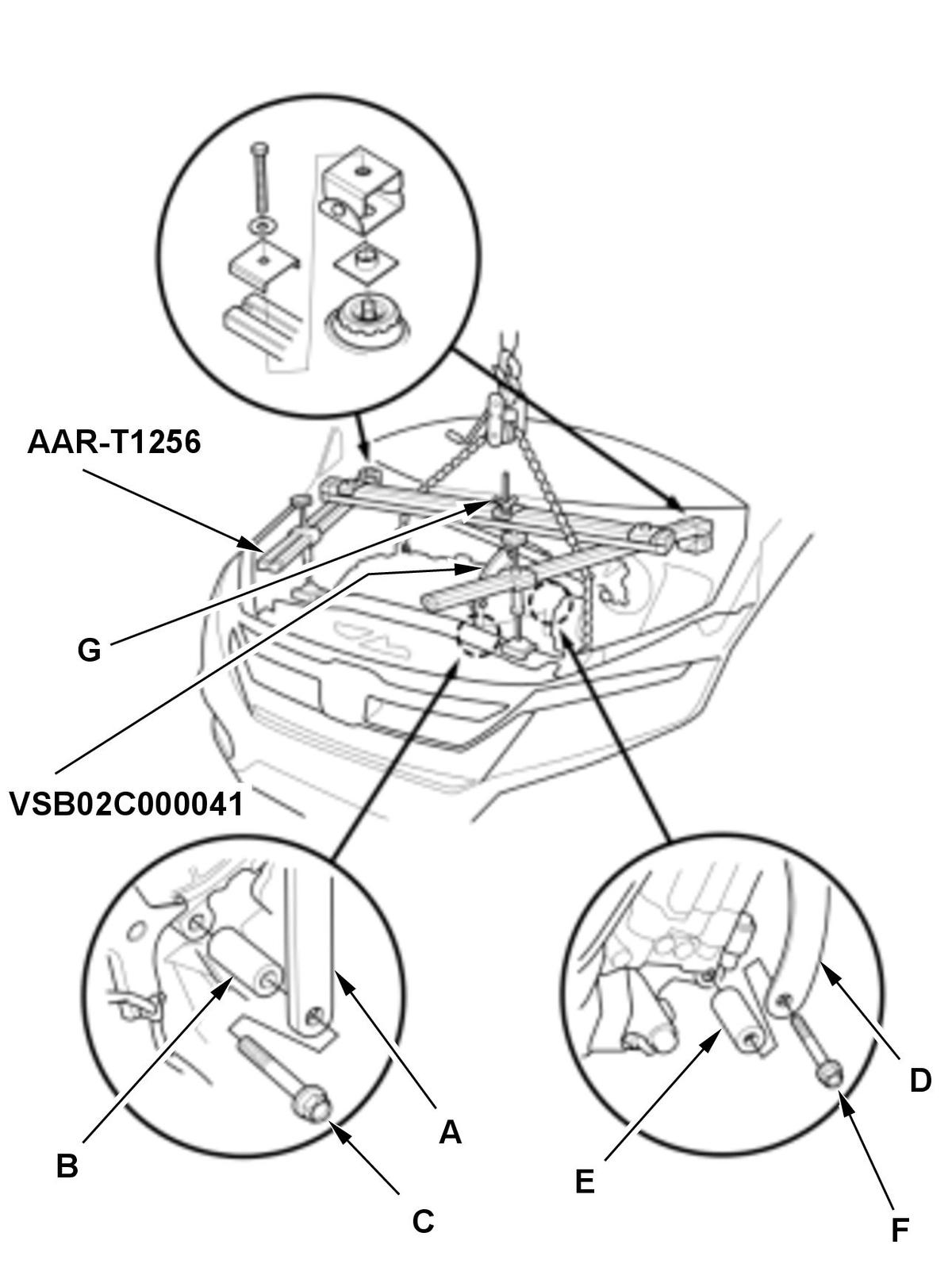

   1. Install the engine hanger balance bar (VSB02C000041). Attach the front arm (A) to the front cylinder head with a commercially available spacer (B) and a 10 x 1.25 mm bolt (C). Attach the rear arm (D) to the rear cylinder head with a commercially available spacer (E) and an 8 x 1.25 mm bolt (F). 2. Install the engine support hanger (AAR-T1256) onto the vehicle as shown, and attach the hook to the slotted hole in the engine hanger balance bar. Tighten the wing nut (G) by hand, and lift and support the engine/transmission. NOTE:  Be careful when working around the windshield. AAR-T1256 two sets required for stacking additional cross section bars. Be careful not to damage the hood opener cable when installing the engine support hanger at the front bulkhead.

5. Chain Hoist - Remove
6. Vehicle - Lift

   1. Raise the vehicle.

7. Front Subframe - Support
8. Front Subframe - Install
9. Transmission Mount - Loosely Install
10. Transmission Ground Cable - Connect (Transmission Side)

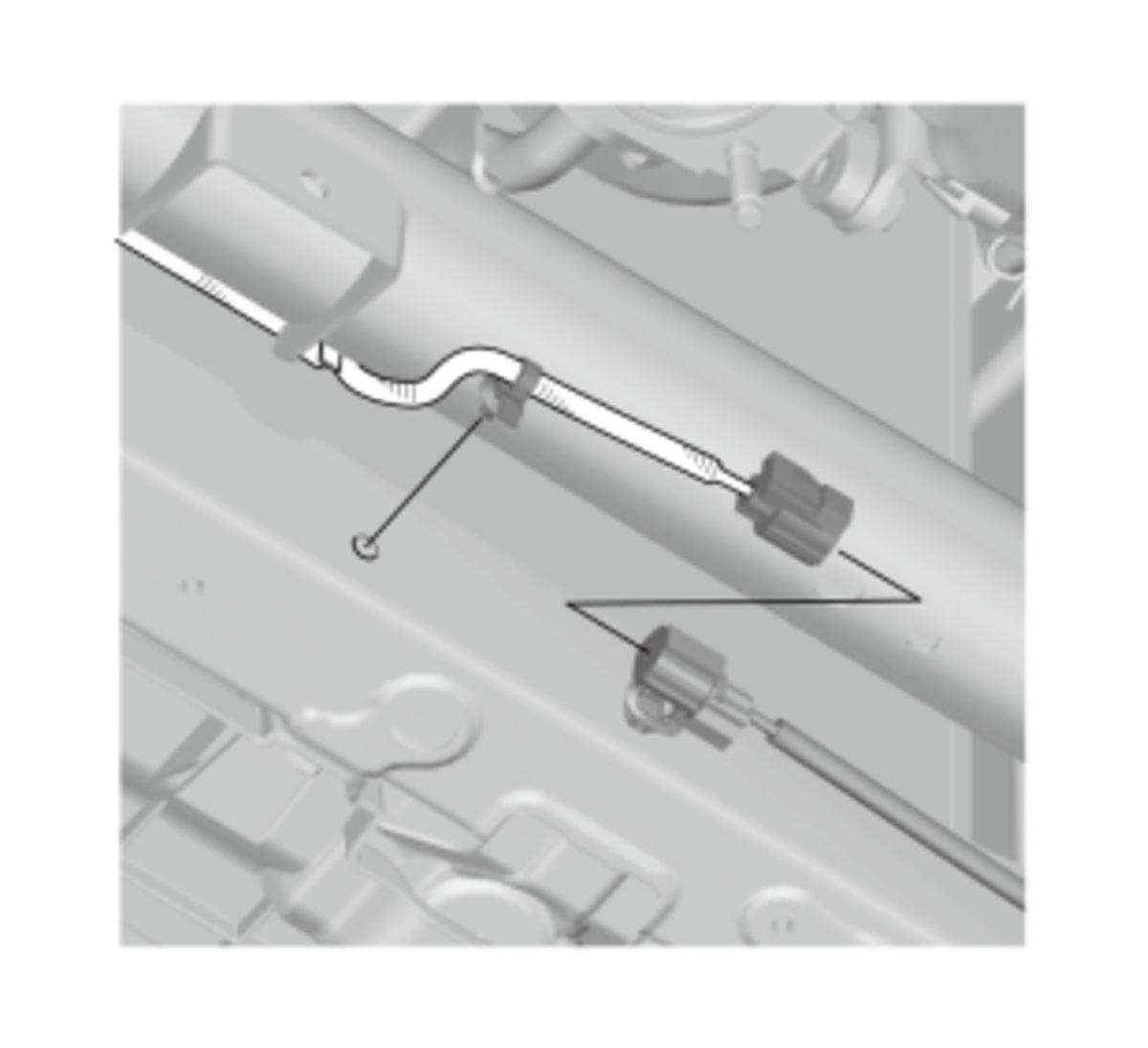

11. Connector (Front ACM Subharness) - Connect

    Courtesy of HONDA, U.S.A., INC.

12. Vehicle - Lift

    1. Lower the vehicle.

13. Rear Engine Mount and Rear Engine Mount Stop Mounting Bolt - Loosely Install

    Courtesy of HONDA, U.S.A., INC.

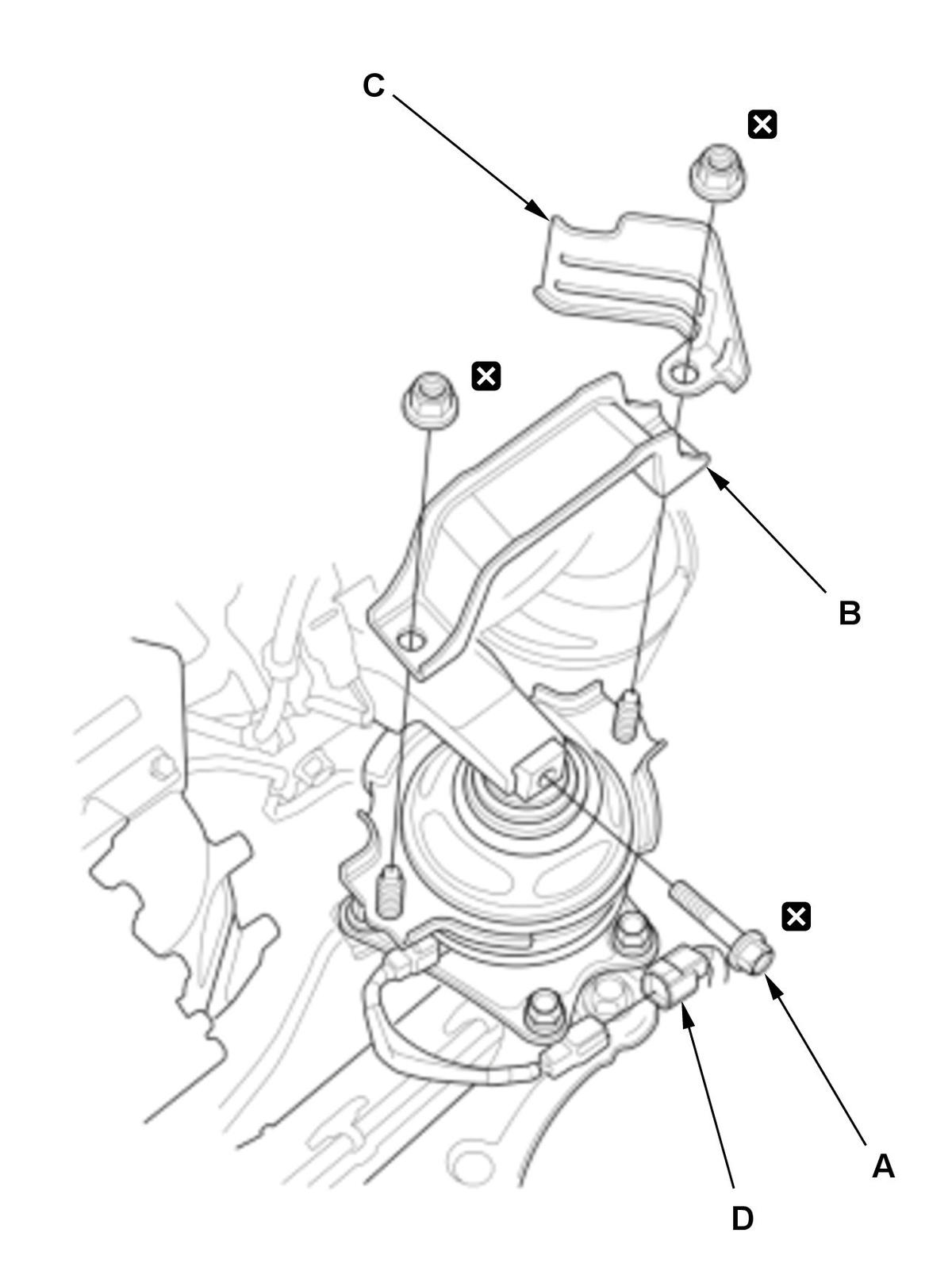

    1. Loosely install the rear engine mount mounting bolt (A), the rear engine mount stop (B), and the heat shield (C). 2. Connect the connector (D).

14. Engine Support Hanger and Engine Hanger Balance Bar - Remove

    NOTE:  After removing the engine support hanger, install the front damper caps.

15. Front Bulkhead - Move
16. Front Engine Mount and Front Engine Mount Stop Mounting Bolt - Loosely Install

    Courtesy of HONDA, U.S.A., INC.

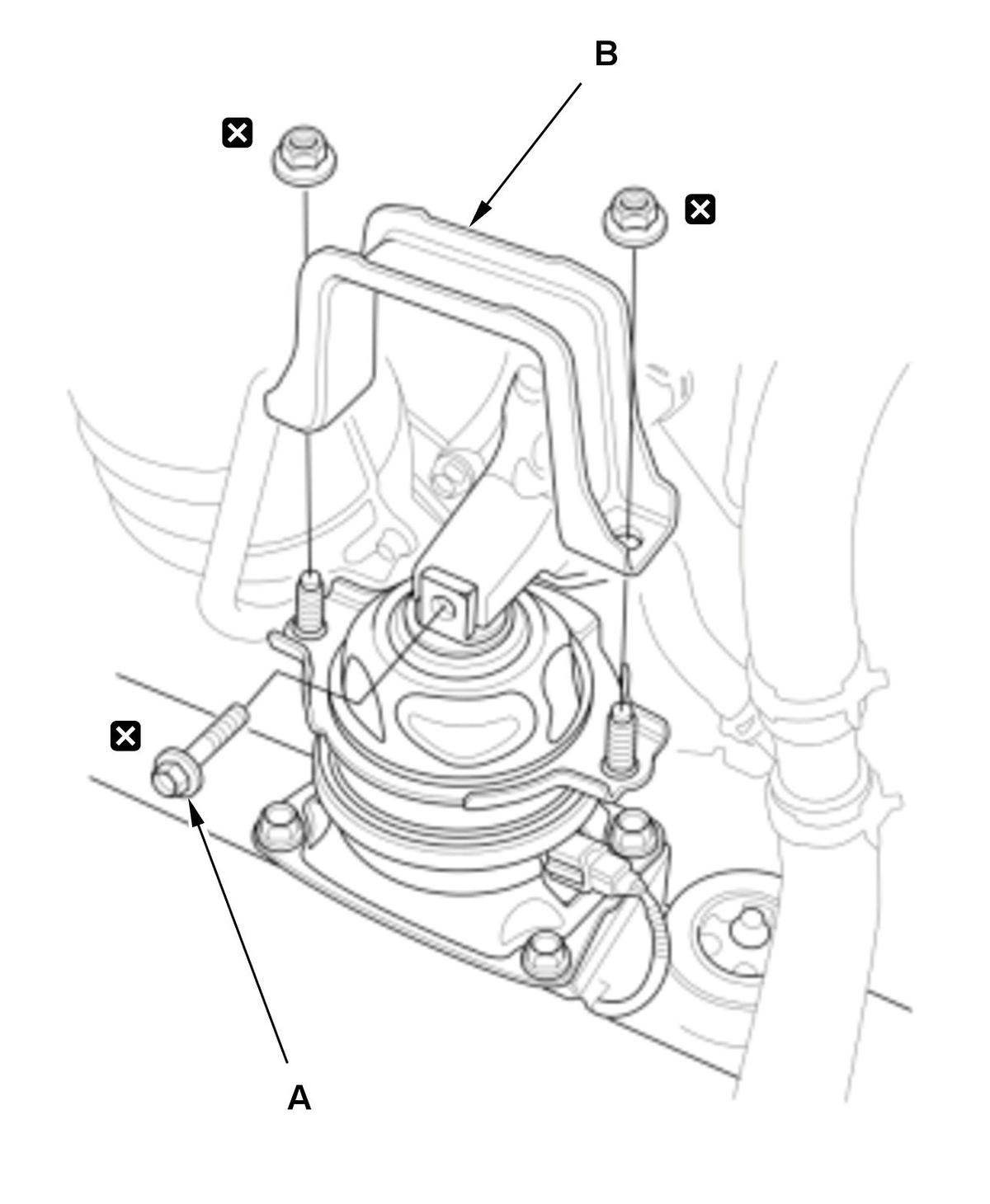

    1. Loosely install the front engine mount mounting bolt (A) and the front engine mount stop (B).

17. All Engine Mount Mounting Bolt and Nut - Tighten
18. No. 6 Cylinder Ignition Coil - Install
19. Connector Bracket and Harness Bracket - Install

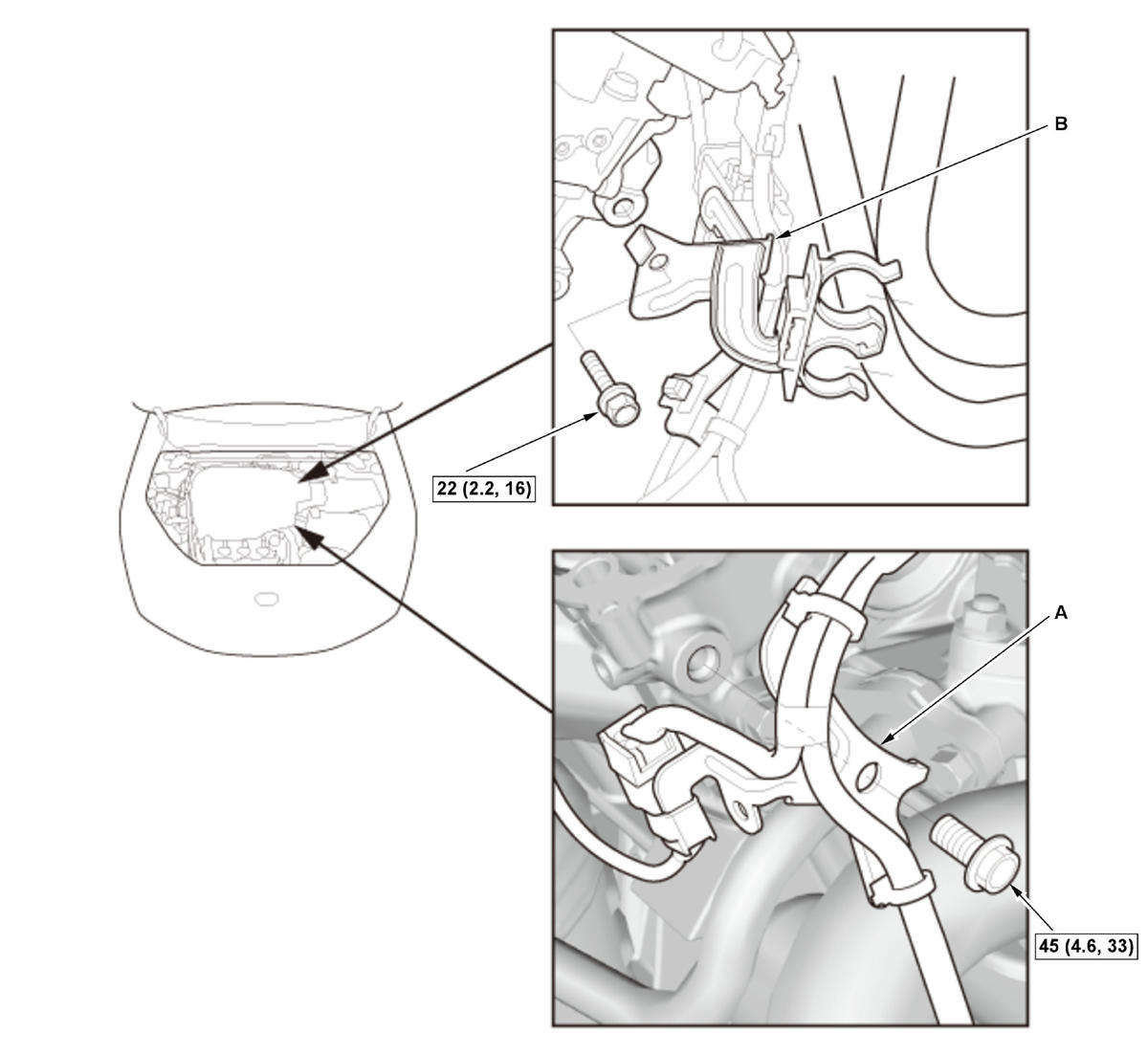

    1. Install the connector bracket (A) to the front cylinder head.

    Fig 2: Connector Bracket Harness With Torque Specifications

    Courtesy of HONDA, U.S.A., INC.

    2. Install the harness bracket (B) to the rear cylinder head.

20. Positive Cable - Connect

    Courtesy of HONDA, U.S.A., INC.

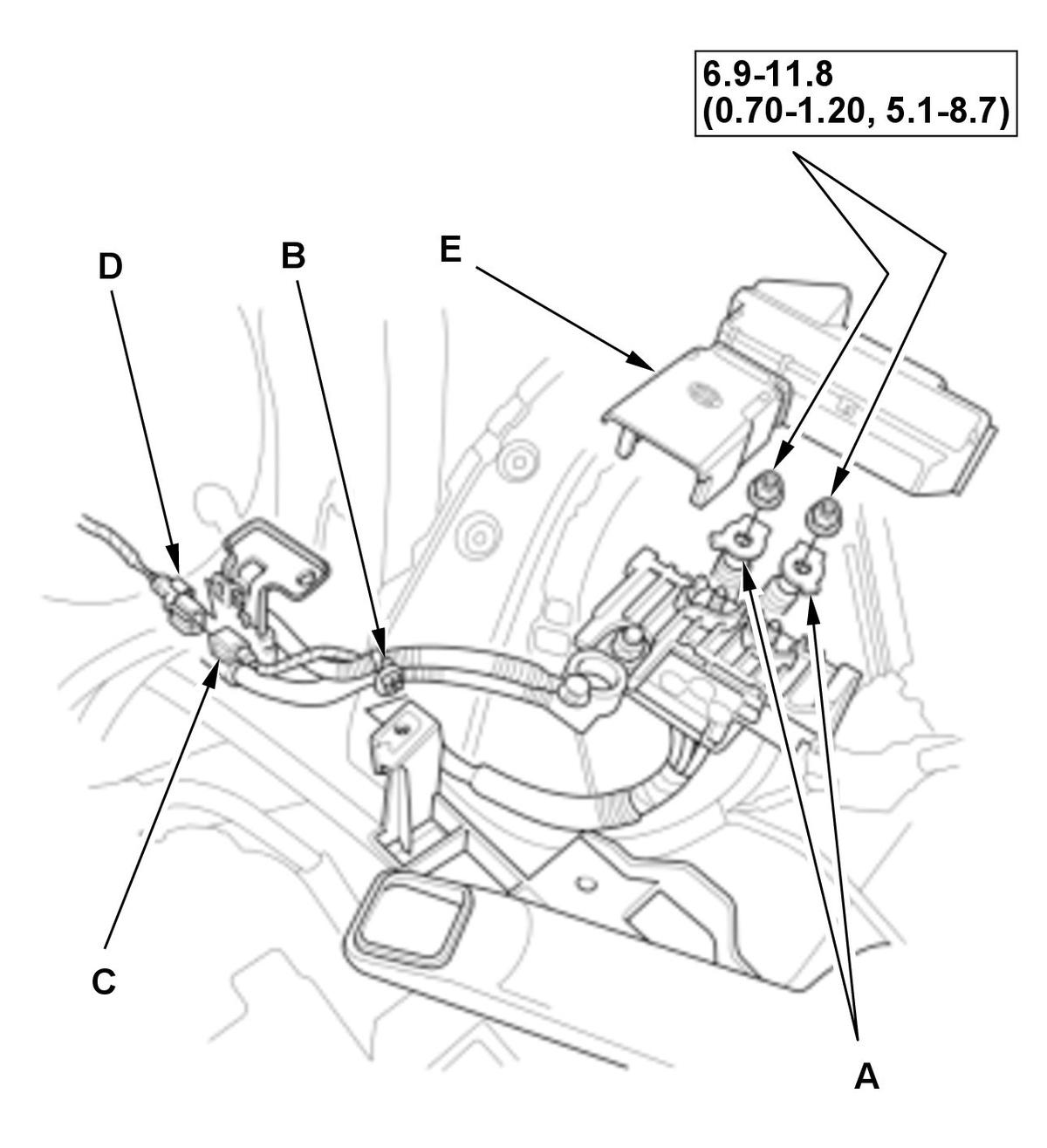

    1. Connect the positive cables (A). 2. Install the harness clamp (B). 3. Connect the connector (C). 4. Install the connector clamp (D). 5. Install the cover (E).

21. A/C Compressor - Install
22. Right Front Bulkhead Brace - Install
23. Alternator - Install
24. Radiator - Install
25. Radiator Fan Shroud Assembly and A/C Condenser Fan Shroud Assembly - Install
26. Heater Hose (Engine Side) - Connect

    Courtesy of HONDA, U.S.A., INC.

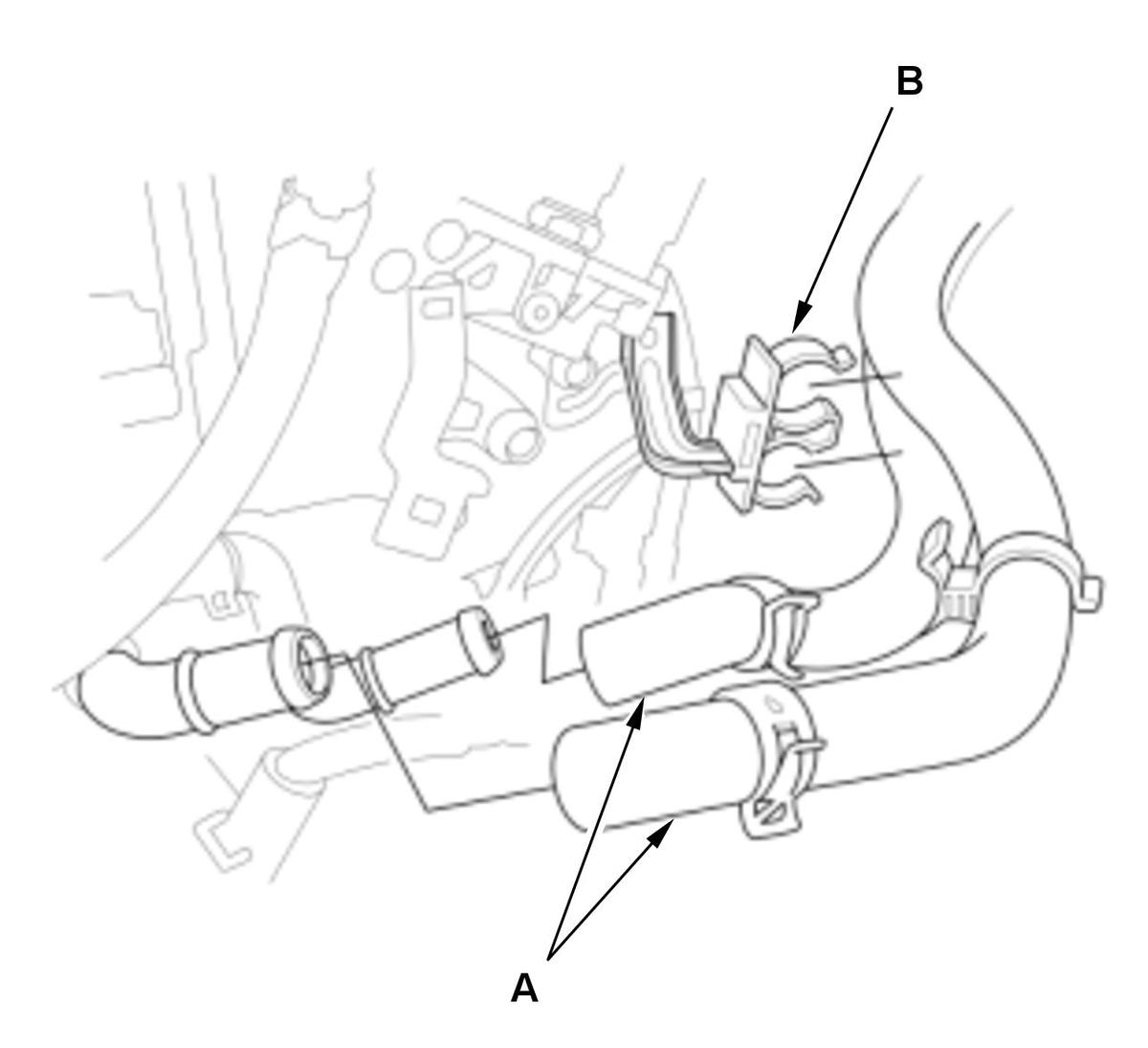

    1. Connect the heater hoses (A), and install the heater hoses to the clamp (B).

27. Vehicle - Lift

    1. Raise the vehicle.

28. Front Driveshaft - Install
29. Lower Arm Ball Joint - Connect
30. Lower Stabilizer Link Ball Joint - Connect
31. Tie-Rod End Ball Joint - Connect
32. Connector (EPS Motor/Control Unit) - Connect
33. Under-Floor TWC/Exhaust Pipe A - Install
34. Front Subframe Stiffener Plate - Install
35. Undercover - Install
36. Front Inner Fender - Install
37. Front Wheel - Install
38. Vehicle - Lift

    1. Lower the vehicle.

39. Steering Joint - Connect
40. EVAP Canister Purge Hose and Brake Booster Vacuum Hose - Connect

    Courtesy of HONDA, U.S.A., INC.

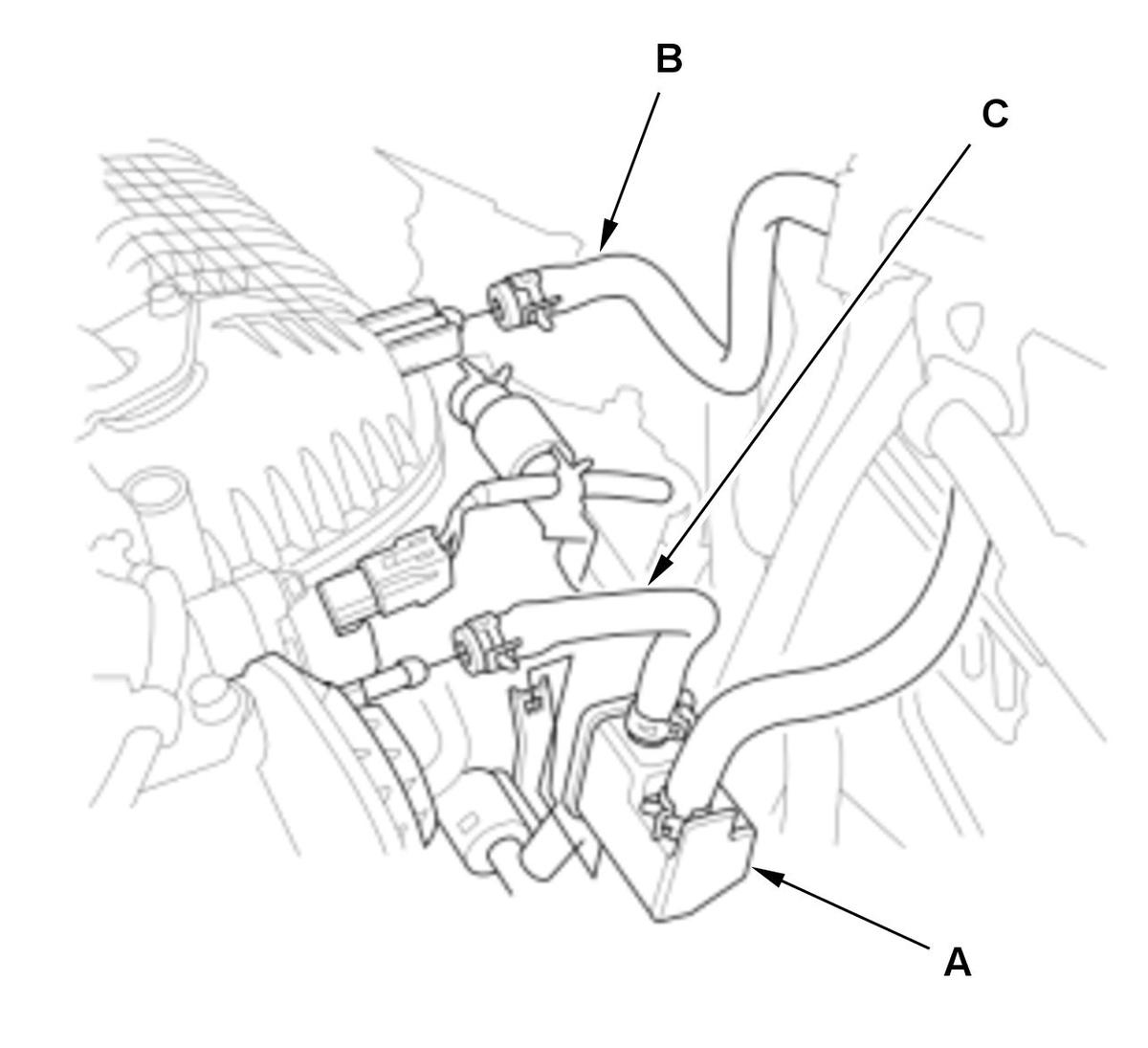

    1. Install the EVAP canister purge joint (A). 2. Connect the brake booster vacuum hose (B) and the EVAP canister purge hose (C).

41. Fuel Feed Hose (High Pressure Fuel Pump Side) - Connect
42. Connector (PCM and Engine Wire Harness) - Connect

    Courtesy of HONDA, U.S.A., INC.

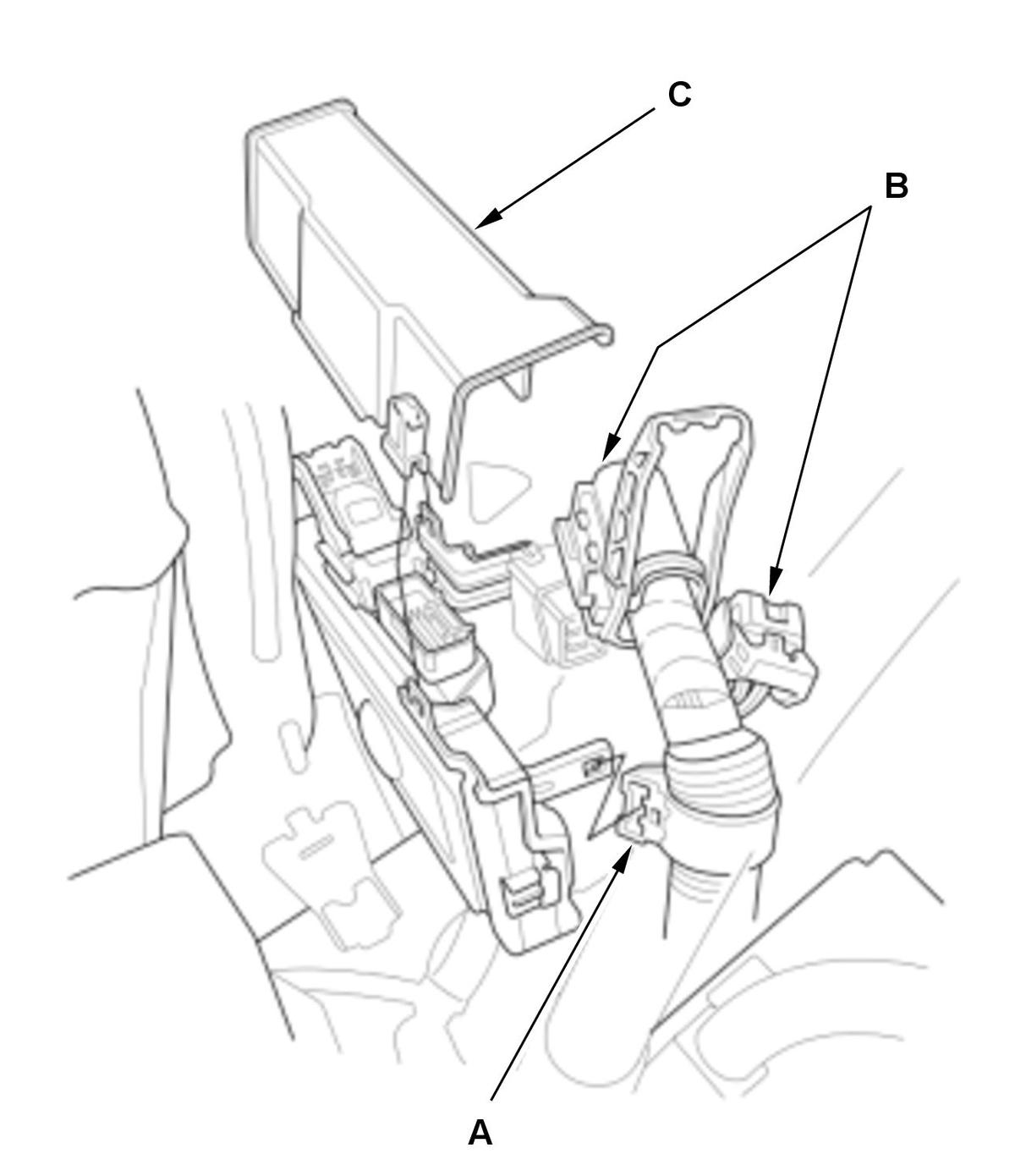

    1. Install the harness clamp (A). 2. Connect the connectors (B). 3. Install the cover (C).

43. Intake Air Duct - Install
44. 12 Volt Battery - Install
45. Engine Oil - Refill
46. ATF - Refill
47. Engine Coolant - Refill
48. Fuel Leak - Check
49. Air Cleaner, Air Intake Duct, and Air Guide - Install
50. Fluid Leak - Check
51. PCM - Reset
52. CKP Pattern - Clear/Learn
53. Idle Speed - Inspect
54. Ignition Timing - Inspect
55. Front Bulkhead Cover - Install
56. Engine Cover - Install
57. Cowl Cover - Install
58. Wheel Alignment - Check
59. VSA Sensor Neutral Position - Memorize
