Intake Manifold Removal and Installation: Installation

NOTE:  Where icon is shown for further information continue to the information below.

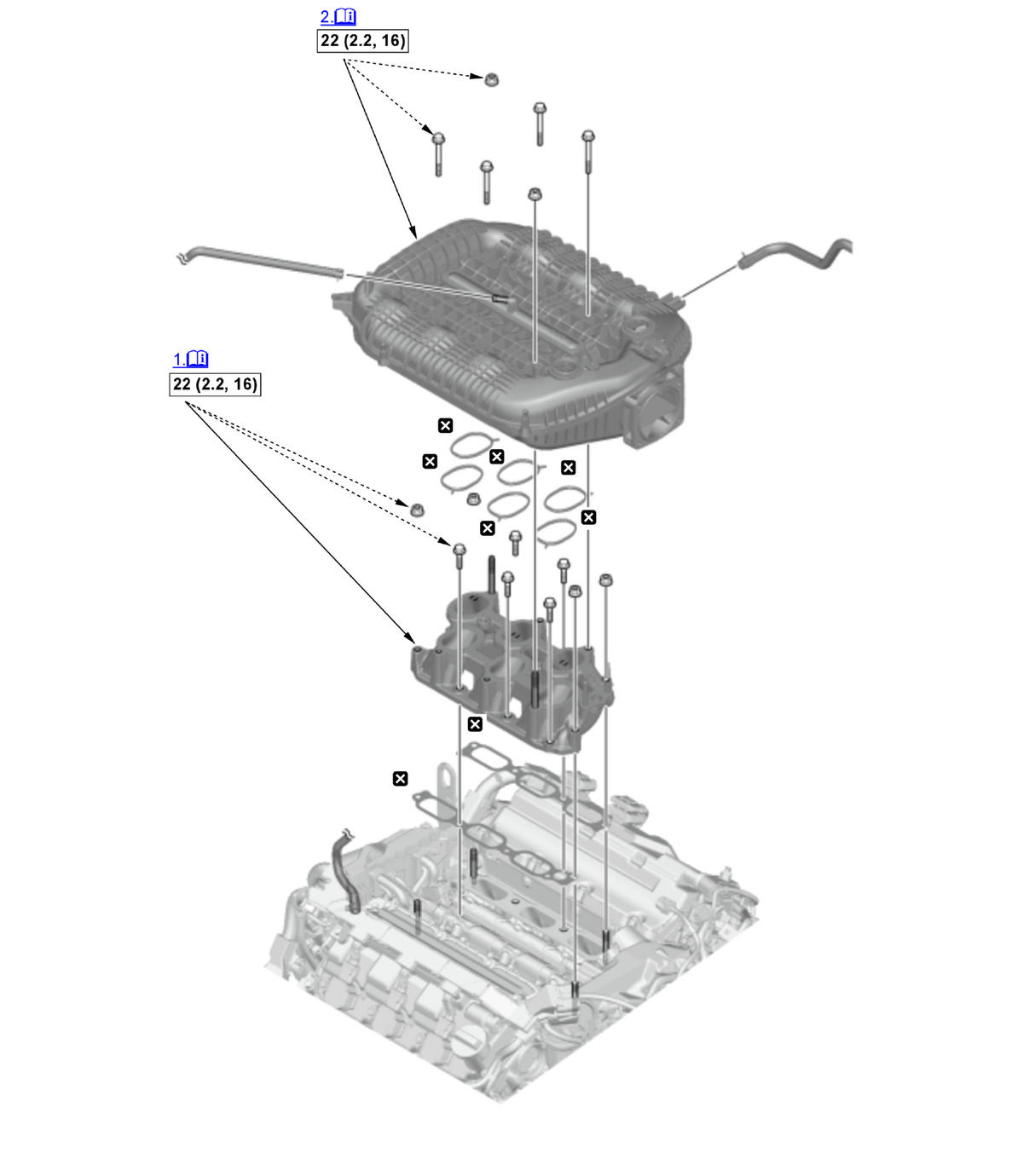

Fig 1: Intake Manifold Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace

1. Intake Manifold Base - Install

   Courtesy of HONDA, U.S.A., INC.

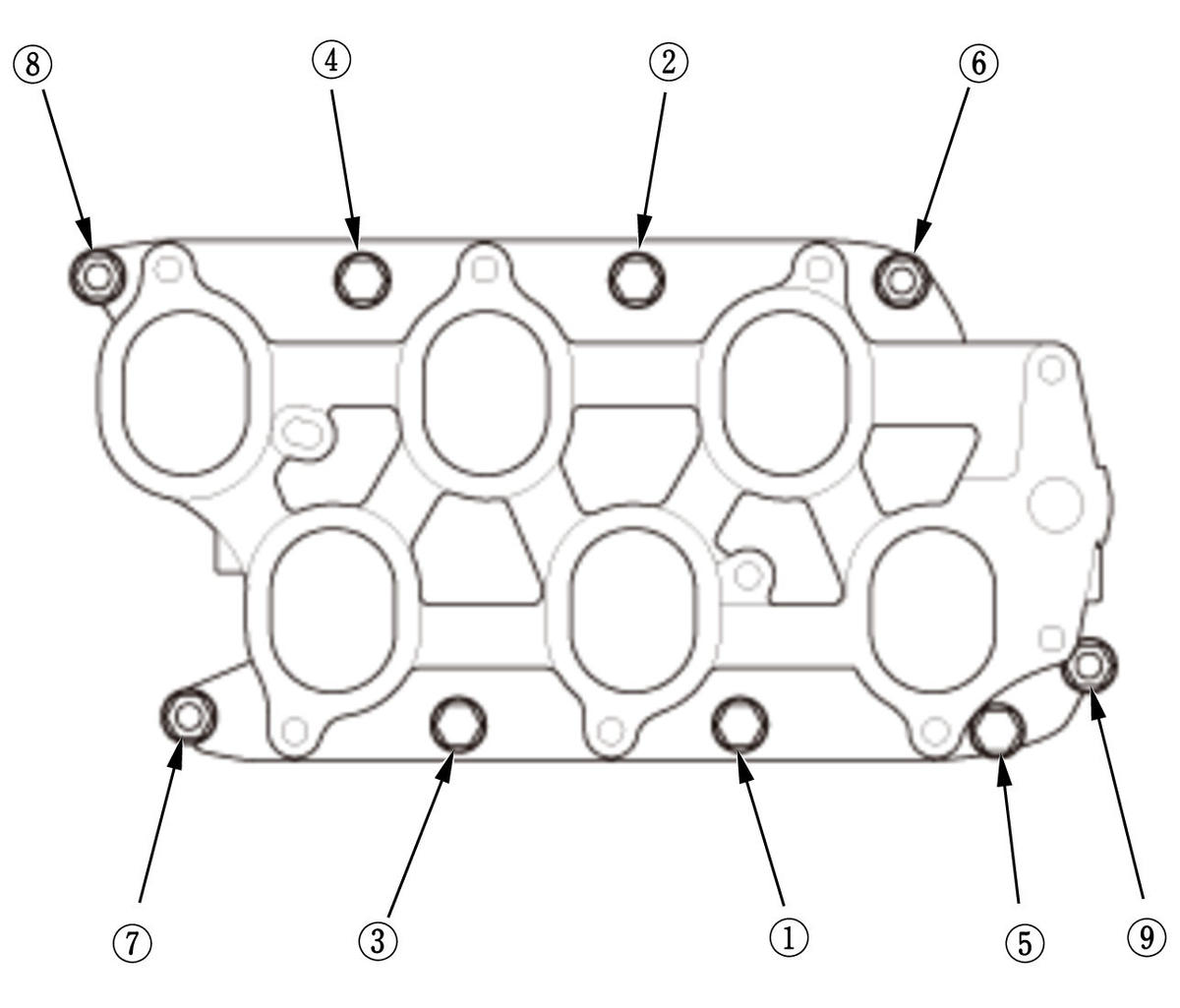

   1. Install the intake manifold base. Tighten the bolts/nuts in three steps; tighten the bolts/nuts until the bolts/nuts sit on the intake manifold base, tighten the bolts/nuts until the gasket is compressed, tighten the bolts/nuts to specified torque.

2. Intake Manifold - Install

   Courtesy of HONDA, U.S.A., INC.

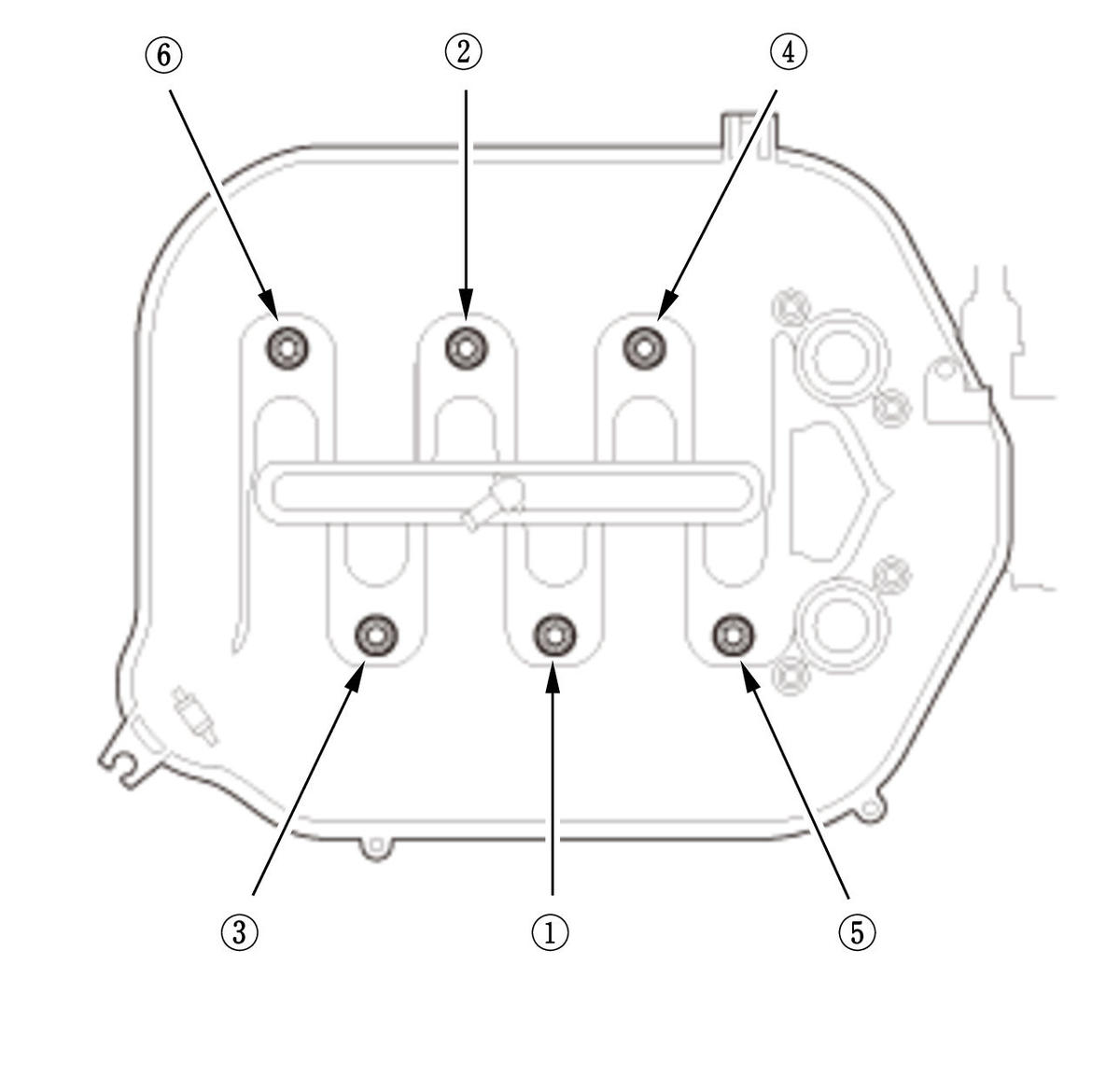

   1. Install the intake manifold. Tighten the bolts/nuts in three steps; tighten the bolts/nuts until the bolts/nuts sit on the intake manifold, tighten the bolts/nuts until the gasket is compressed, tighten the bolts/nuts to specified torque.

3. EGR Pipe B - Install
4. Throttle Body and Intake Air Duct - Install

   NOTE:  Always use a new throttle body gasket.

5. EVAP Canister Purge Valve - Install (If removed)
6. EVAP Canister Purge Hose and Connector (EVAP Canister Purge Valve) - Connect
7. Air Cleaner - Install
8. Engine Cover - Install
