Intake Manifold Removal and Installation: Removal

NOTE:  Where icon is shown for further information continue to the information below.

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

1. Engine Cover - Remove
2. Air Cleaner - Remove
3. Intake Air Duct - Remove
4. EVAP Canister Purge Hose and Connector (EVAP Canister Purge Valve) - Disconnect
5. EVAP Canister Purge Valve - Remove (If needed)
6. Throttle Body - Move

   NOTE:  Do not disconnect the water bypass hoses.

7. EGR Pipe B - Remove

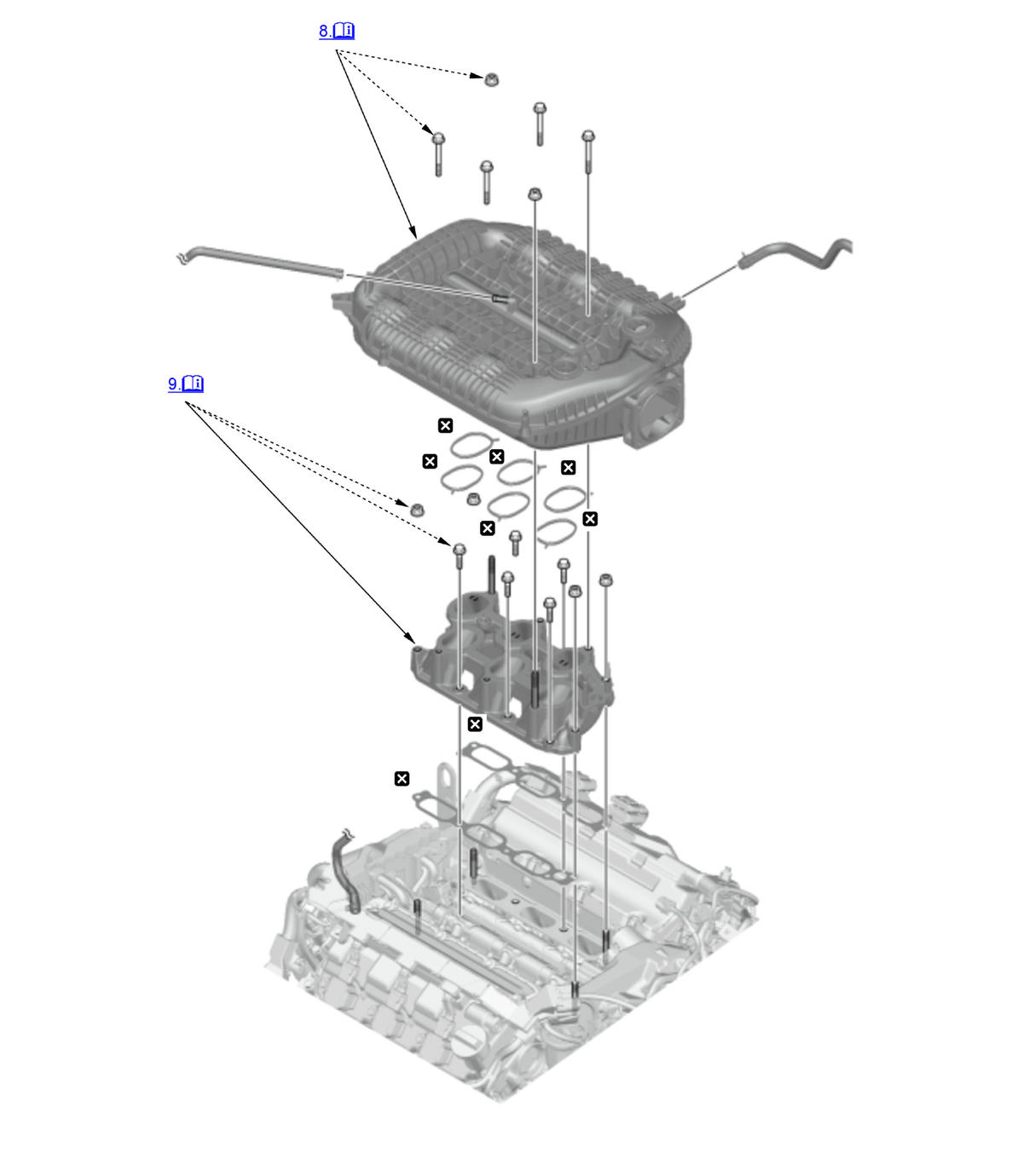

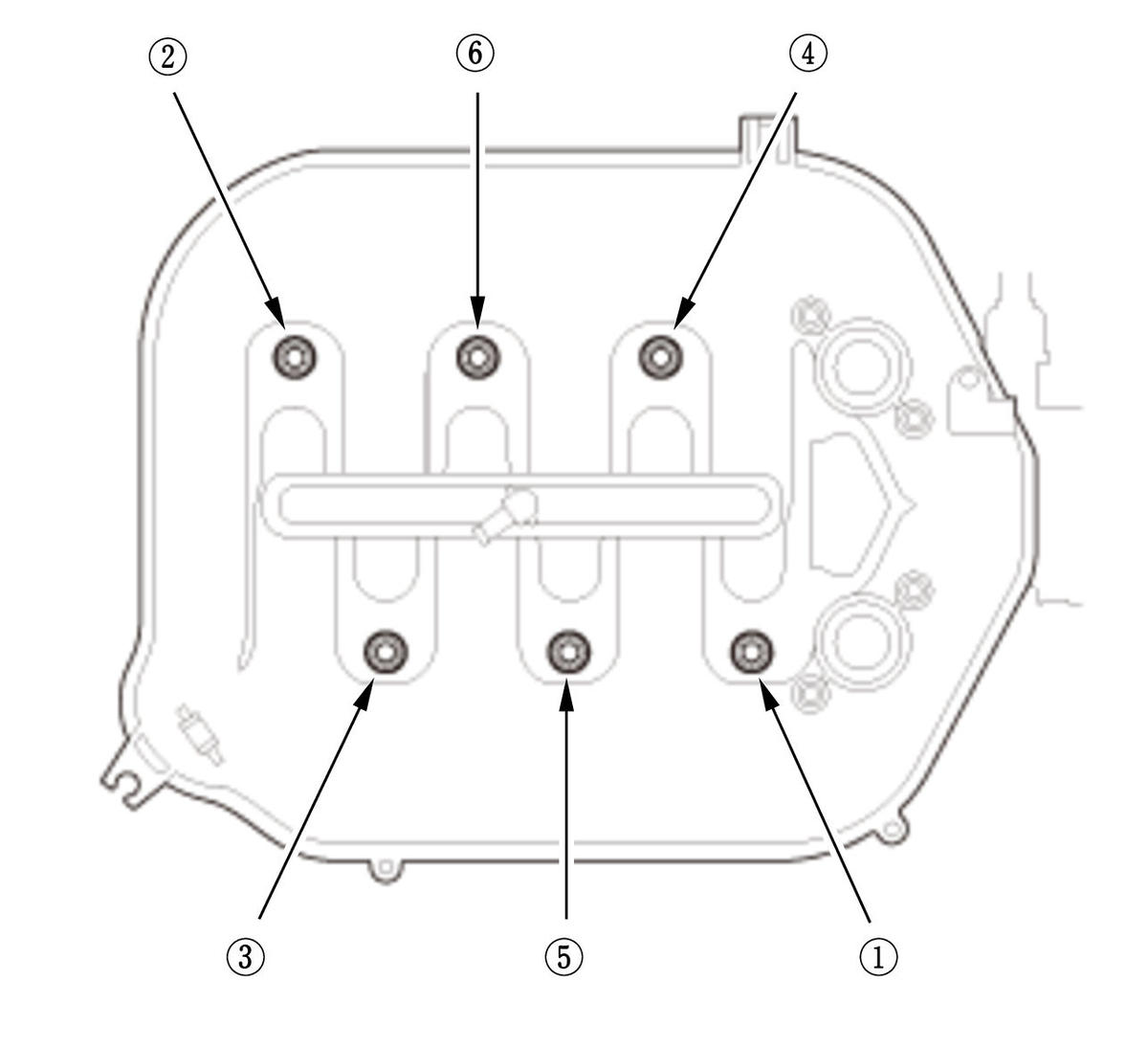

8. Intake Manifold - Remove

   Courtesy of HONDA, U.S.A., INC.

   1. Remove the intake manifold mounting bolts and nuts sequentially in three steps.

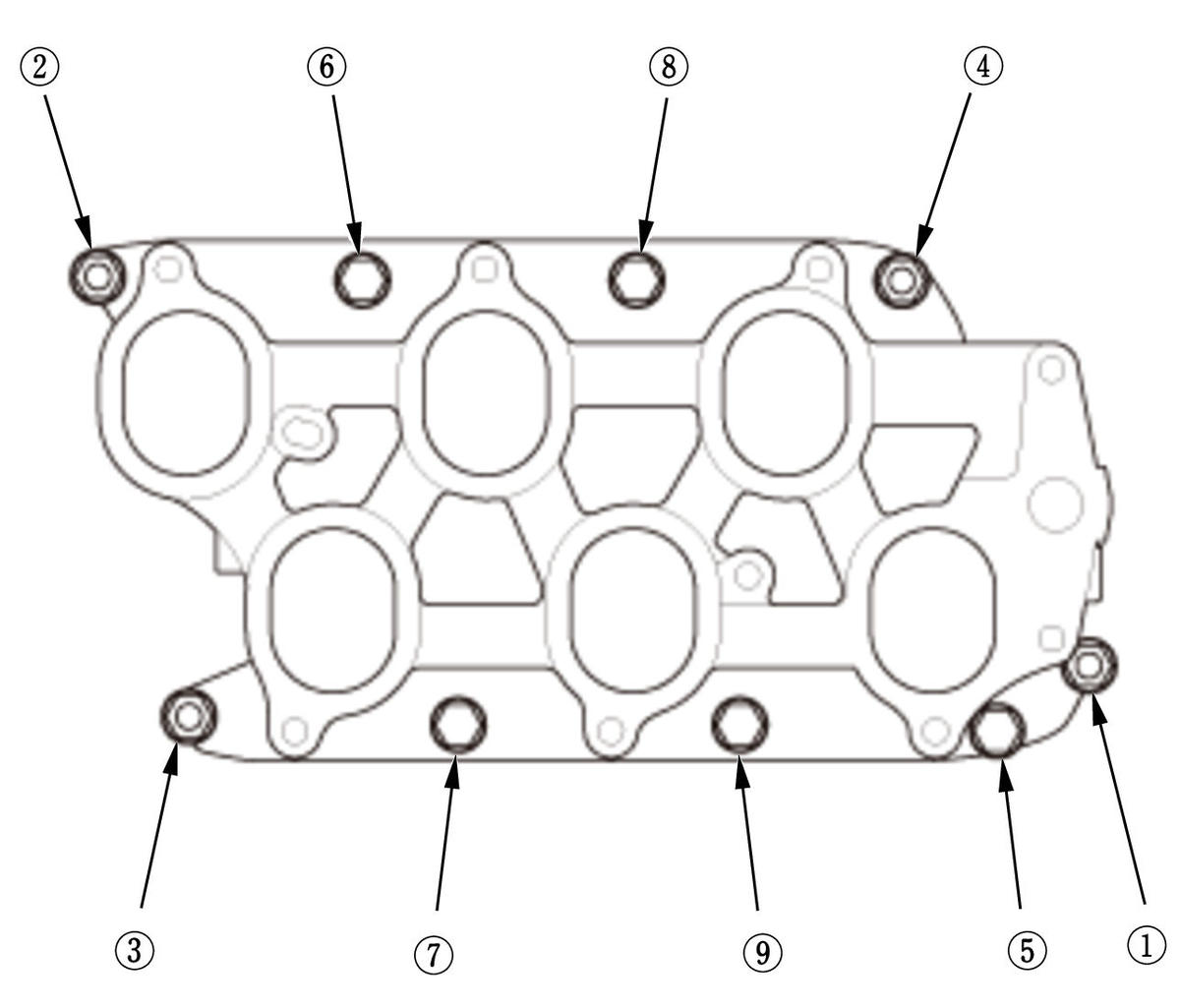

9. Intake Manifold Base - Remove

   Courtesy of HONDA, U.S.A., INC.

   1. Remove the intake manifold base mounting bolts and nuts sequentially in three steps.
