PCM Removal and Installation: Installation

NOTE:

• If you are removing the PCM, skip the procedures of using the HDS.
• If you are substituting the PCM, skip the procedures of WRITE DATA (Engine Oil Life, Starter Counter).

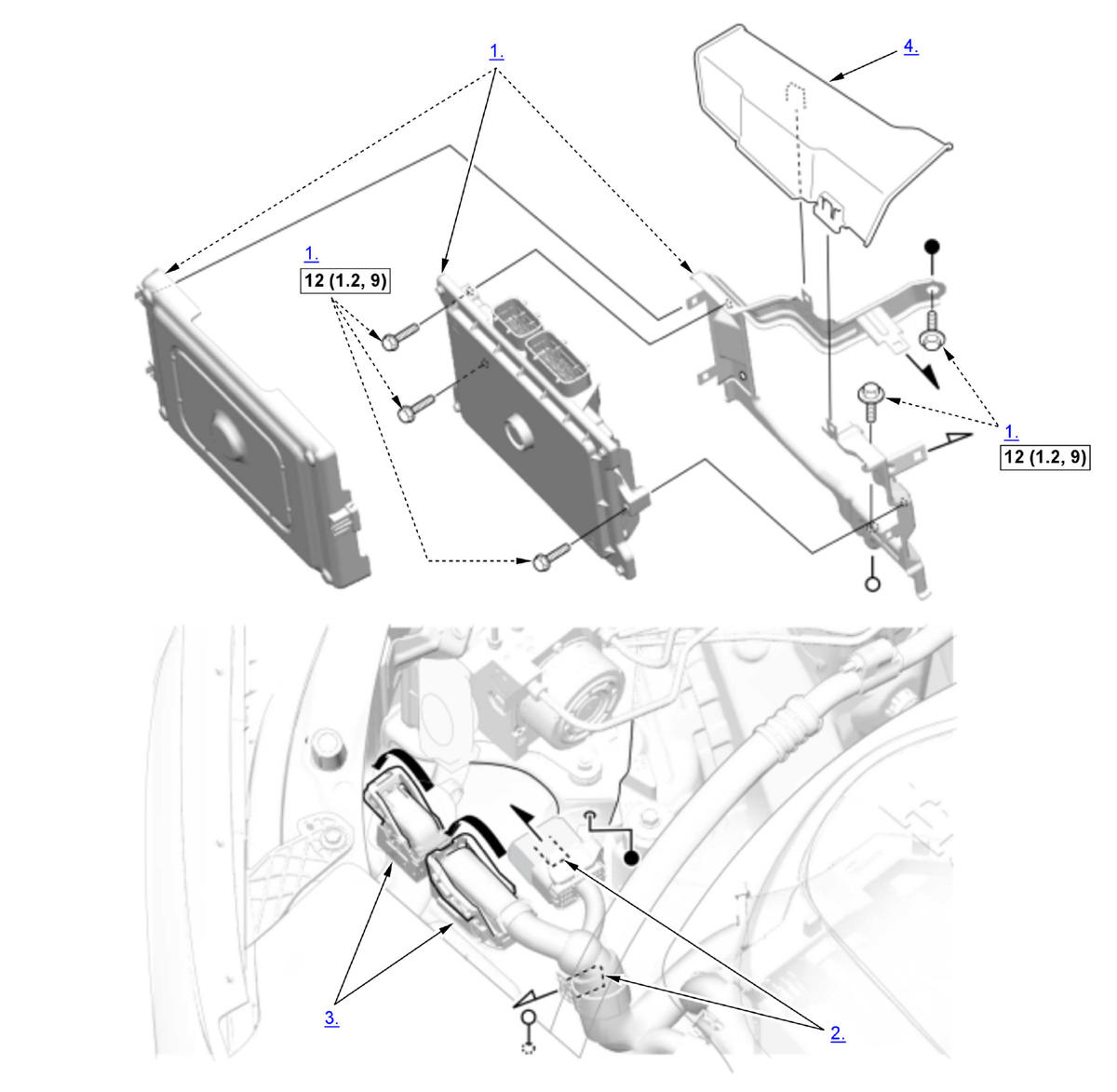

Fig 1: PCM Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

Torque: N.m (kgf.m, lbf.ft)

1. PCM - Install
2. Harness Clamps - Install
3. Connector (PCM) - Connect
4. ECU Cover B - Install
5. SCS - Open

   1. Exit the SCS mode with the HDS.

   Procedure After Replacing PCM

6. VIN - Input

   1. Turn the vehicle to the ON mode. NOTE:  DTC P0630 VIN Not Programmed or Mismatch may be stored because the VIN has not been programmed into the PCM; ignore it, and continue this procedure. 2. Manually input the VIN to the PCM with the HDS.

7. WRITE DATA (Engine Oil Life, Starter Counter) - Select

   NOTE:  If the READ DATA failed in "READ DATA (Engine Oil Life, Starter Counter) - Select", skip this procedure. 1. Select the ECU Replacement Menu with the HDS, then select WRITE DATA, and follow the screen prompts.

8. Other Procedures for PCM Replacement - Do (KA, KC models)

   1. If the READ DATA failed in "READ DATA (Engine Oil Life, Starter Counter) - Select", replace the engine oil and the engine oil filter .

9. Keyless Access System - Registration
10. DTC - Clear

    1. Clear the Pending or Confirmed DTCs with the HDS.

11. PCM - Update
12. PCM - Idle Learn
13. CKP Pattern - Clear/Learn
