Removal and Installation

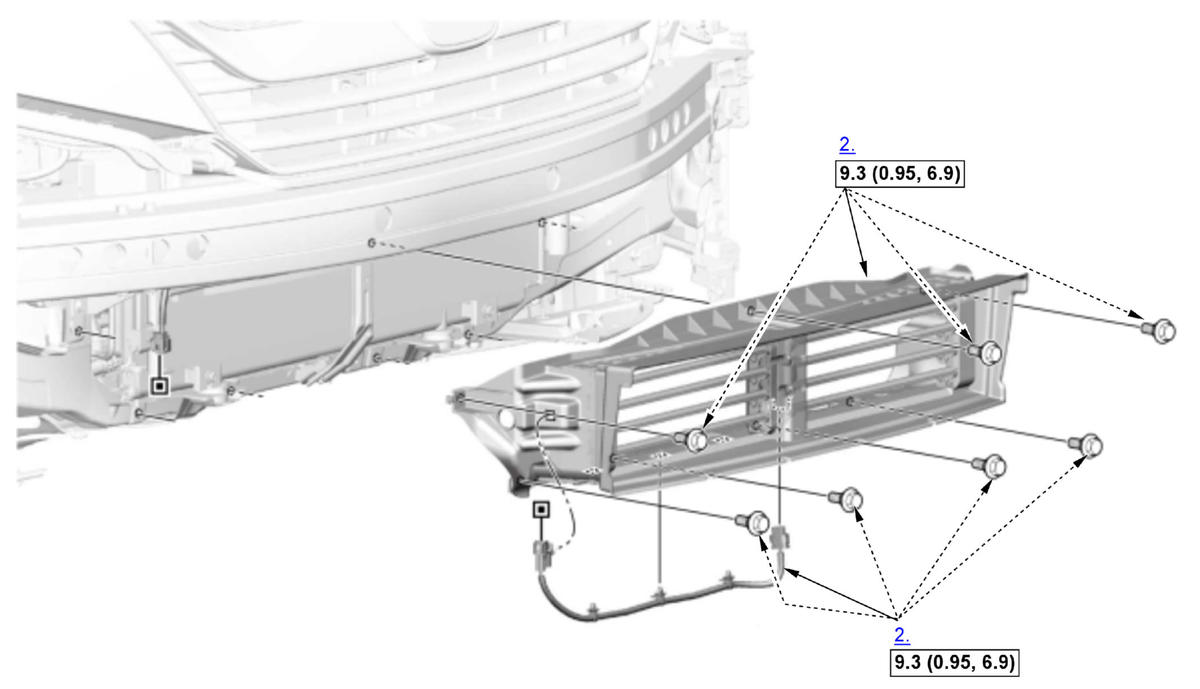

GHH444231Courtesy of HONDA, U.S.A., INC.
Torque: N.m (kgf.m, lbf.ft)
  1. Front Bumper - Remove
  2. Shutter Grille and Wire Harness - Remove
  3. All Removed Parts - Install
