Engine Block Assembly Component Location Index

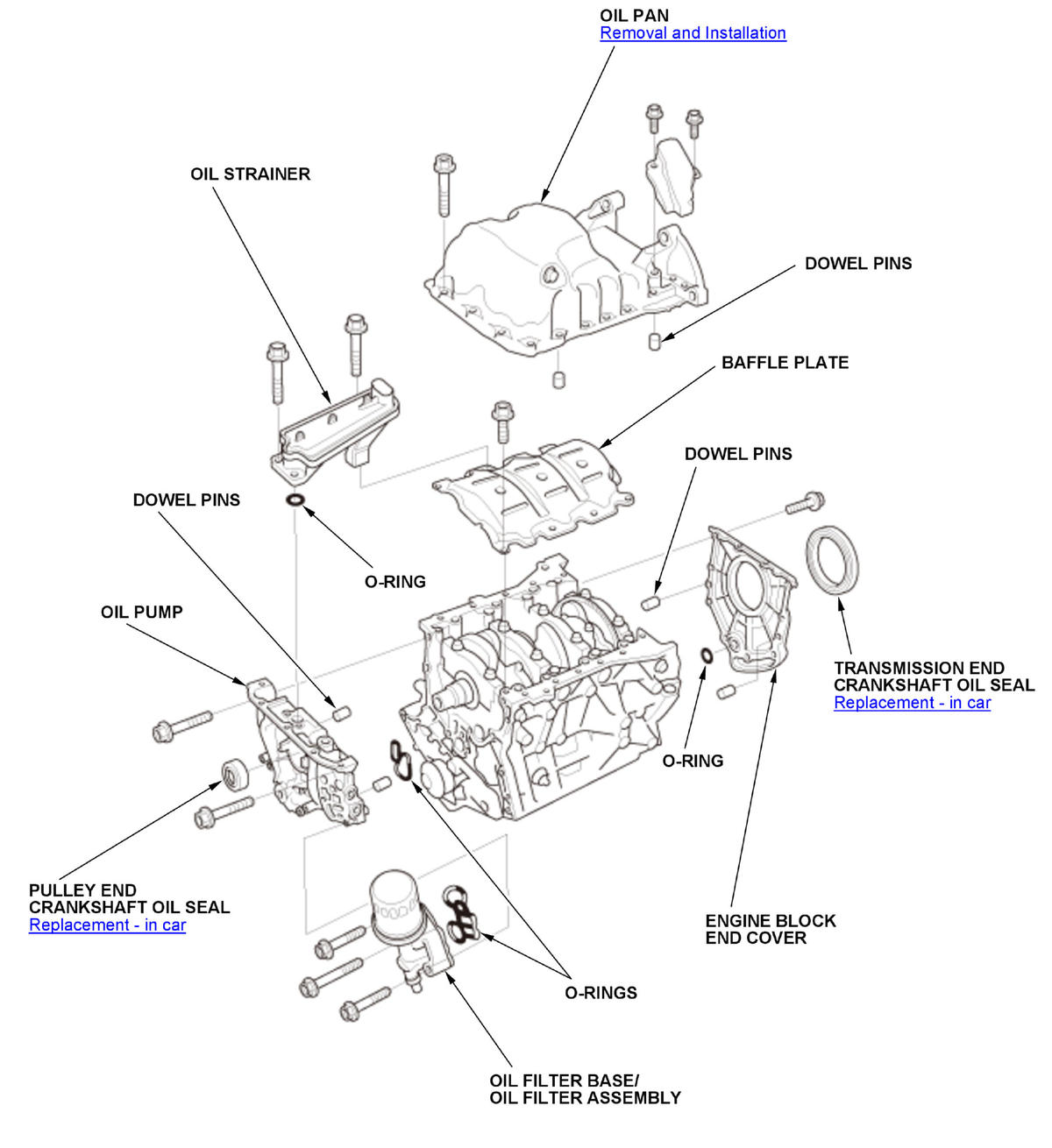

GHH443985Courtesy of HONDA, U.S.A., INC.

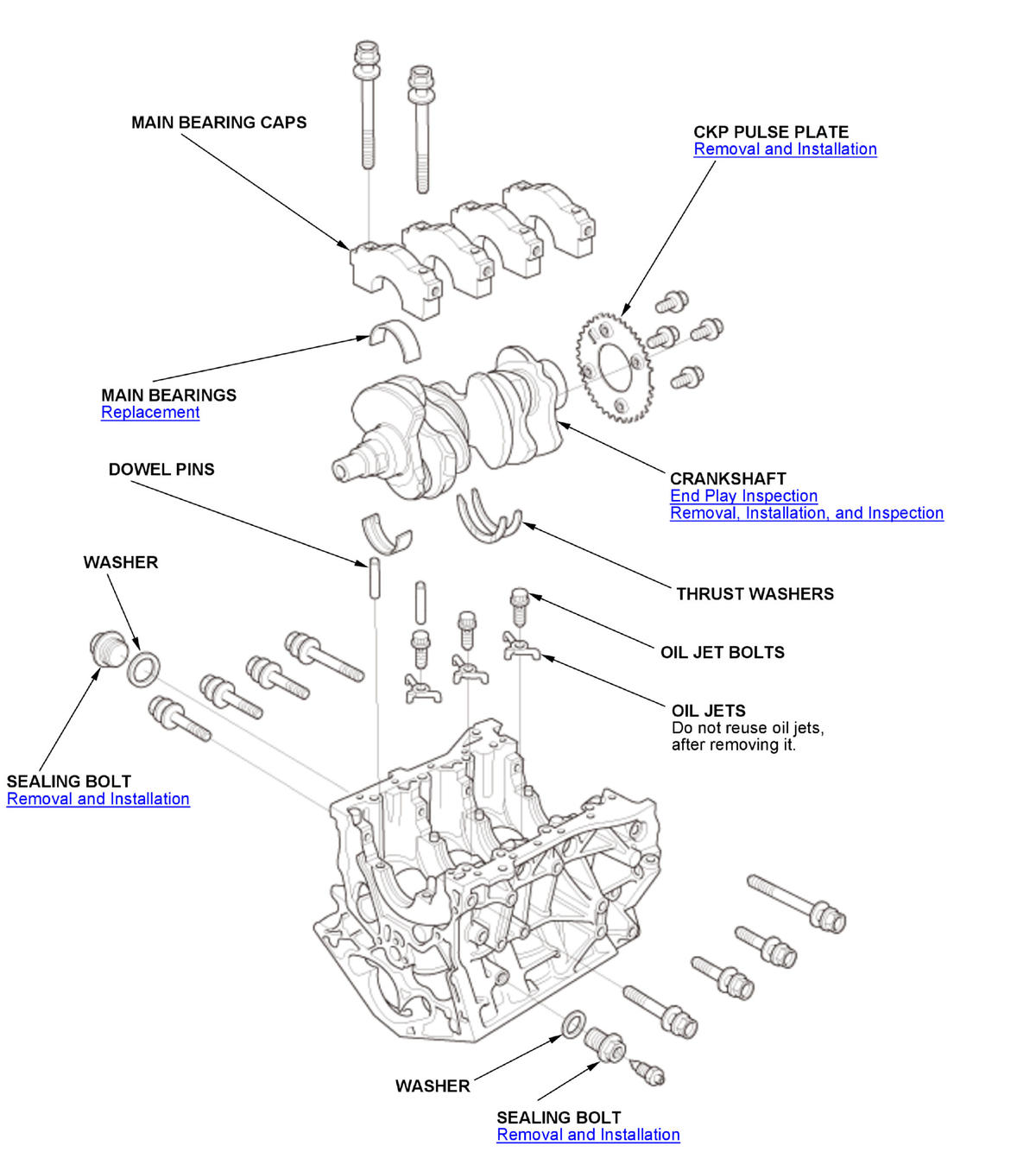

GHH443986Courtesy of HONDA, U.S.A., INC.

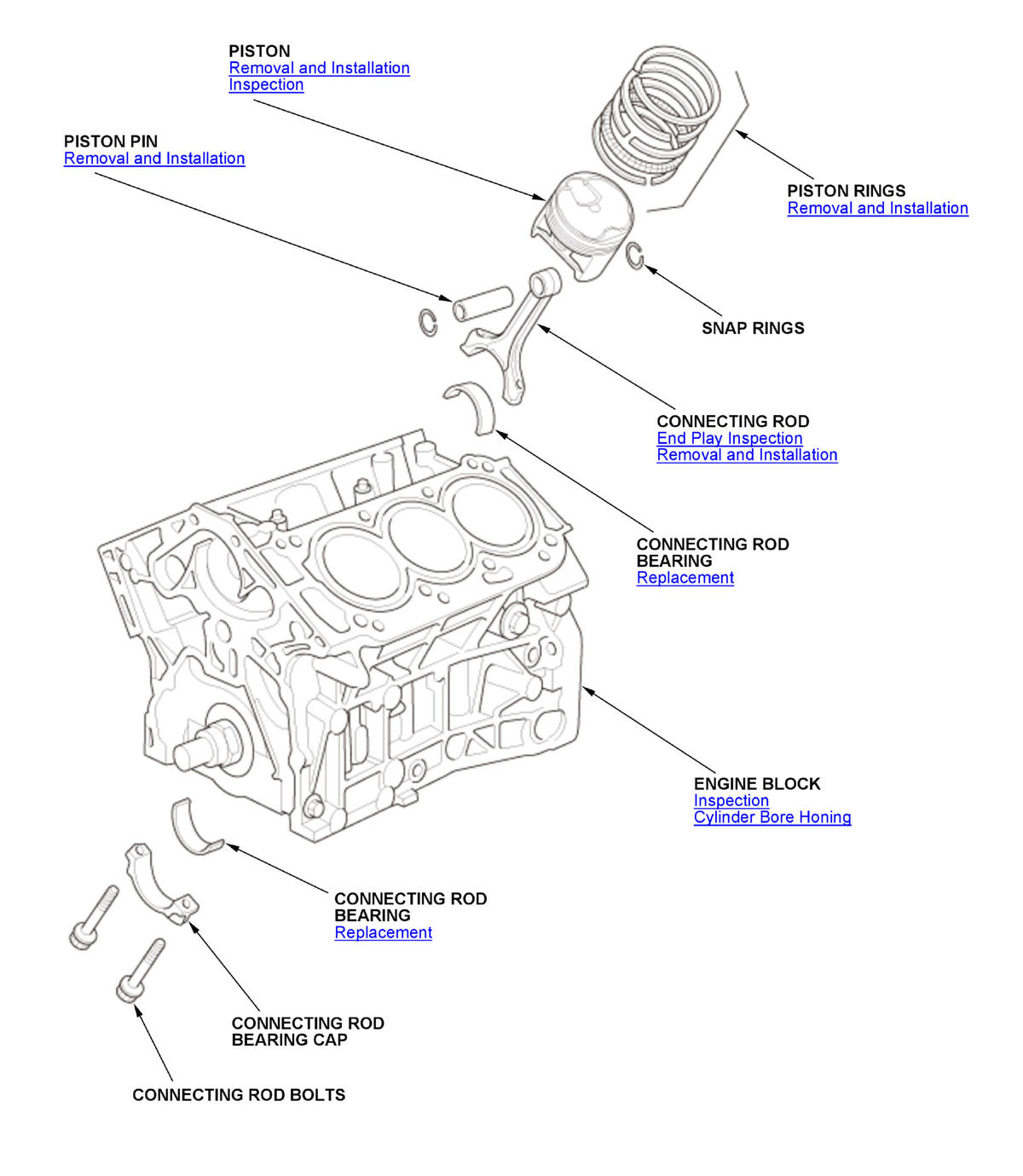

GHH443987Courtesy of HONDA, U.S.A., INC.
