Exploded View

NOTE: Do not disassemble the oil pump except for the shown parts.
  1. Oil Pump

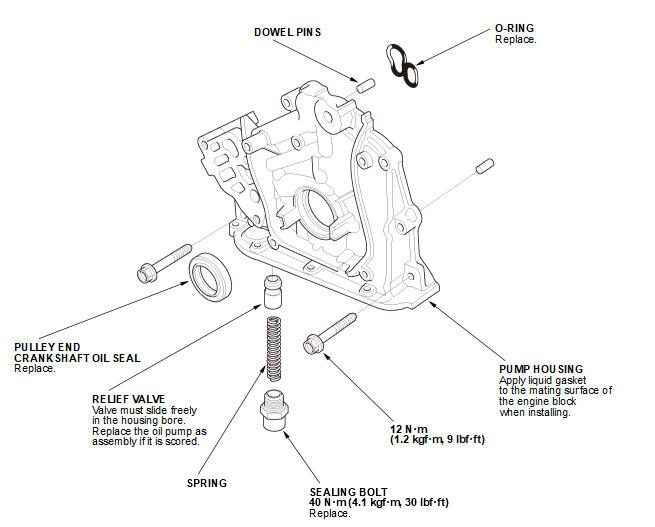

    Fig 1: Engine Oil Pump Replacement Components With Torque Specifications
    GHH370393Courtesy of HONDA, U.S.A., INC.
