Removal and Installation

  1. Timing Belt - Remove
  2. Camshaft Pulley - Remove

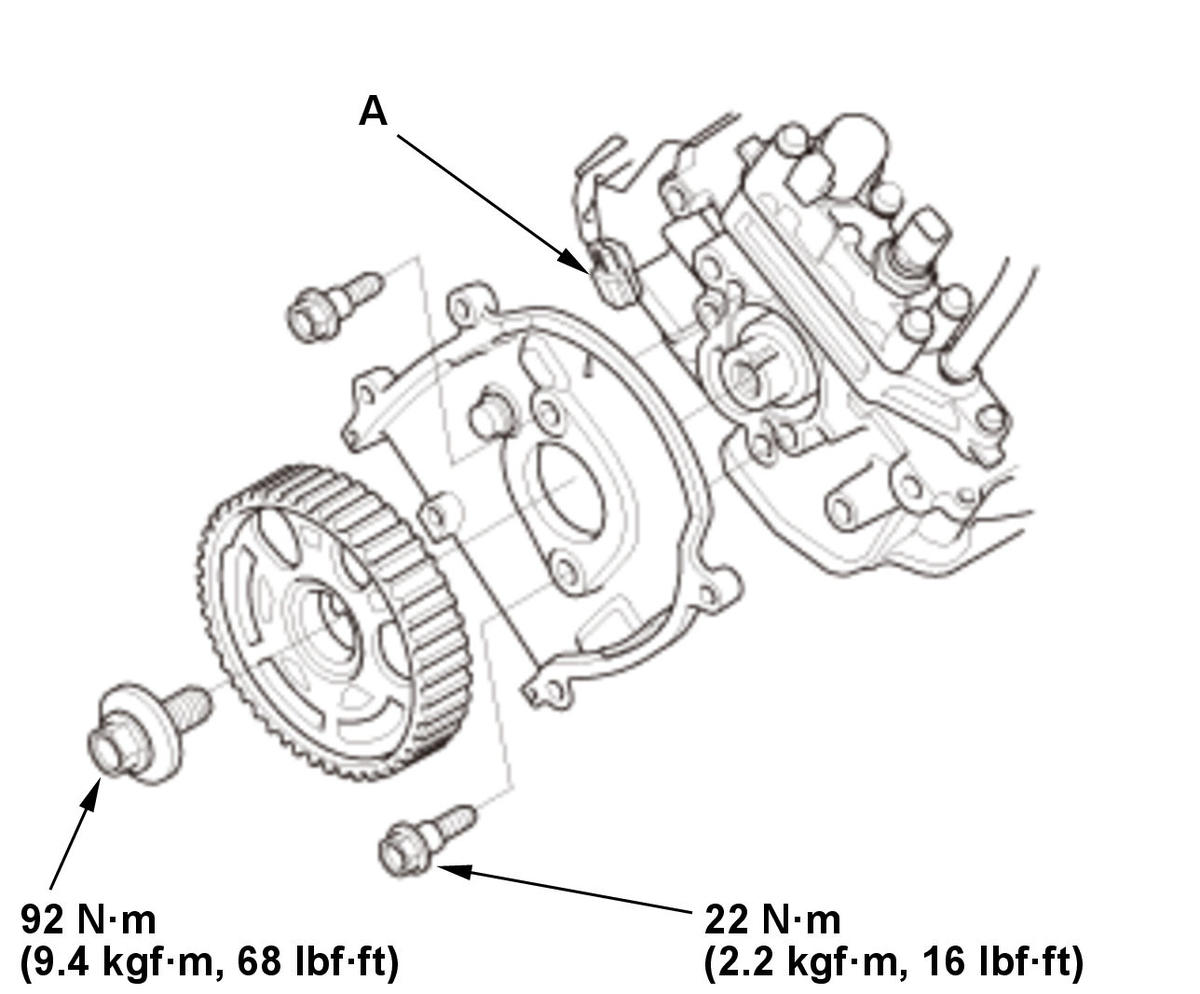

    Fig 1: Camshaft Pulley With Torque Specifications FRONT
    GHH308450Courtesy of HONDA, U.S.A., INC.

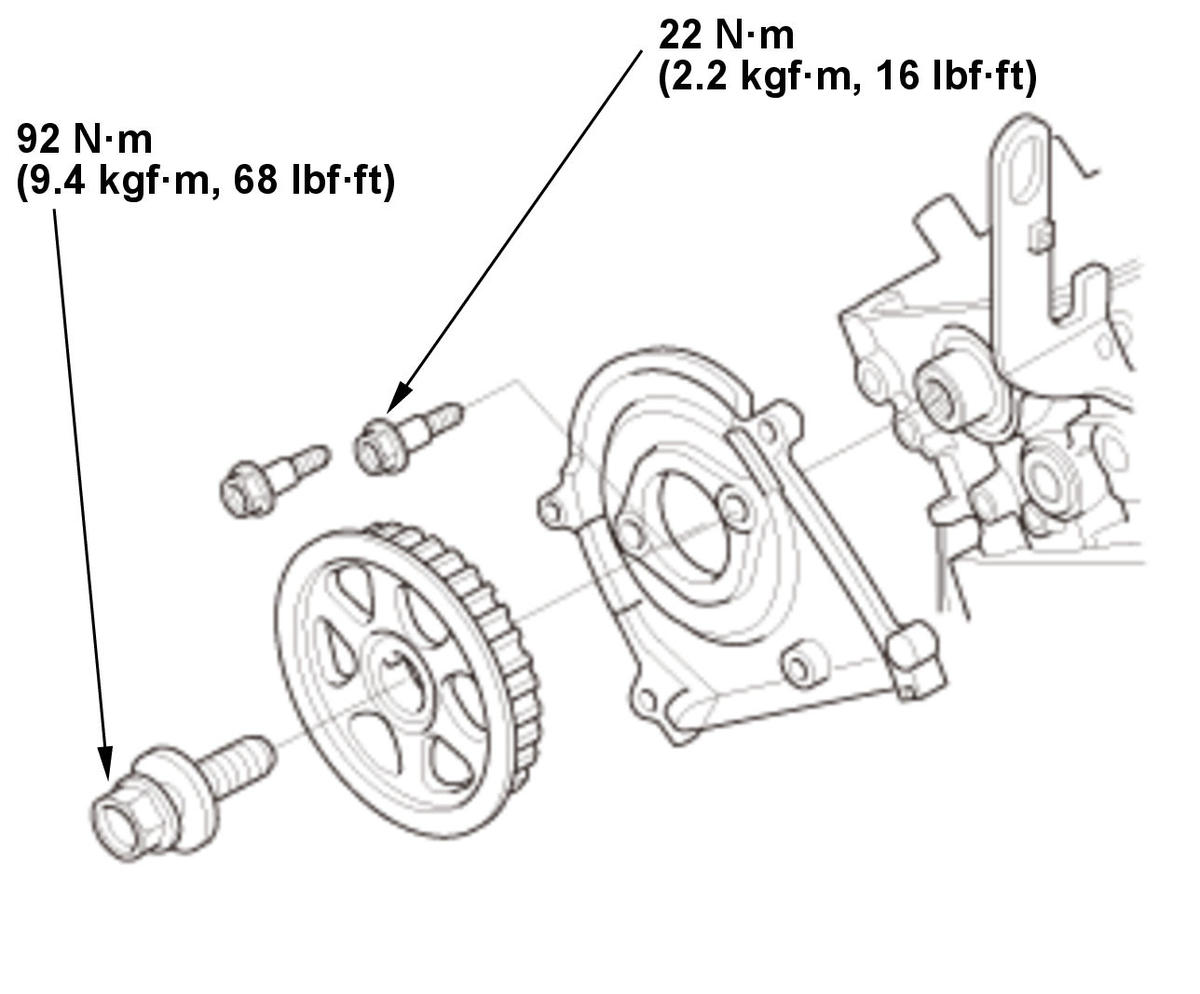

    Fig 2: Camshaft Pulley With Torque Specifications REAR
    GHH308451Courtesy of HONDA, U.S.A., INC.
    1. Remove the camshaft pulley and the back cover.

    2. Front: Disconnect the connector (A).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.

    NOTE:  Apply new engine oil to the threads of the camshaft pulley mounting bolt.
