Crankshaft Pulley: Removal

Drive Belt - Remove
Right Front Wheel - Remove
Right Front Inner Fender - Remove - Refer to: Front Inner Fender Removal and Installation
NOTE: Remove the appropriate portion of the right front inner fender.

Crankshaft Pulley - Remove

Courtesy of HONDA, U.S.A., INC.

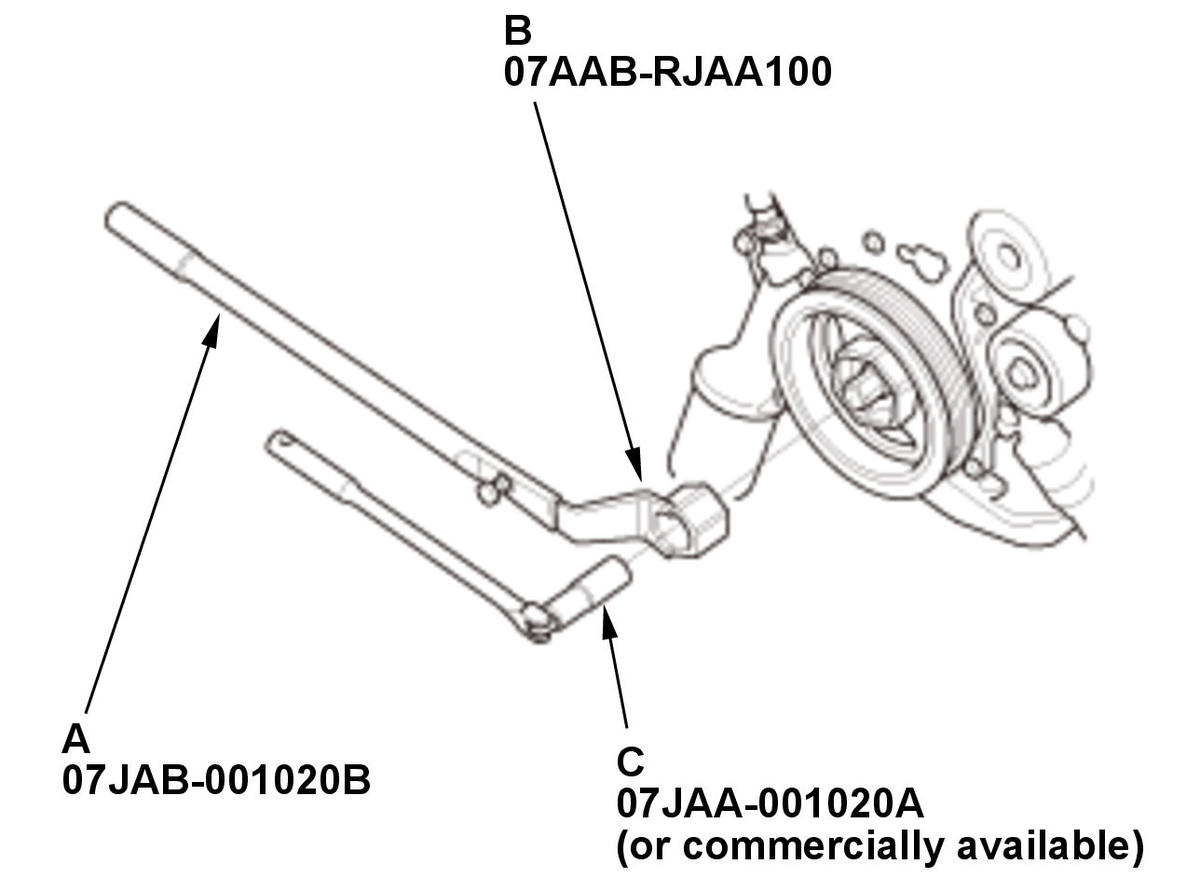

1. Hold the pulley with the holder handle (A) and the crankshaft pulley holder (B).

2. Remove the bolt with a heavy duty 19 mm socket (C) and a breaker bar, then remove the crankshaft pulley.
