Removal and Installation

  1. Engine Cover - Remove
  2. EGR Valve - Remove

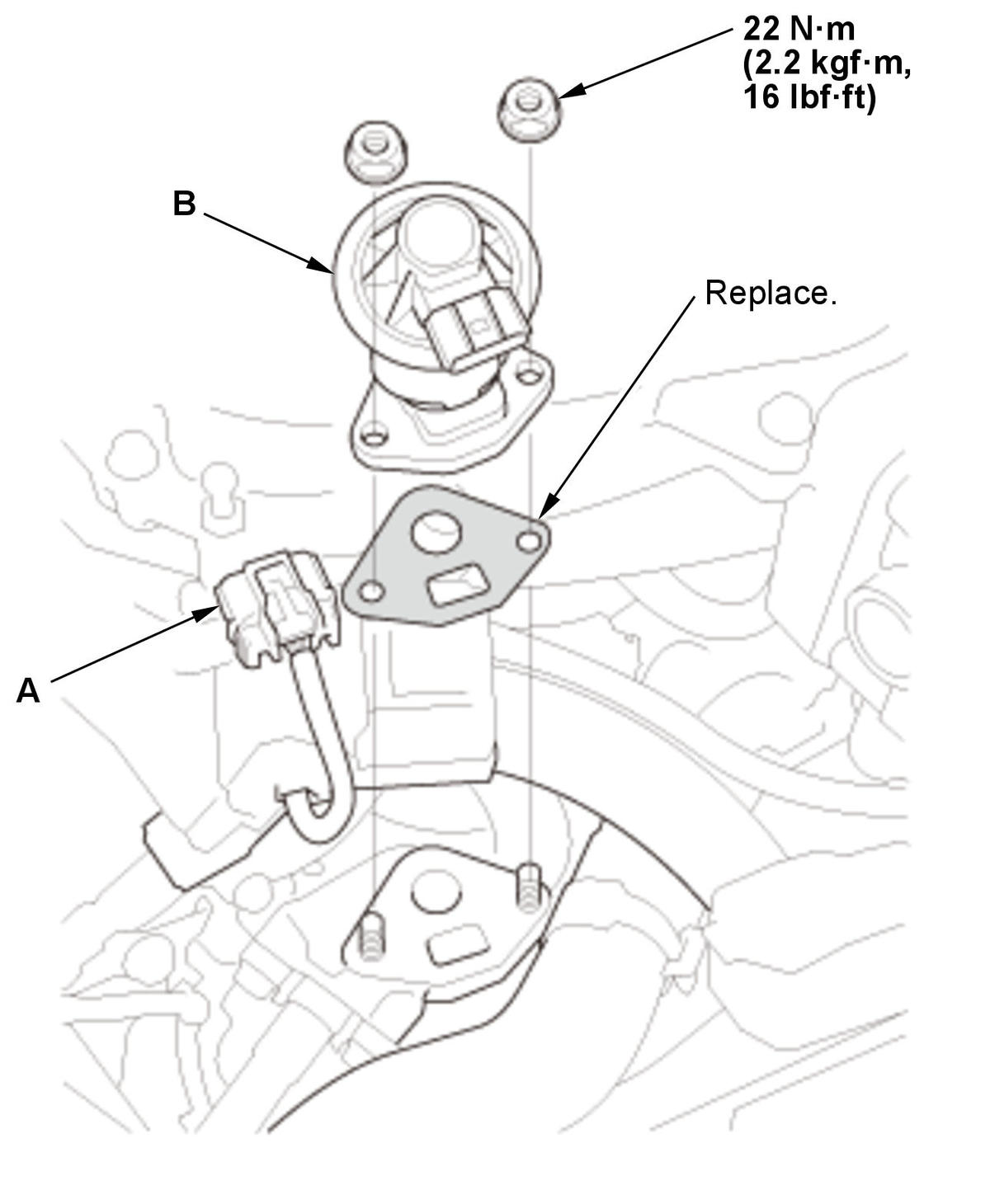

    Fig 1: EGR Valve With Torque Specifications
    GHH308476Courtesy of HONDA, U.S.A., INC.
    1. Disconnect the connector (A).

    2. Remove the EGR valve (B).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal with a new gasket.
