Engine Control System / Engine Mechanical - Service, Testing & Troubleshooting: Inspection: Camshaft: Inspection

Cylinder Head Cover - Remove - Refer to:
Cylinder Head Cover (6-Speed A/T), ('16-'18 9-Speed A/T) - Removal and Installation or

Cylinder Head Cover (9-Speed A/T) - Removal and Installation (2019 2020 2021) .
Rocker Arm Assembly - Remove
Rocker Arm - Disassemble
High Pressure Fuel Pump - Remove

Camshaft End Play - Inspect

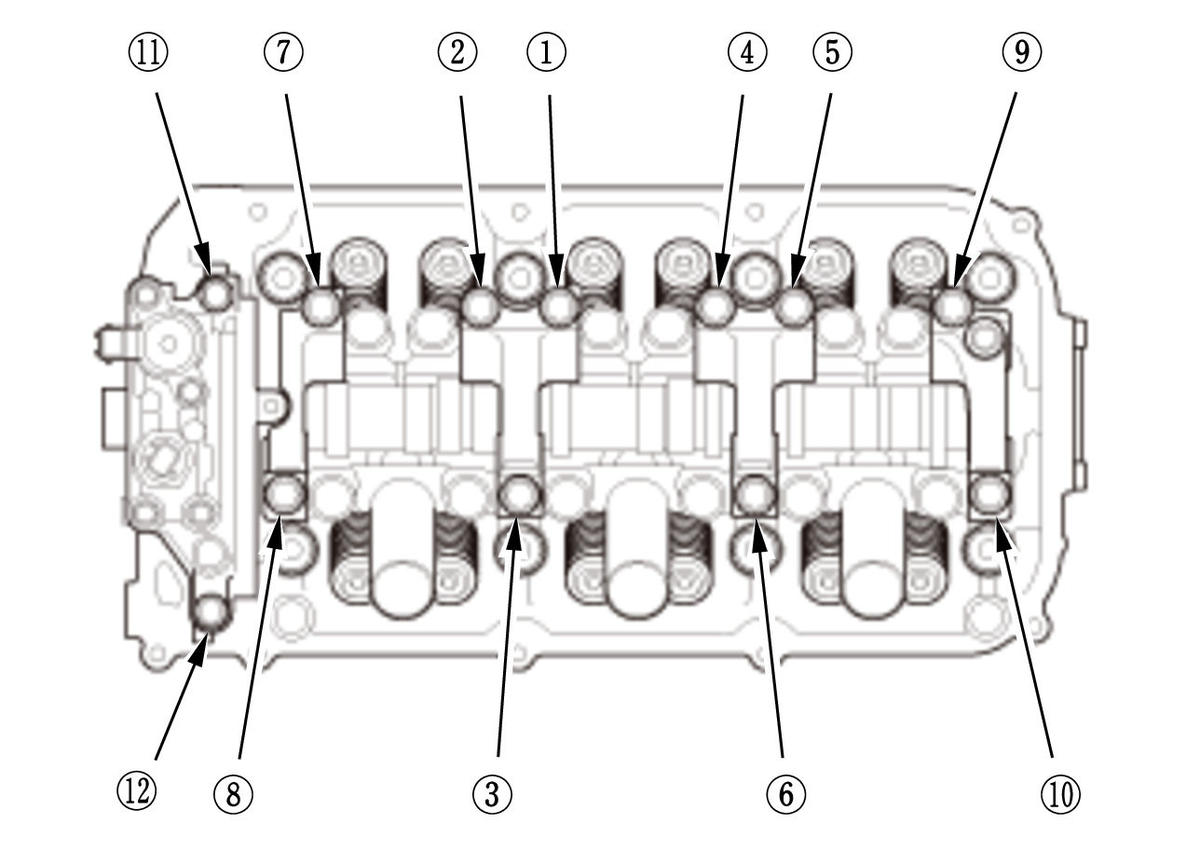

Fig 1: Front Head Camshaft Bolts With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Front: Put the rocker shaft holders and the front rocker arm oil control valve on the front cylinder head, then tighten the bolts to the specified torque.

Specified Torque
(1) - (10): 27 N.m (2.8 Kgf-m, 20 lbf.ft)
(11) - (12): 22 N.m (2.2 Kgf-m, 16 lbf.ft)

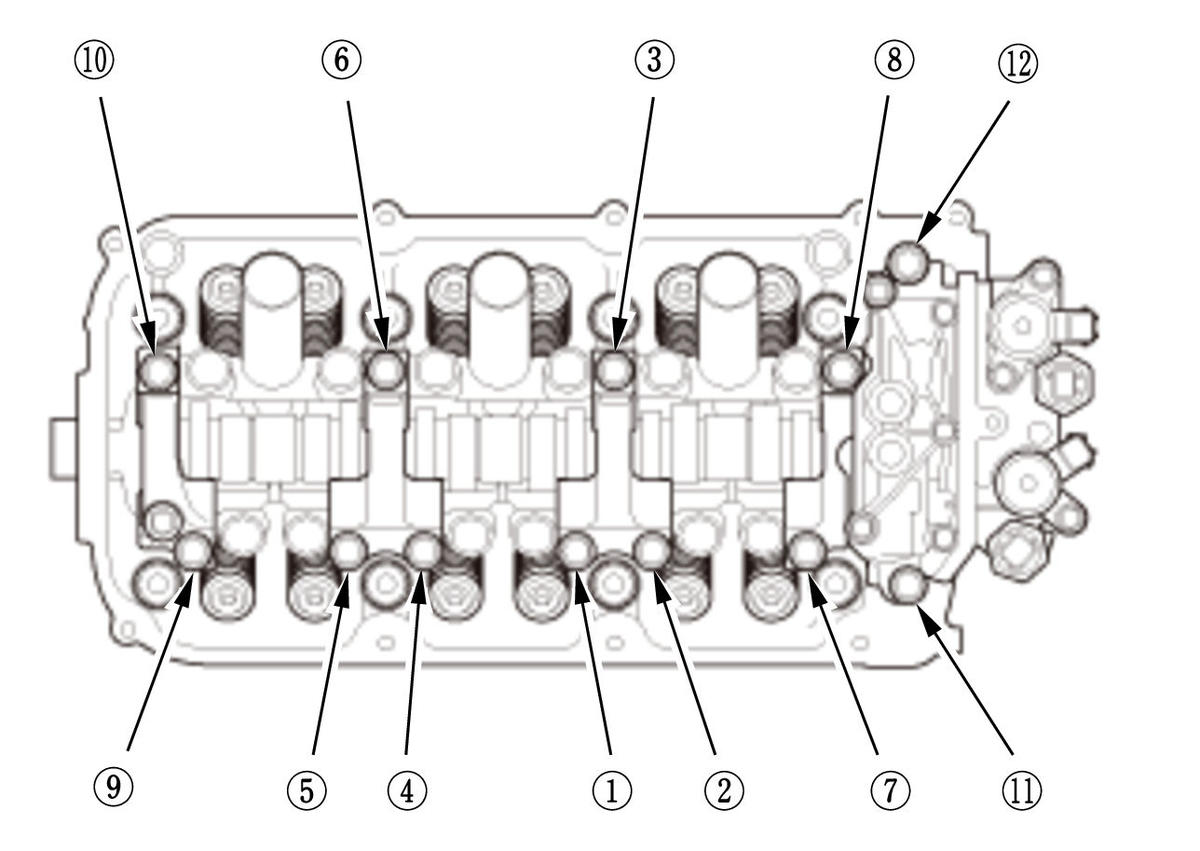

Fig 2: Rear Head Camshaft Bolts With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

2. Rear: Put the rocker shaft holders and the rear rocker arm oil control valve on the rear cylinder head, then tighten the bolts to the specified torque.

Specified Torque
(1) - (10): 27 N.m (2.8 Kgf-m, 20 lbf.ft)
(11) - (12): 22 N.m (2.2 Kgf-m, 16 lbf.ft)

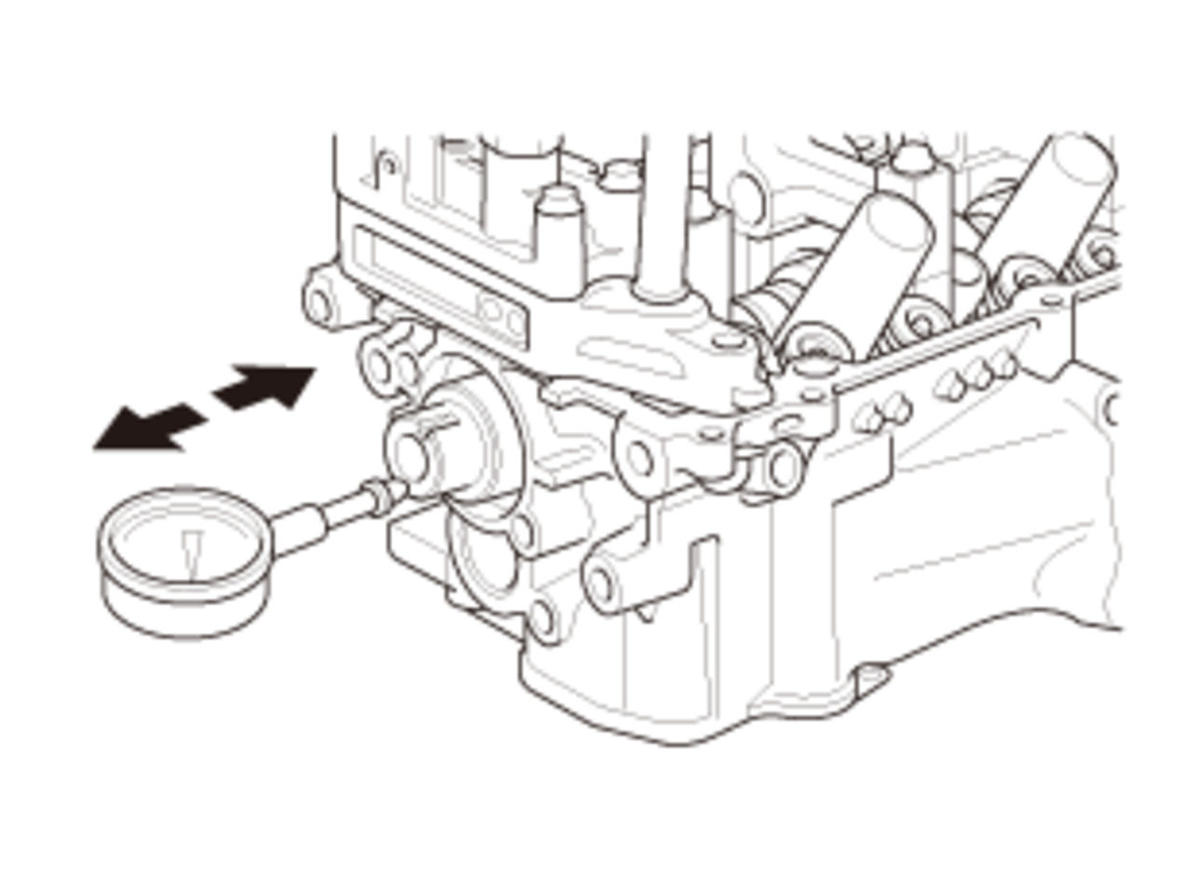

3. Seat the camshaft by pushing it toward the rear of the cylinder head.

Courtesy of HONDA, U.S.A., INC.

4. Zero the dial indicator against the end of the camshaft. Push the camshaft back and forth, and read the end play. If the end play is beyond the service limit, replace the thrust cover and recheck. If it is still beyond the service limit, replace the cylinder head. If it is still beyond the service limit, replace the camshaft.

Camshaft End Play
Standard (New): 0.05-0.20 mm (0.0020-0.0079 in)
Service Limit: 0.20 mm (0.0079 in)

Camshaft - Remove

Camshaft - Inspect

Courtesy of HONDA, U.S.A., INC.

1. Wipe the camshaft clean, then inspect the lift ramps. Replace the camshaft if any lobes are pitted, scored, or excessively worn.

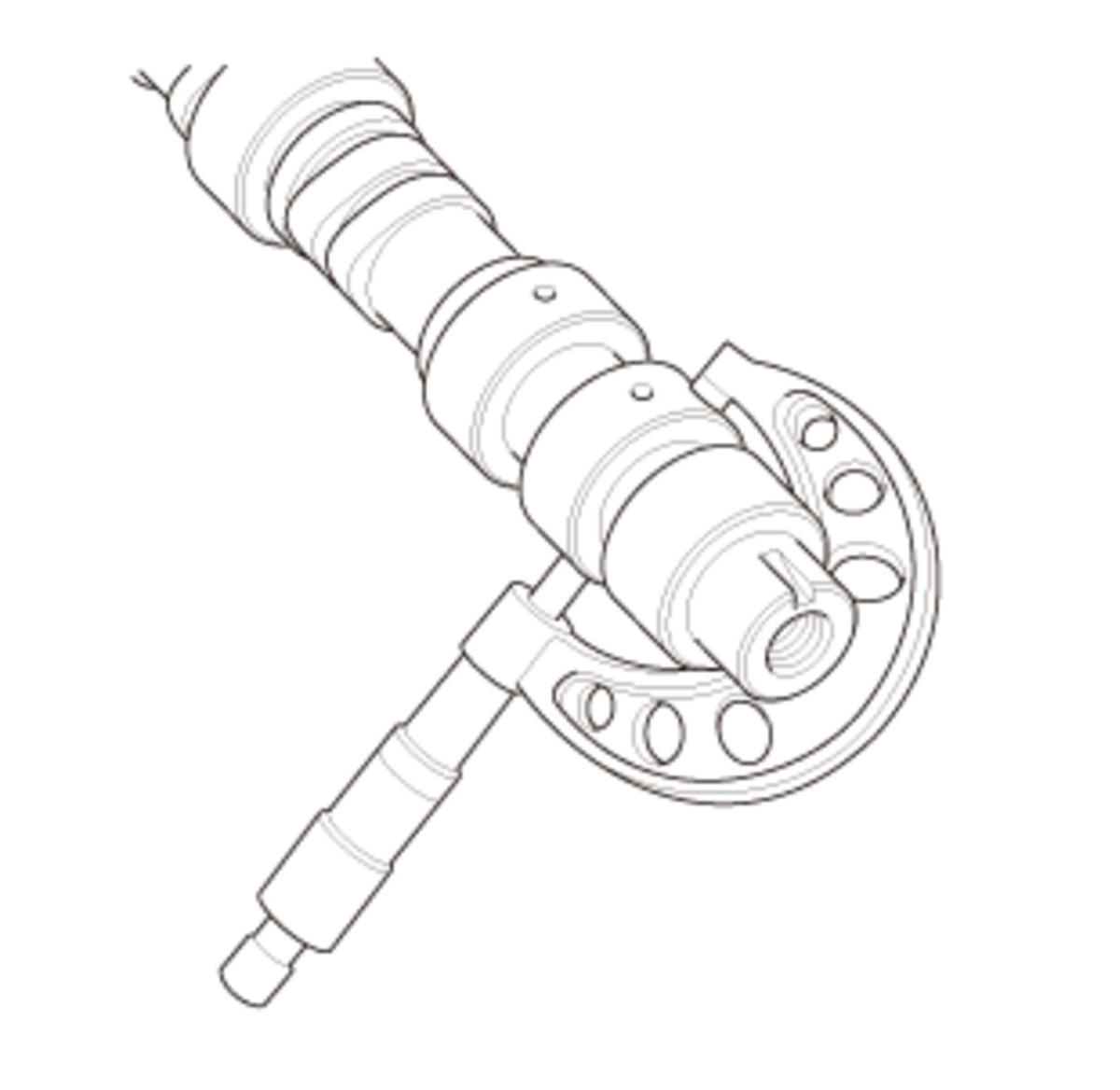

2. Measure the diameter of each camshaft journal.

Courtesy of HONDA, U.S.A., INC.

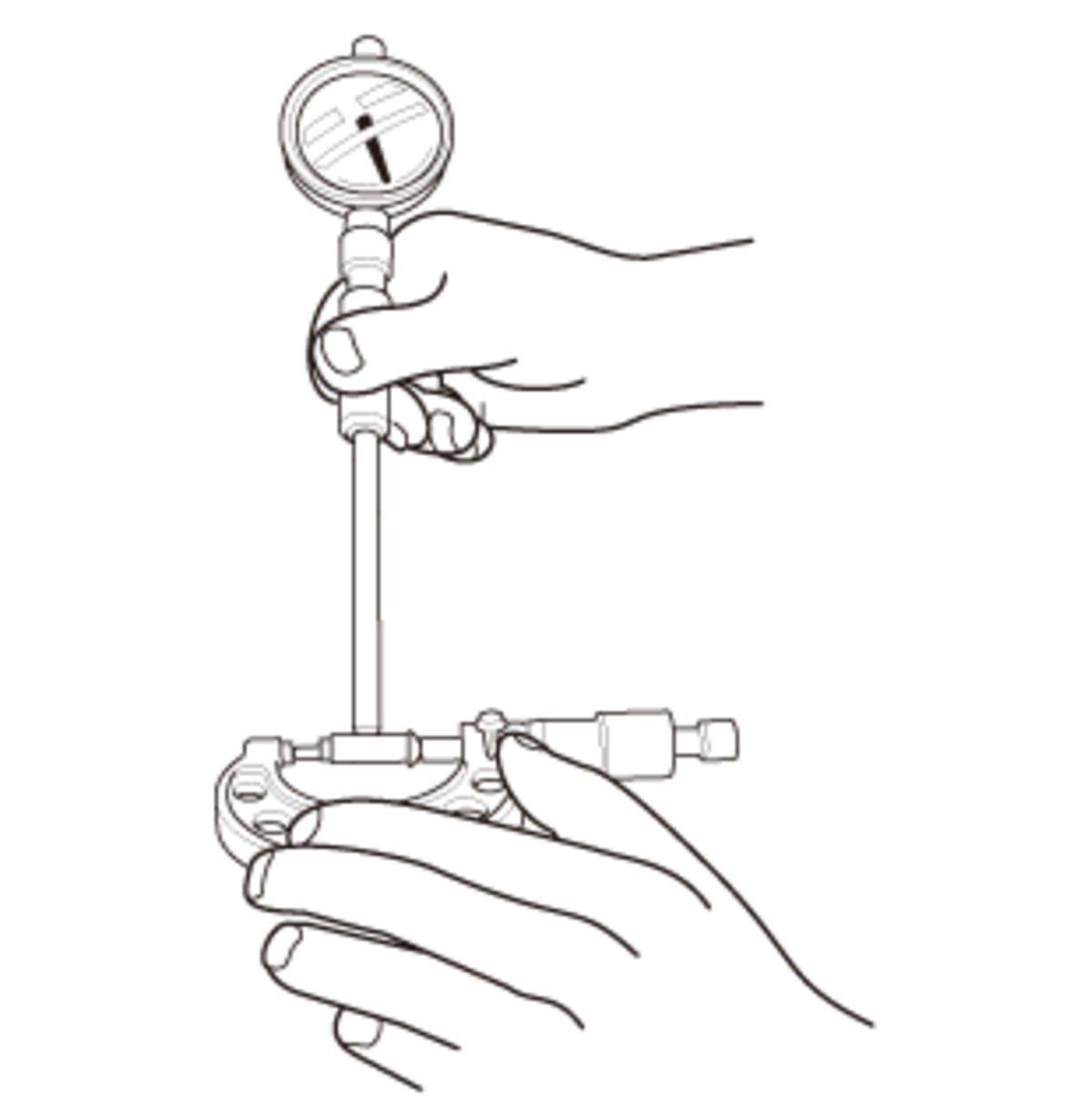

3. Zero the dial indicator to the journal diameter.

Courtesy of HONDA, U.S.A., INC.

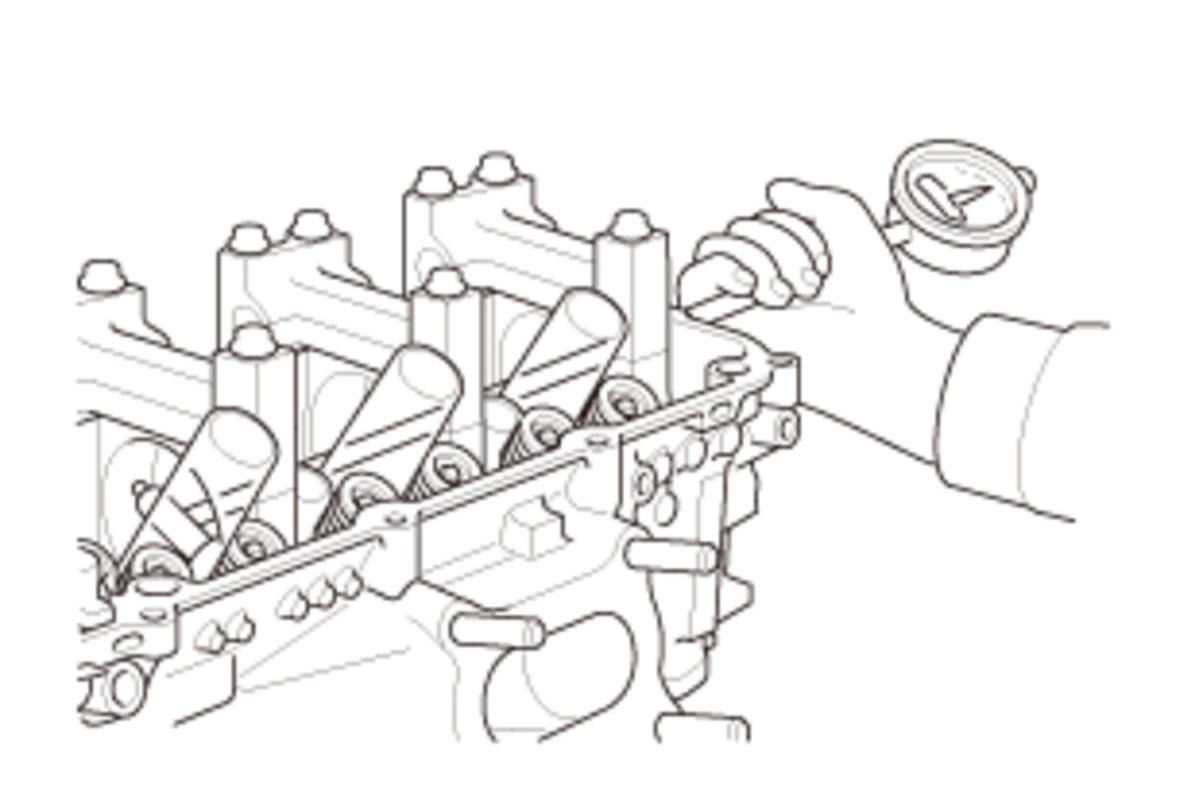

4. Clean the camshaft bearing surfaces in the cylinder head. Measure the inside diameter of each camshaft bearing surface, and check for an out-of-round condition:

If the camshaft-to-holder clearance is within limits, go to step 6.
If the camshaft-to-holder clearance is beyond the service limit and the camshaft has been replaced, replace the cylinder head.
If the camshaft-to-holder clearance is beyond the service limit and the camshaft has not been replaced, go to step 5.

Camshaft-to-Holder Oil Clearance
Standard (New): 0.050-0.089 mm (0.00197-0.00350 in)
Service Limit: 0.089 mm (0.00350 in)

Courtesy of HONDA, U.S.A., INC.

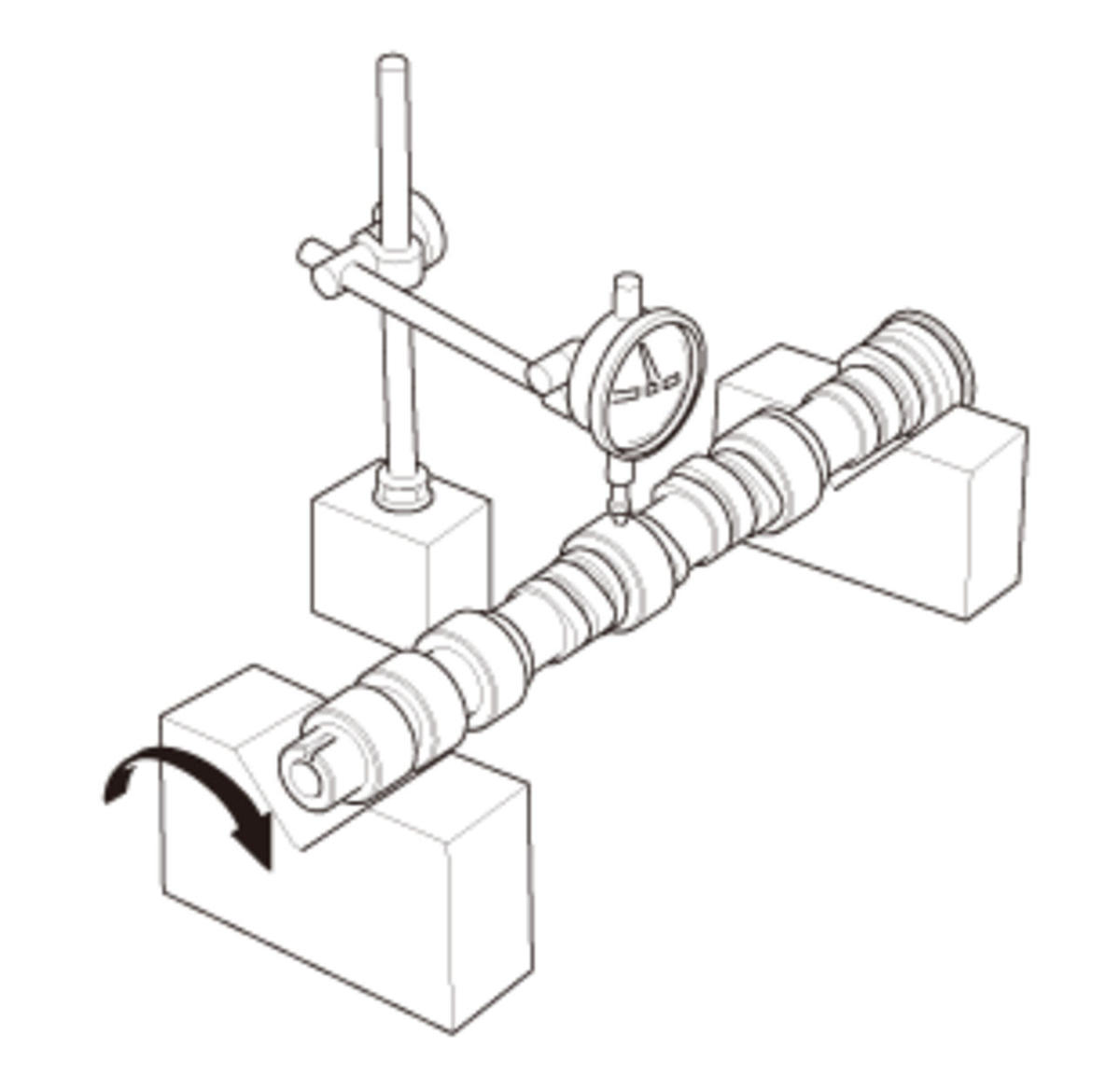

5. Check the total runout with the camshaft supported on V-blocks:

If the total runout of the camshaft is within the standard, replace the cylinder head.
If the total runout is beyond the standard, replace the camshaft and recheck the oil clearance. If the oil clearance is still out of tolerance, replace the cylinder head.

Camshaft Total Runout
Standard (New): 0.03 mm (0.0012 in) max.

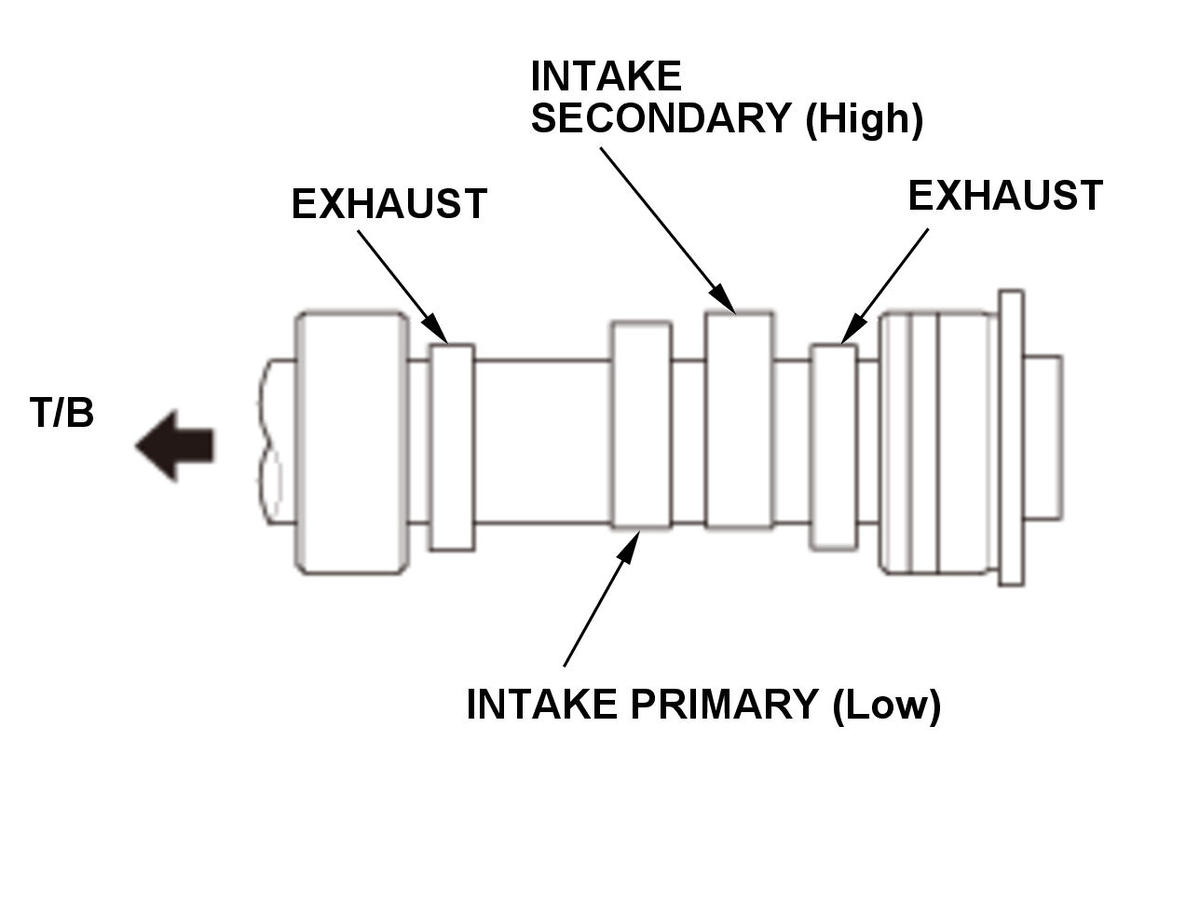

FRONT

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

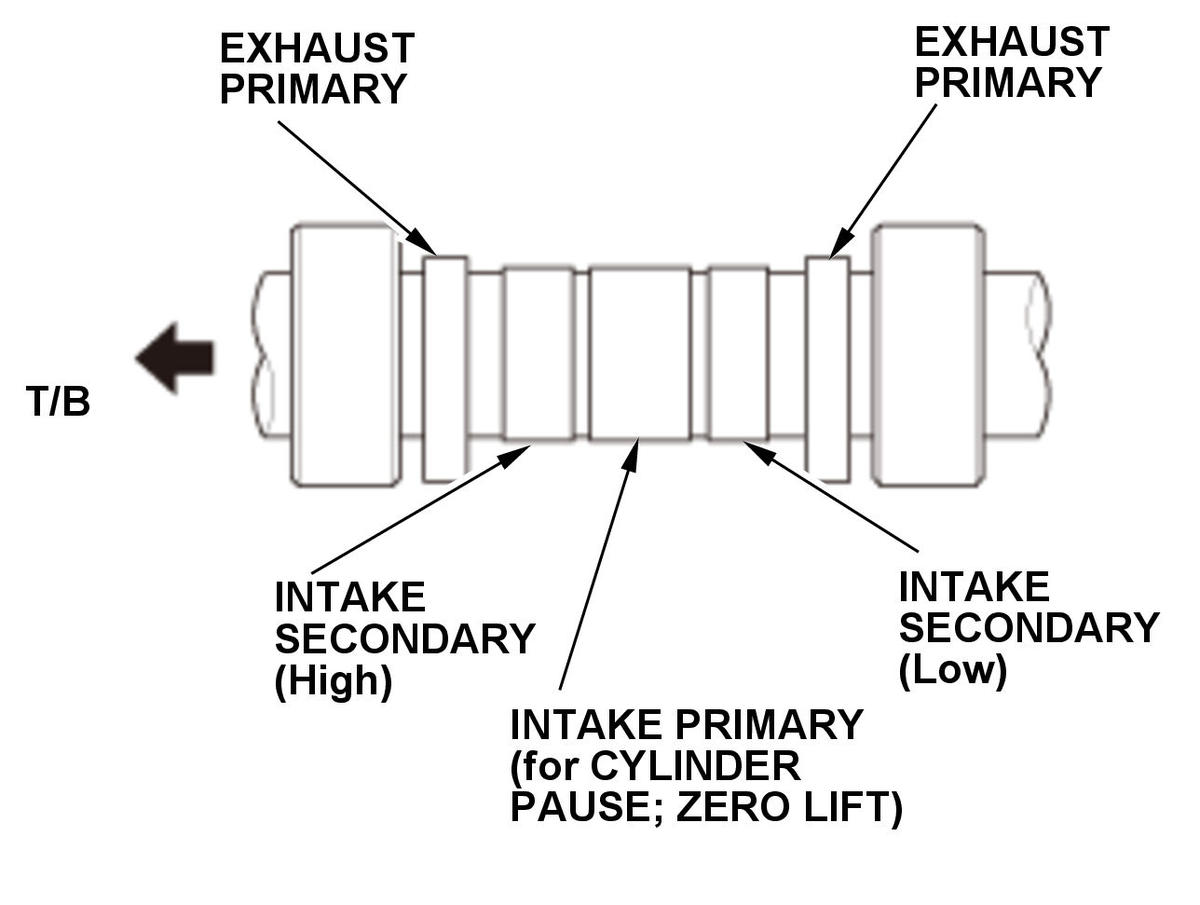

REAR

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

6. Measure the cam lobe height.
NOTE: When measuring the intake cam lobe height of the rear bank camshafts, measure the secondary low and high cam lobes.

Cam Lobe Height Standard (New) Refer to the table below.

Cam Lobe Height Standard (New)

FRONT:
Intake (low):	33.926 mm (1.33567 in)
Intake (high):	35.858 mm (1.41173 in)
Exhaust:	36.512 mm (1.43748 in)
REAR:
Intake (low):	33.957 mm (1.33689 in)
Intake (high):	35.820 mm (1.41023 in)
Exhaust:	36.481 mm (1.43626 in)

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
