Removal and Installation

  1. Front Bulkhead Cover - Remove

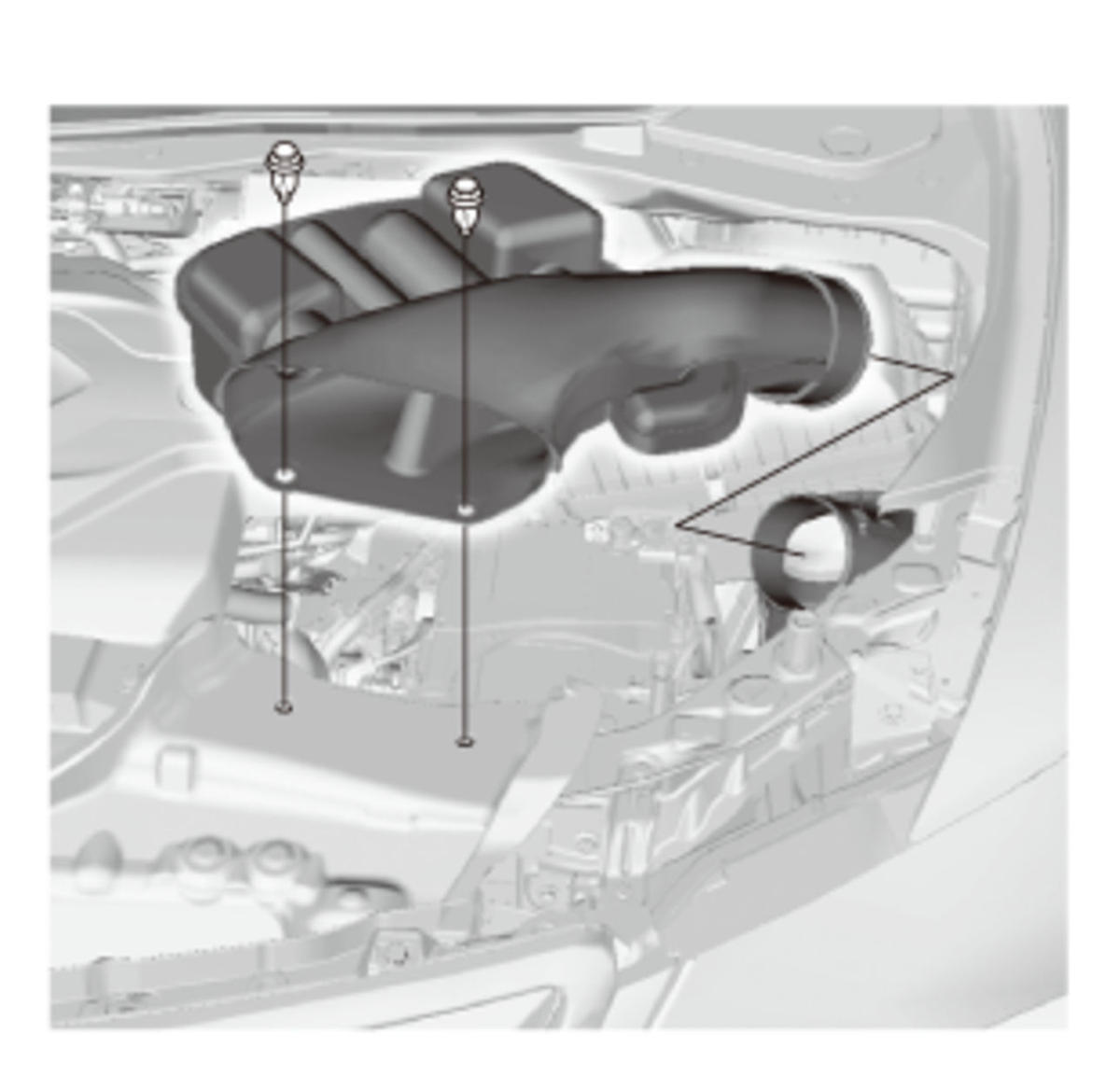

  2. Air Intake Tube - Remove
    GHH308445Courtesy of HONDA, U.S.A., INC.
  3. Intake Air Duct - (Air Cleaner Side) - Disconnect

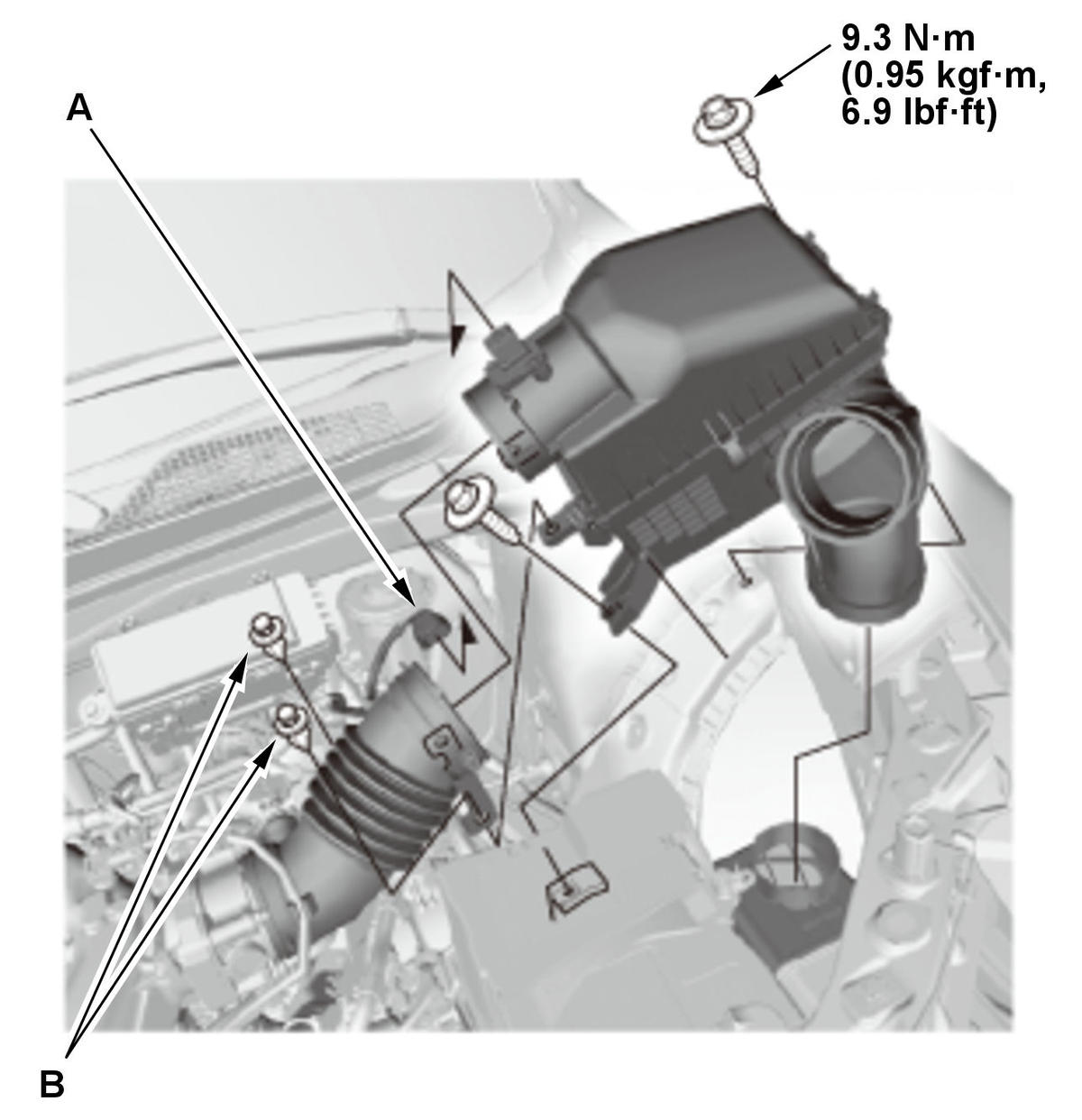

  4. Air Cleaner - Remove
    GHH308446Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the connector (A).

    2. Remove the clips (B).

    3. Remove the air cleaner.
  5. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
