Removal and Installation

SRS components are located in this area. Review the SRS component locations -

Refer to:

SRS Component Location Index (2016) or

SRS Component Location Index (2017 2018 2019) and the

Precautions And Procedures before doing repairs or service.

1. Driver's Heater Duct B - Remove
2. DC-DC Converter - Remove

   Courtesy of HONDA, U.S.A., INC.

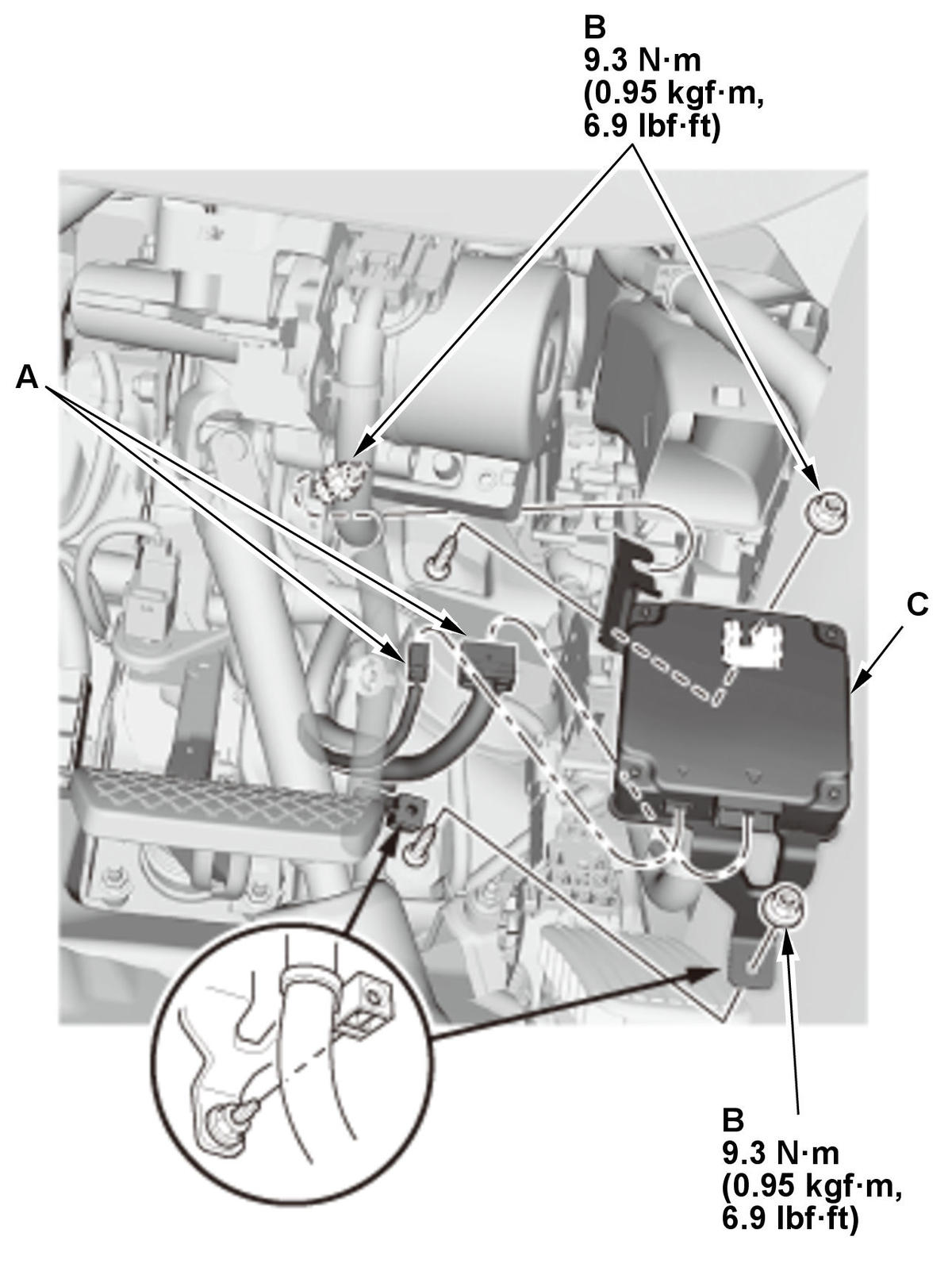

   1. Disconnect the connectors (A). 2. Loosen or remove the DC-DC converter mounting nuts (B). 3. Remove the DC-DC converter (C).

3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
