Engine Oil Pan: Installation

  1. Oil Pan - Install

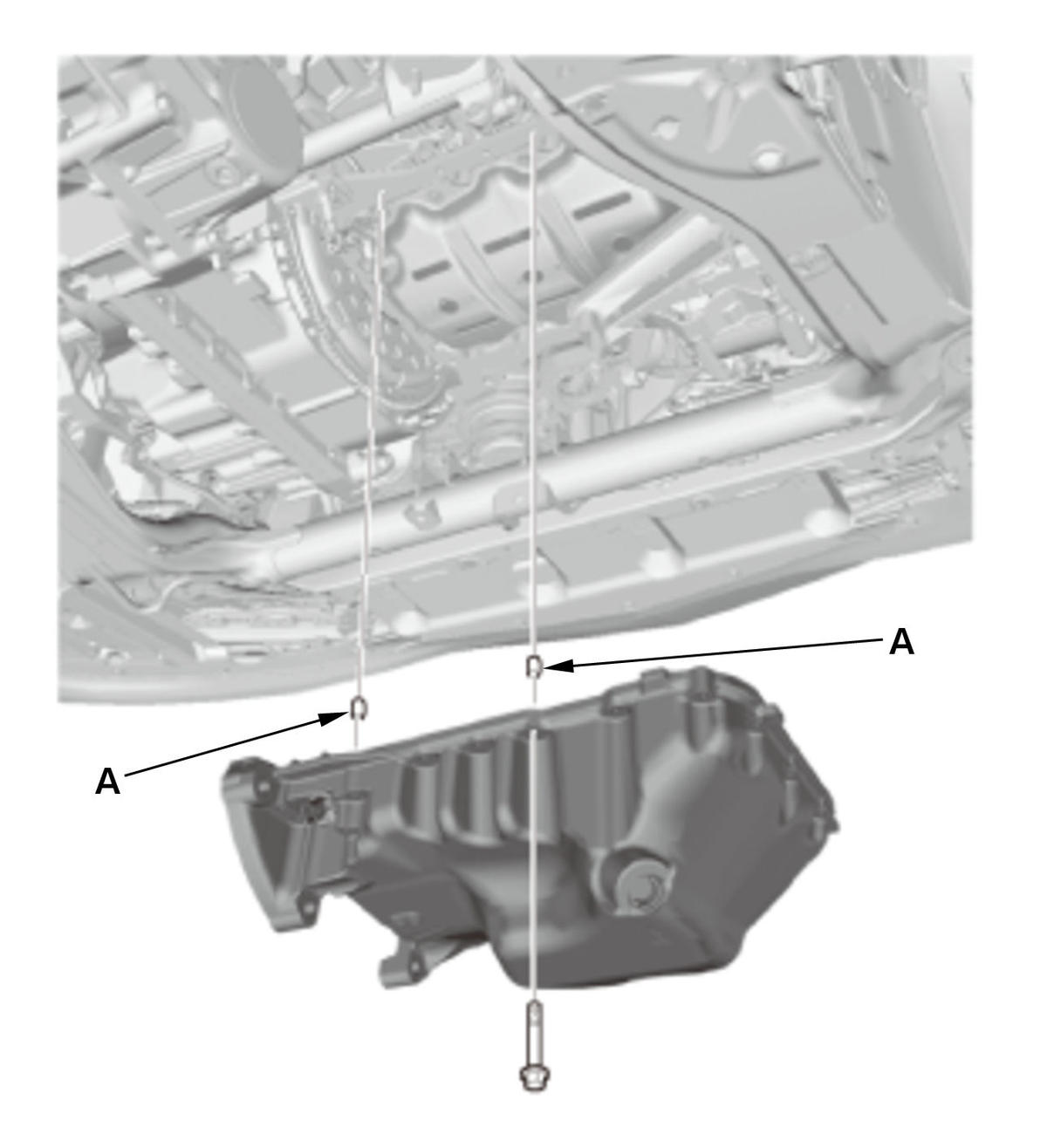

    GHH308488Courtesy of HONDA, U.S.A., INC.
    		 1. Apply liquid gasket to the oil pan mating surface of the engine block and to the inside edge of the threaded bolt holes.

    2. Install the dowel pins (A).

    3. Install the oil pan.

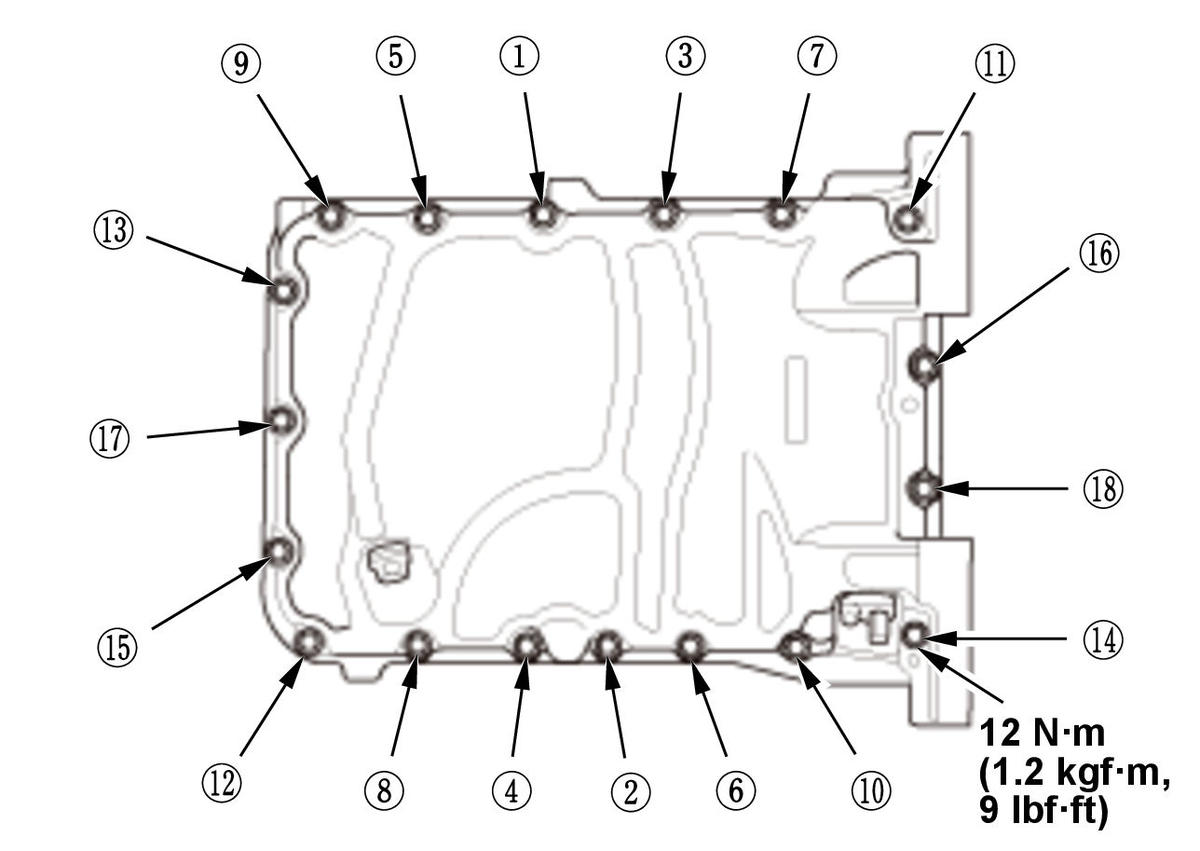

    Fig 1: Transmission Oil Pan Tightening Sequence
    GHH308489Courtesy of HONDA, U.S.A., INC.
    4. Tighten the bolts in three steps; tighten the bolts until the bolts sit on the oil pan, tighten the bolts until the gasket is compressed, tighten the bolts to specified torque.

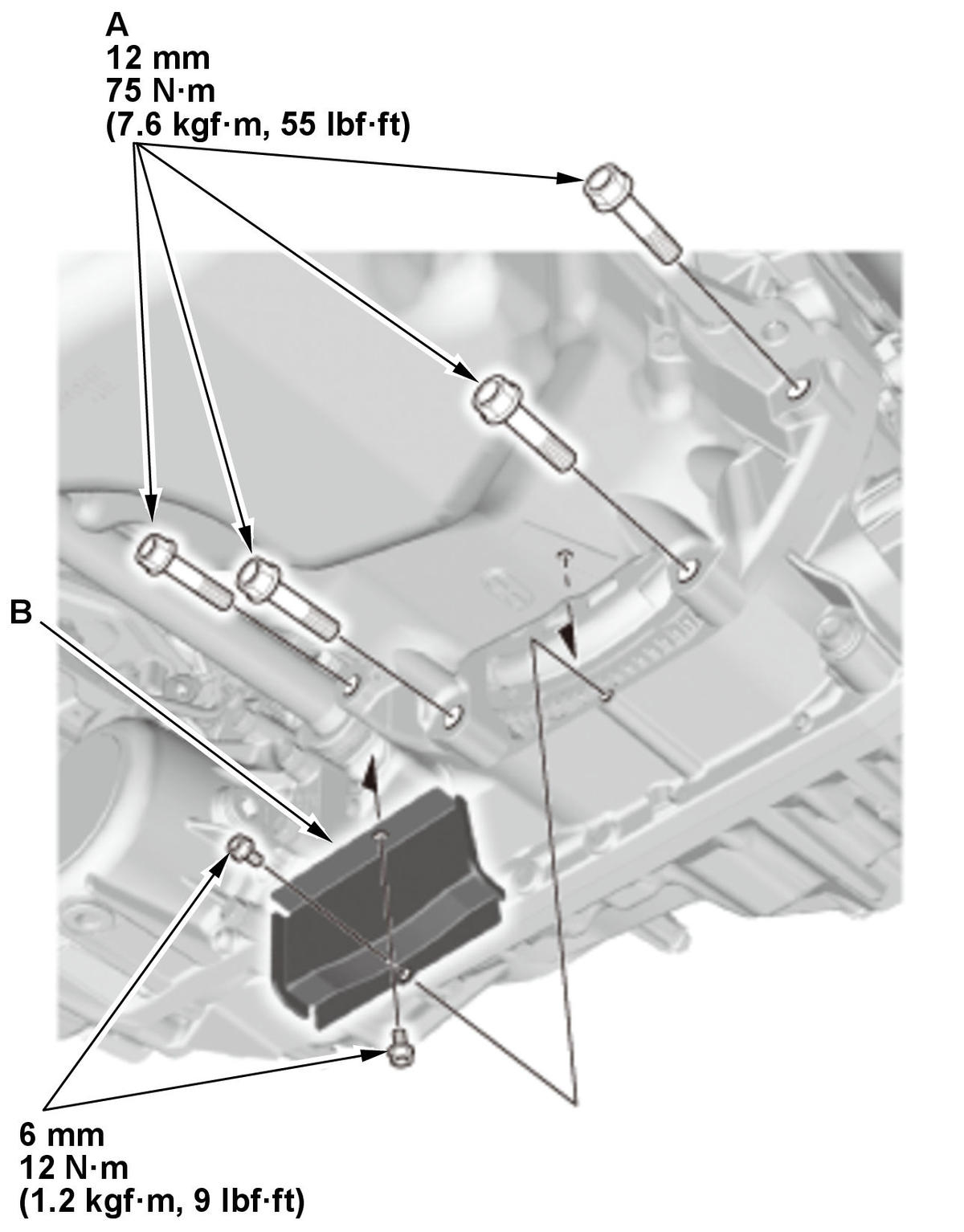

    Fig 2: Transmission Assembly Mounting Bolts With Torque Specifications
    GHH308490Courtesy of HONDA, U.S.A., INC.
    5. Tighten the transmission assembly mounting bolts (A).

    6. Install the torque converter cover (B).
  2. Connector (CKP Sensor) - Connect
  3. Under-Floor TWC - Install - Refer to: or

    Under-Floor TWC Removal and Installation

    Warm Up TWC Removal and Installation

  4. Engine Oil - Refill
