Engine Oil Pan: Removal

  1. Engine Oil - Drain
  2. Under-Floor TWC - Remove - Refer to:

    Under-Floor TWC Removal and Installation

    Warm Up TWC Removal and Installation

    NOTE:  Do not remove the front secondary HO2S.

  3. Connector (CKP Sensor) - Disconnect
  4. Oil Pan - Remove
    GHH308484Courtesy of HONDA, U.S.A., INC.

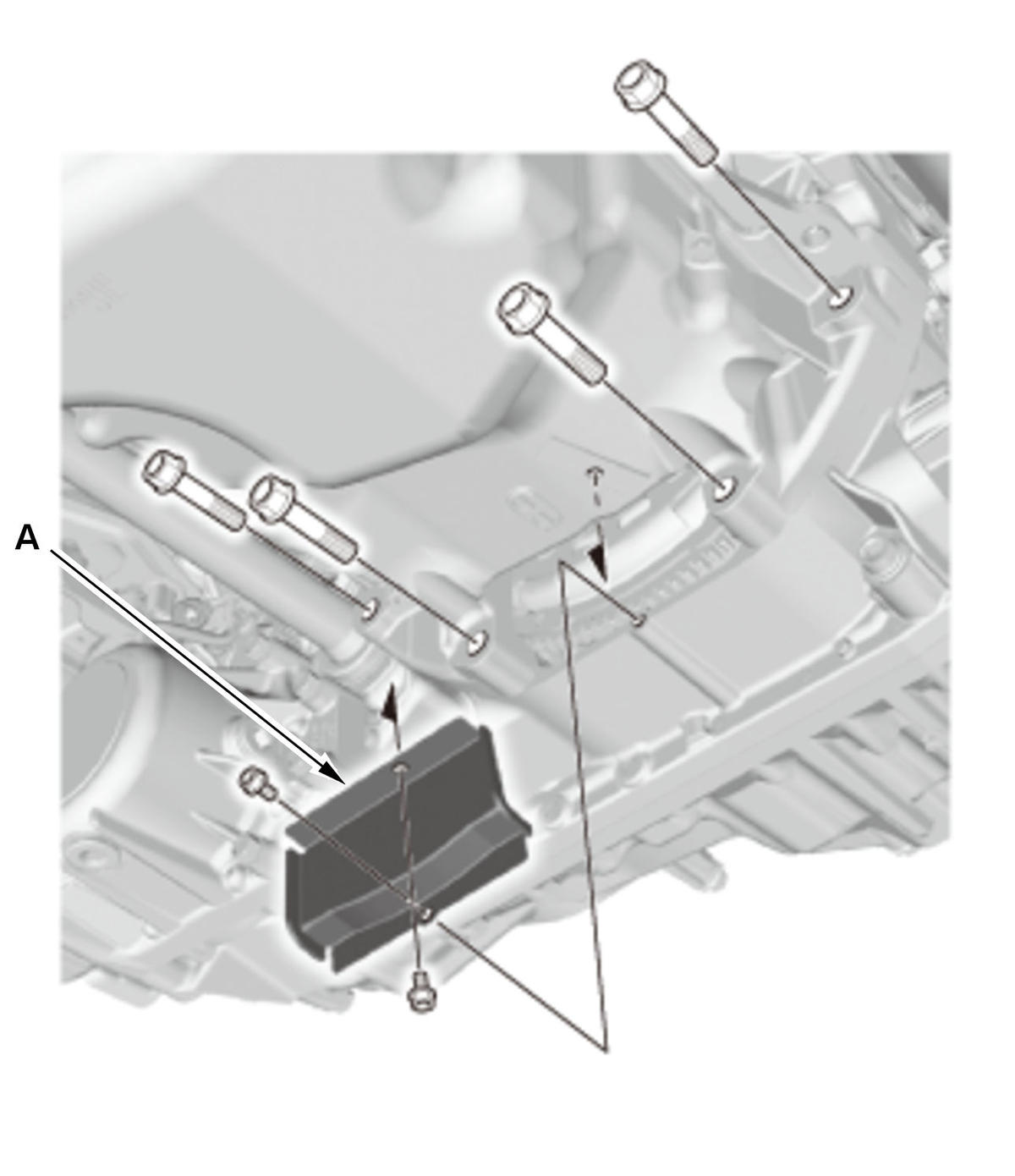

    		 1. Remove the torque converter cover (A).

    2. Remove the transmission assembly mounting bolts.
    Fig 1: Transmission Oil Pan Loosening Sequence
    GHH308485Courtesy of HONDA, U.S.A., INC.
    3. Remove the bolts securing the oil pan.
    GHH308486Courtesy of HONDA, U.S.A., INC.

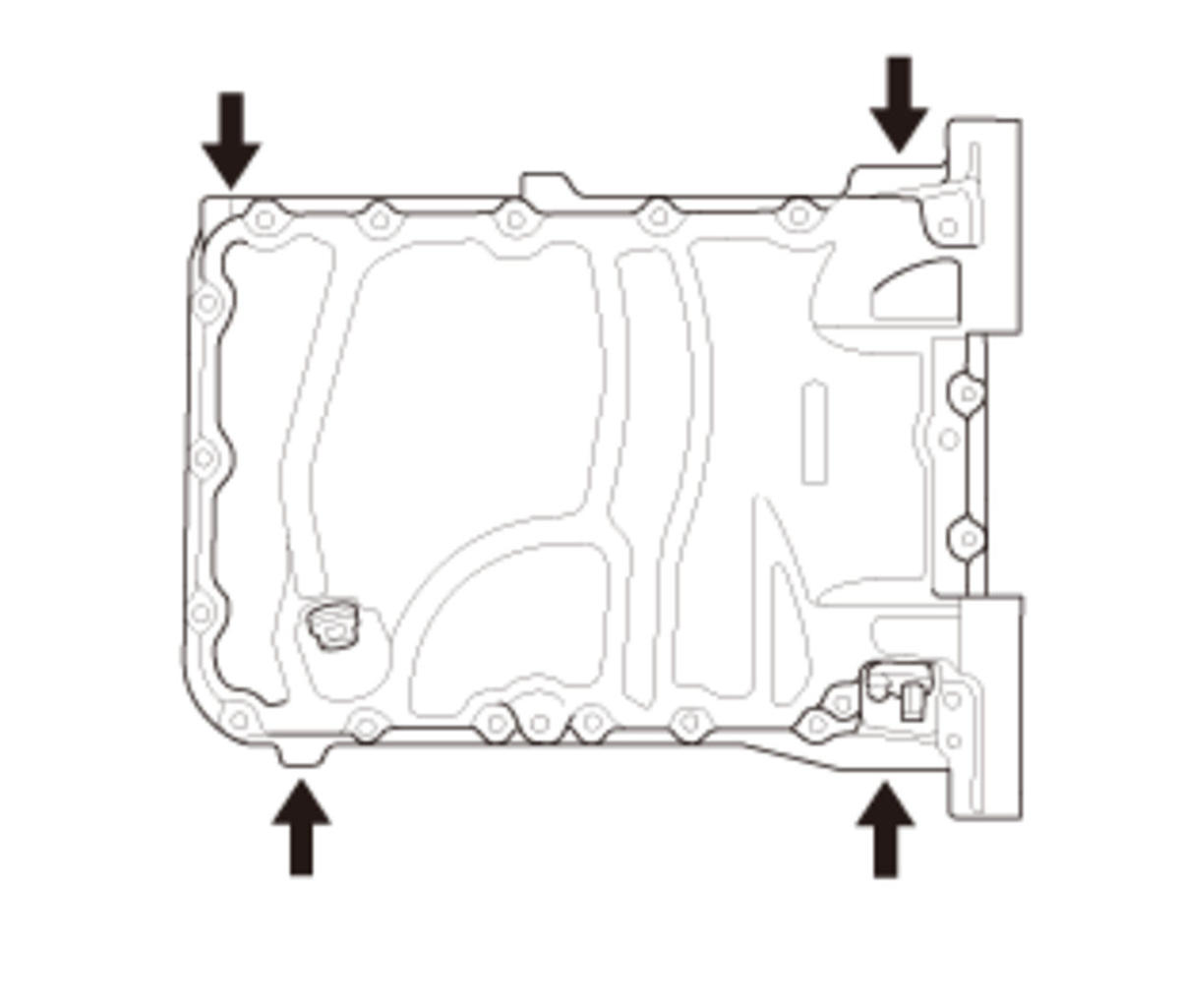

    		 4. Using a flat blade screwdriver, separate the oil pan from the engine block in the places shown.
    GHH308487Courtesy of HONDA, U.S.A., INC.

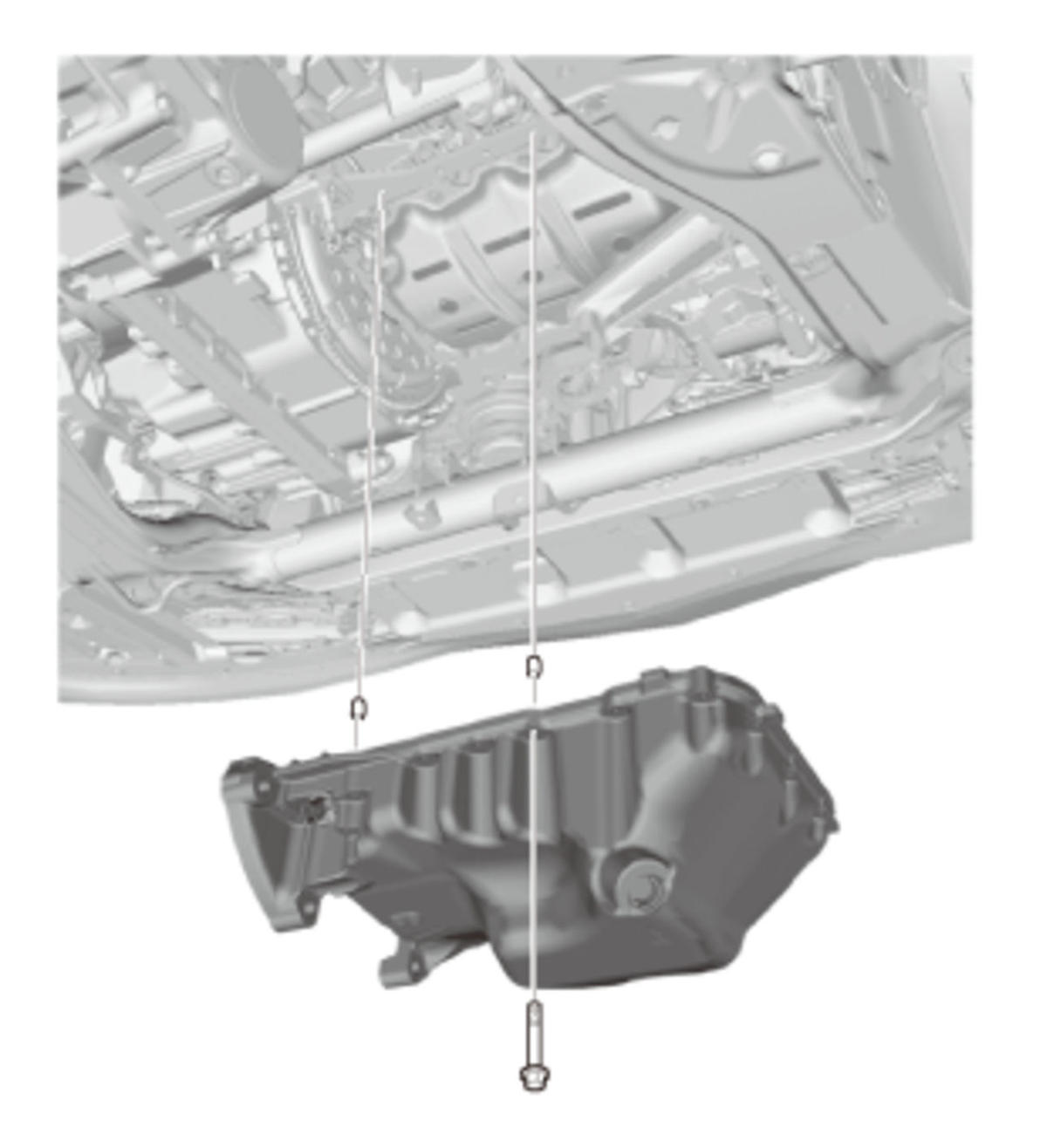

    		 5. Remove the oil pan.
