Removal and Installation

  1. Front Rocker Arm Assembly - Remove

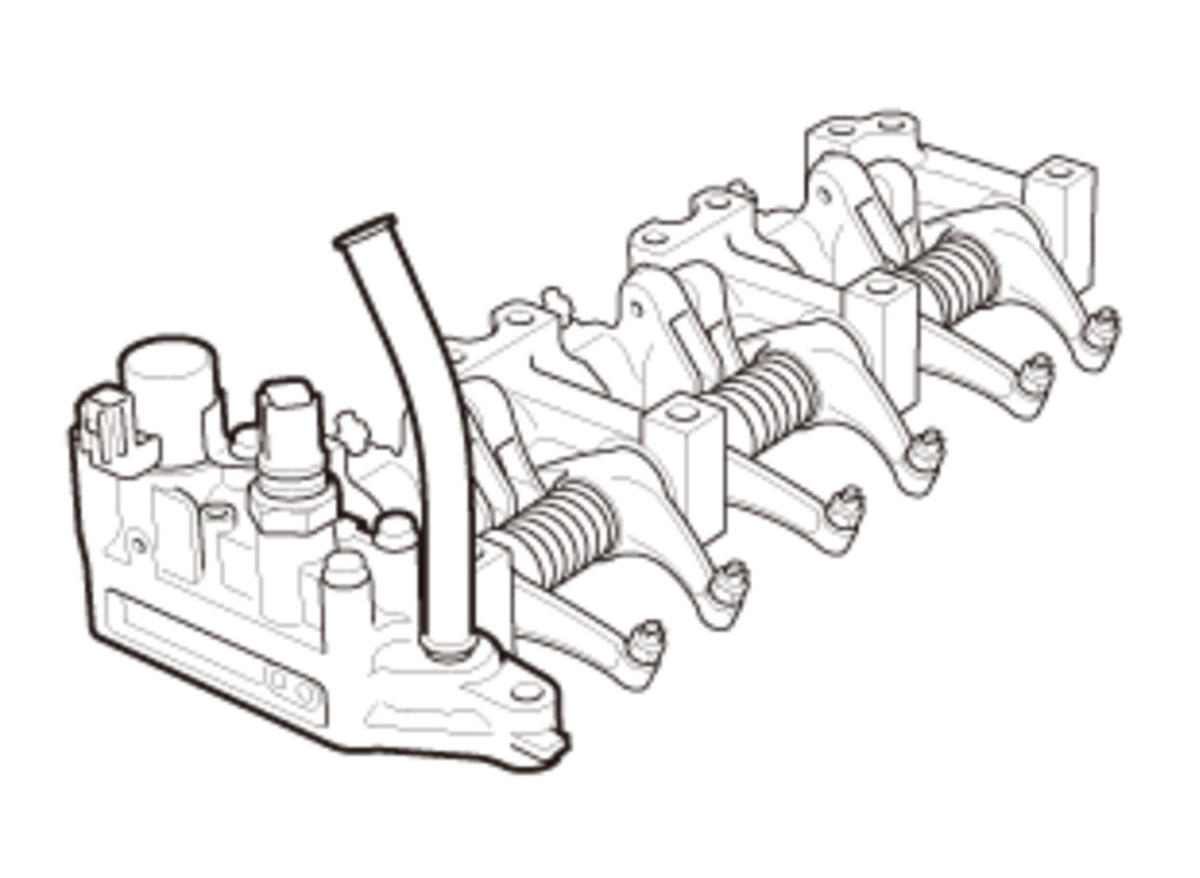

  2. Front Rocker Arm Oil Control Valve - Remove
    GHH308558Courtesy of HONDA, U.S.A., INC.
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
