Valve, Spring, And Valve Seal: Removal

NOTE:  Identify the valves and the valve springs as they are removed so that each item can be reinstalled in its original position.

1. Cylinder Head - Remove - Refer to:

   Cylinder Head Removal and Installation (9-Speed A/T) (2019 2020 2021) or

   Cylinder Head Removal and Installation

2. Camshaft - Remove
3. Valve and Valve Spring - Remove

   Courtesy of HONDA, U.S.A., INC.

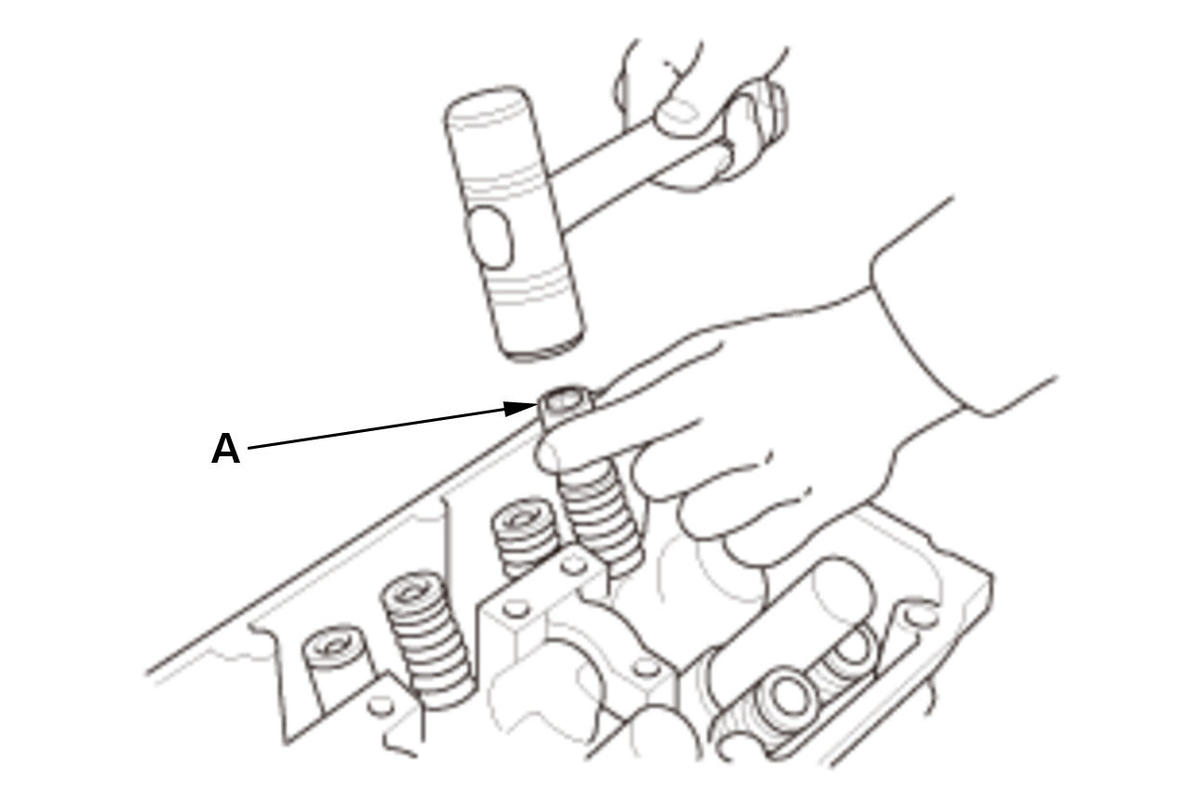

   1. Using an appropriate-sized socket (A) and a plastic mallet, lightly tap the spring retainer to loosen the valve cotters.

   Courtesy of HONDA, U.S.A., INC.

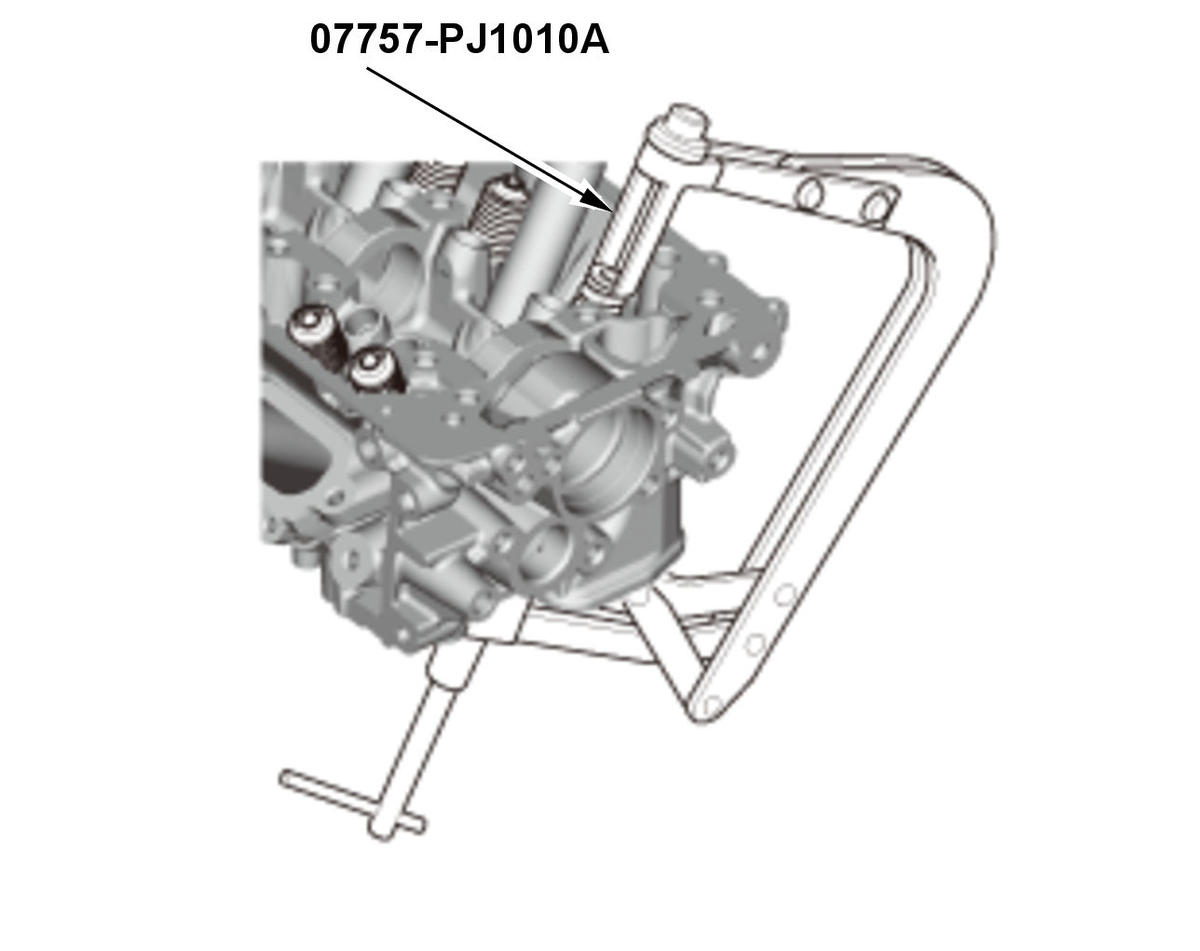

   2. Install the valve spring compressor attachment and the valve spring compressor. Compress the spring and remove the valve cotters. 3. Remove the valve spring compressor and the valve spring compressor attachment, then remove the spring retainer, the valve spring, and the valve.

4. Valve Seal - Remove

   Courtesy of HONDA, U.S.A., INC.

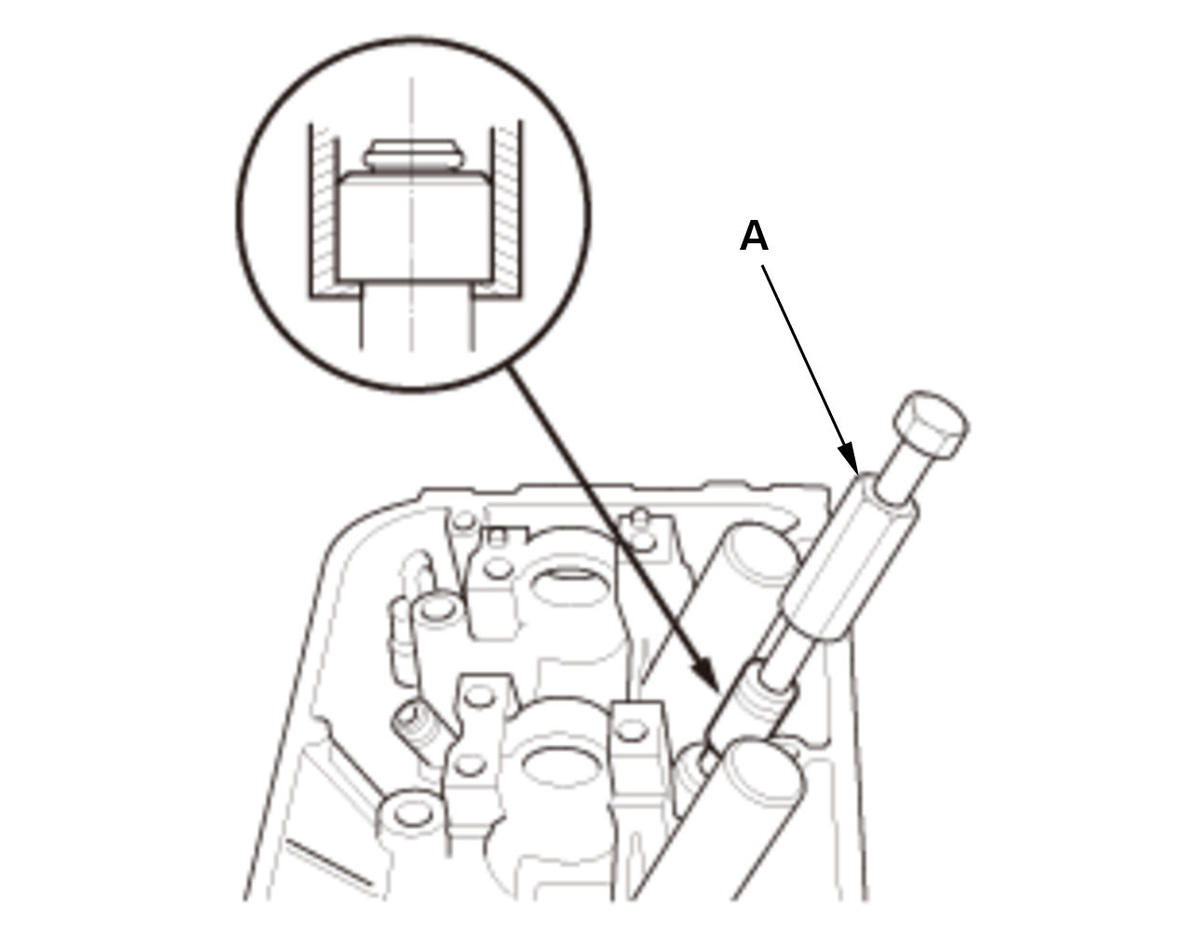

   1. Install a valve guide seal remover (A).

   Courtesy of HONDA, U.S.A., INC.

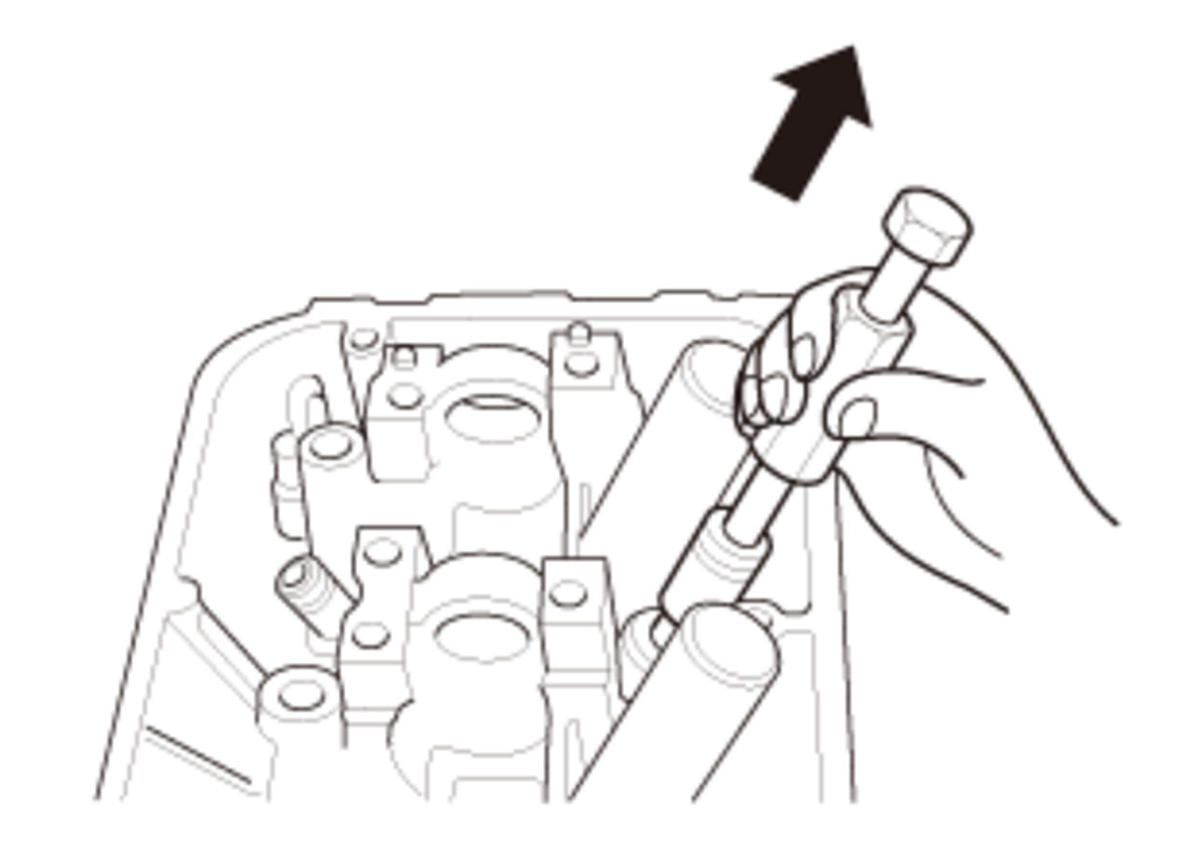

   2. Remove the valve seals.

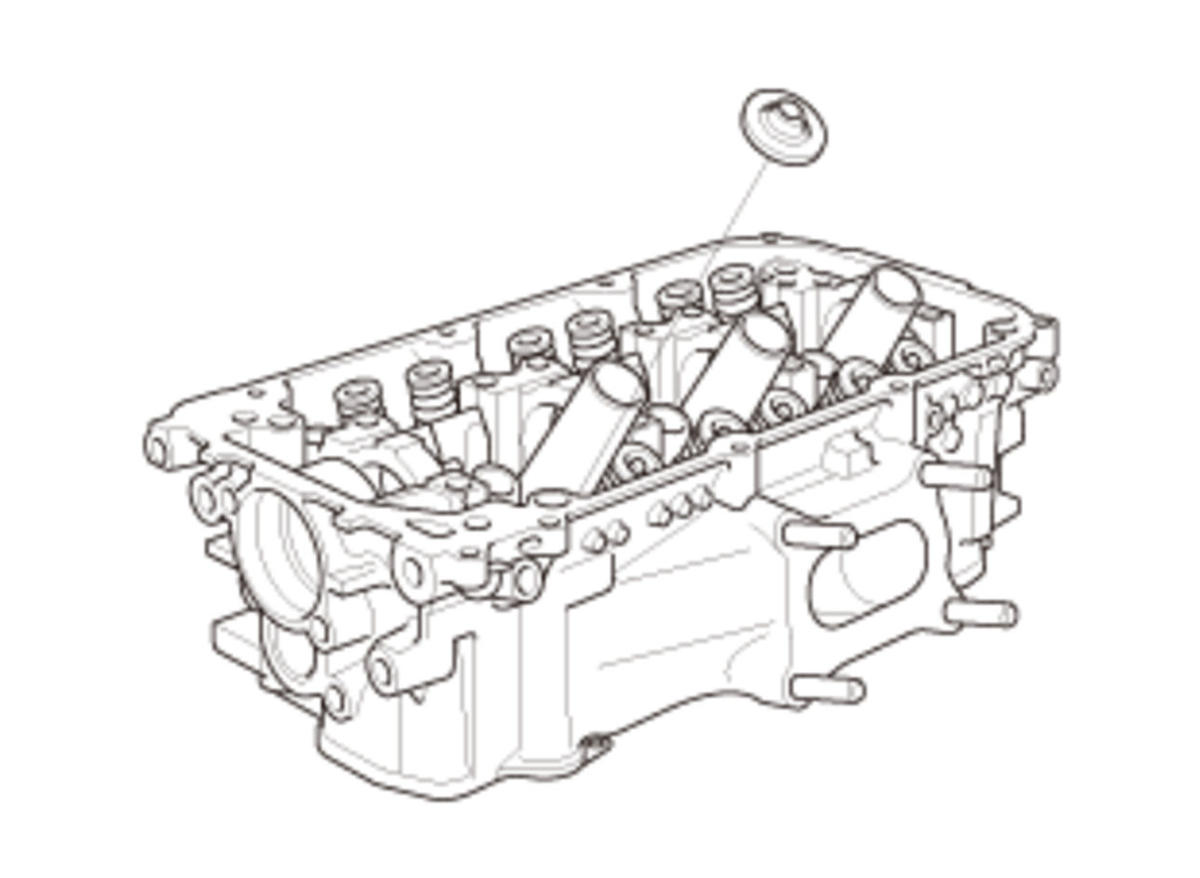

5. Valve Spring Seat - Remove

   Courtesy of HONDA, U.S.A., INC.
