DTC : P0157: General Description

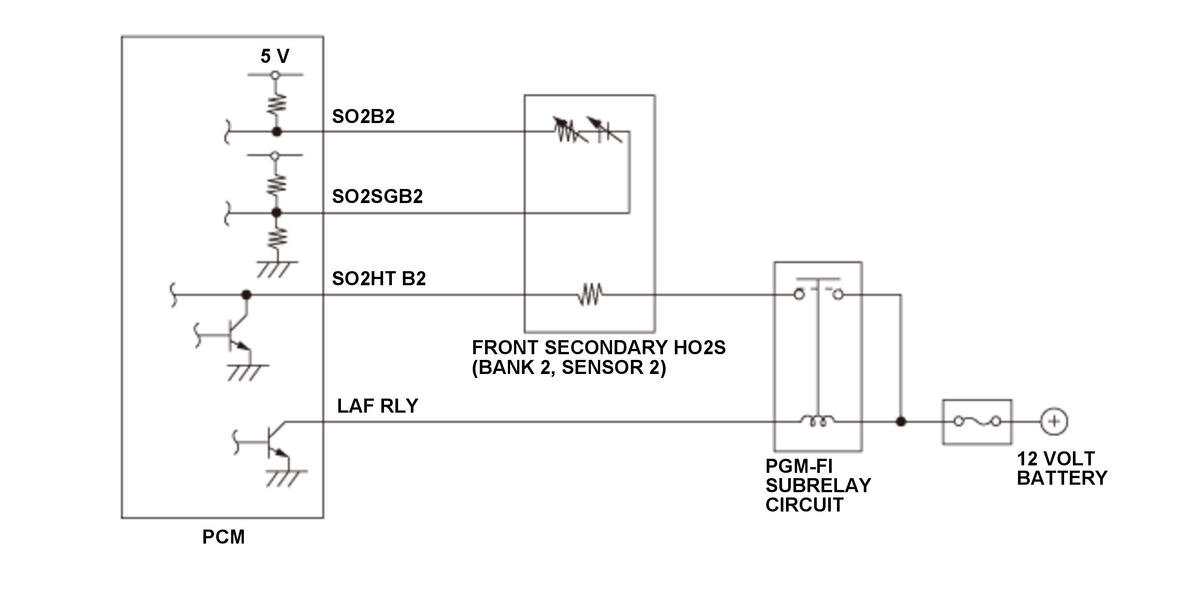

GHH306572Courtesy of HONDA, U.S.A., INC.

The front secondary heated oxygen sensor (secondary HO2S (bank 2, sensor 2)) detects the oxygen density in the exhaust gas and converts it into electrical signals. If the front secondary HO2S (bank 2, sensor 2) output voltage is a specified value for a set time, the powertrain control module (PCM) detects a malfunction and stores a DTC.
