Engine Block Assembly Component Location Index

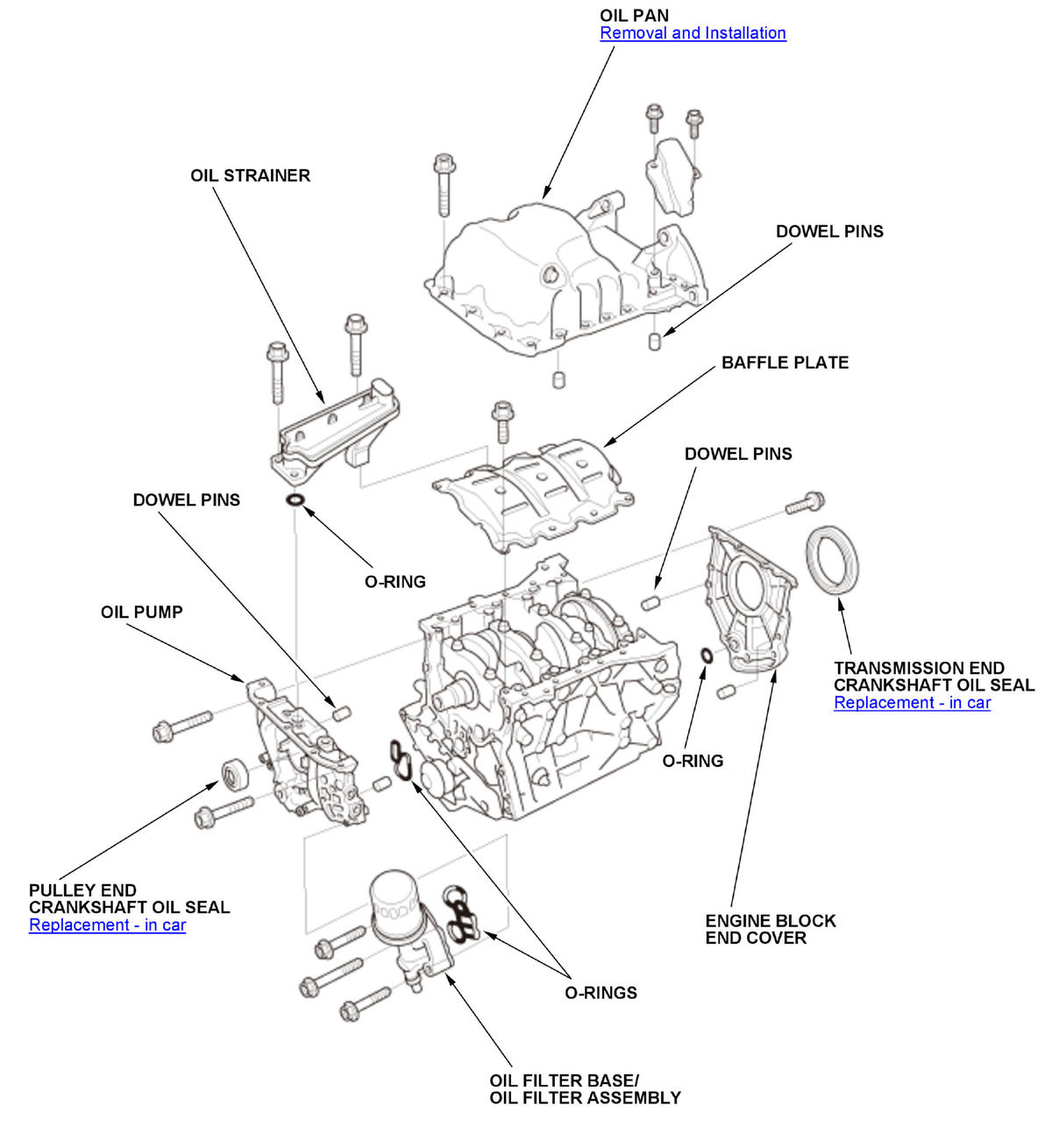

GHH454848Courtesy of HONDA, U.S.A., INC.

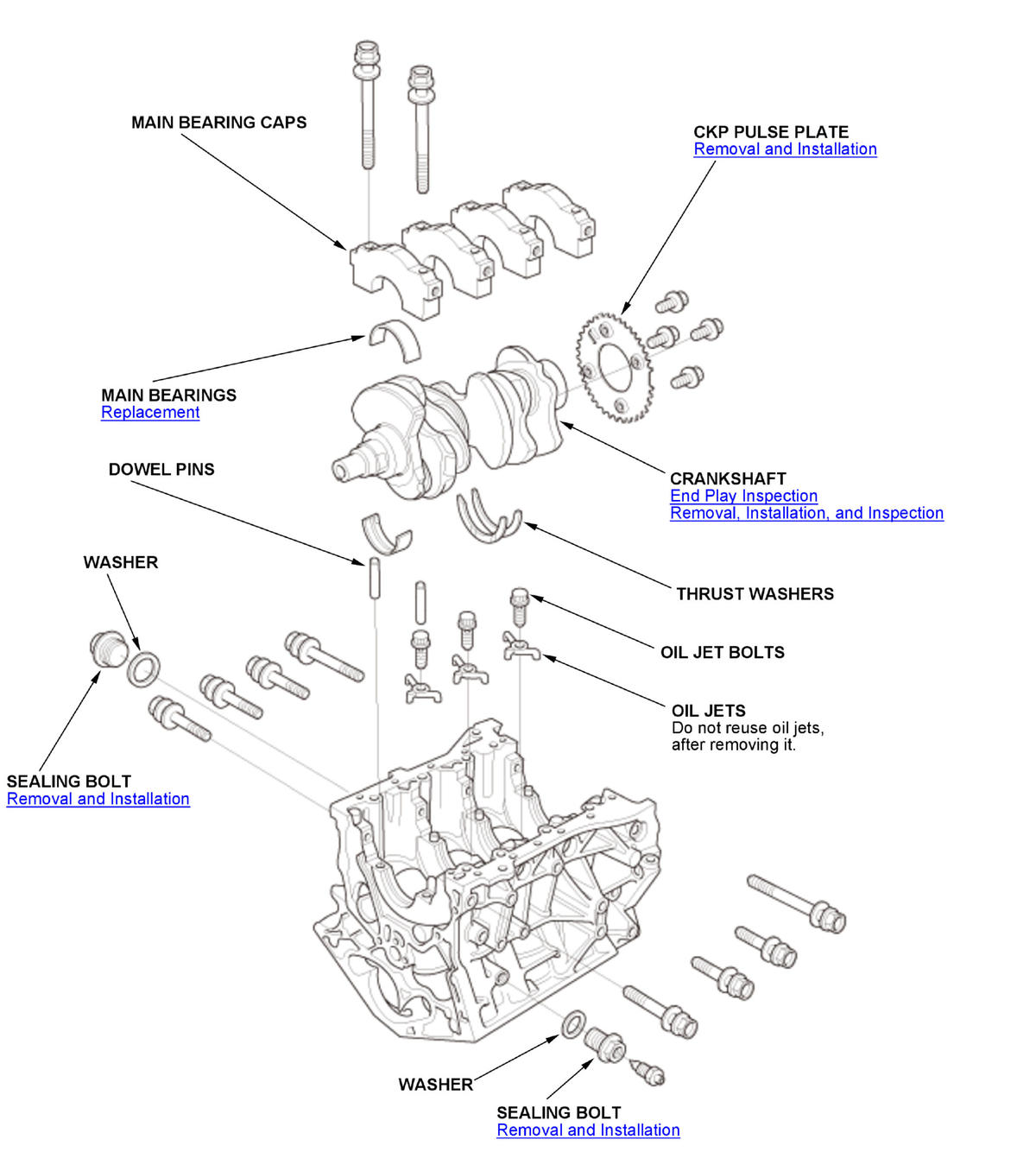

GHH454849Courtesy of HONDA, U.S.A., INC.

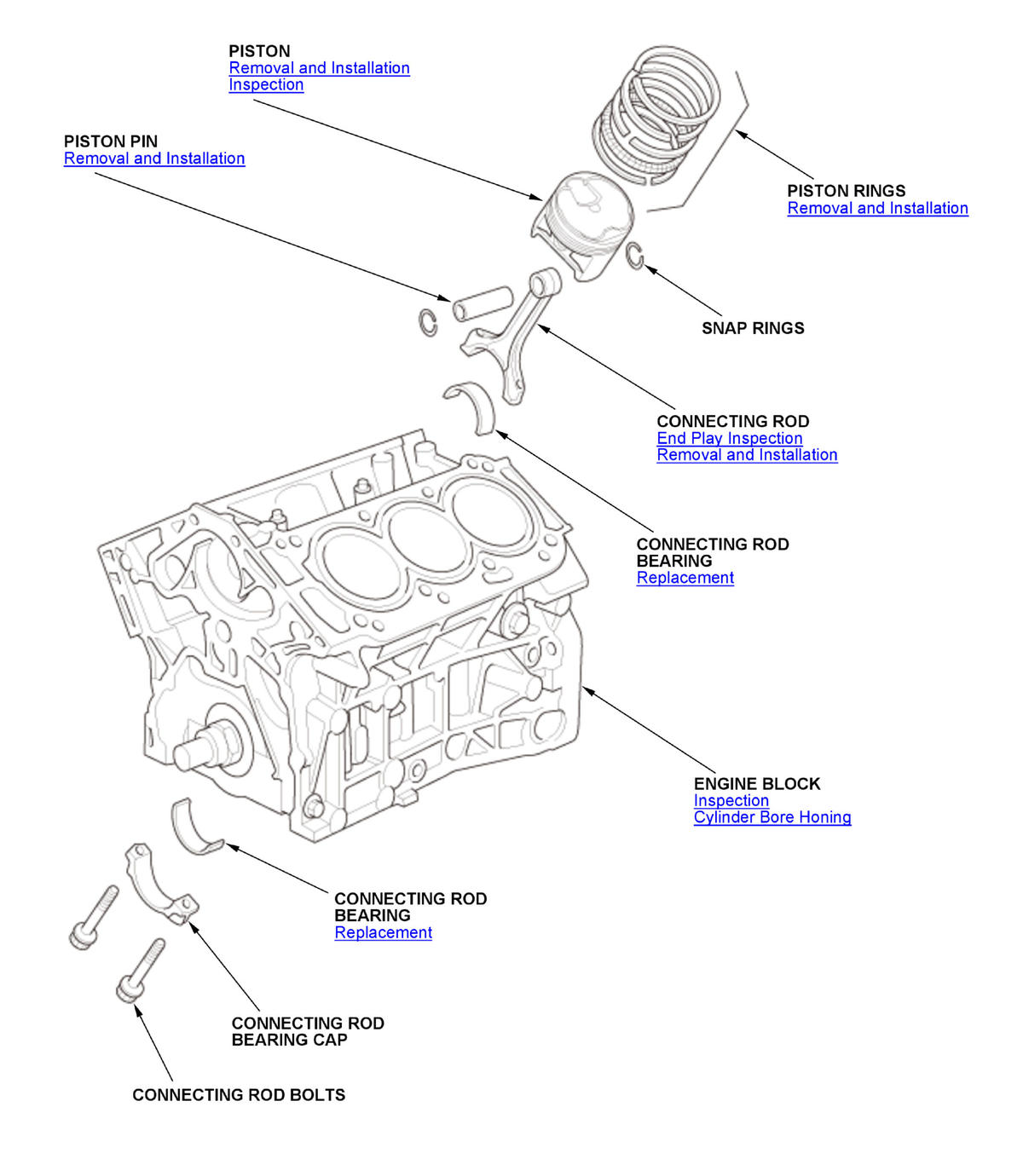

GHH454850Courtesy of HONDA, U.S.A., INC.
