Engine Support Hanger Installation: Installation

How to use this manual .

NOTE:  Where icon is shown, click for further information.

NOTE:  When removing transmission: Special tool engine support hanger AAR-T1256 must be used with the side engine mount installed.

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions

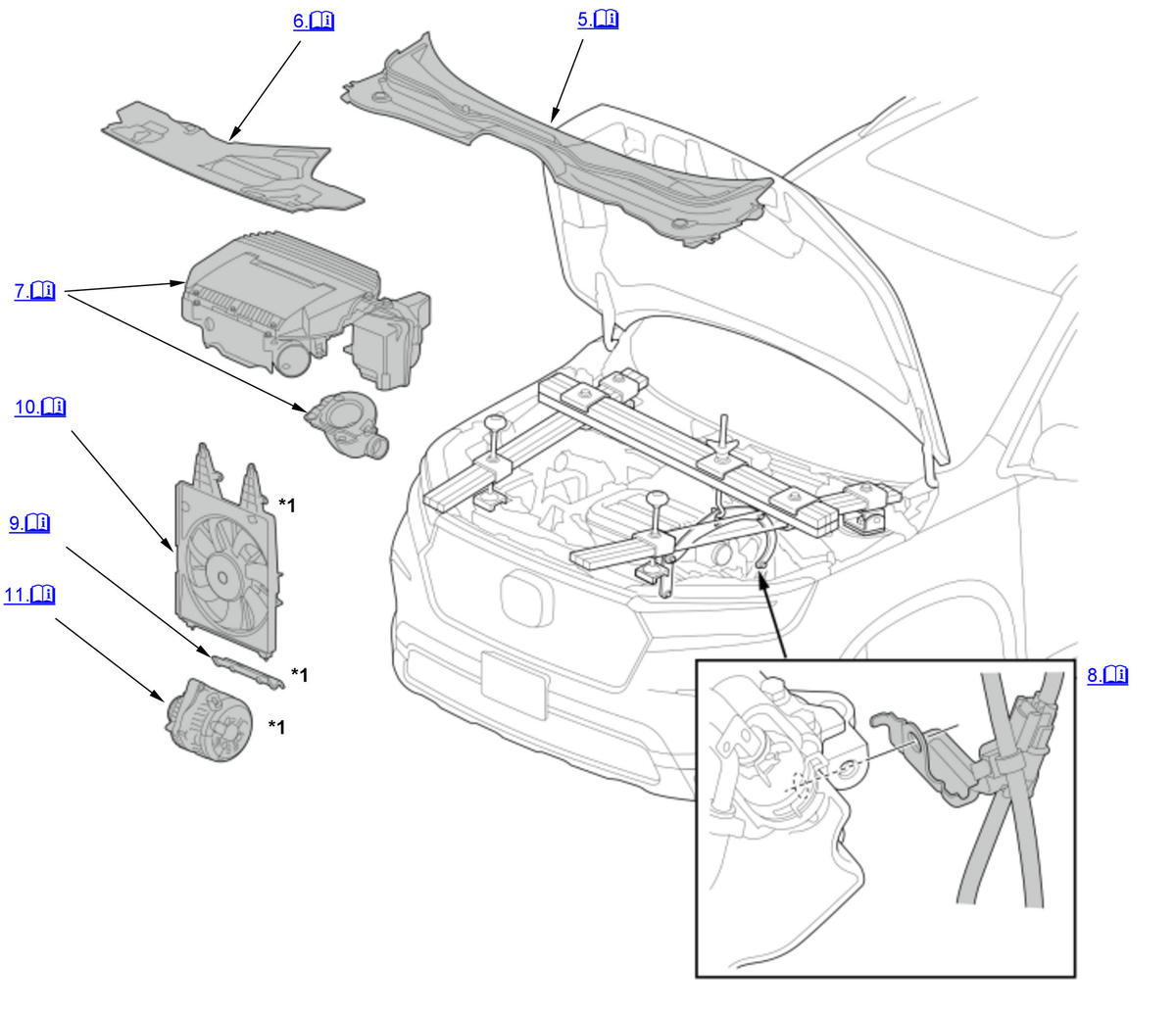

*1	When removing engine

1. Vehicle - Lift
2. 12 Volt Battery Terminal - Disconnect
3. Front Wheel - Remove
   • Front Wheel (Both Sides)
4. Engine Coolant - Drain - Refer to: Coolant Check () or Coolant Replacement ()
5. Cowl Cover - Remove
   • Cowl Cover
6. Front Grille Cover - Remove
   • Front Grille Cover
7. Air Cleaner Area Parts - Remove
   • Air Cleaner Area
     • Air Cleaner Housing
     • Air Flow Chamber
8. Harness Bdacket - Remove

   Harness Bdacket

9. Front Engine Harness Heat Insulator - Remove (When Removing Engine)
   • Front Engine Harness Heat Insulator
10. A/C Condenser Fan Shroud Assembly - Remove (When Removing Engine)
    • A/C Condenser Fan Shroud Assembly
11. Alternator - Remove (When Removing Engine)
    • Alternator
12. Engine Support Hanger - Install

    NOTICE:

    • Be careful when working around the windshield.
    • Two sets of AAR-T1256 are required for stacking an additional cross bar.
    • Be careful not to damage the hood opener cable when installing the engine support hanger at the front bulkhead.

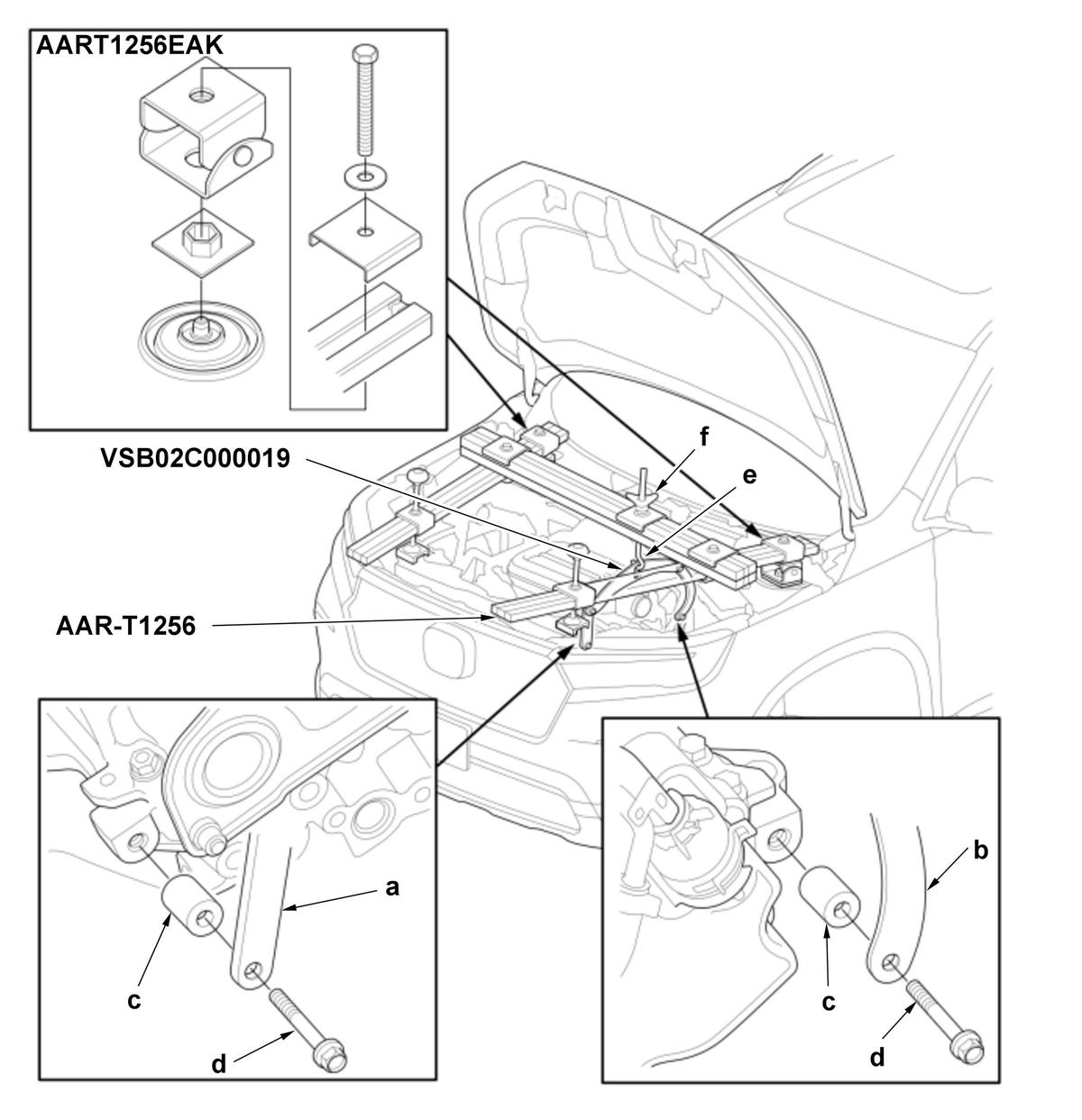

    1. Install the engine hanger balance bar. Attach the front arm (a) and the rear arm (b).

    Tool Details

    Name
    c	Spacer (Commercially Available)
    d	Bolt (Commercially Available)

    Courtesy of HONDA, U.S.A., INC.

    2. Install the engine support hanger and the extra arm kit onto the vehicle as shown.

    3. Attach the hook (e) to the slotted hole in the engine hanger balance bar.

    4. Tighten the wing nut (f) by hand to support the engine/transmission.
