VTC Actuator Inspection: Inspection

How to use this manual .

NOTE:  Unless otherwise indicated, illustrations used in the procedure are for an example.

1. VTC Actuator A and VTC Actuator B - Inspect

   Preconditions

   • Camshaft Removed
   • VTC actuator A/B is locked by turning it.

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   1. Install the VTC actuator to the camshaft.

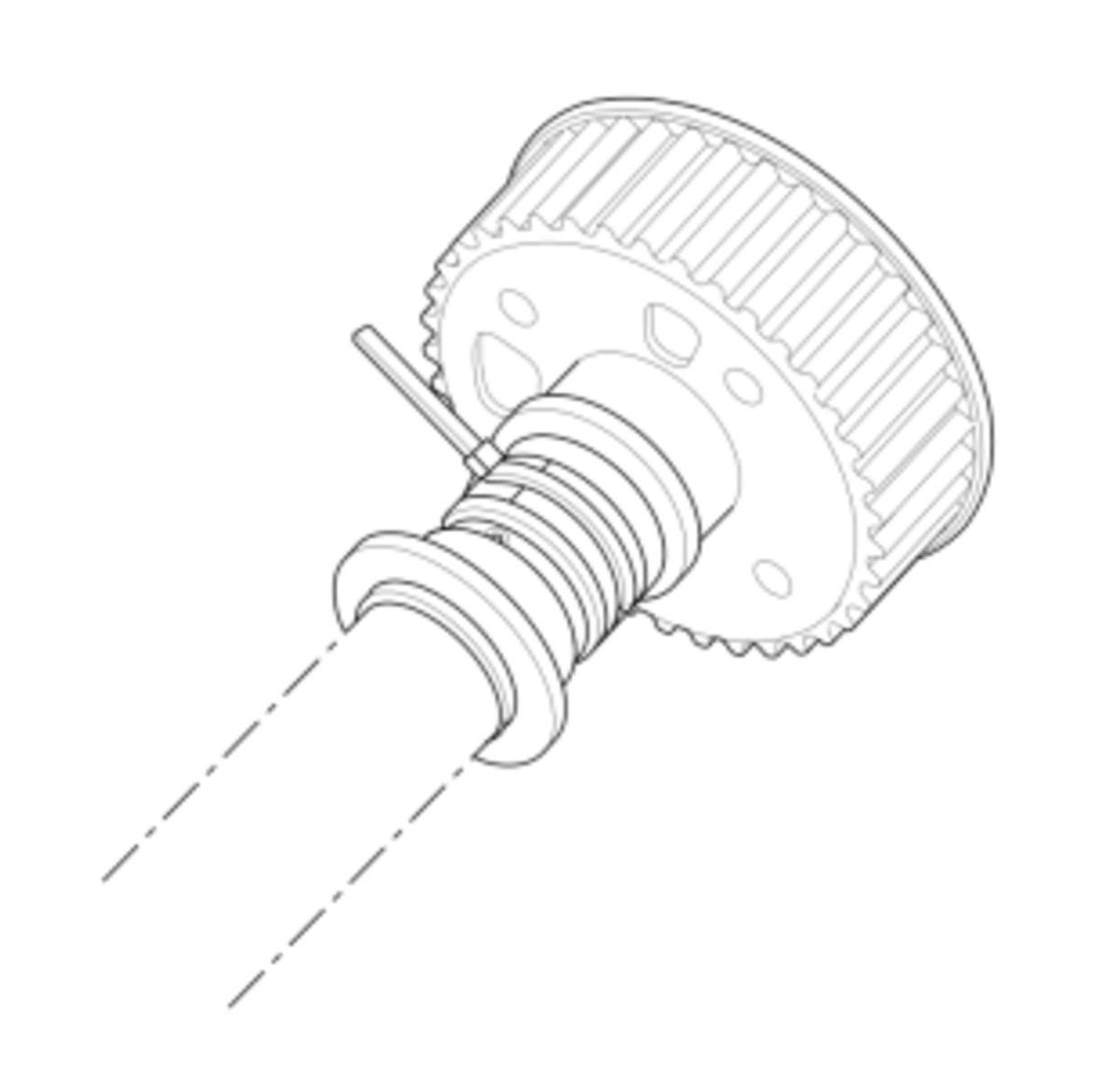

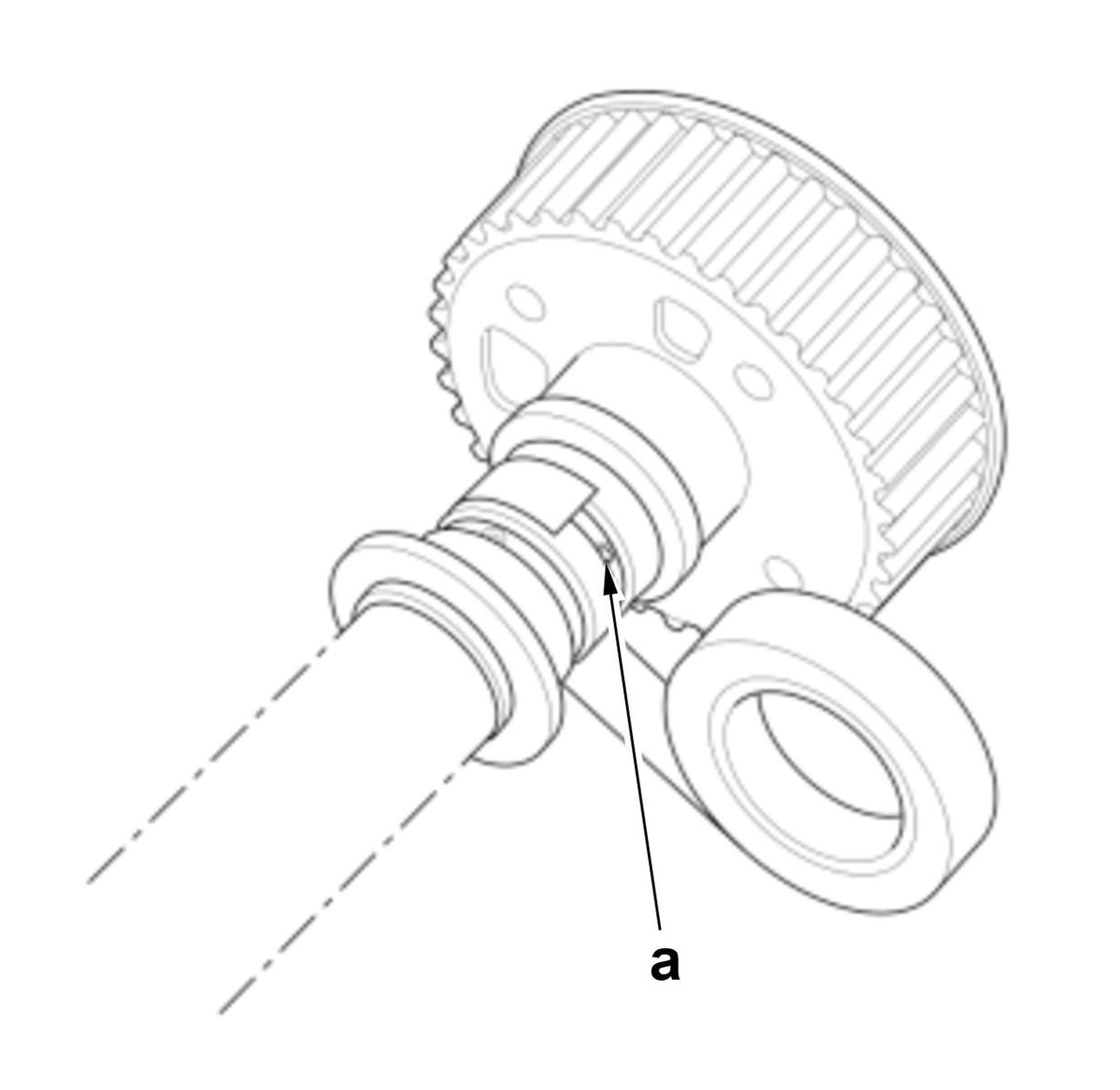

   2. Seal the retard/advance holes (a) of the intake/exhaust camshaft with tape and a zip tie. (Figure 1 and 2)

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

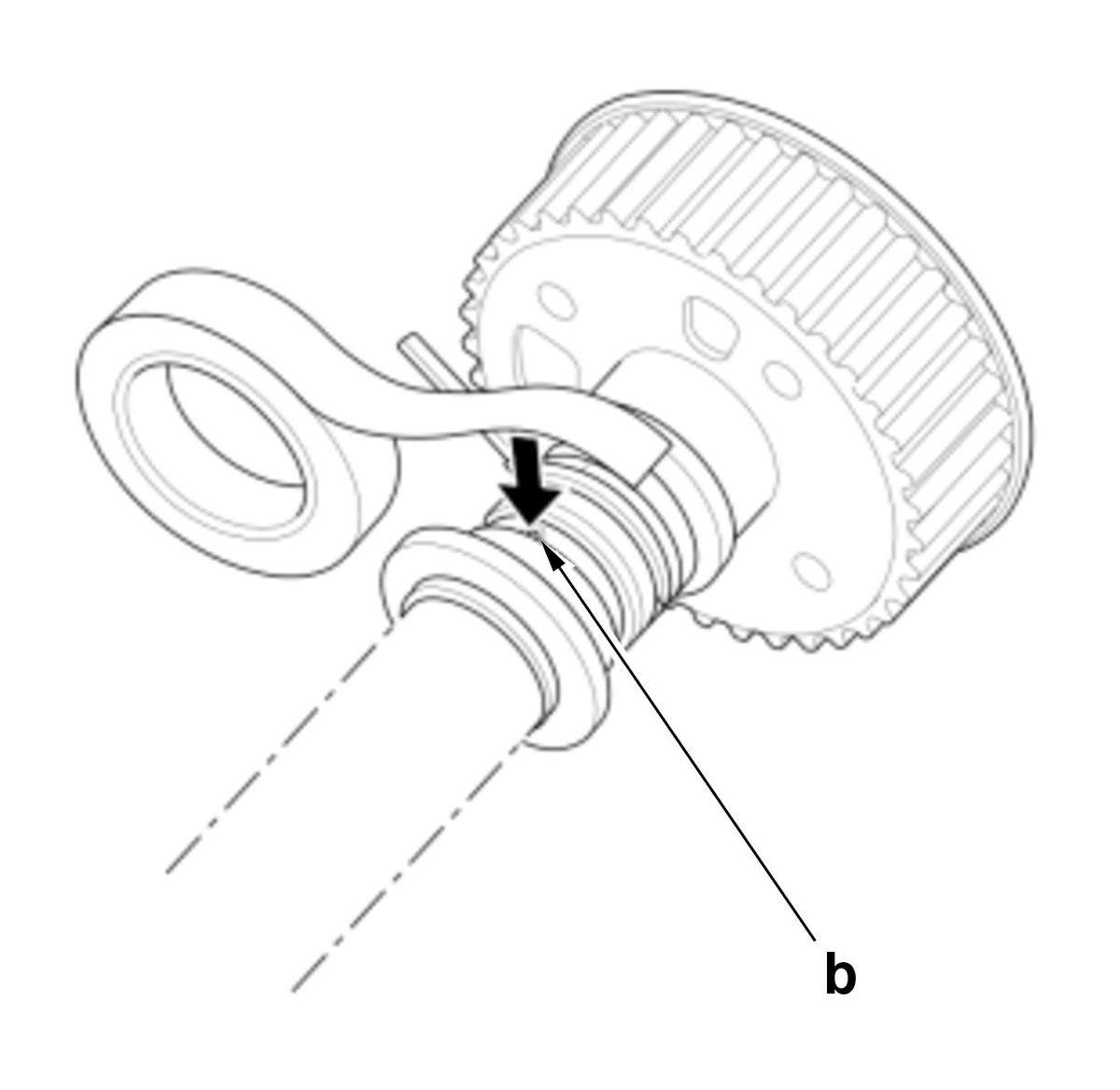

   3. Seal one of the advance/retard holes (b) of the intake/exhaust camshaft with tape. (Figure 3)

   Figure 4

   Courtesy of HONDA, U.S.A., INC.

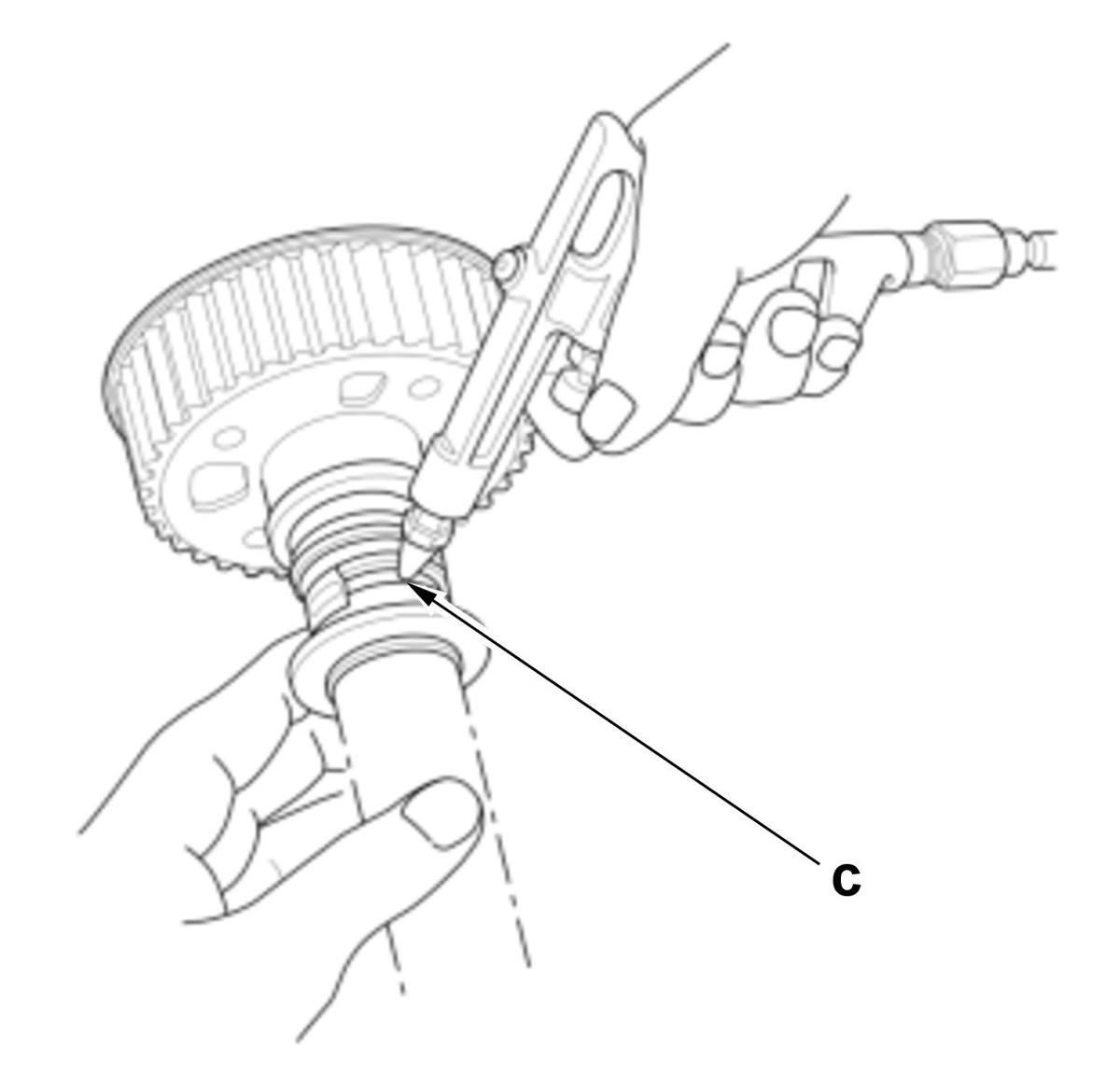

   4. Apply air to the unsealed advance/retard hole (c) to release the lock. (Figure 4)

   Figure 5

   Courtesy of HONDA, U.S.A., INC.

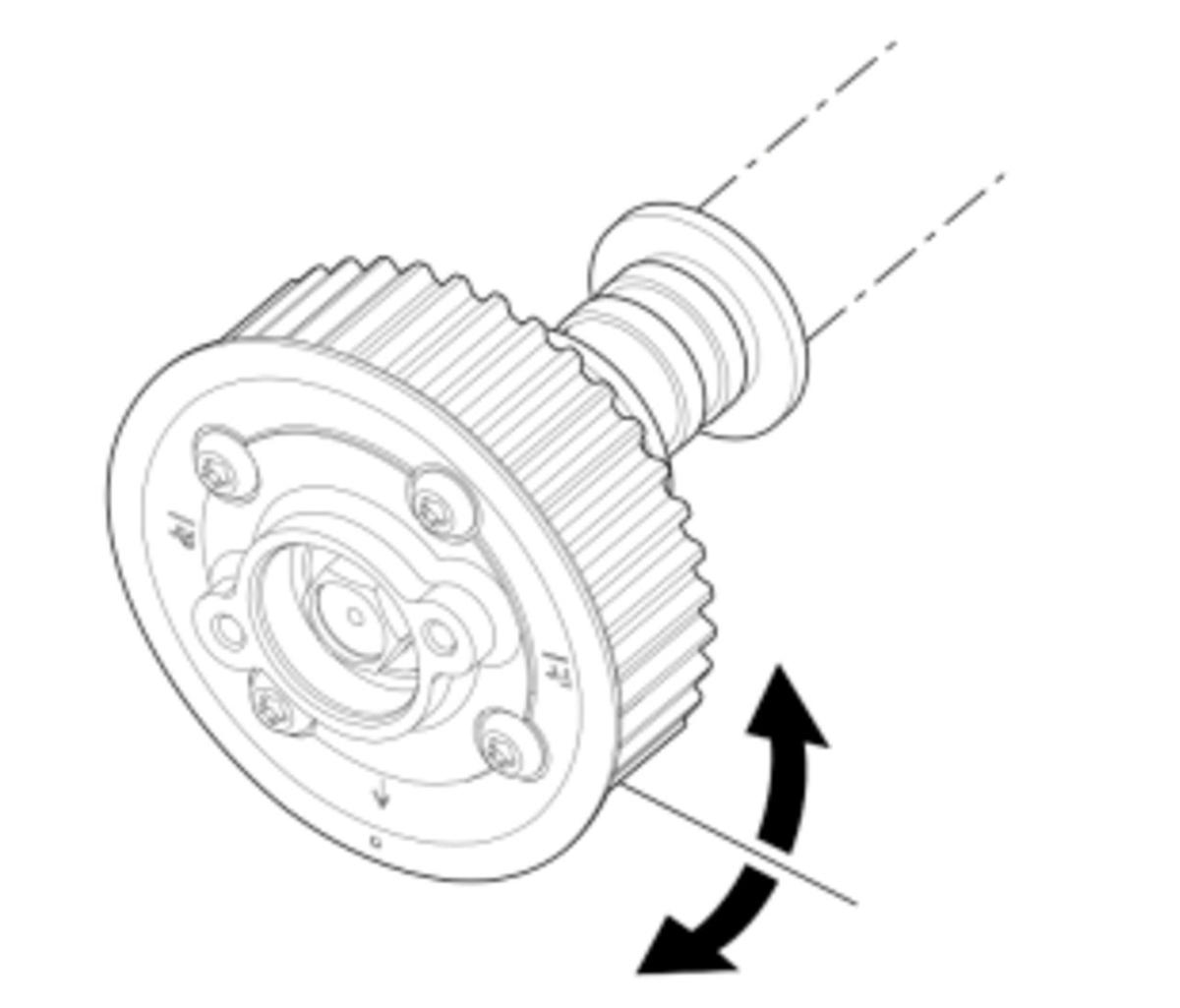

   5. Check that VTC actuator moves smoothly. (Figure 5)

   Specifications

   Specification
   VTC actuator moves smoothly

   6. Turn VTC actuator clockwise until you hear it click. Make sure to lock VTC actuator by turning it.

   Specifications

   Specification
   VTC actuator is locked

   Result

   • If it is abnormal, replace VTC actuator .

   After Inspection

   • Remove the zip tie, the tape, and the adhesive residue from the camshaft journal.
