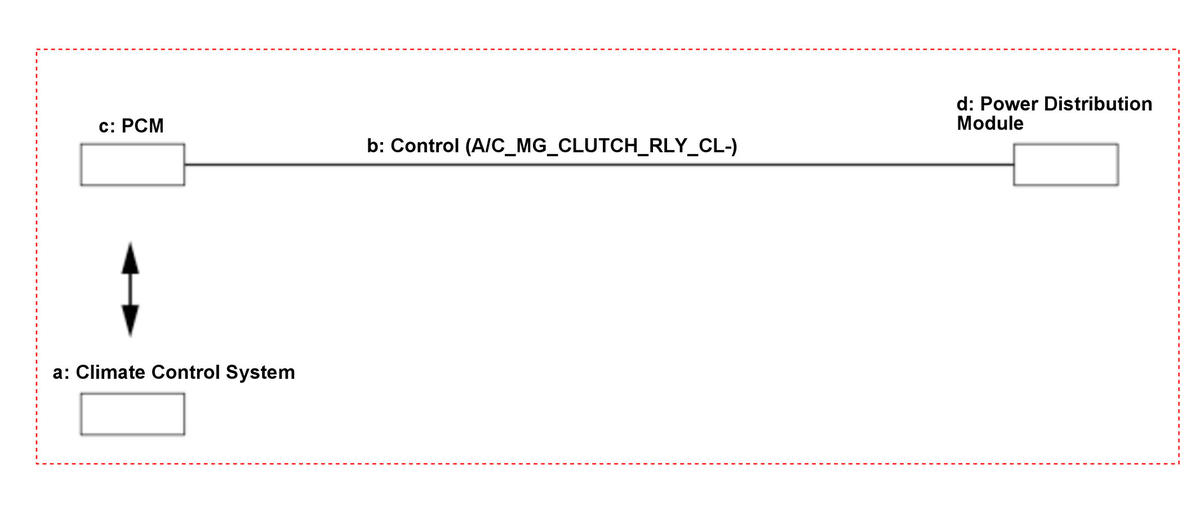

Inspection Outline

• The components to be tested are indicated by a dotted line.
• The illustration does not show all of the areas to be inspected.

Courtesy of HONDA, U.S.A., INC.

• Troubleshoot any DTCs listed or indicated systems below first.
  • PGM-FI System [PGM-FI]: Go to the indicated DTC's troubleshooting .
  • Climate Control System [AC]: Go to the indicated DTC's troubleshooting .

NOTICE:

For more efficient troubleshooting, you may be able to eliminate some inspection items as potential failures based on the conditions of the failure and vehicle.

• Select the HDS [Function test], then do the HDS [A/C CLUTCH], and check the clicking noise from the A/C compressor clutch.
  • Clicking sound is heard from A/C compressor clutch:
  • Clicking sound is not heard from A/C compressor clutch:

Inspection Items		Work Items
a	Climate Control System	Do A/C System Test (Pressure Test) - Refer to: A/C System Test () or A/C System Contamination Inspection () or A/C System Inspection ()	◦
-	A/C Compressor Clutch	Do the A/C Compressor Clutch Check		◦
b	External Circuit	A/C_MG_CLUTCH_RLY_CL- Open Wire Inspection		◦
c	PCM	PCM Inspection		◦
d	Power Distribution Module	Power Distribution Module Inspection		◦
