Engine Block Assembly Component Location Index

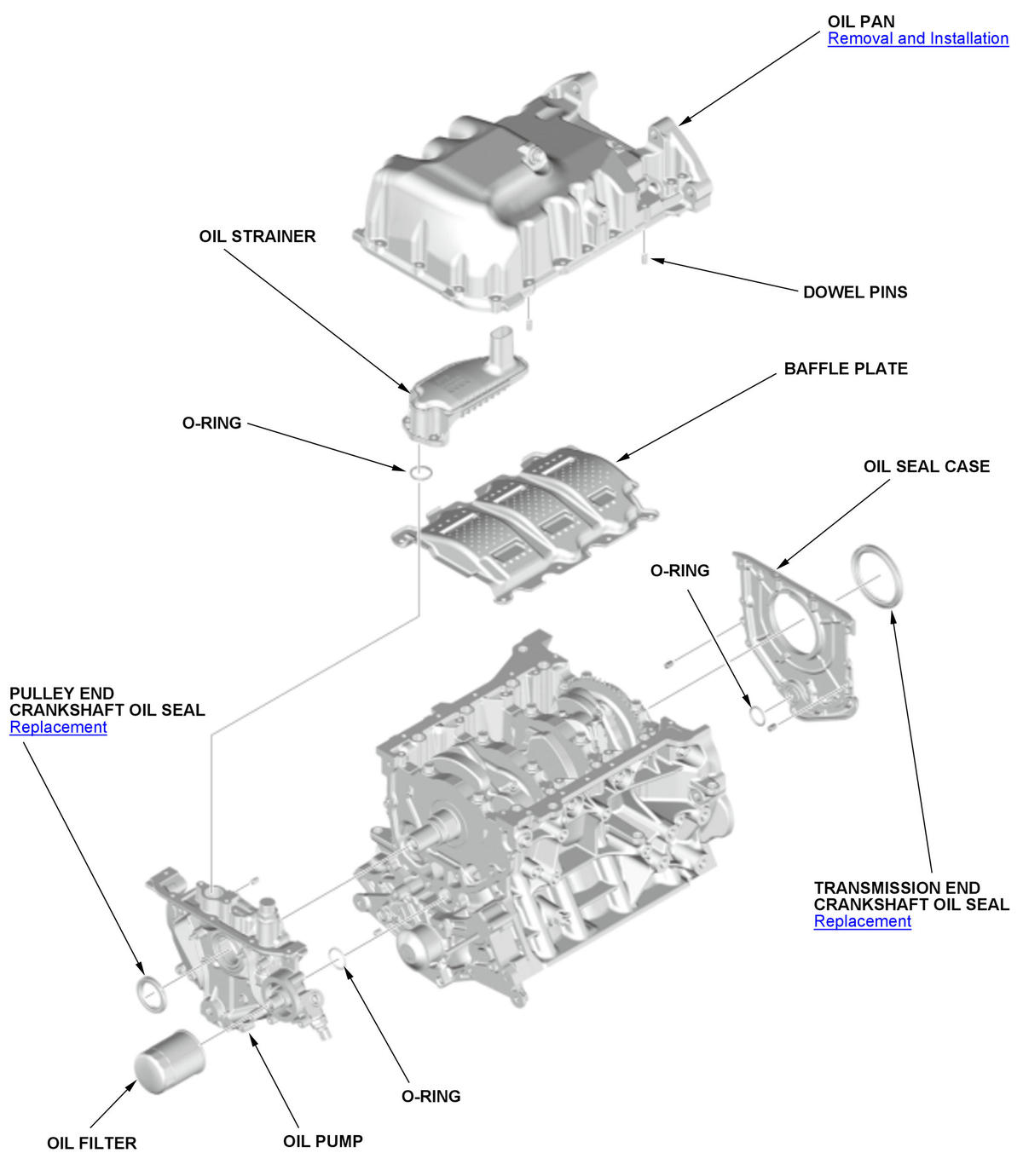

GHH578097Courtesy of HONDA, U.S.A., INC.

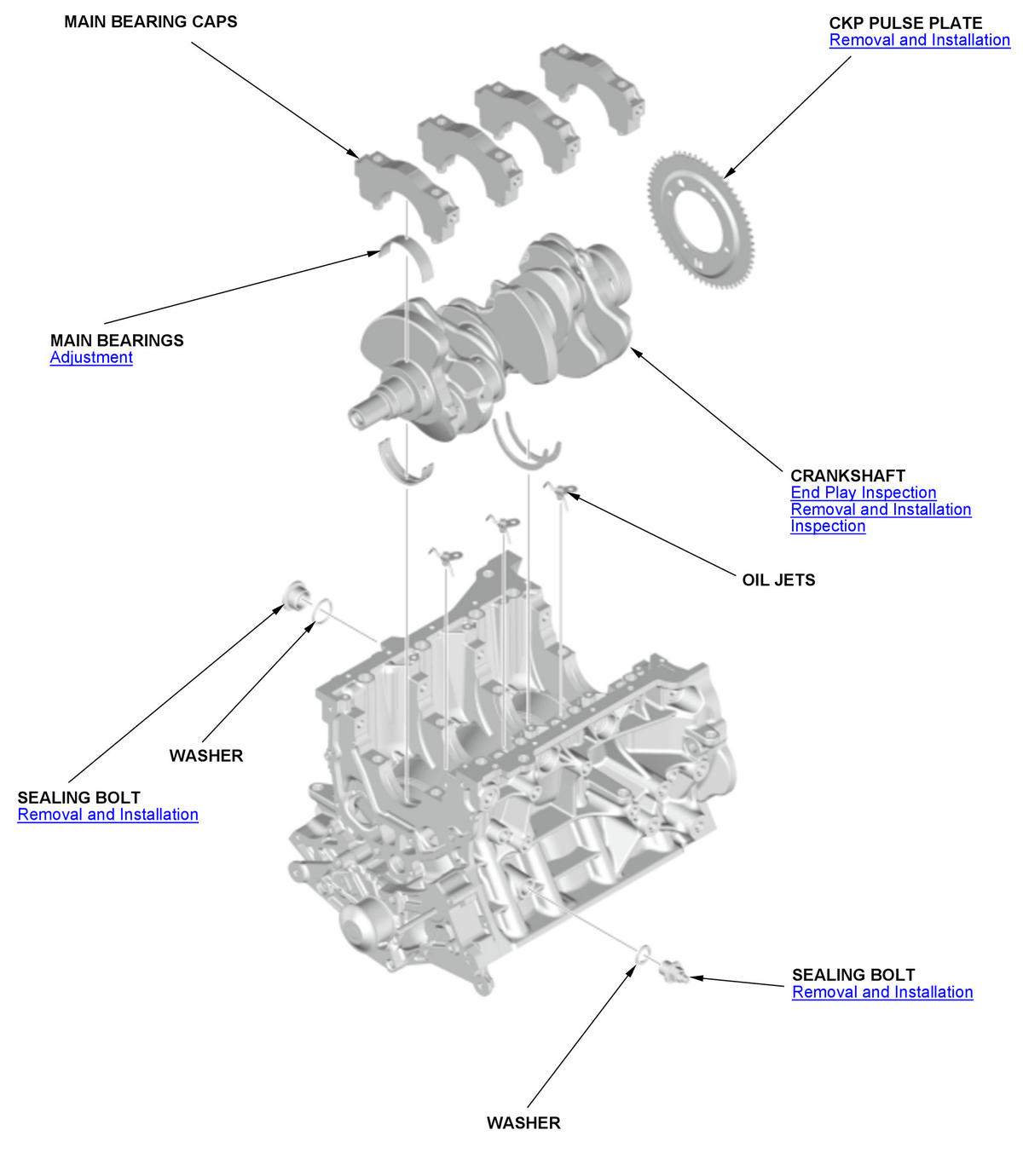

GHH578098Courtesy of HONDA, U.S.A., INC.

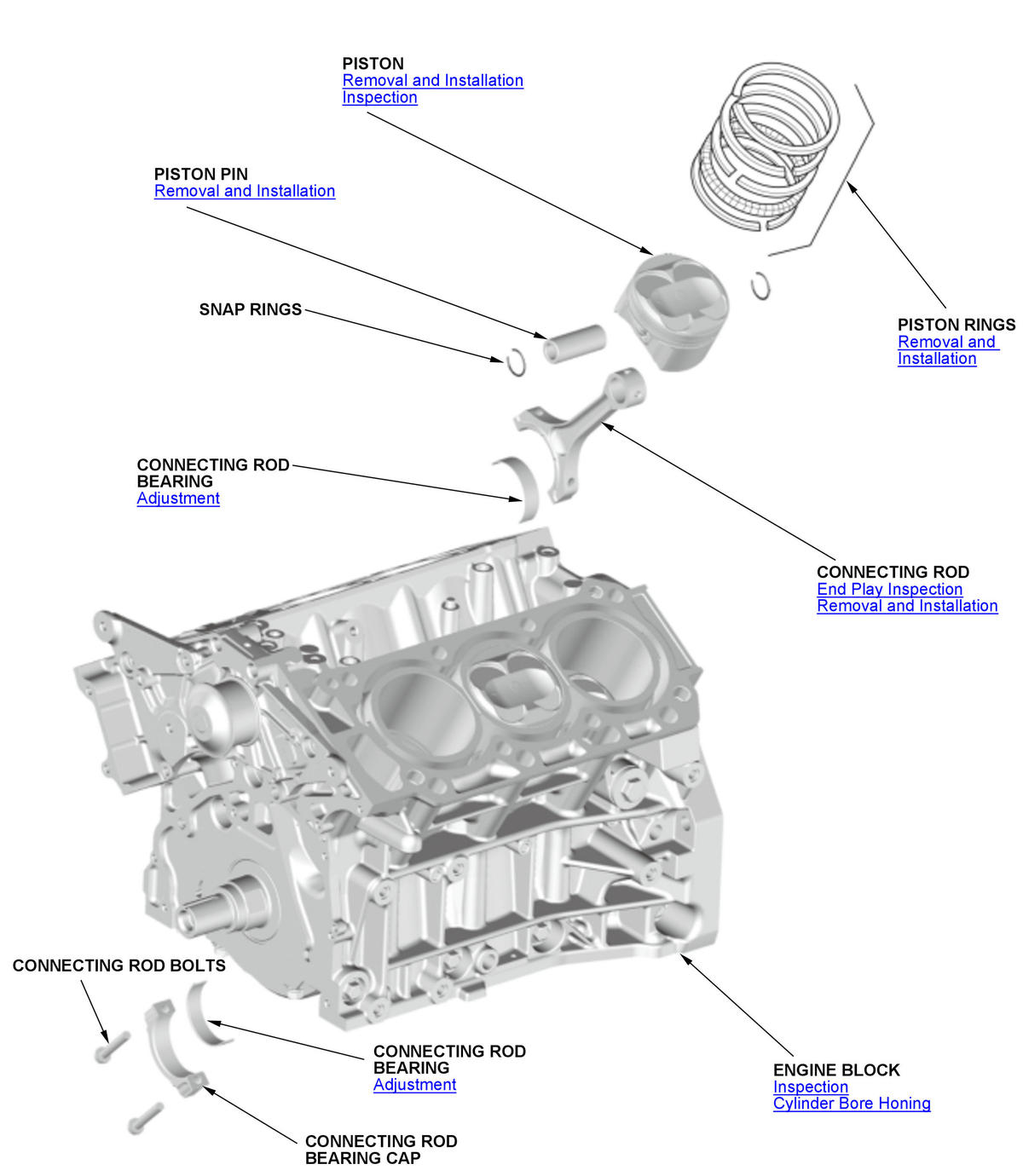

GHH578099Courtesy of HONDA, U.S.A., INC.
