Camshaft Timing Inspection: Inspection

How to use this manual .

1. Camshaft Timing - Inspect

   Preconditions

   • Right Front Wheel Removed
   • Front Timing Belt Upper Cover A

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

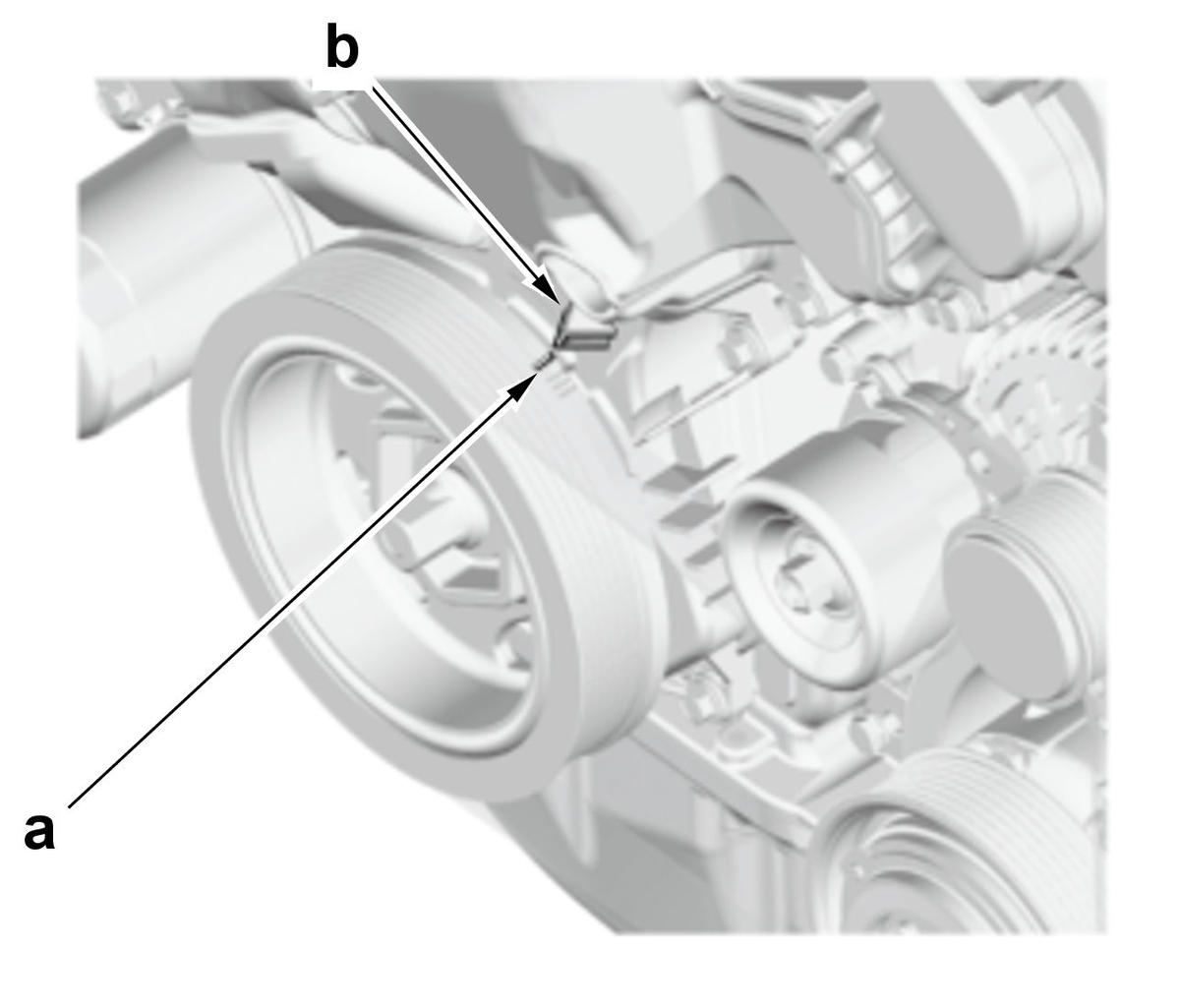

   1. Turn the crankshaft so its white mark (a) on the crankshaft pulley lines up with the pointer (b). (Figure 1)

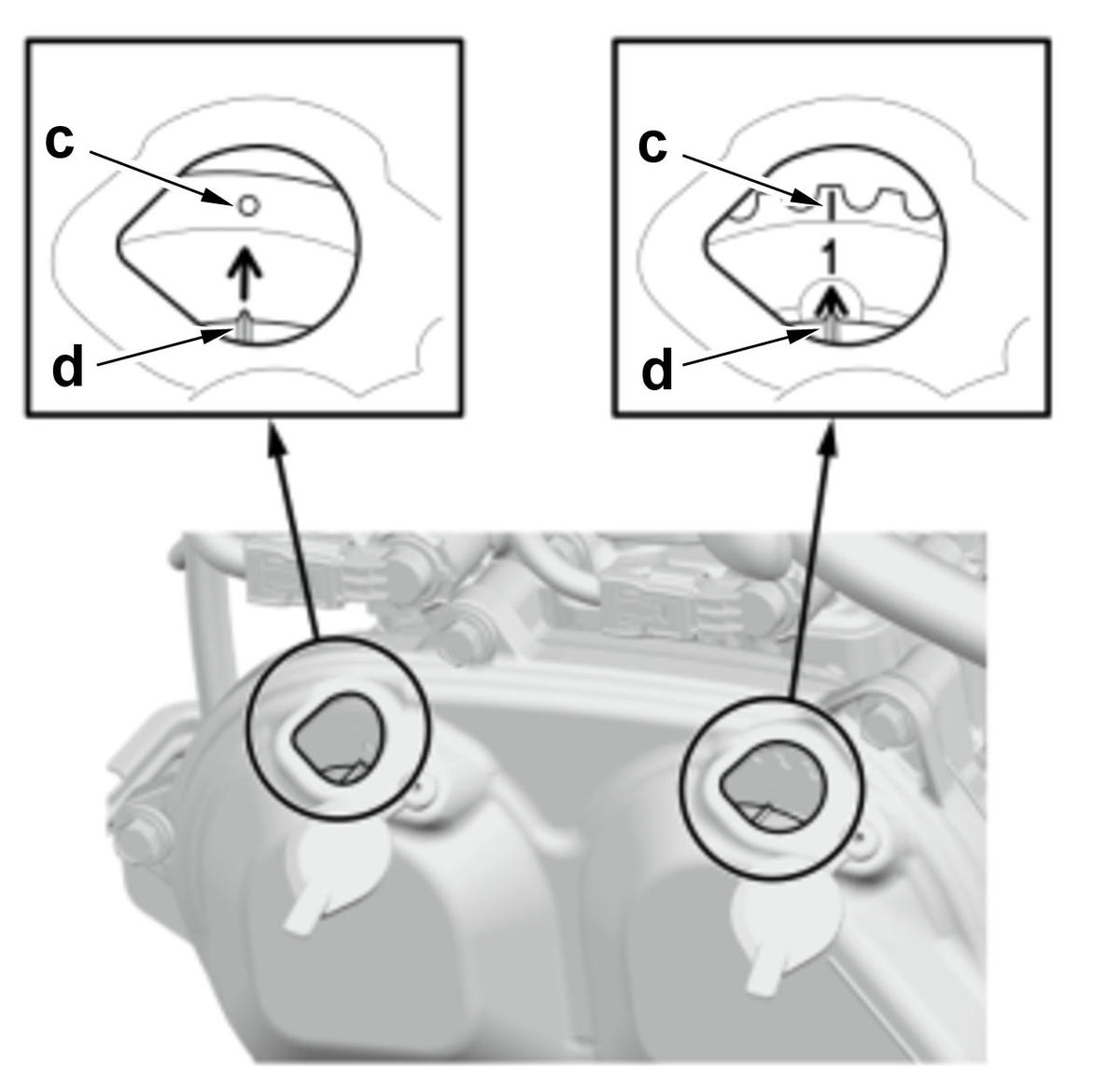

   2. Front: Check that the No. 1 piston top dead center (TDC) mark (c) on the VTC actuators and the pointers (d) on the cylinder head cover are aligned. (Figure 2)

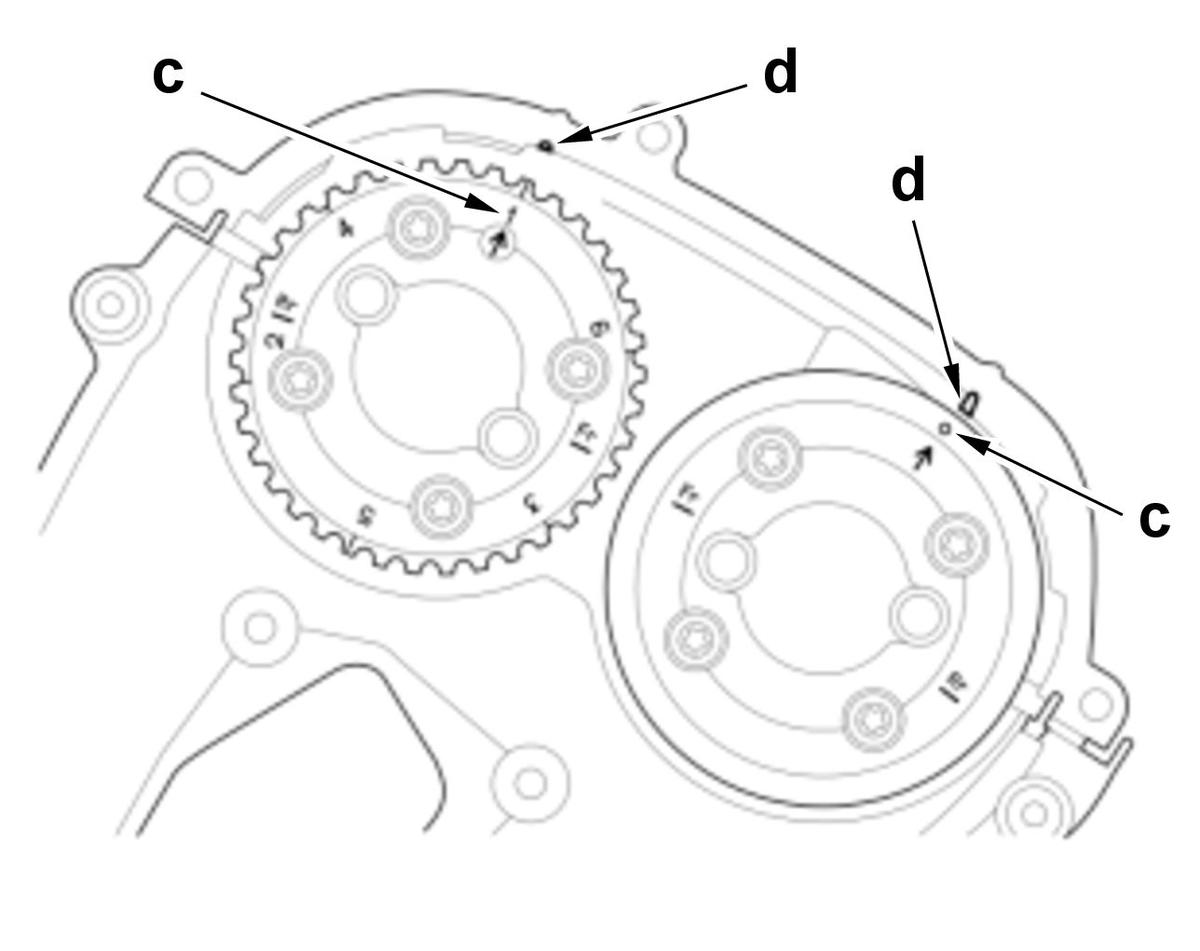

   3. Rear: Check that the No. 1 piston top dead center (TDC) mark (c) on the VTC actuators and the pointers (d) on the upper cover are aligned. (Figure 3)

   Specifications

   Specification
   Marks are aligned.

   Result

   • If the marks are not aligned, remove the timing belt and reinstall the timing belt properly .
