Body and Frame: Locations

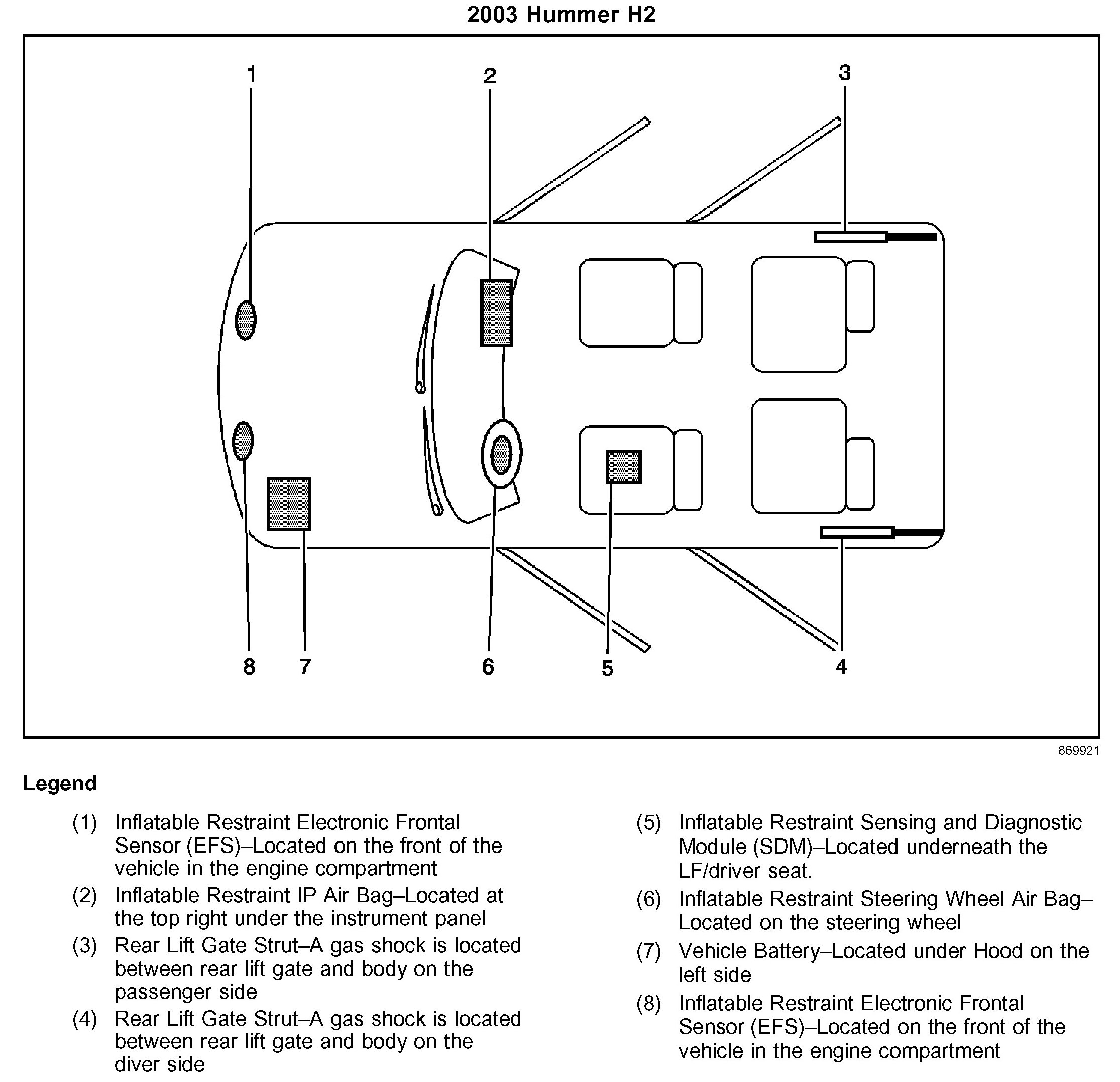

SIR Zone Identification Views




The SIR Zone Identification Views shown illustrate the approximate location of all SIR components available for the vehicle. This will assist in determining the appropriate SIR Disabling and Enabling Zones for a given service procedure.
