Rearview Mirror Replacement

REARVIEW MIRROR REPLACEMENT

REMOVAL PROCEDURE




1. Use a flat-bladed tool in order to remove the wire cover, if equipped.

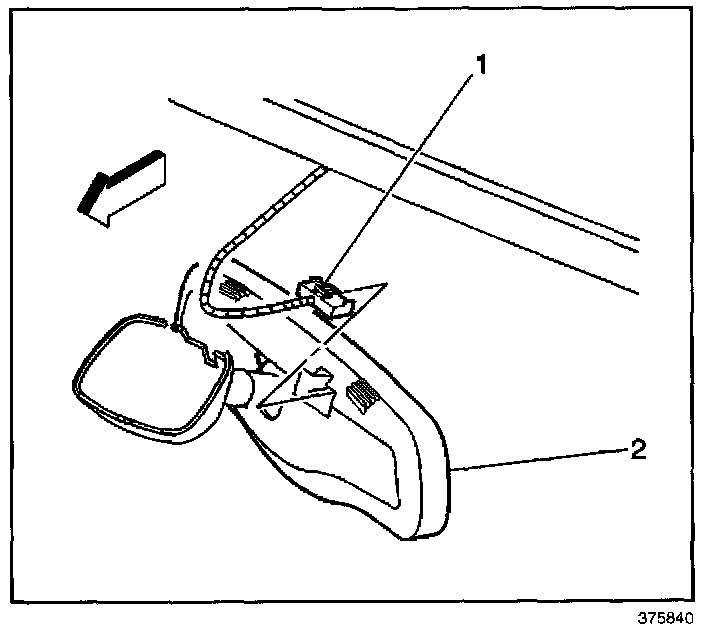

2. Disconnect the electrical connector (1), if equipped.
3. Using a TORX-head(R) screwdriver, loosen the set screw that holds the mirror base to the windshield button.
4. Slide the mirror off of the support.

INSTALLATION PROCEDURE




1. Slide the mirror onto the mirror support.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the set screw.

Tighten
Tighten the set screw to 2 N.m (18 lb in).

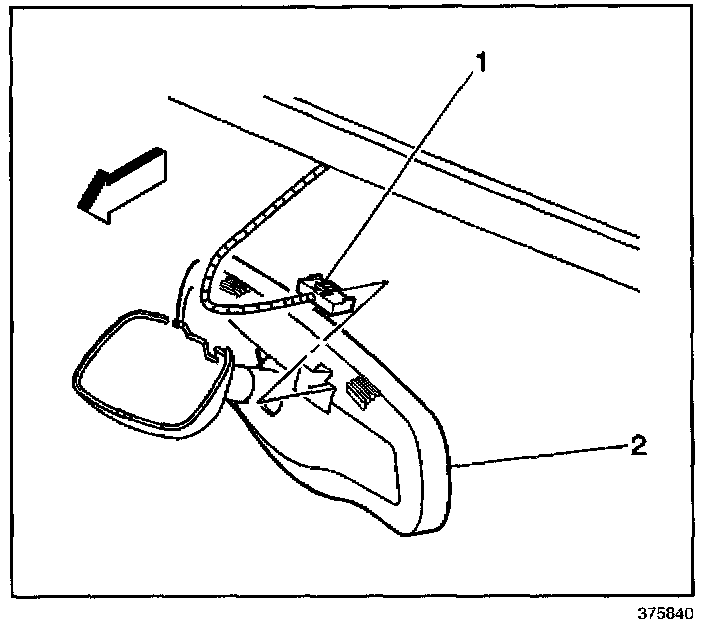

3. Connect the electrical connector (1), if equipped.
4. Install the wire cover, it equipped.
