Home >> Hummer >> 2003 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Driver Door Module (DDM) - C3

April 5, 2026: LEMON Manuals is launched! Read the announcement.

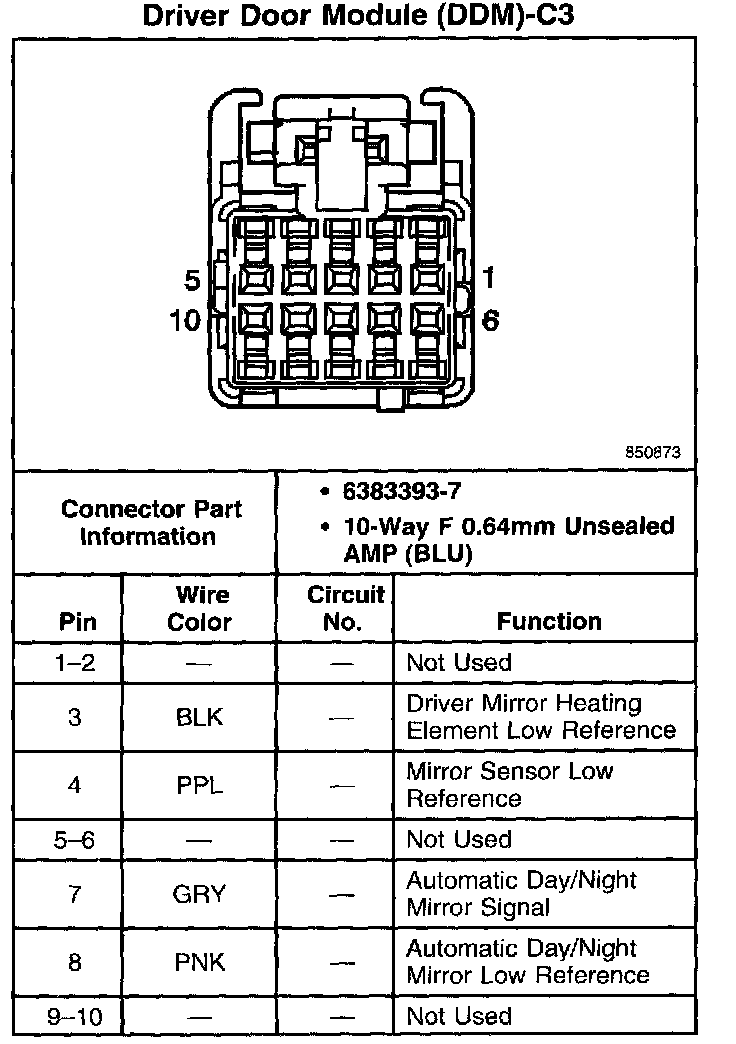

Driver Door Module (DDM) - C3

Driver Door Module (DDM) - C3:
