Outside Rear View Mirror - Passenger

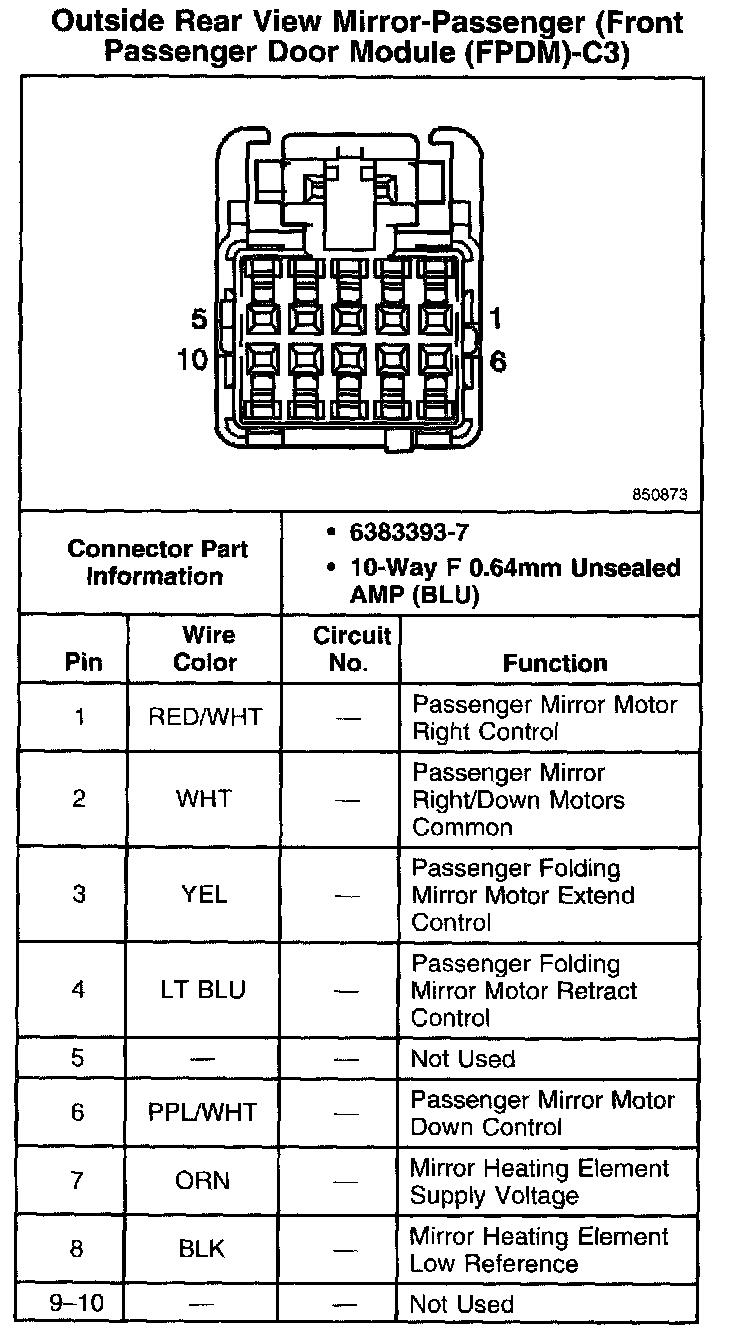

Outside Rear View Mirror - Passenger (Front Passenger Door Module (FPDM) - C3):

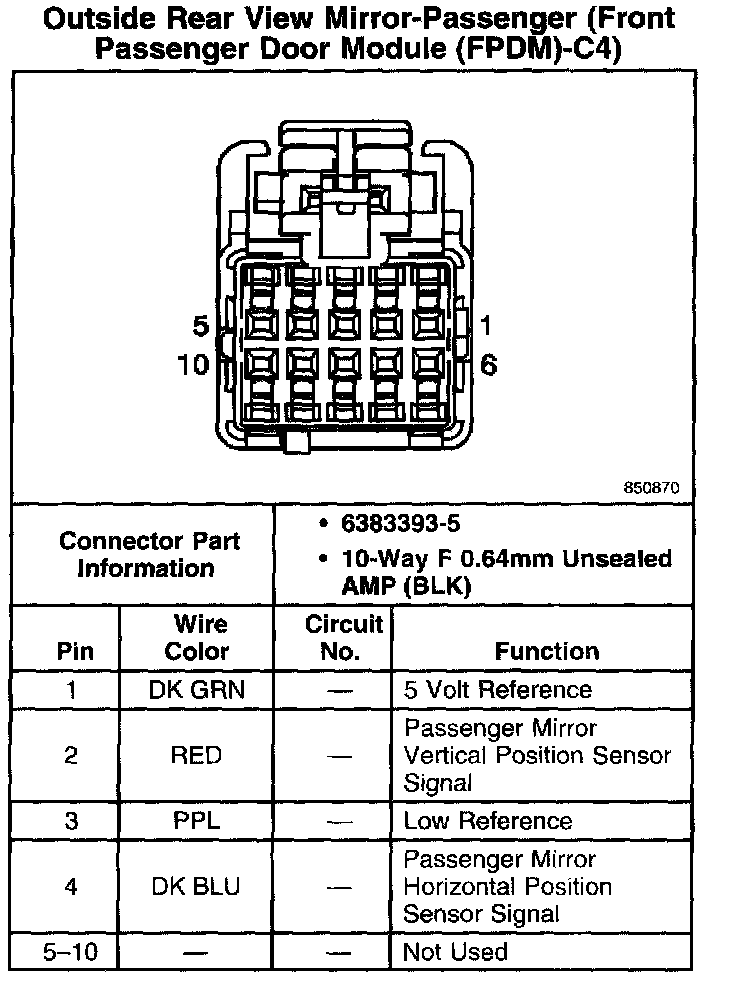

Outside Rear View Mirror - Passenger (Front Passenger Door Module (FPDM) - C4):
