Home >> Hummer >> 2003 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heated Glass Element
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Heated Glass Element

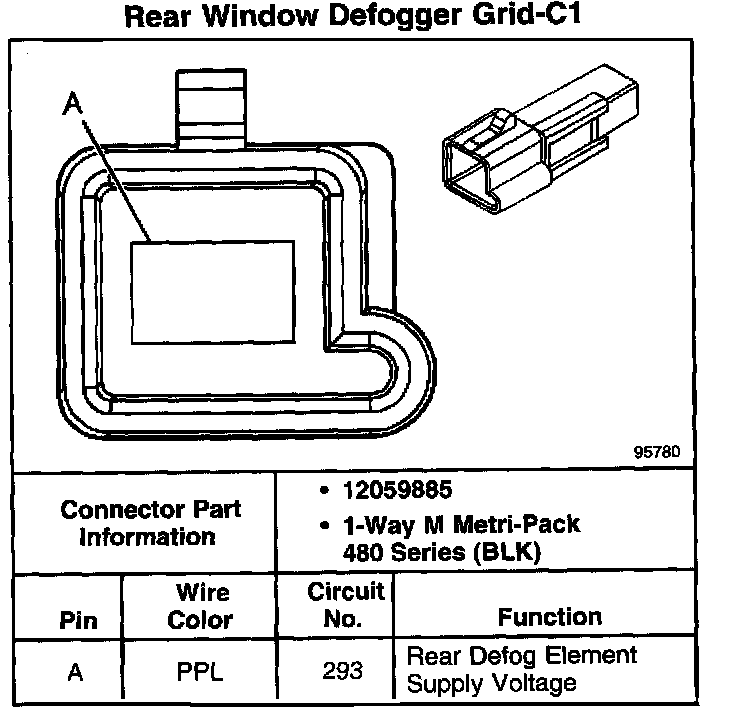

Rear Window Defogger Grid - C1:

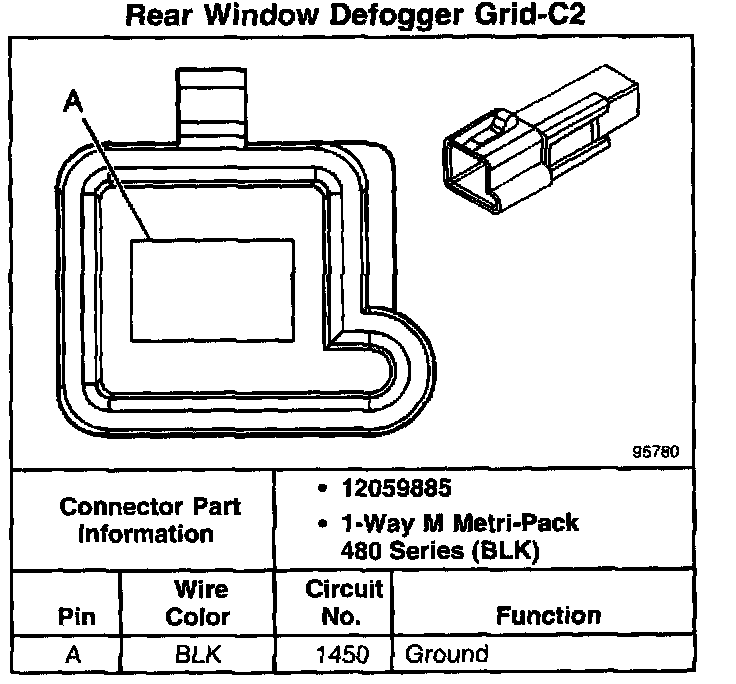

Rear Window Defogger Grid - C2:
