Power Window Switch

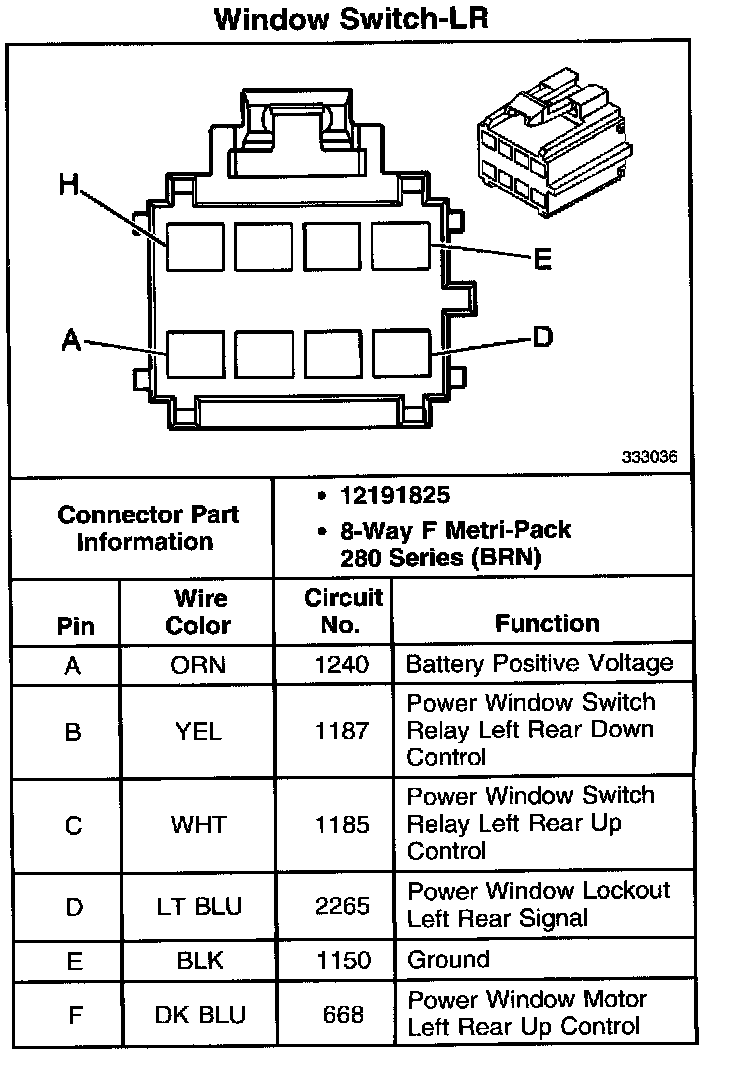

Window Switch - LR Part 1:

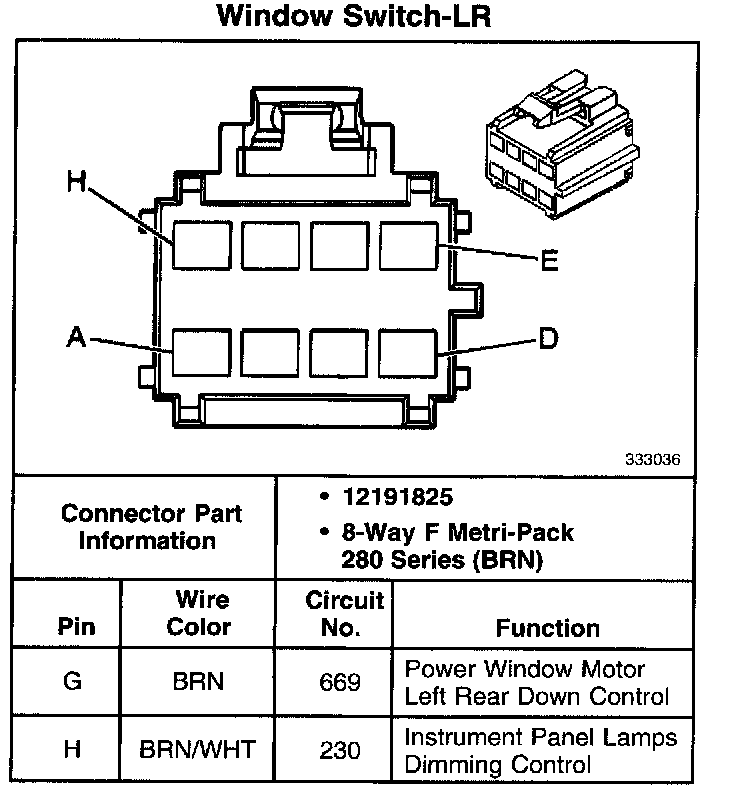

Window Switch - LR Part 2:

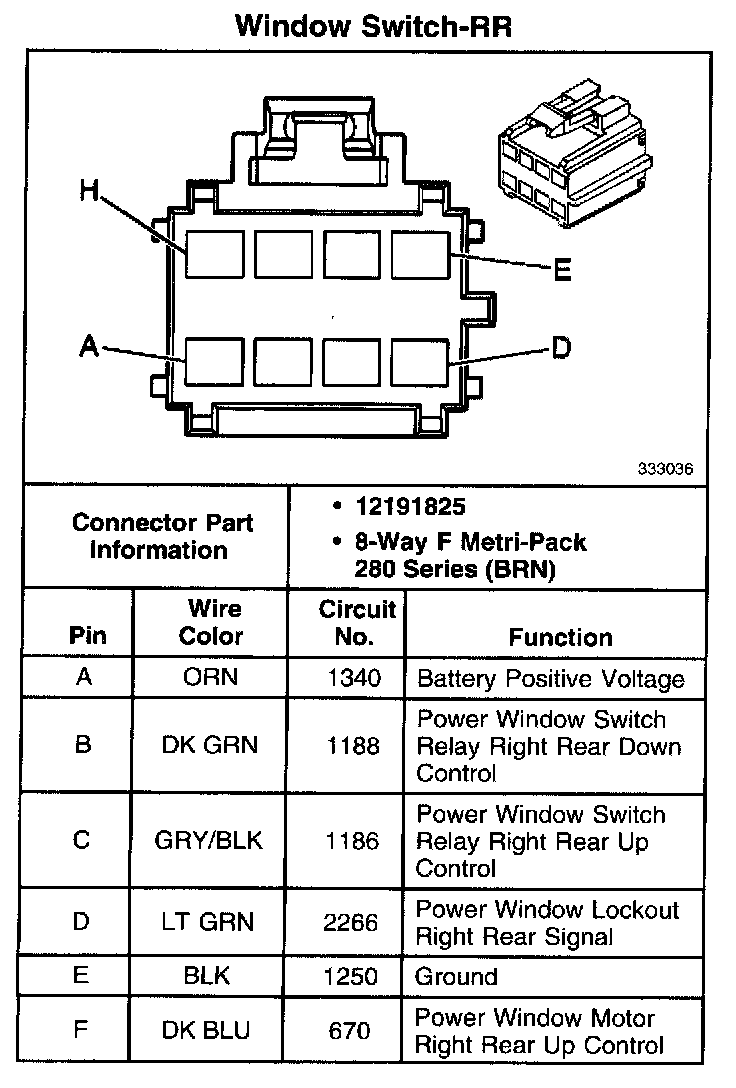

Window Switch - RR Part 1:

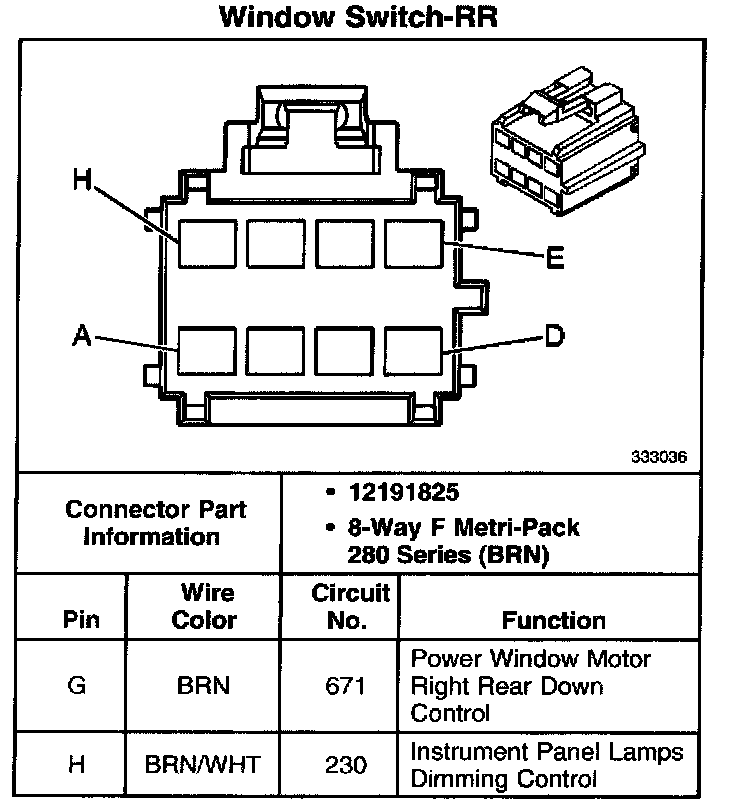

Window Switch - RR Part 2:
