Seat Temperature Switch

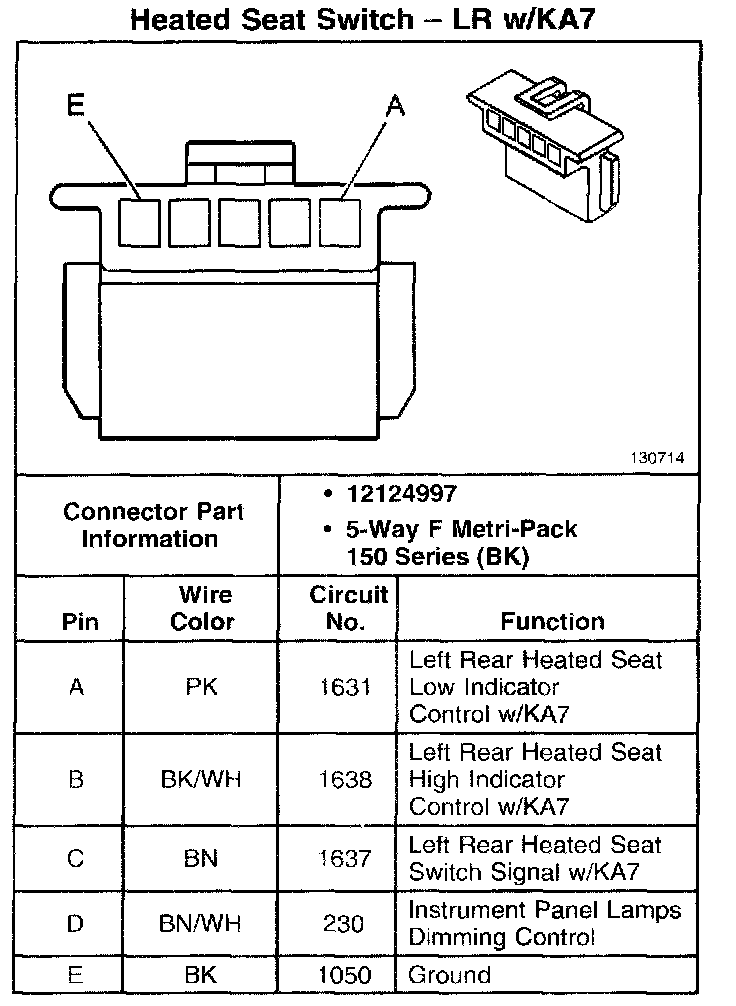

Heated Seat Switch - LR With RPO Code KA7:

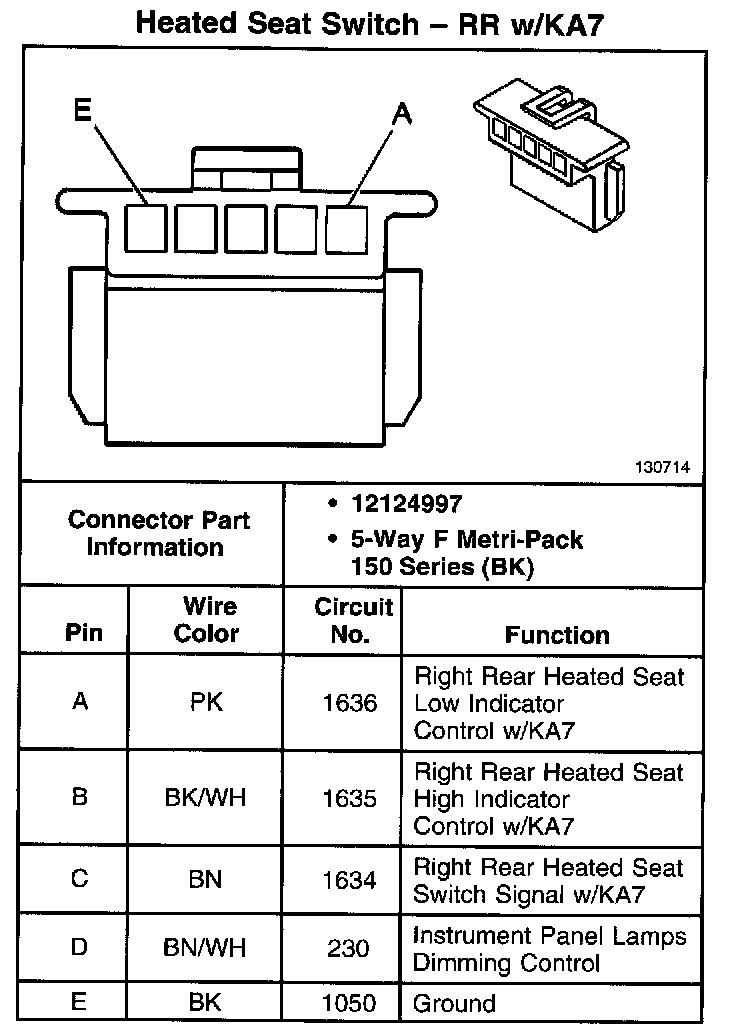

Heated Seat Switch - RR With RPO Code KA7:
