Case and Associated Parts

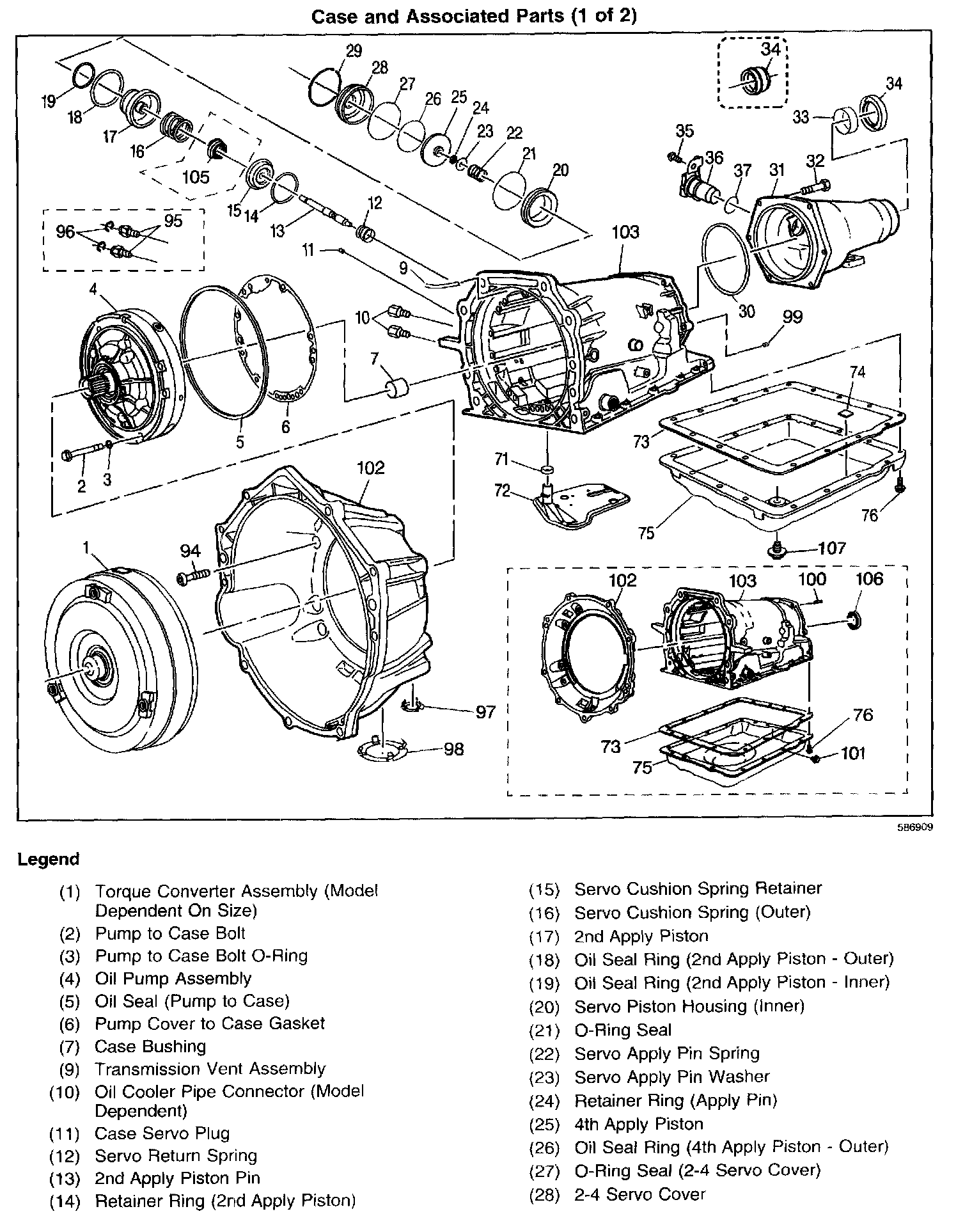

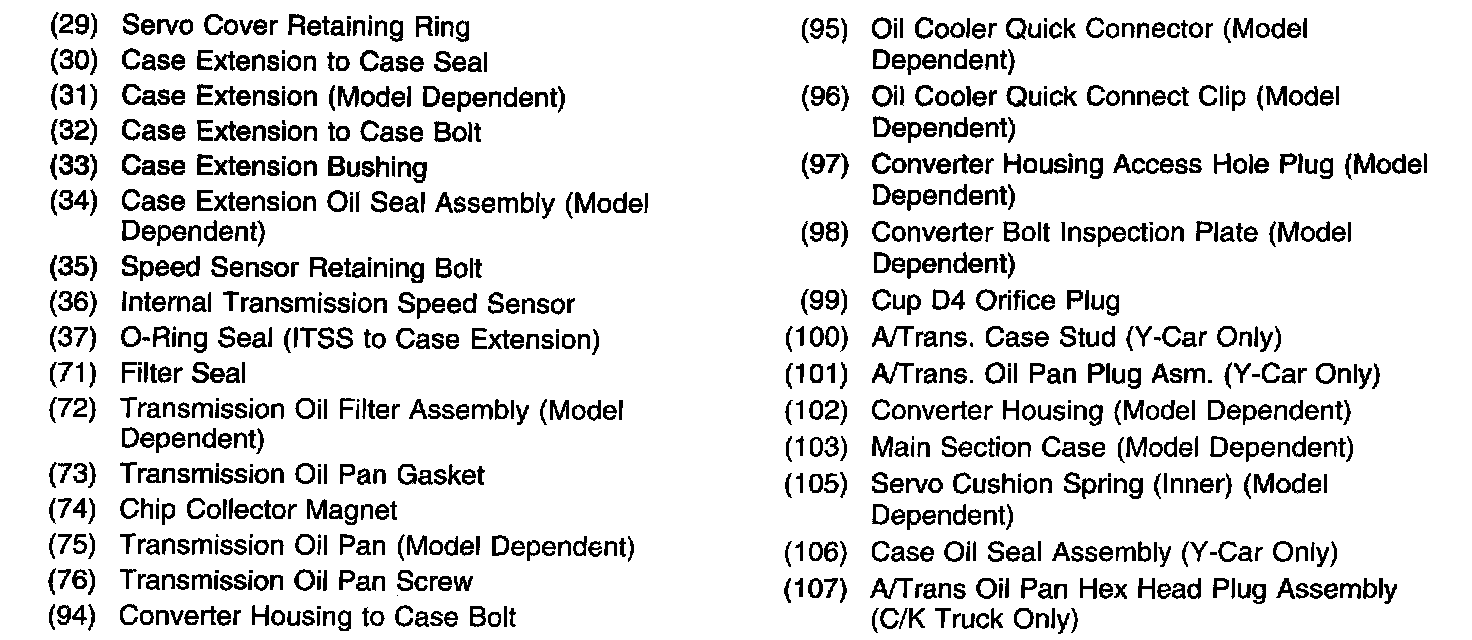

Case And Associated Parts (1 Of 2):
Case And Associated Parts (1 Of 2):

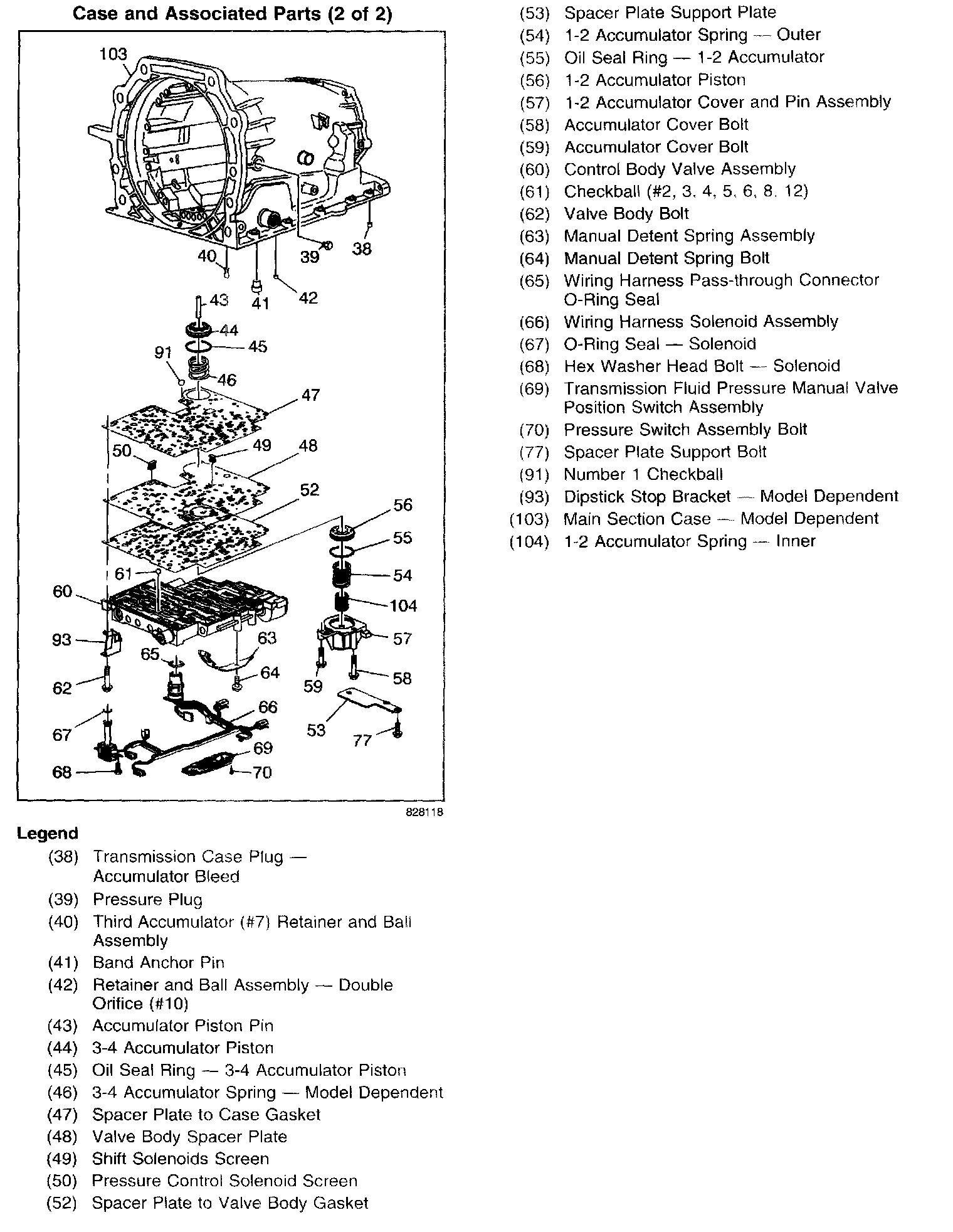

Case And Associated Parts (2 Of 2):
